@PLAAF Are the panels connected directly to the PC or via 12v USB HUB?

@PLAAF Ask for refund or replacement. If they do a replacement then it shows they are working on the product to fix issues it has, but if they are avoiding, you for putting out a review for their product has issues then ED should remove there posting from there website.

Updated the profile for the F-16C F-16C VIPER stream deck XL profile and 5x3 (digitalcombatsimulator.com)

@Wostg I also tried it last year to build the profile for the BS3 it does not work even entering the numbers manually it won't communicate only option will be keyboard shortcuts

@My_Name_Jeff I was playing around with it a few months ago but for master caution and the emergency brake and parachute deploy toggle switch works well with DCS bios. Since I am using Winwing MFD it will sit on top of it pretty well. I printed out the box but dam thing had a warping

I have been trying to do that but it doesn't work like combining the DCS-BIOS library with the joystick library on Arduino micro pro

I did sent them a email regarding that few weeks ago that they should have place on there website for a guide and a software, since I had to go thru UFCP without any instructions didn’t new it requires DCS BIOS and there software. I guess they want there every costumer to email them for instructions and for the software.

I was thinking about the right panel but the price $1100 is a big no no and with a lot of issues I think they released it too early. Nowhere to download the latest software. you will have to email/WhatsApp to get the software. They need to bring the price down by 50%.

@MAXsenna was not aware of that mod thanks

@PLAAF LOL, they forgot to add the landing gear override handle. I bought the UFCP from them, the encoders are useless and not working properly. Regarding the on/off toggle switch they probably not using the on/on switch wiring to the toggle that's why you can't use it on another module. There is a workaround by modifying one file. Let's try one example that will match the JF-17 AC Gen toggle switch with the Mig-21 AC Gen switch C:\Program Files\Eagle Dynamics\DCS World OpenBeta\Mods\aircraft\MIG-21bis\Input\MiG-21\joystick. There is a file called "default" that should be edited with Notepad++ {combos={{key='K',reformers={'RAlt'}}},down=device_commands.ACGenerator,cockpit_device_id=devices.AC_BUS,value_down=1.0,name=_('AC Generator'),category=_('Power')}, {combos={{key='K',reformers={'RAlt'}}},down=device_commands.ACGenerator,up=device_commands.ACGenerator,cockpit_device_id=devices.AC_BUS,value_down=1.0,value_up= 0.0,name=_('AC Generator 2-Pos ON/OFF'),category=_('Power')}, The top code is default and the bottom code is modified after editing save and in DCS World controls now you should be able to see AC Gen on/off set and assign this input to on only. The fun part is you will have to do this to all the modules you want to use with the Wefly panel

@FST_Bearcat The profile for the F-15E was updated few days ago try redownloading it, but ur also having issues with M200 and UH-60L recheck your settings in the config file, and should match with the Stream deck DCS interface

@Napillo Yeah, I wanted to dedicate UFCP for my deskpit for JF-17 cuz I mostly fly in that for the rest I use the stream deck. I am aware of the stream deck profile I have made for almost all the modules I own. Here are the links to my profiles: My Files (digitalcombatsimulator.com)

I think you have nailed it that it is somehow still communicating with pushbuttons at the moment the two empty buttons under A/P and FPM stay pushed which shows it still binds with the software where I would like is that the software-only control display and LEDs. There are a few other bugs that display don't sync missing the top row sometimes and require a restart of UFCP if you restart UFCP it shuts down or enables uncage throttle which should not happen to aircraft so even the power button acts or mimic pushbutton. From time to time it has a problem with not recognizing the pushbutton needs UFCP restart so totally a software issue I think they took a shortcut with disable option. For me, the UFCP BRT knob reads the input in the game but does not really work I compared it with the Winwing MFD knob the Winwing work perfectly. I will probably need to talk with them tomorrow if they can replace my unit with axis knobs or at least a working knob. for $500 + shipping I need everything to work. I hope we didn't get a half-backed potato haha.

@PLAAF thanks will try, no I don’t have a channel just using the stream deck to control the game via stream deck interface and DCS bios

Updated the F-15E profile F-15E Stream deck XL and 5x3 profile (digitalcombatsimulator.com)

@PLAAF thanks works better, sometime i had issue with L4 arrow key had to unplug and plug back power to UFC. Rotary knobs are sluggish hard to map maybe they can mimic them to axis like winwing has done

Those are great inputs after they completed the whole JF-17 cockpit hopefully they can sell parts individually. Then the user can build however they like. Behind the UFCP there are a couple of connections that look like they are for the chute/emergency pull brake/master caution/status lights which will be easier than don't require another USB connection to a PC.

where are the DTC eject and DTC insert buttons?

@PLAAF My bad I think I may have mixed some files they provided to make it work, I have 3 versions of their software can't tell which one is which I also had that problem press and hold I just switch few files and it worked let me test it today again, hopefully, they roll out the update soon

@PLAAF That's the old software try this link http://cdn.diycockpit.com/software/DCSCockpit.zip IF the UFCP doesn't sync try this but only copy the monitor files: www.pcflier.com/ufcp.zip

@PLAAF I also bought the UFCP only but the display didn't sync only when I added the monitor file that was provided from the WhatsApp link it worked and sync.

@PLAAF for me everything is working fine now with minor issues still present are FPM and HNS don't work knobs are sluggish that's something with the software. Contact them on the whatsapp you will need three files that you need to drop into the monitor setup folder but don't change anything in the game setting for the monitor view.

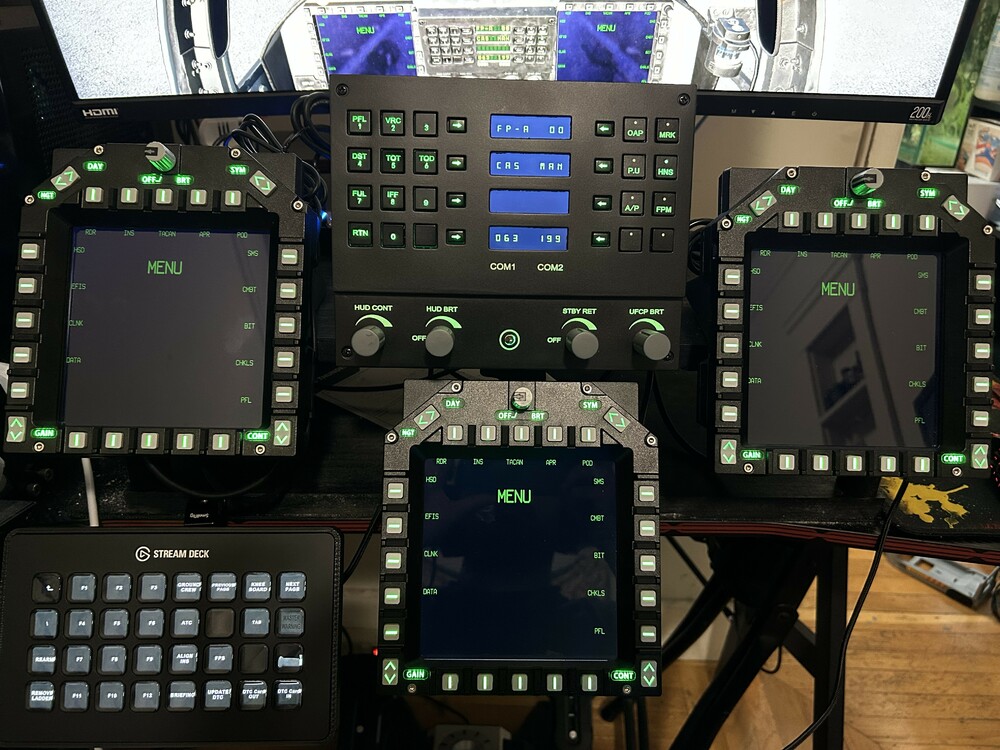

I got the UFCP couple of days ago without any instruction provided, so I thought it was just plug-and-play like it says on the website. I had to contact Wefly to get the software that was needed to connect with the panel. It was glitchy at 1st the buttons weren't working properly the knobs were sluggish. Contact them again regarding that they sent me a new link to the updated software still have a minor issue with it FPM and HSM not working. I hope they just unbind all the buttons and knobs from DCS BIOS and let the user just assign pushbuttons/knobs to the game settings. DCS Bios only control the display and led lights. On their website, there are download sections where they should have the latest updated software but it's empty. I guess they are new to the market. The overall great product the shipping was super fast. No one is making anything for Jeff besides them.

SU-30MKI is the main aircraft for India so most likely not going to happen but would love to have it in the game even if they did low fidelity model The most recent it took part was in the 2019 Balakot airstrike it's interesting to read up on where F-16 and JF-17 face off against SU-30mki and Mig-21 poor mig-21 tho wish we had a map of that region

@Wostg just redownload I added the 5x3 profile
