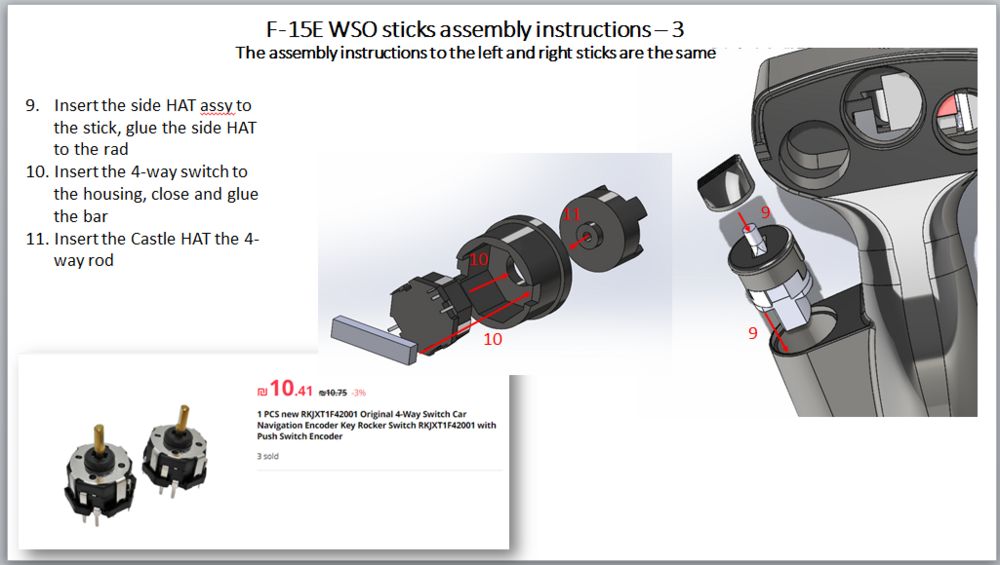

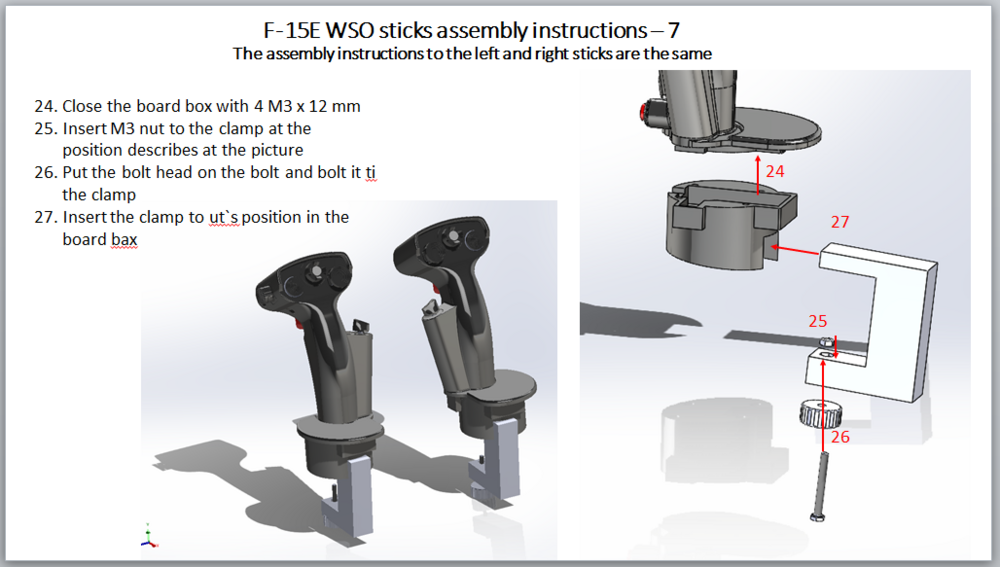

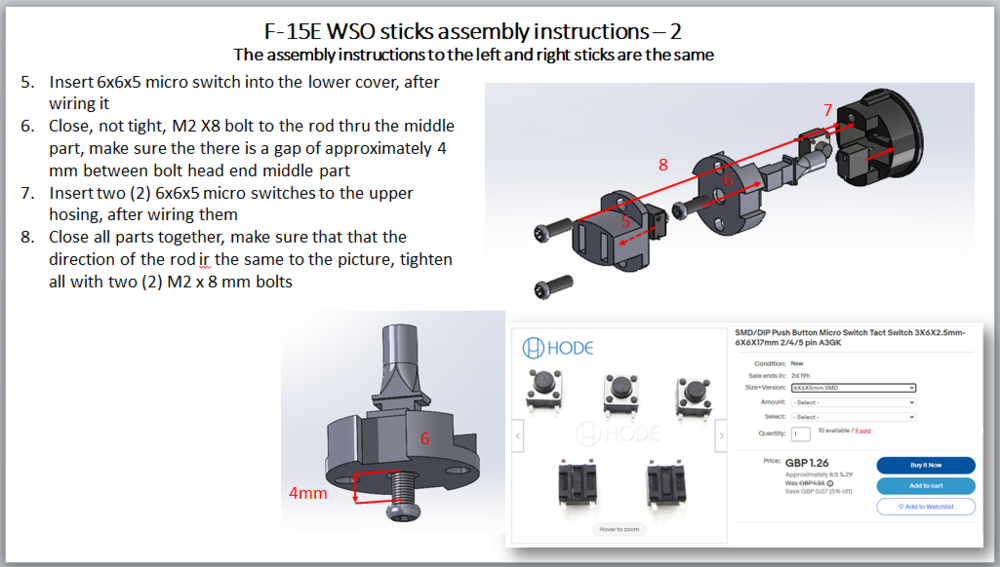

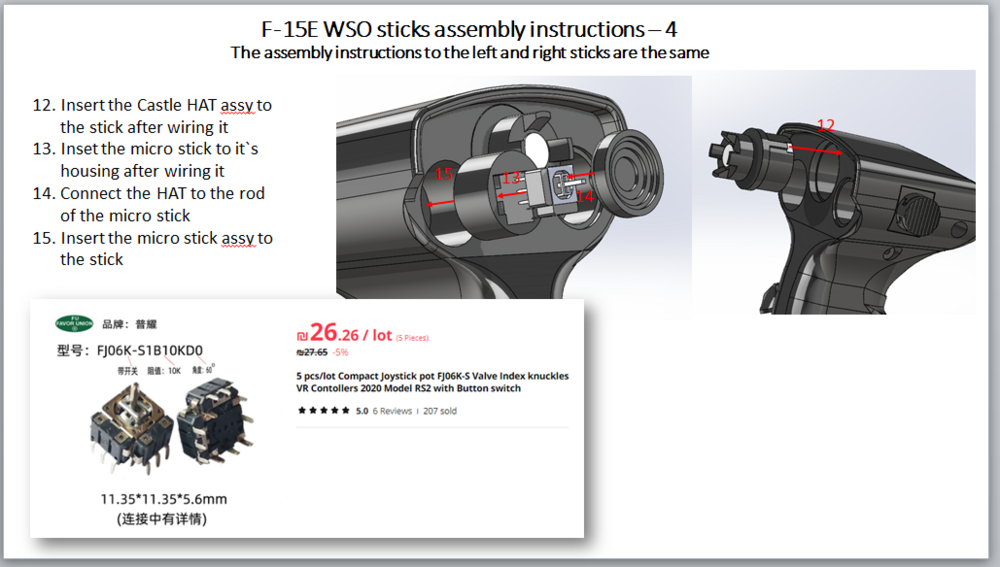

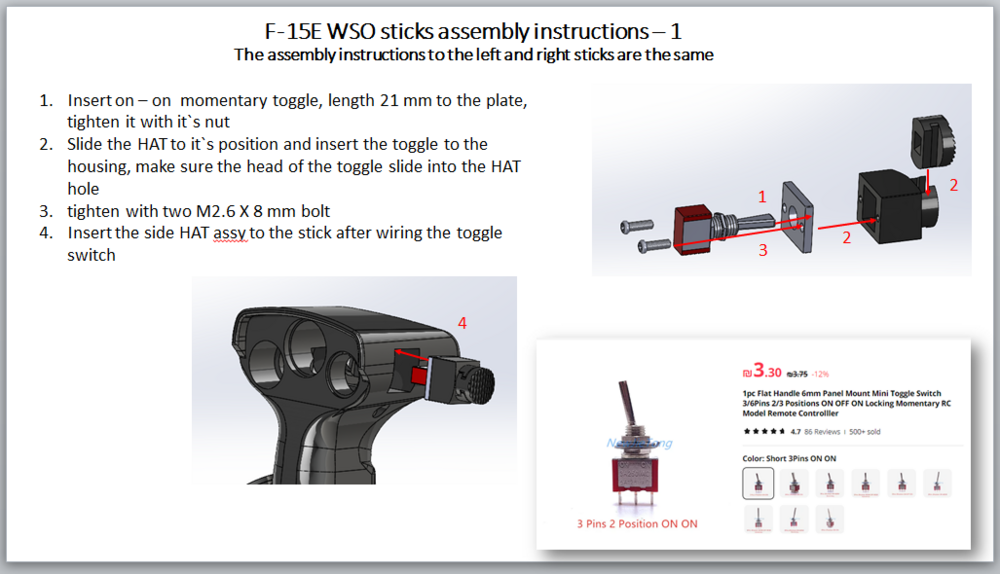

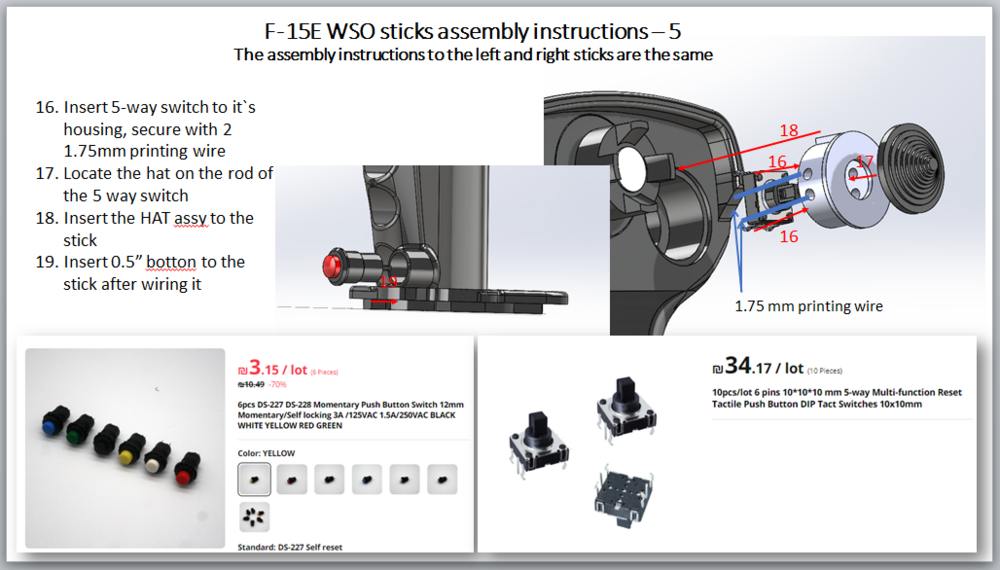

Hi, Want to share the WSO sticks project. you can find the design here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-15e-wso-sticks-for-3d-printing-with-all-functional-buttons here are some pictures:

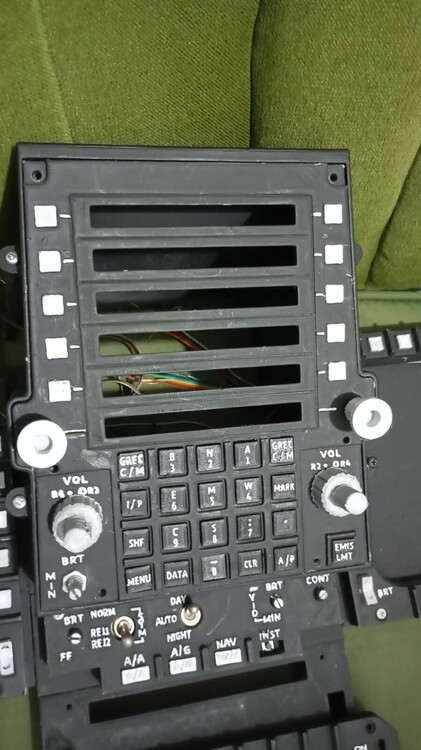

Hi, I design an UFC for the f-15E from 3d printing. you can porches all models from here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/diy-f-15e-ufc-replica-for-sims The design includes 6.5" TFT screen, and all buttons, encoders and potentiometers needed for it Here are some pictures:

Yes, I plan to

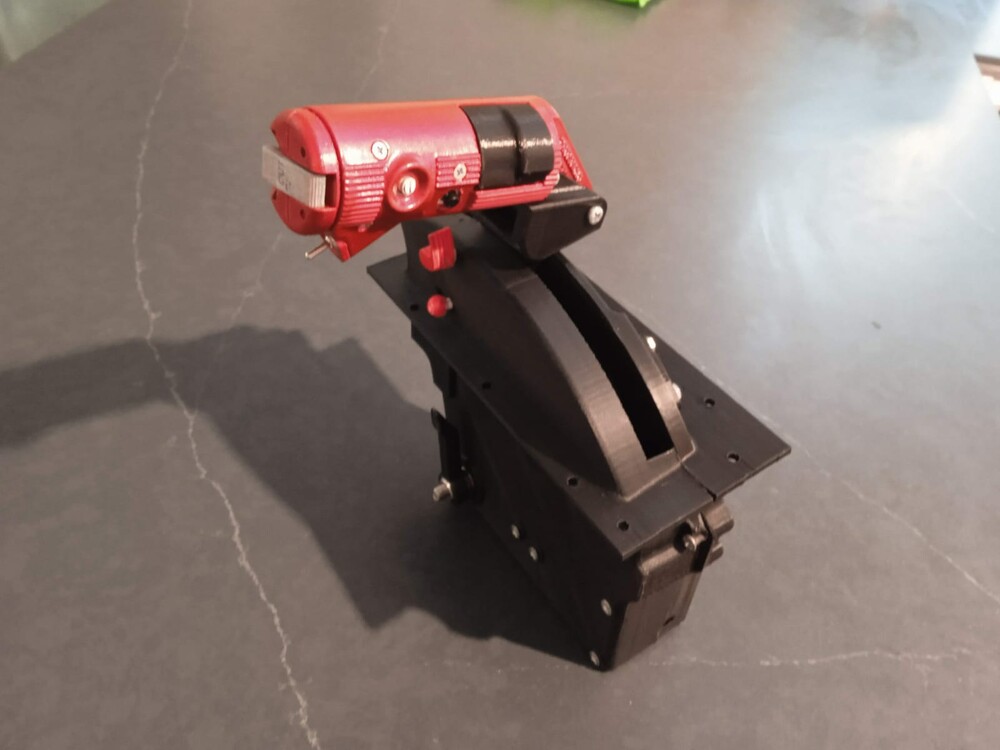

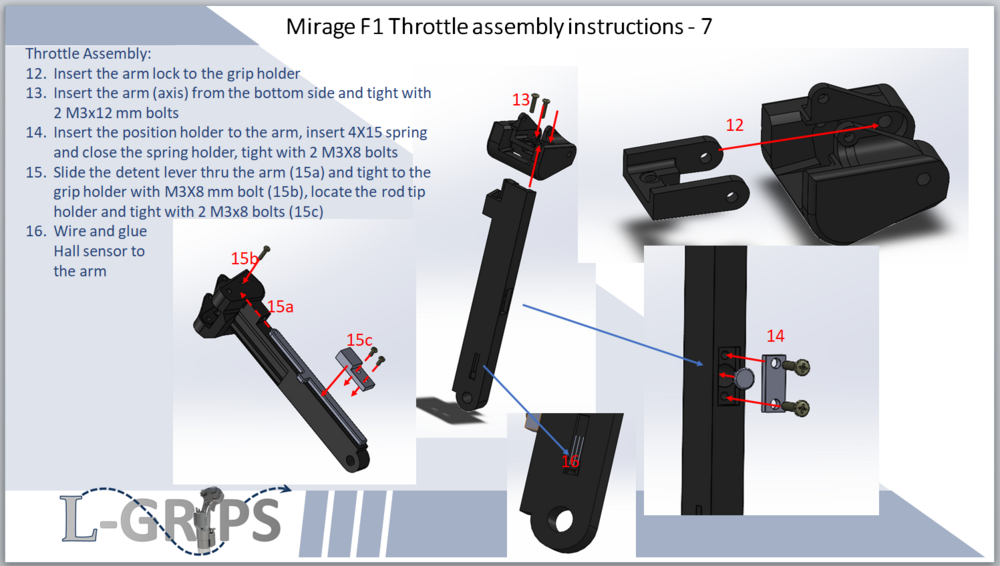

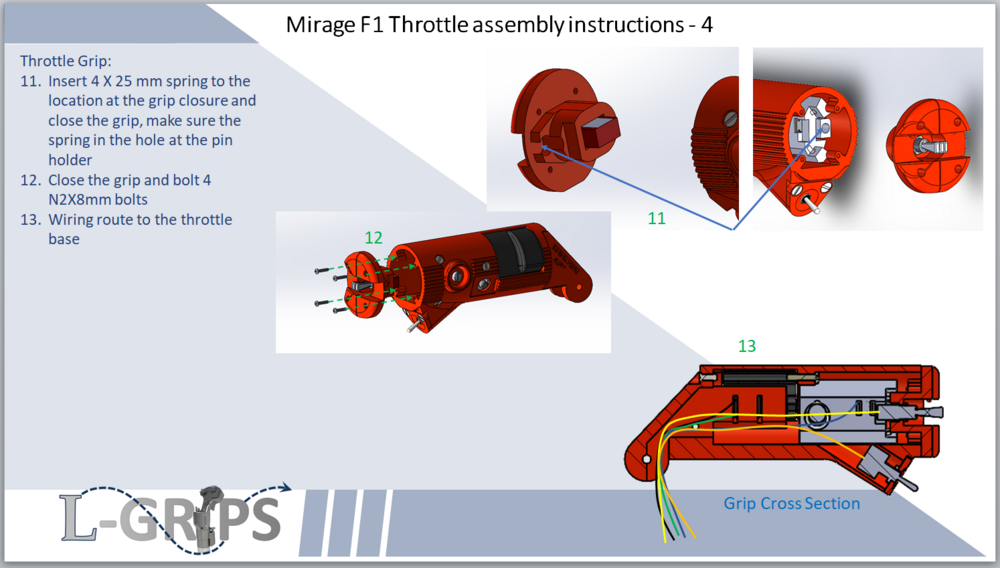

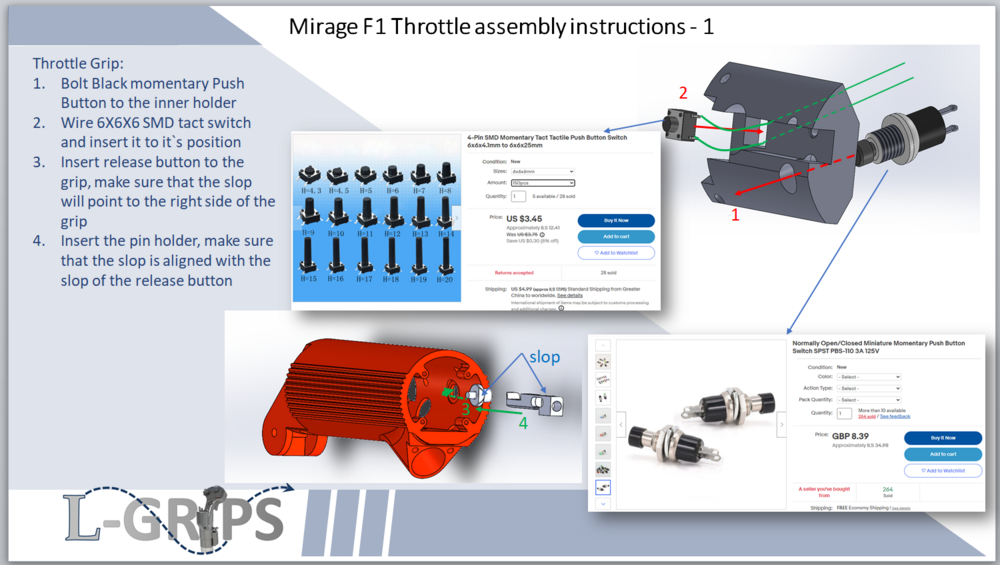

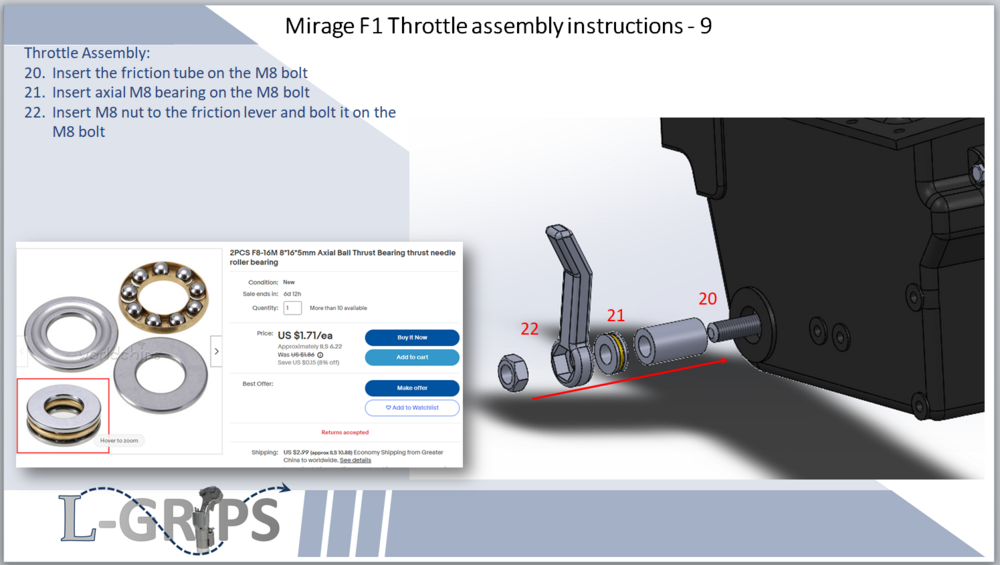

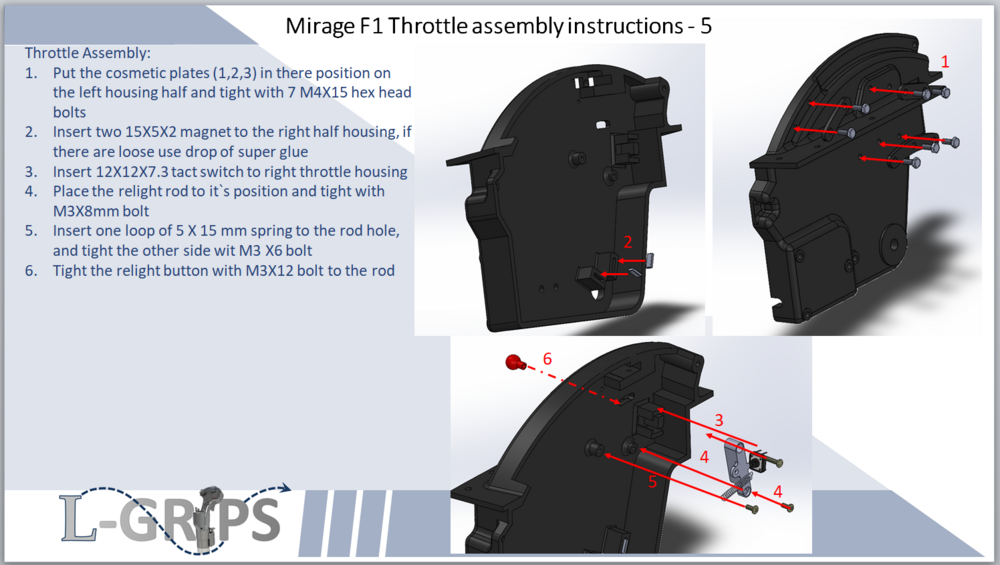

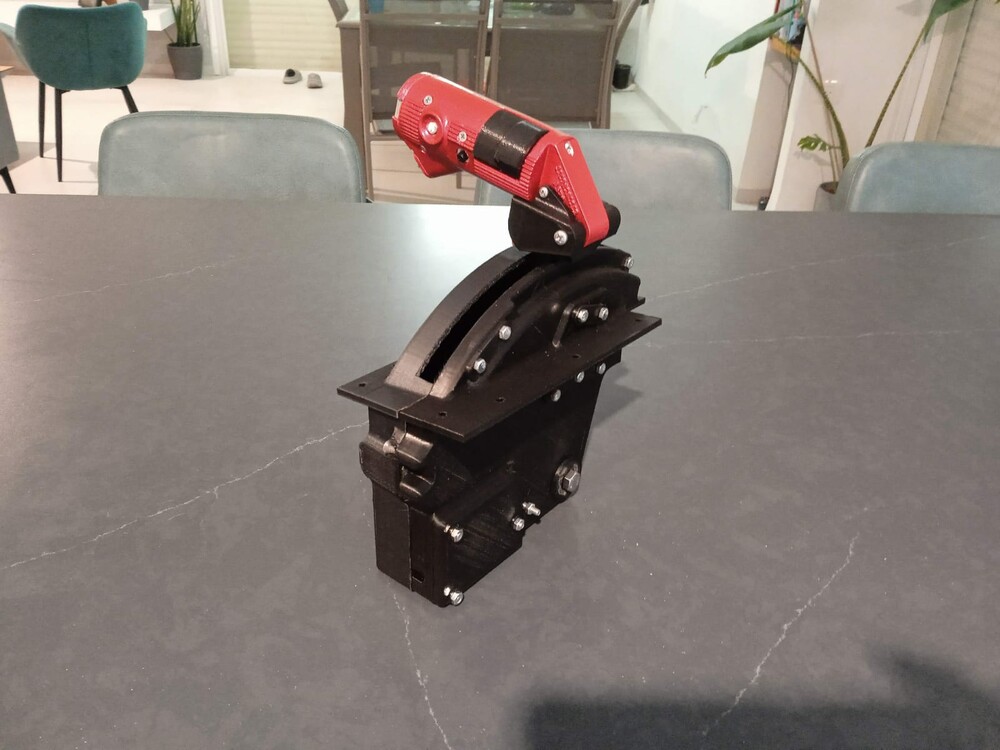

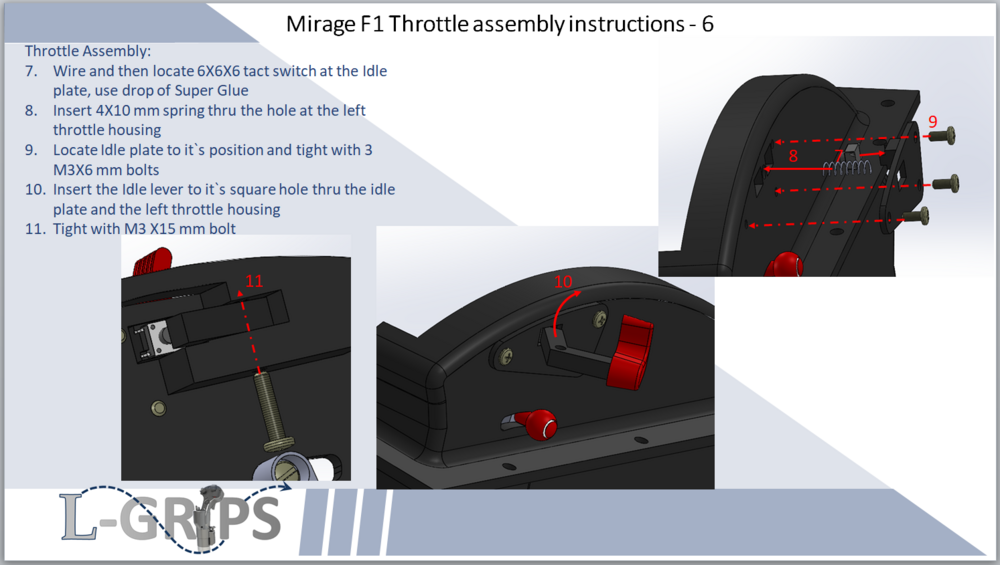

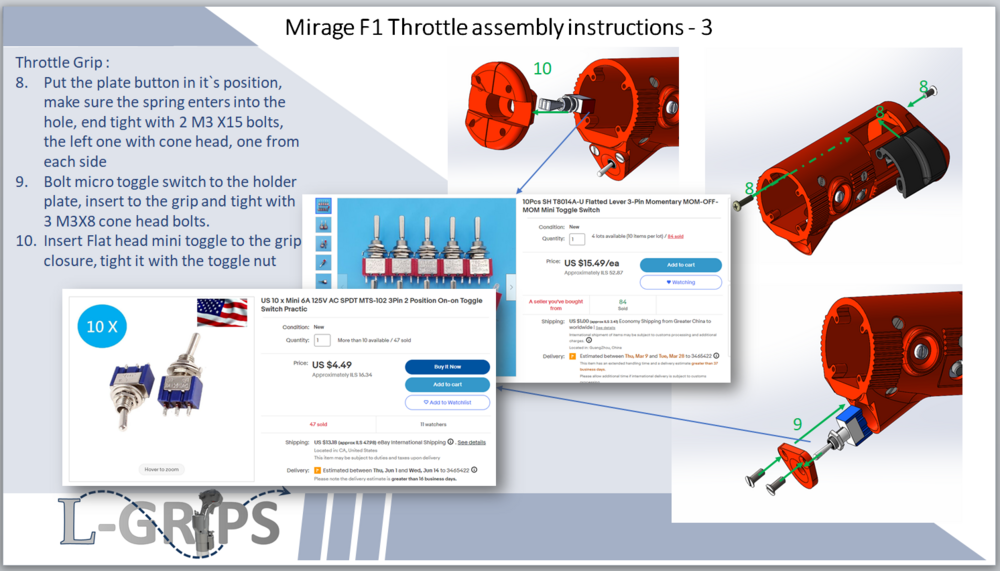

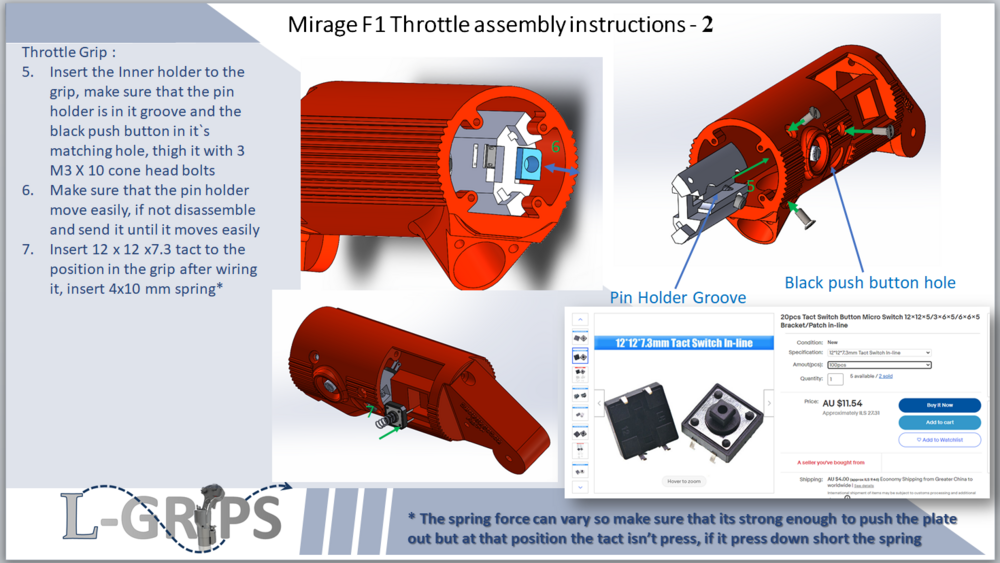

Hi all, Wanted to share with you 3D printing of the mirage F1 throttle I design and built. all STL files can be purchase and built your own: https://www.cgtrader.com/3d-print-models/hobby-diy/other/mirage-f1-throttle-assembly-for-simulation every detail works like the real throttle and its including the detents, lever and switches. WhatsApp Video 2023-05-06 at 11.22.29.mp4 here are some pictures:

Hello, Want to share one of my projects: 3D printing cyclic for DCS AH-64D. I have design based on pictures a 3D model which can be print, assemble and wire with simple commercial components. The model is available here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/ah-64d-apache-cyclic-3d-printing-model-with-electric-componenets

Yes, it work as a 4 way Hat very good

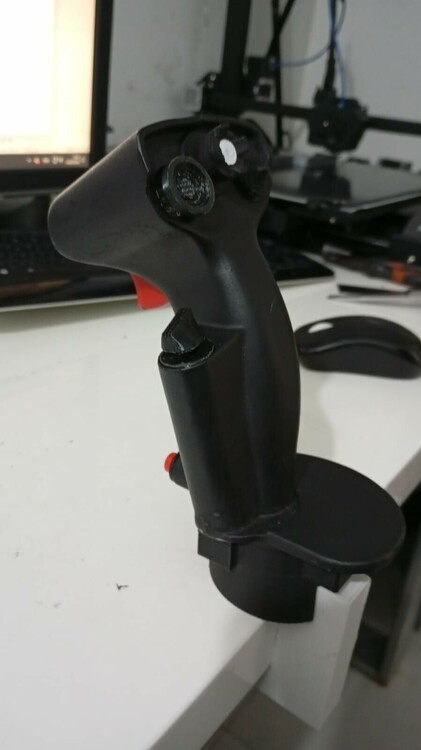

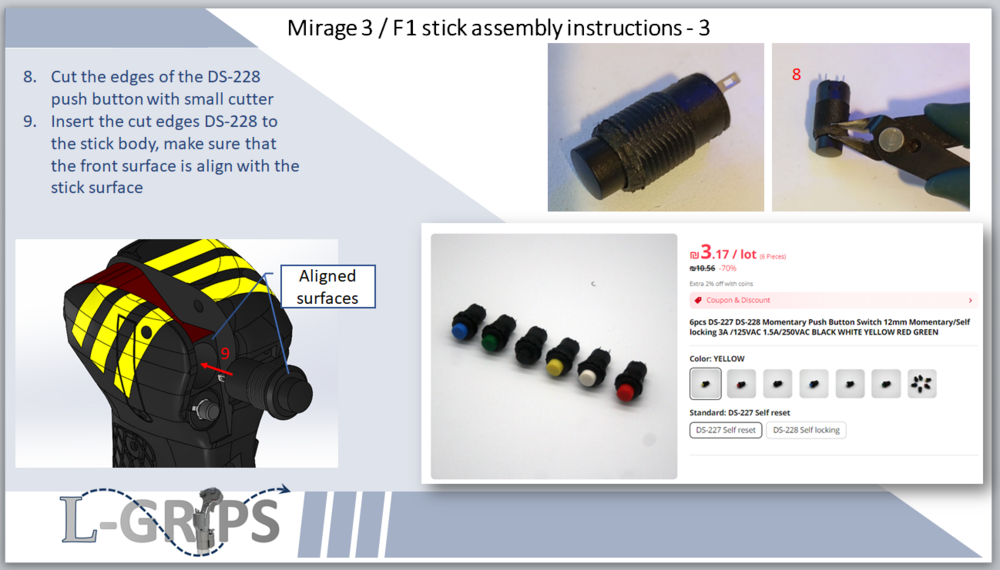

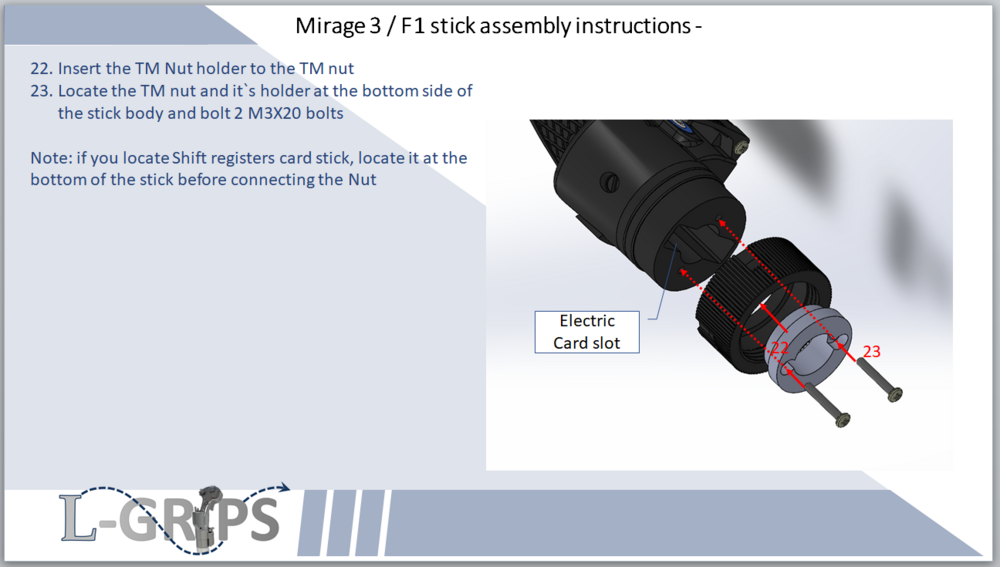

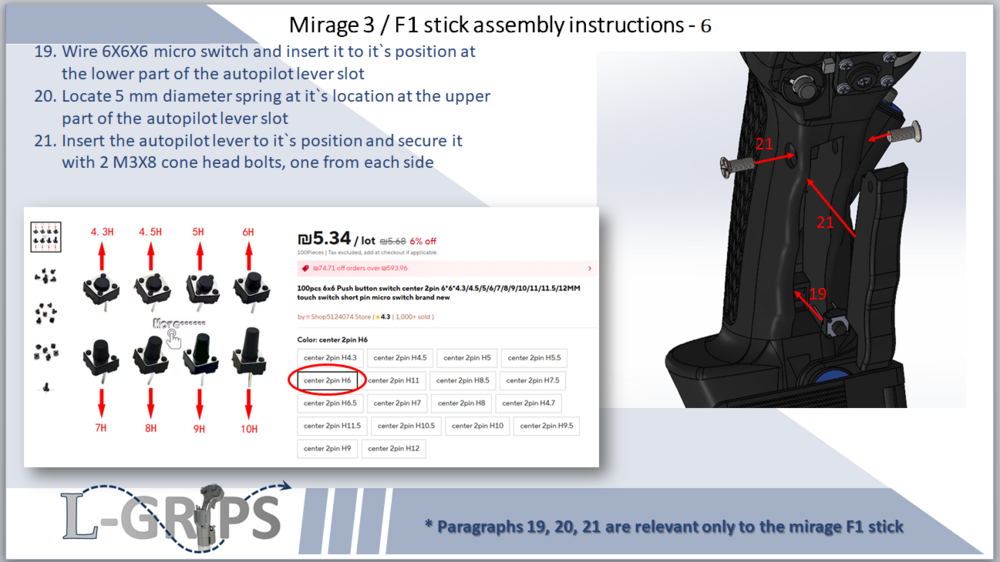

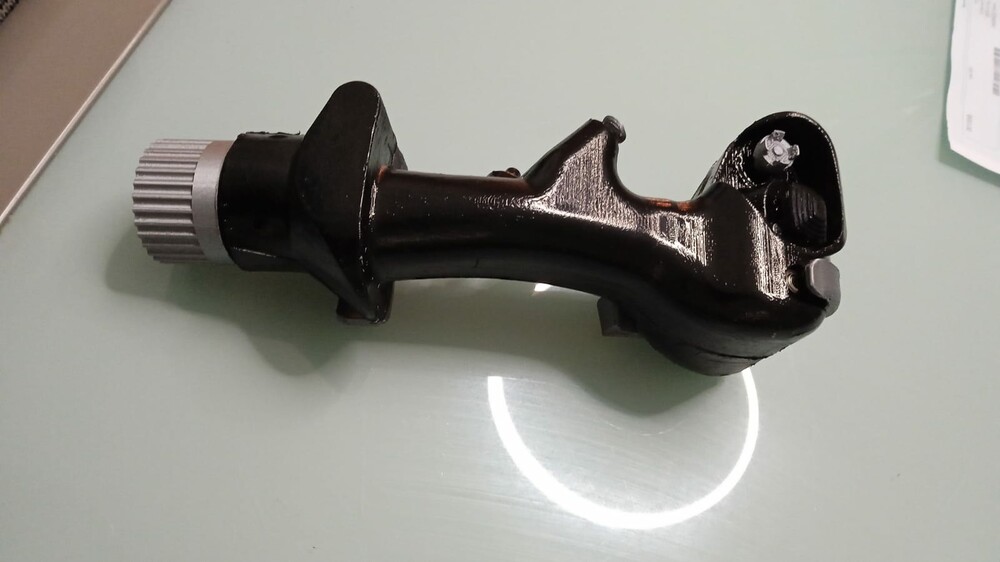

Hi all, Just want to share one of my projects: 3D printable M2000 stick with electronic part suitable for simulation (interface for TM thread) The dimensions are very close to the real thing (except the AP lever that does not there ). Use with very simple commercial micro-switches and toggles. You can get it here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/mirage-2000-stick-for-simulation-with-all-buttons-and-switches

Hi all, Just want to share my latest project: 3D printable ICP with housing for homebuilt cockpit or desktop: The dimensions are very close to the real thing (except the wheels diameter and the right toggle position). Use with very simple commercial micro-switches and toggles. You can get it here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-16-icp-for-pc-simulations-with-electronics-parts-fitted nullnullnullnullnull

These are the toggles: they don`t rotate and they have 2 flat faces

I spent days to model it, including several design in order to replicate it and to fit standard 7" tft screen. I really don`t think that you appreciate correctly the amount of effort invested on it

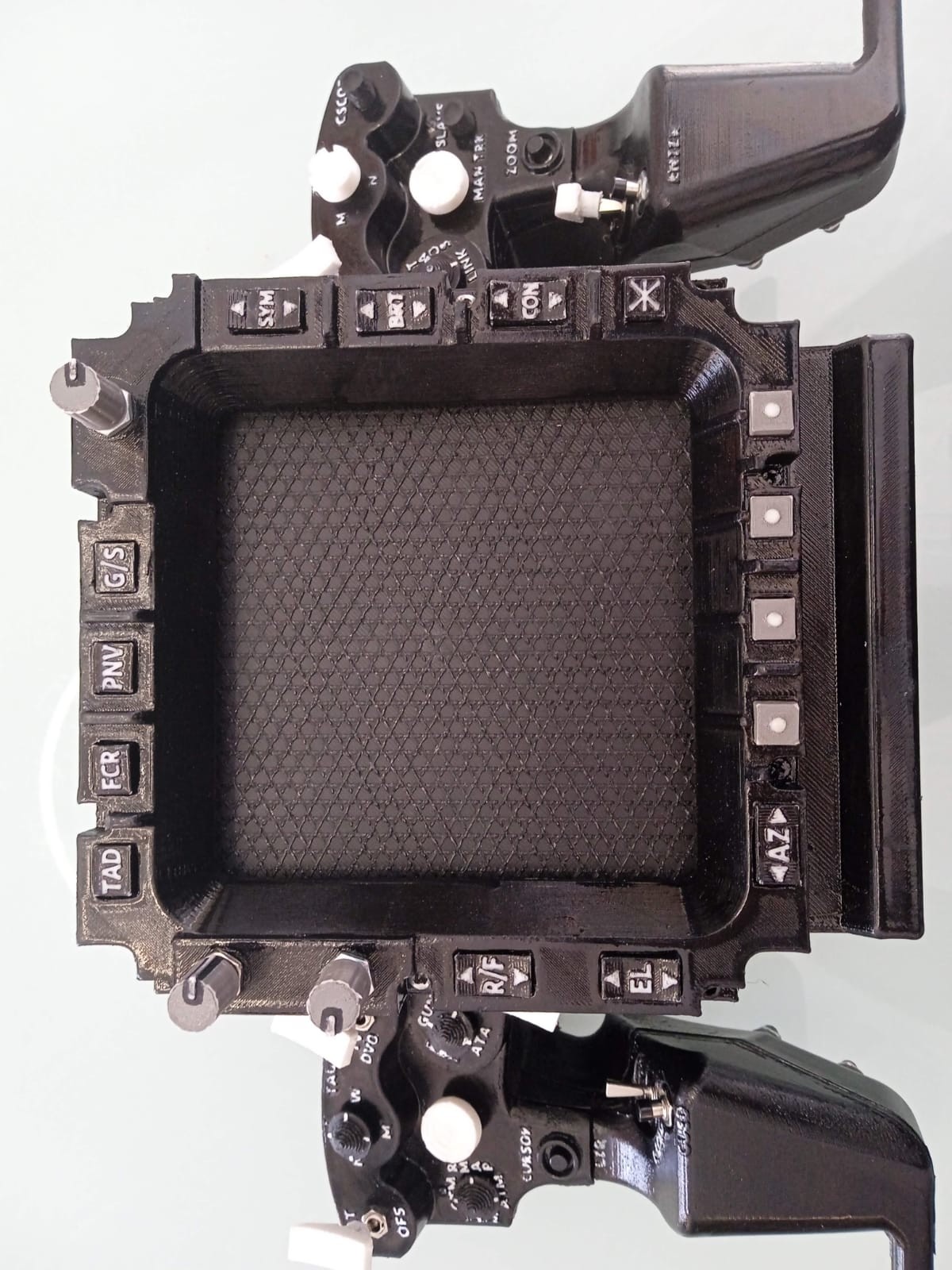

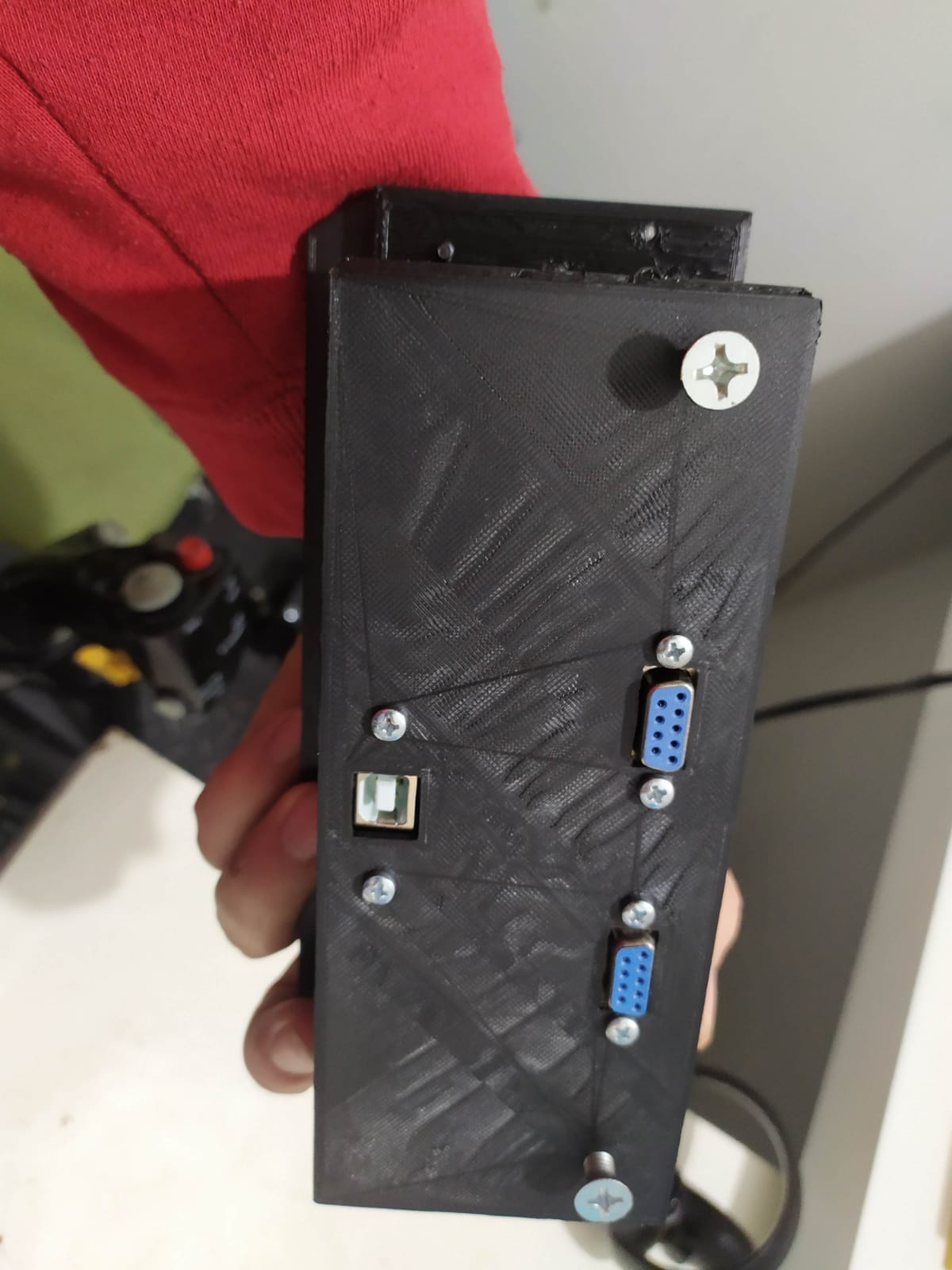

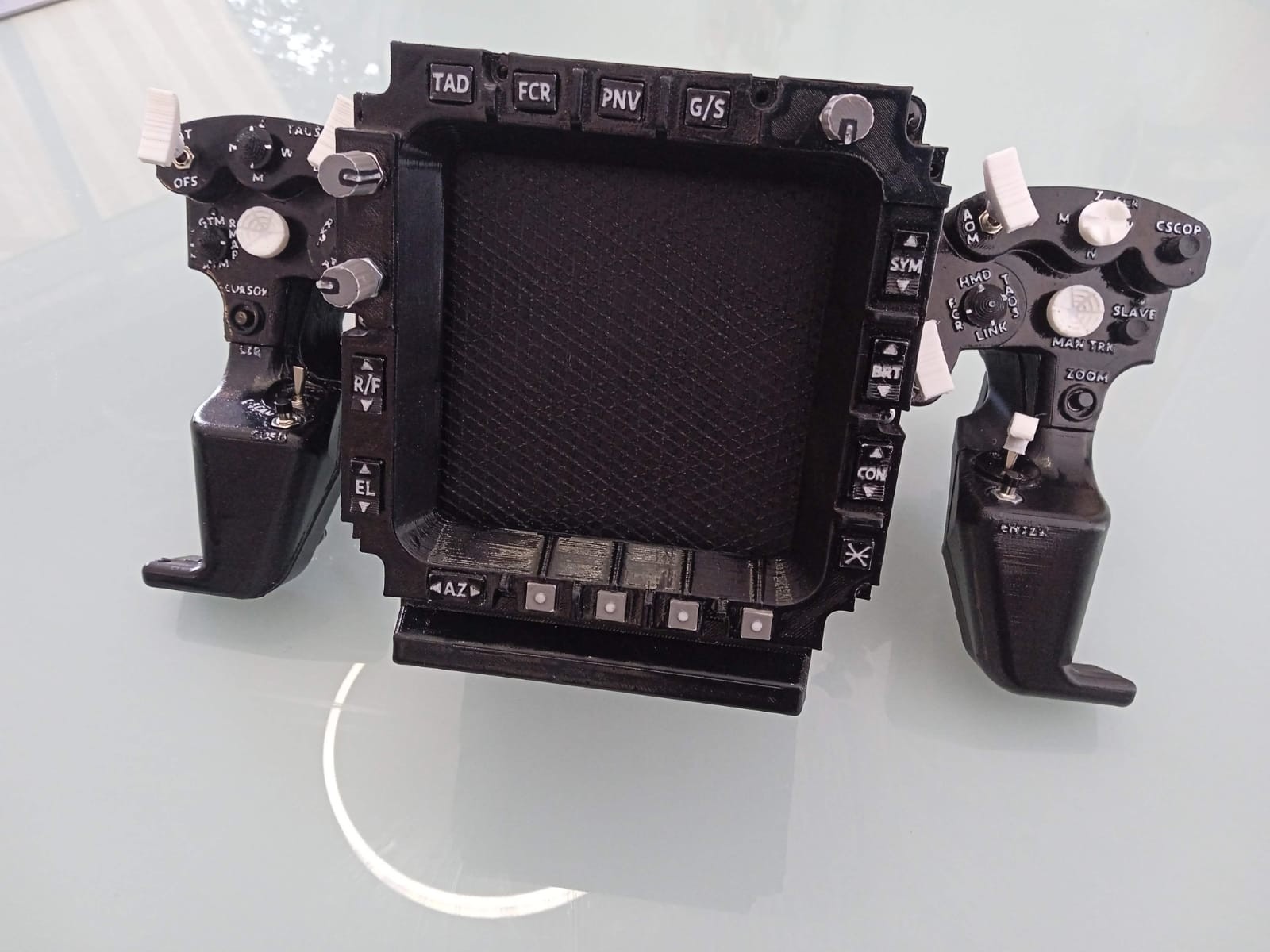

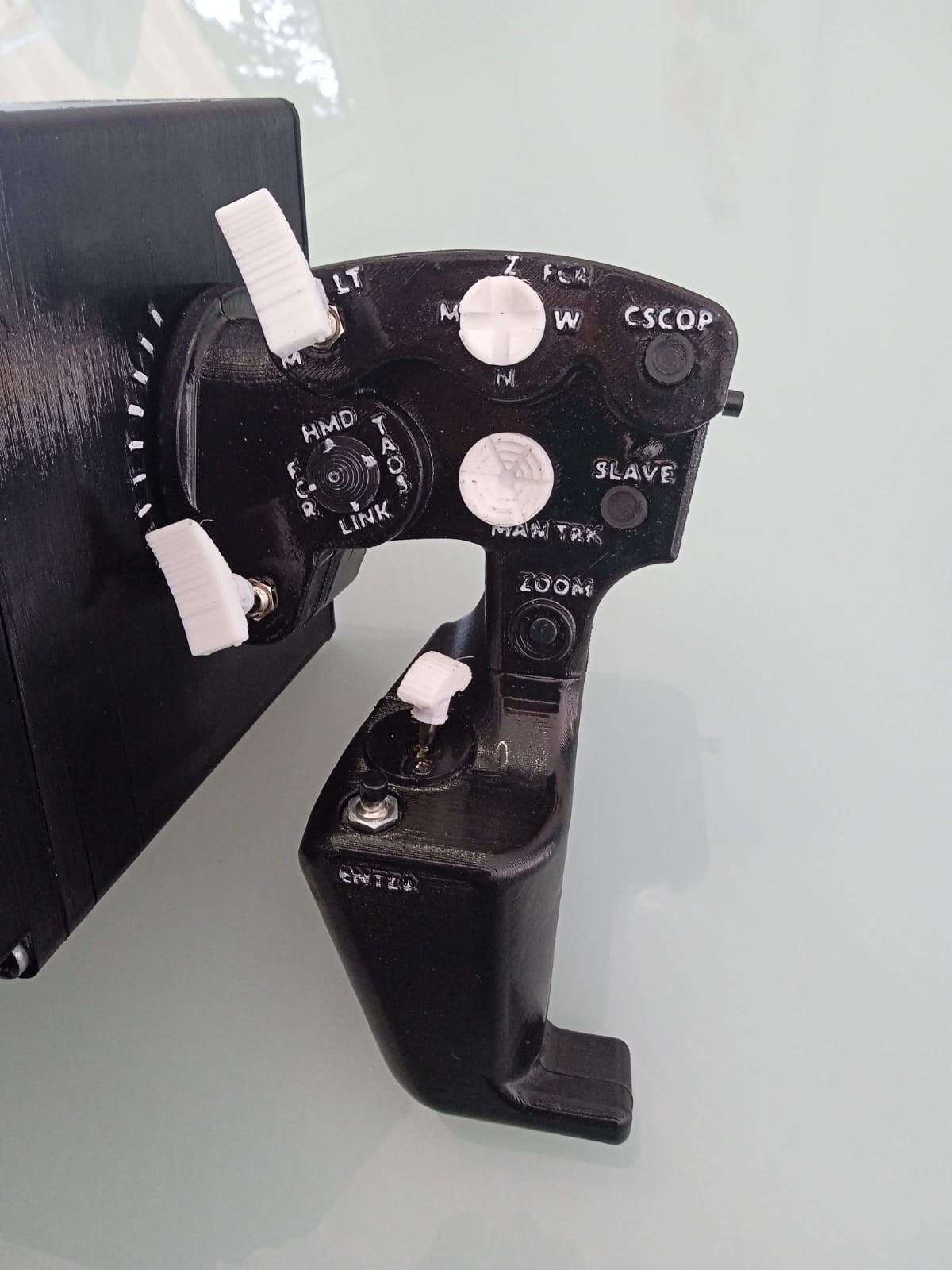

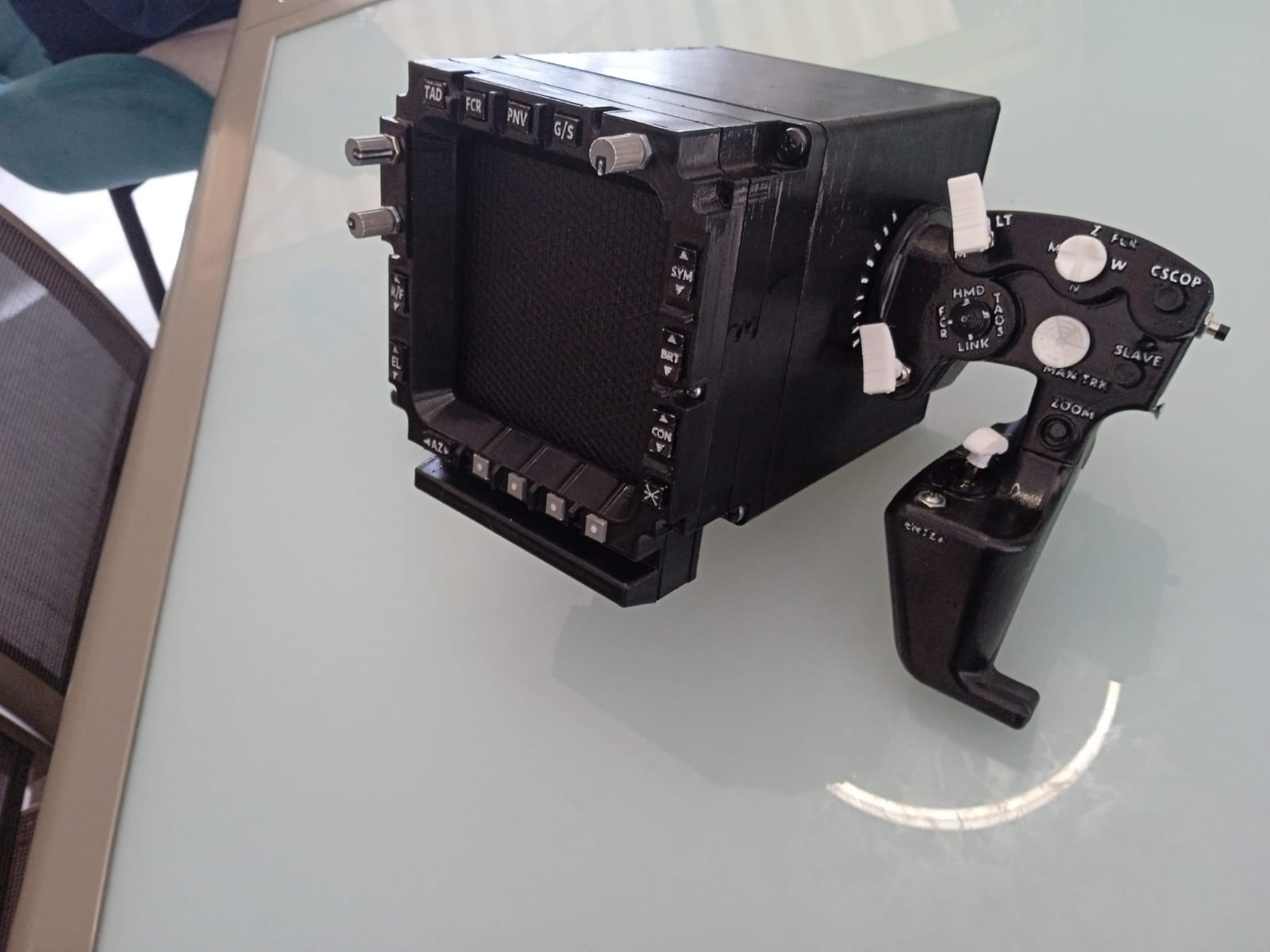

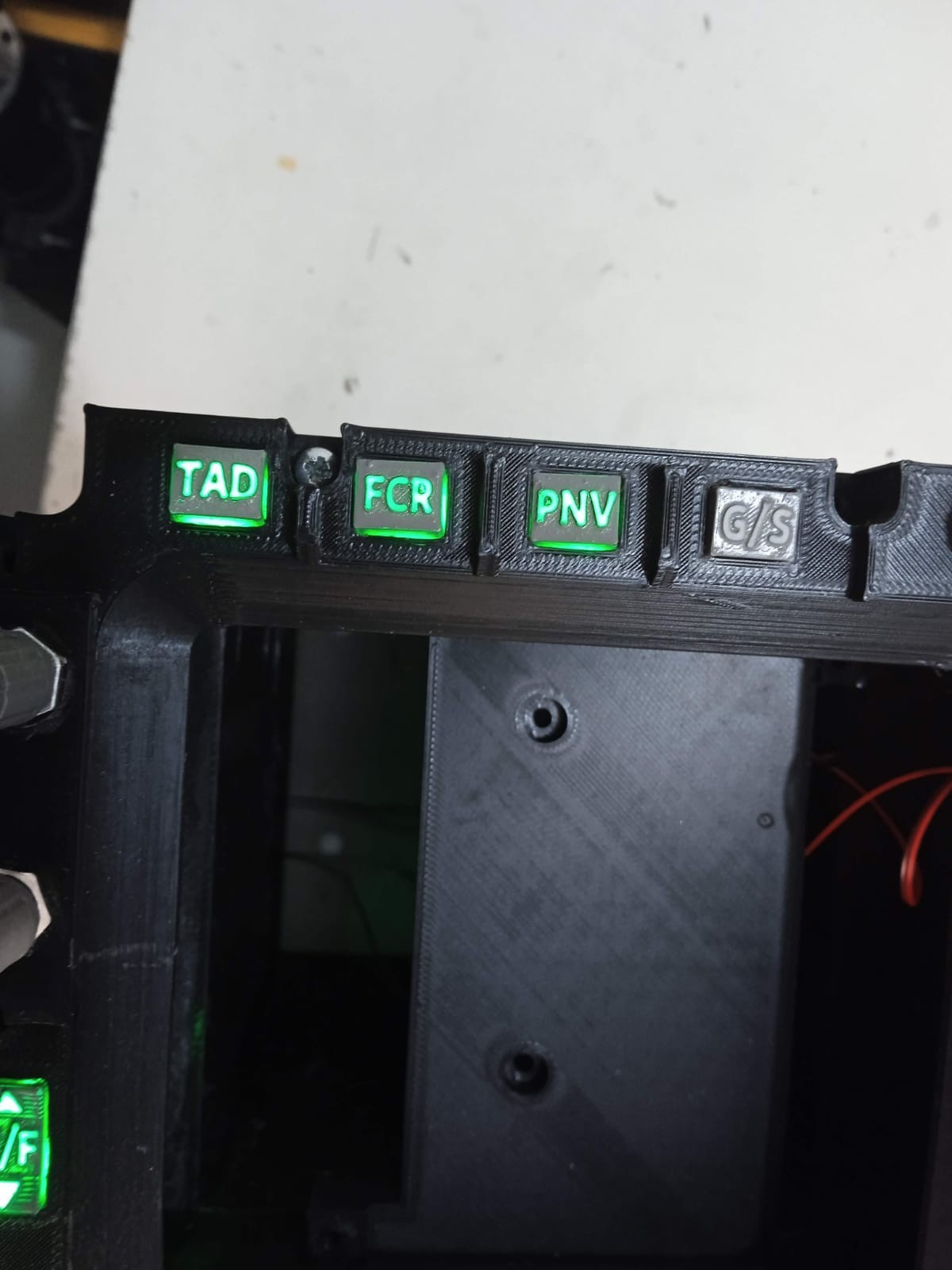

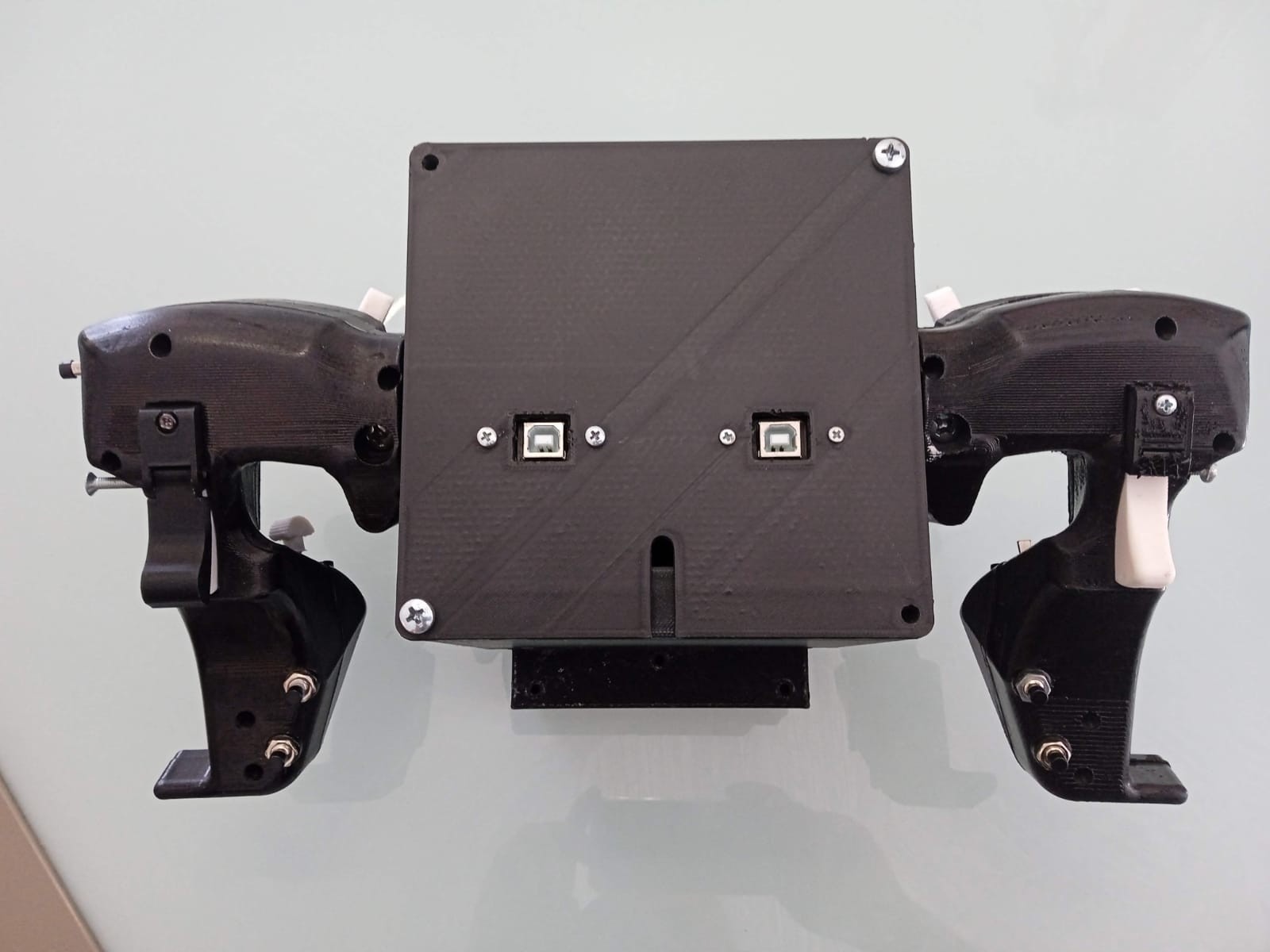

Hi all, I have design and printed the TDU + hand grips for the CPG. It`s working with the DCS simulation via 2 Adruino micro. some pictures attached. 7 inch TFT screen can by House inside by design, I use VR so I don`t really need it If you want the design, you can get it here: https://www.cgtrader.com/3d-print-models/hobby-diy/other/right-and-left-ah64d-cgp-hands-grip-and-tdu-tedac-3d-printing Regards Sagi

HI, I have design and printed a fully operational HCU model Her is the link for it: https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-16-left-hand-panels-bundle-models Enjoy

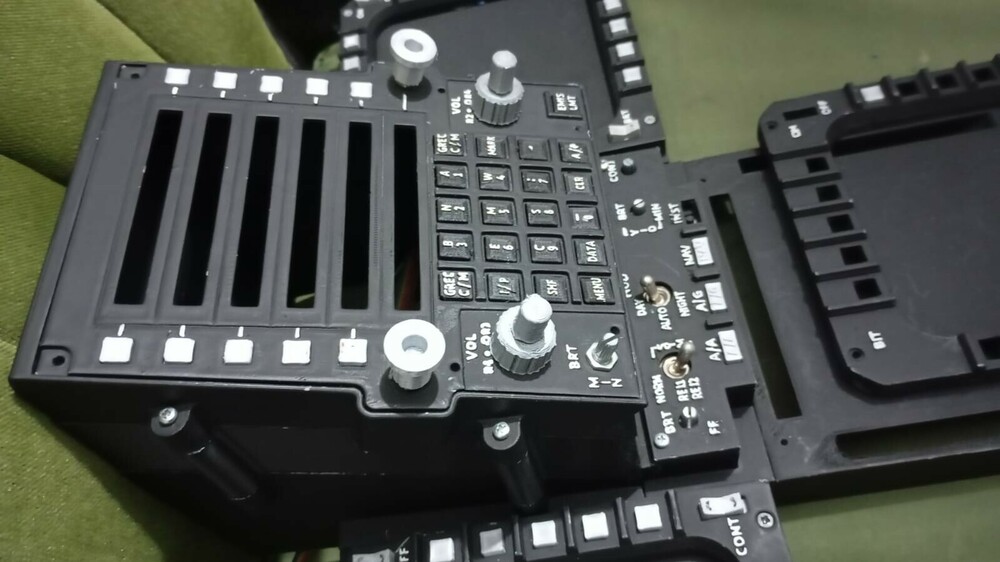

Here are models for 3D printing of all the Viper cockpit panels: https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-16-right-hand-panels-model-bundle https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-16-left-hand-panels-bundle-models enjoy

for additional buttons outside of the panel

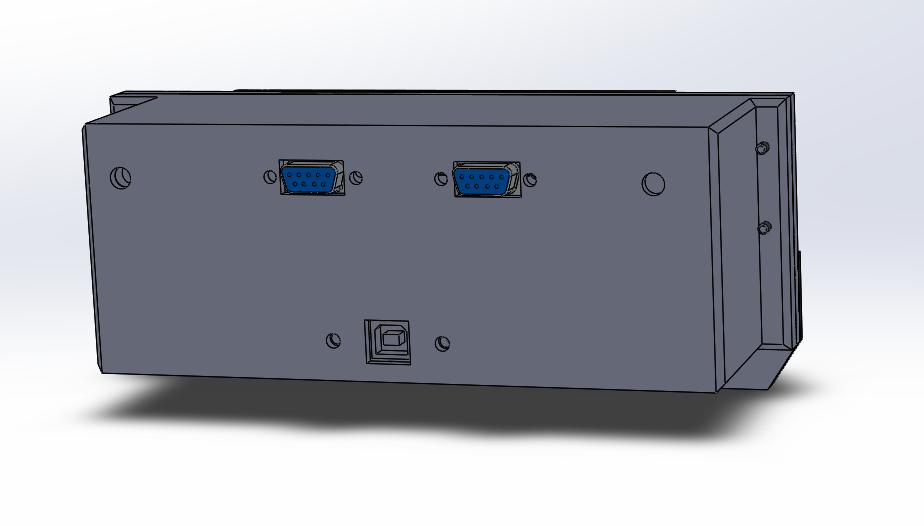

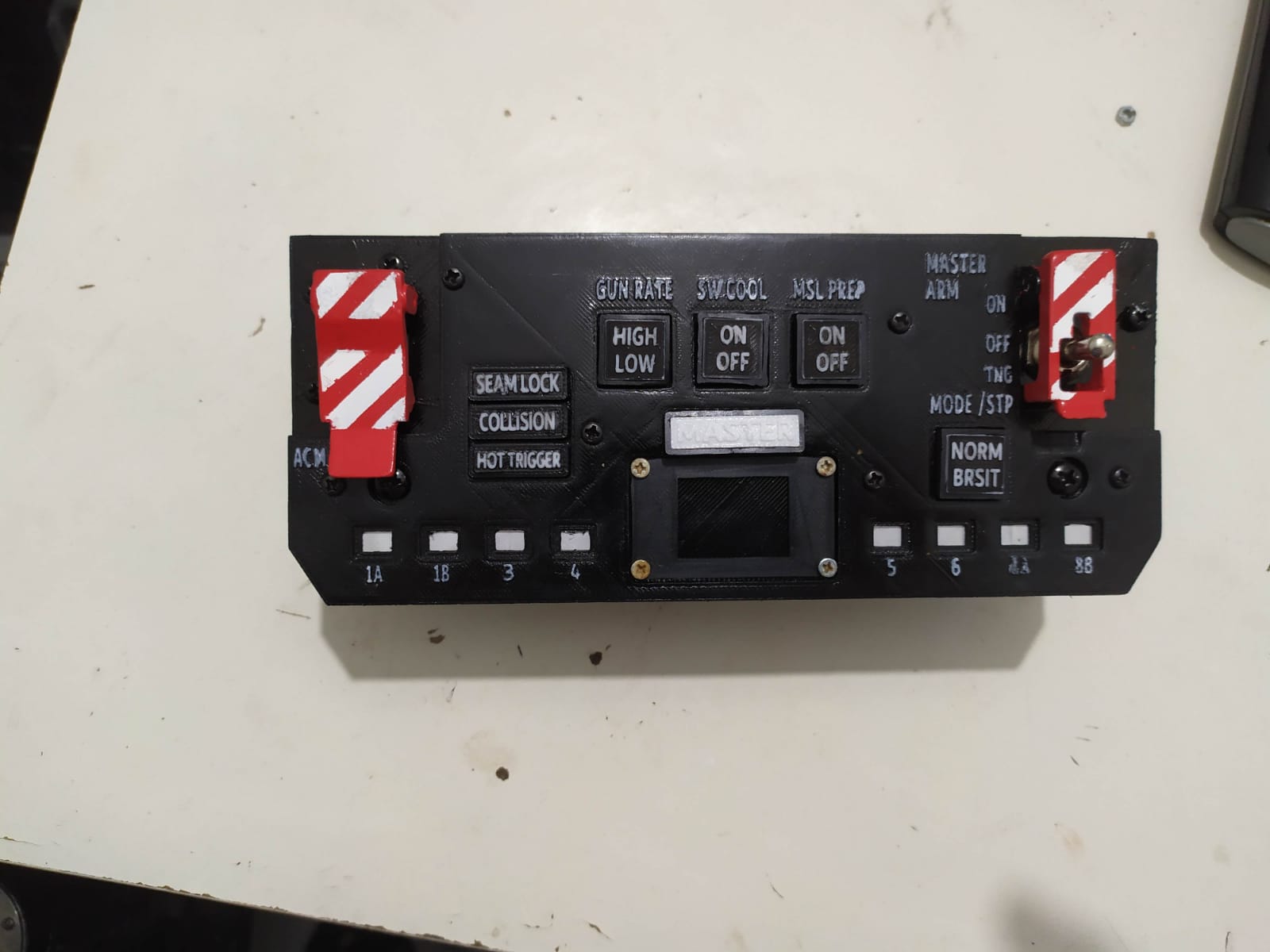

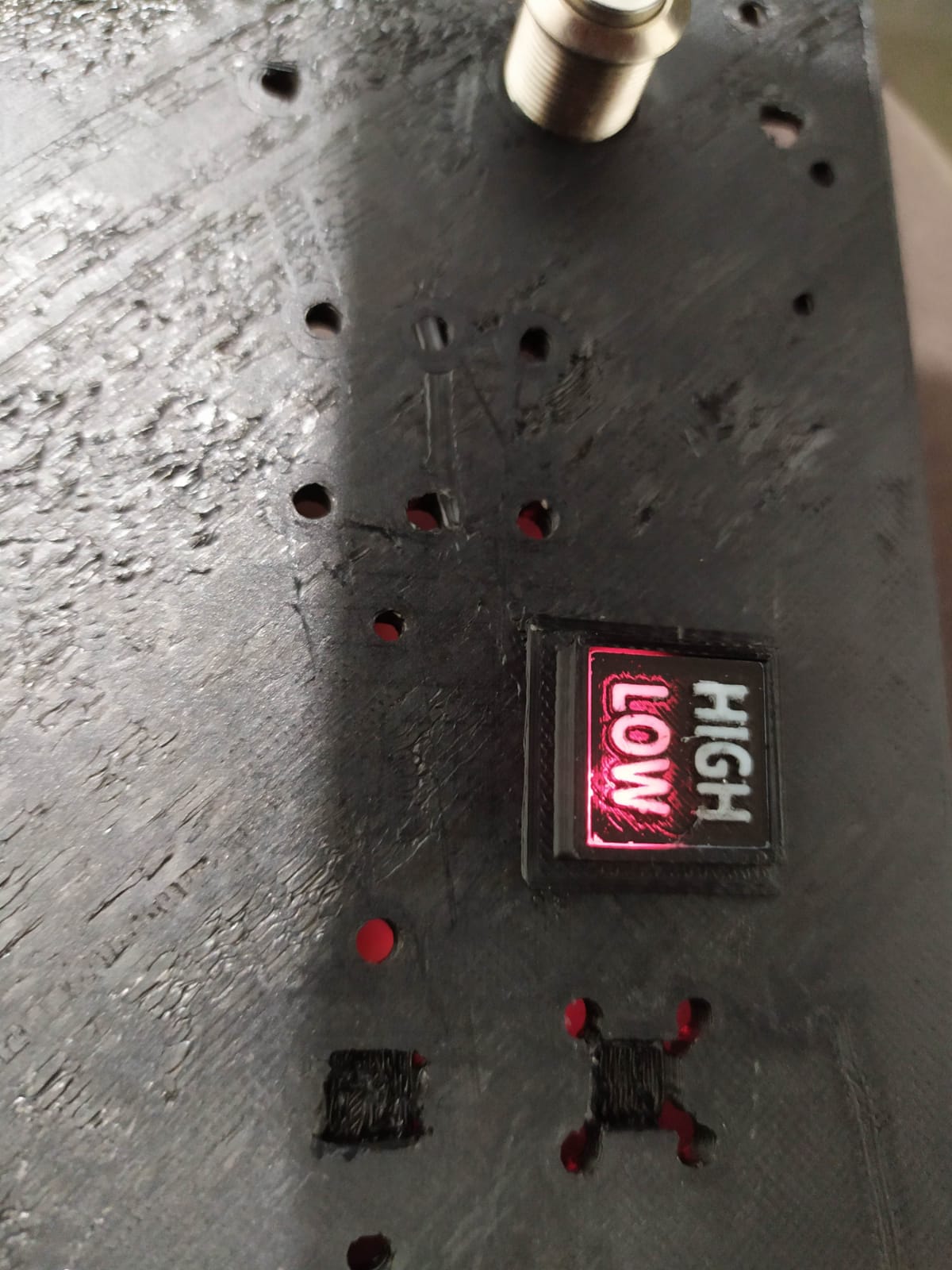

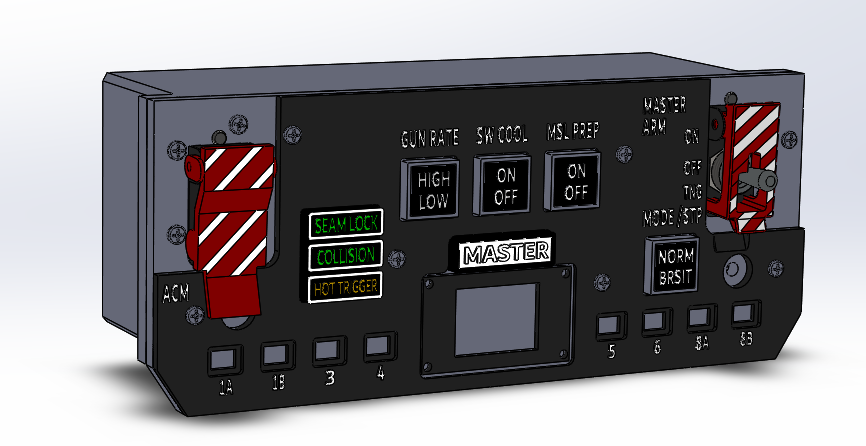

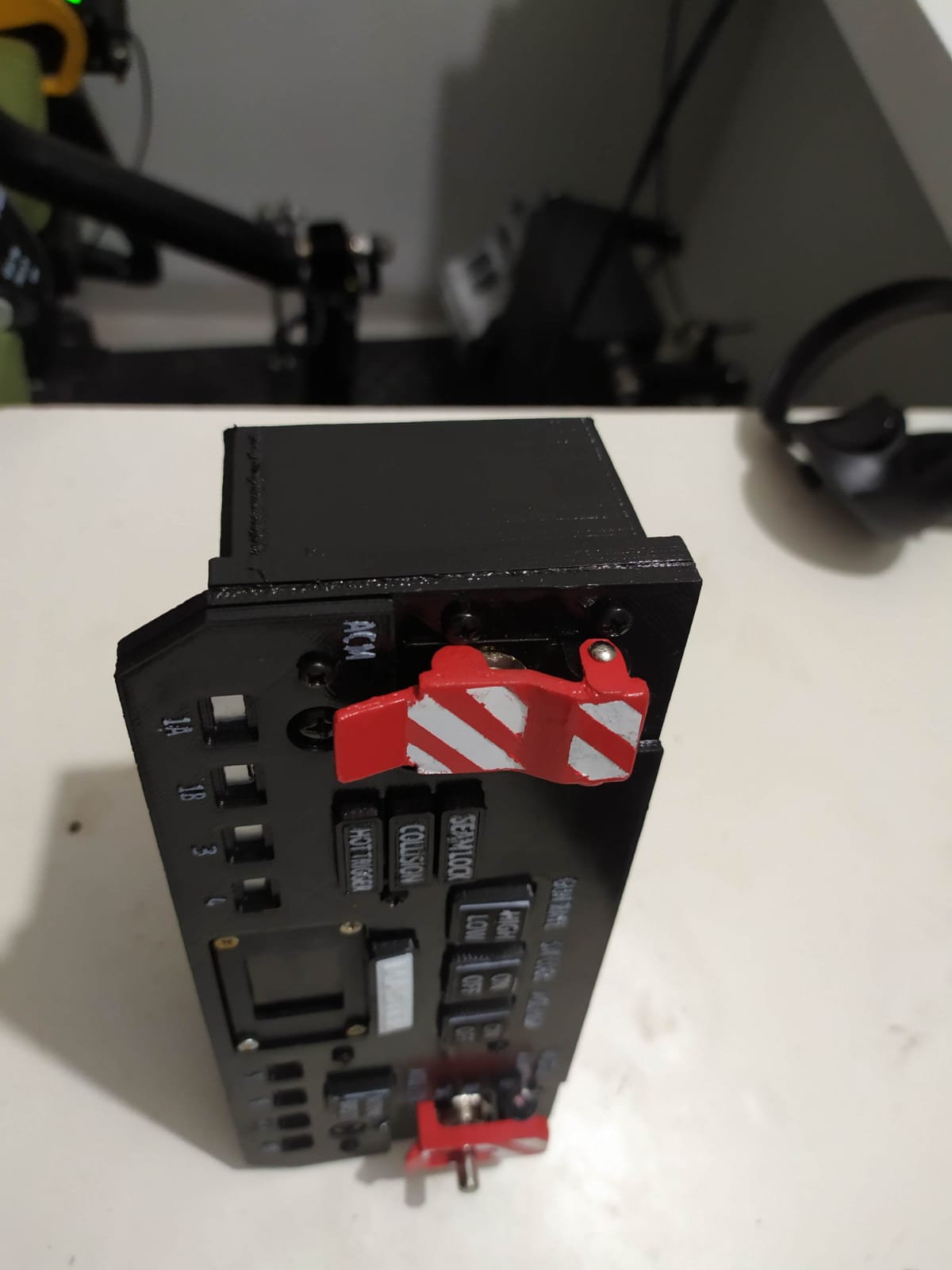

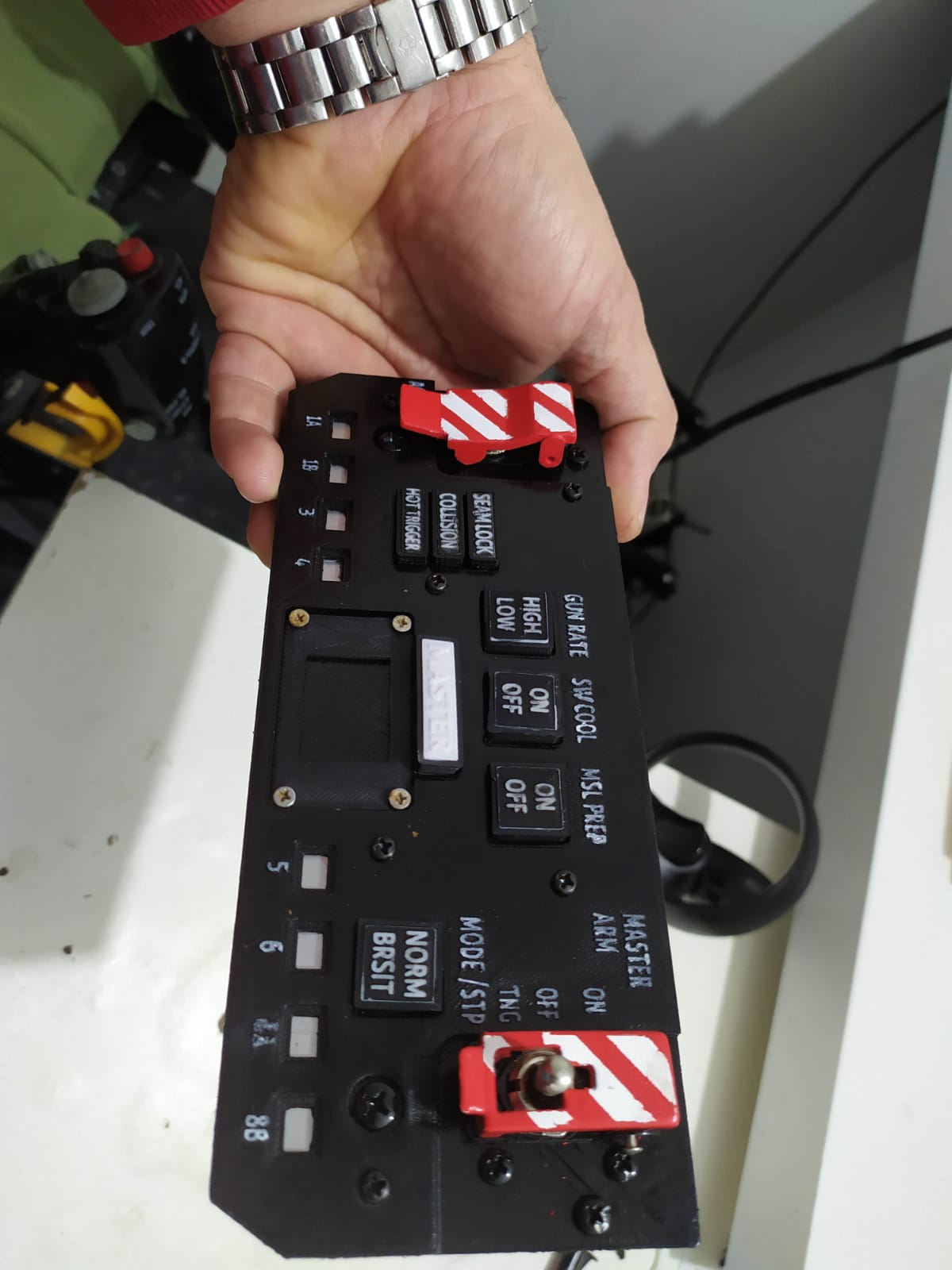

Hi all; Want to share with you the built of the ACM panel for F-14A/B pilots. It base on 3Dprinting, with simple arduino electronics and MMJOY2. There are 2 D-type connector to add additional buttons. There are built in LED for all buttons and lights if anyone wont to connect them to the sim. (I`m with VR so I didn`t put the effort). If anyone want the model you can purchase it in this link: https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/3d-printable-f-14-acm-panel-with-electronics-compatible Here is a movie how it`s working with the sim.

Hi all, Here is he model: https://www.cgtrader.com/3d-print-models/hobby-diy/other/f-14b-rio-hcu-stick-and-panel-with-electronics-component enjoy :)

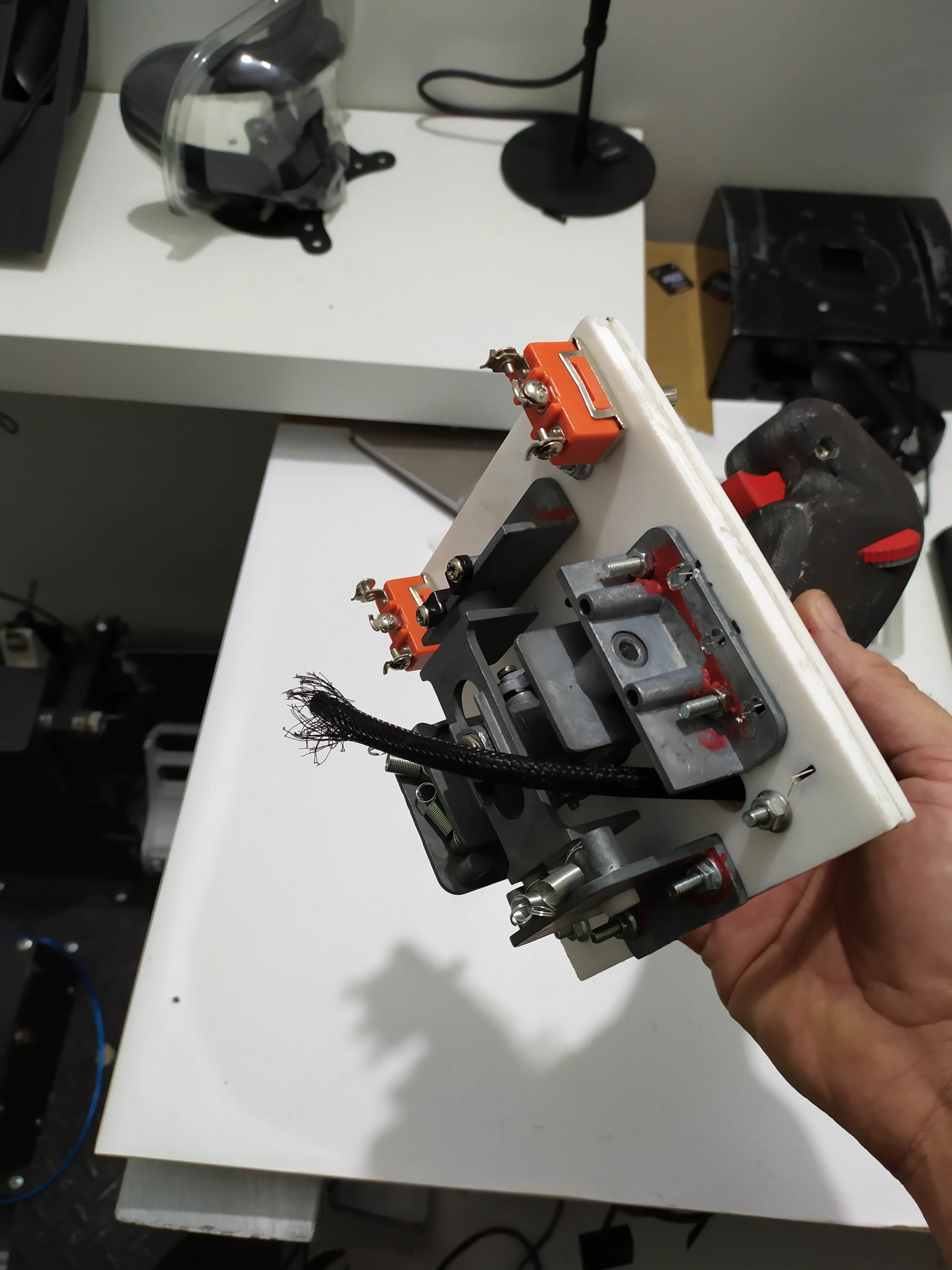

Some more progress Hi, The electronics will be connected via arduino micro. The gimble (movement of x,y axis) will be assemble from old cougar. Here some more pics...

Forgot to mention that the design is with the HCU panel witch is printing right now

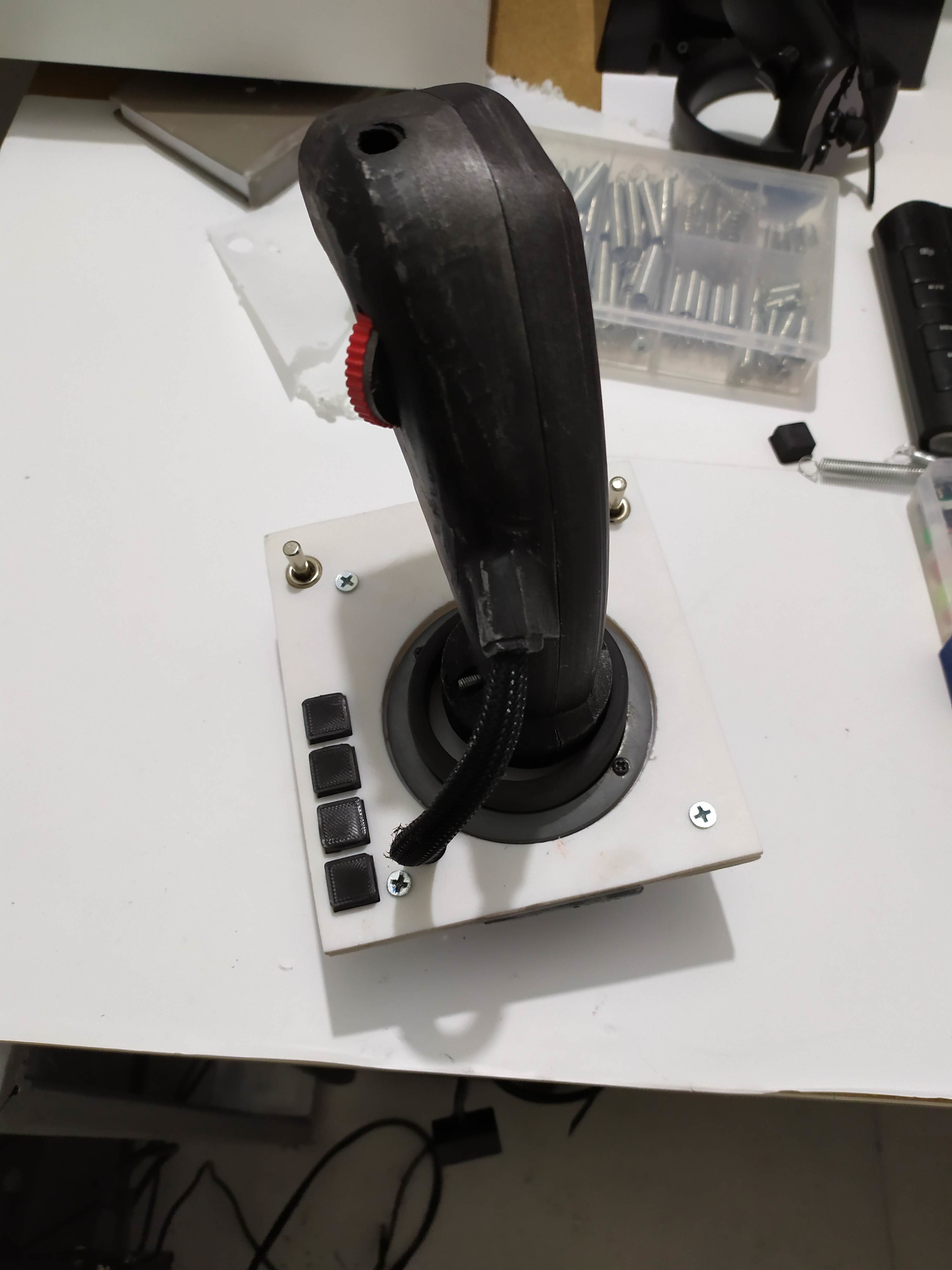

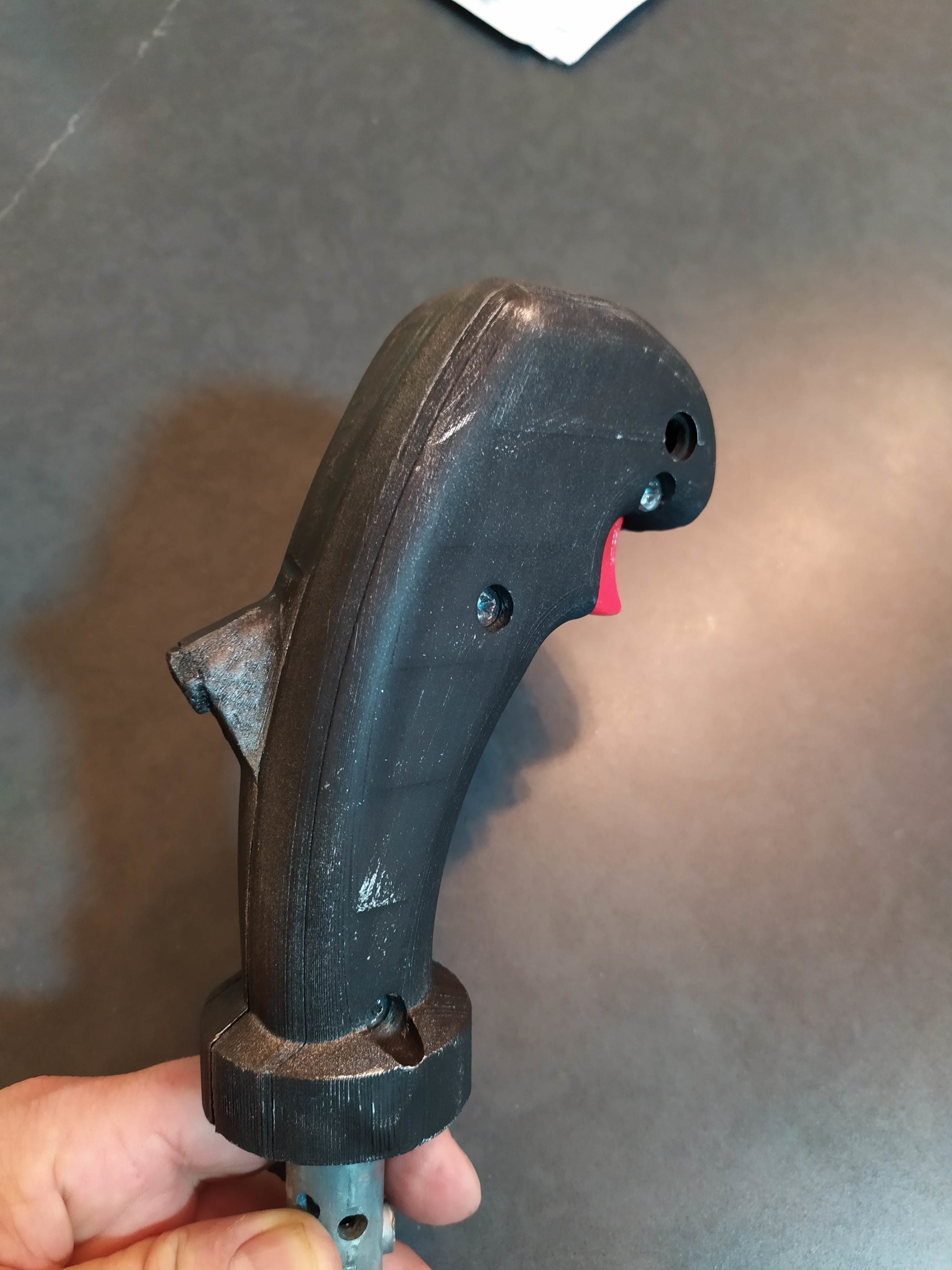

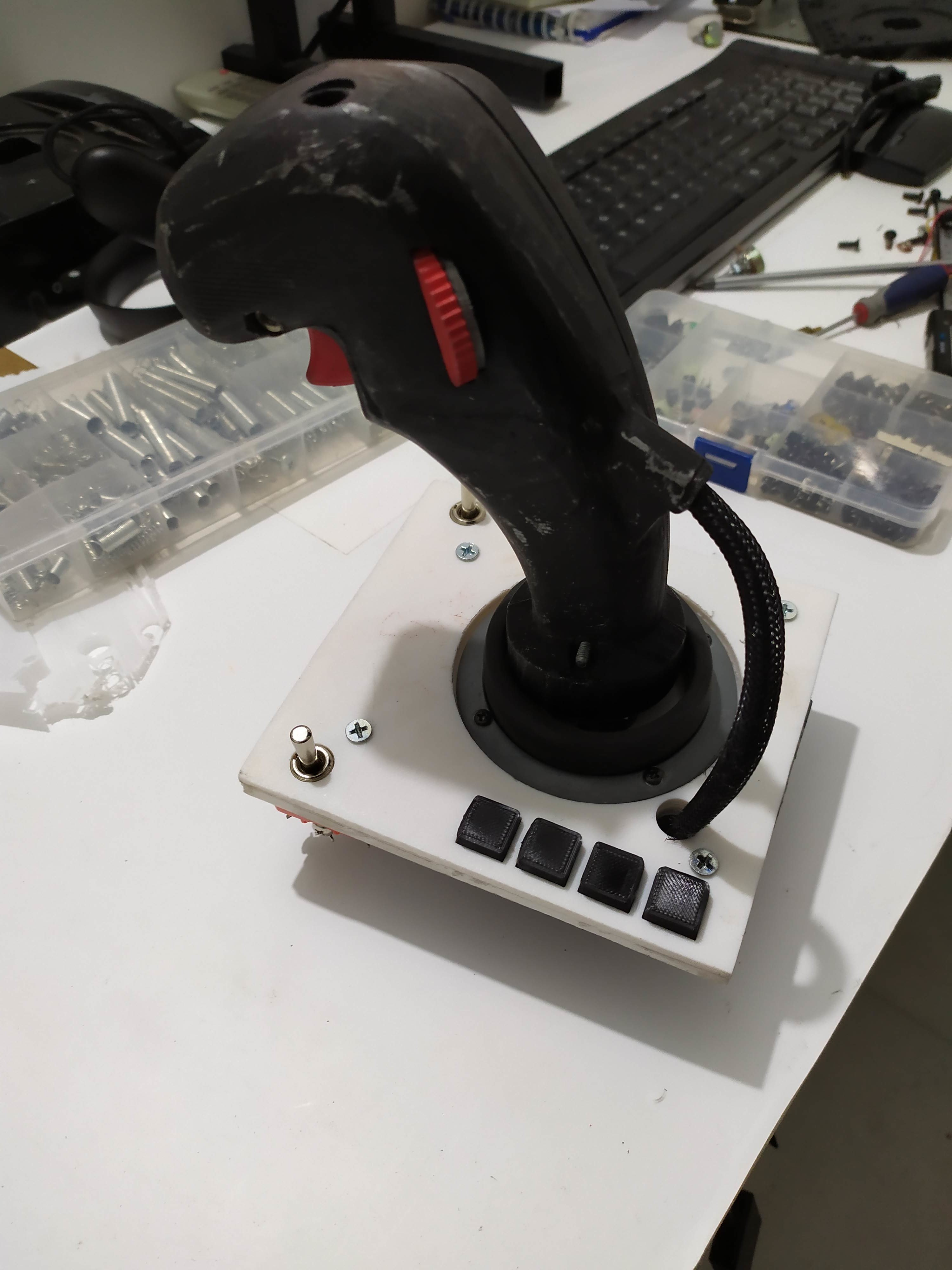

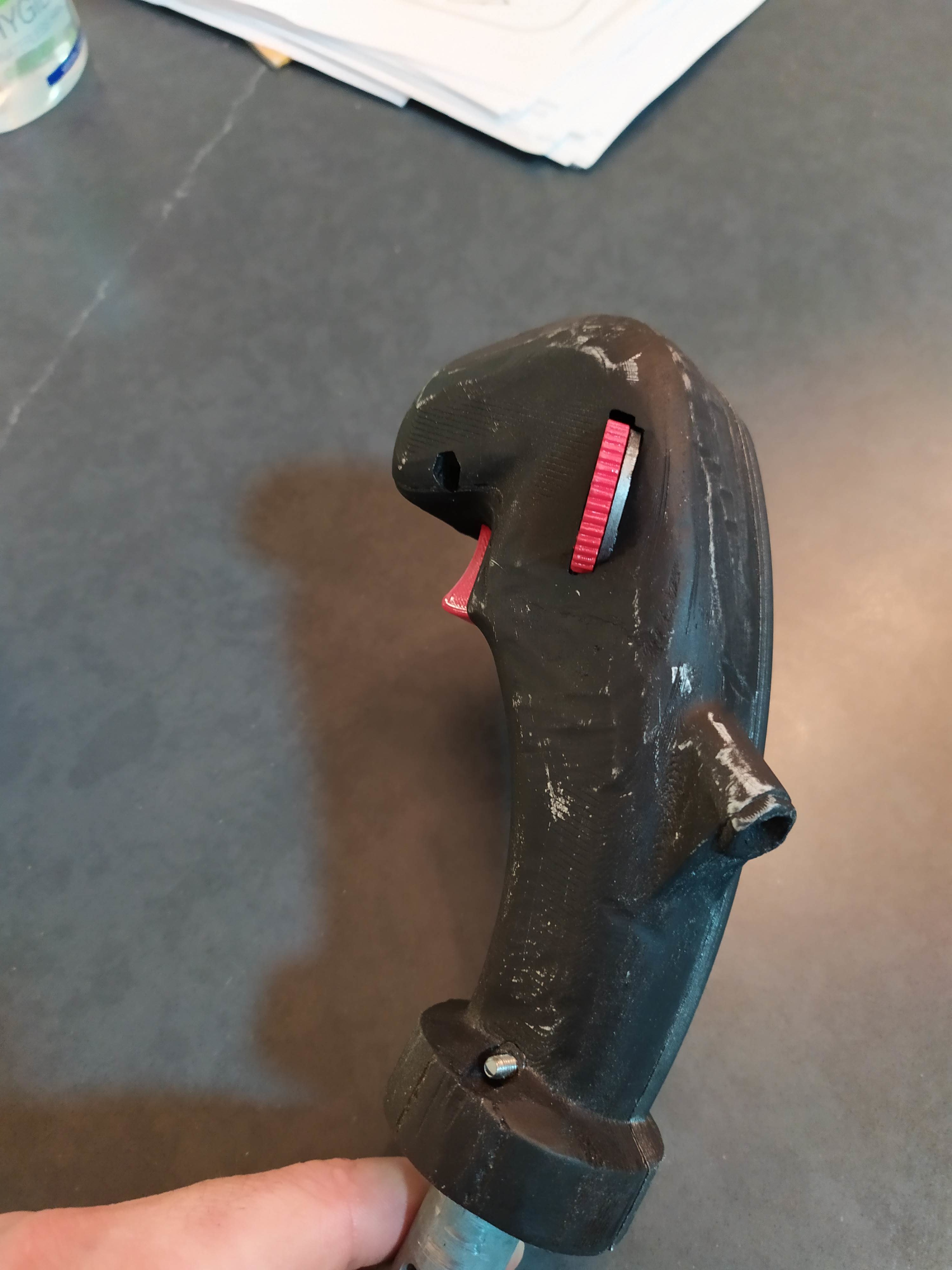

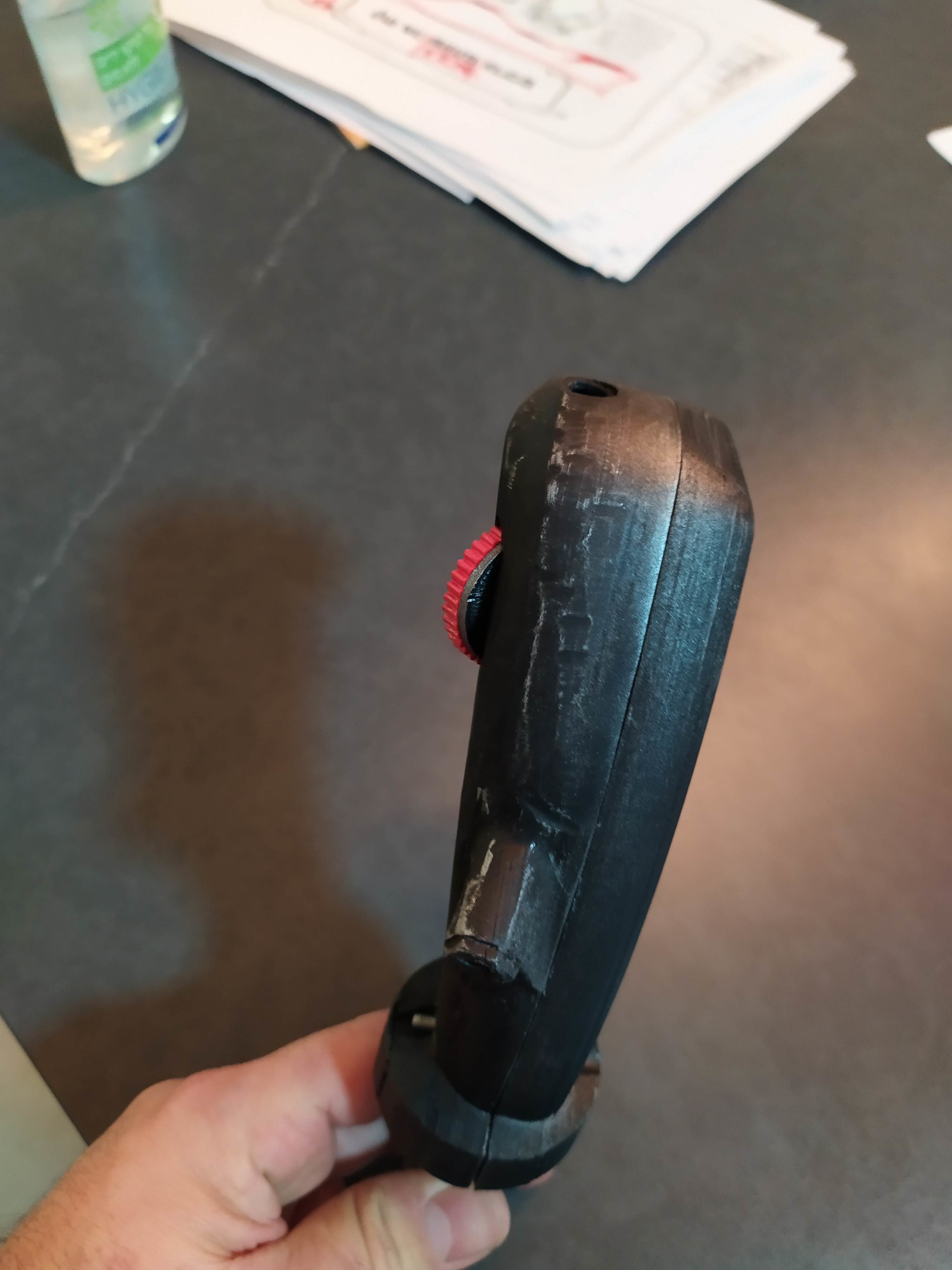

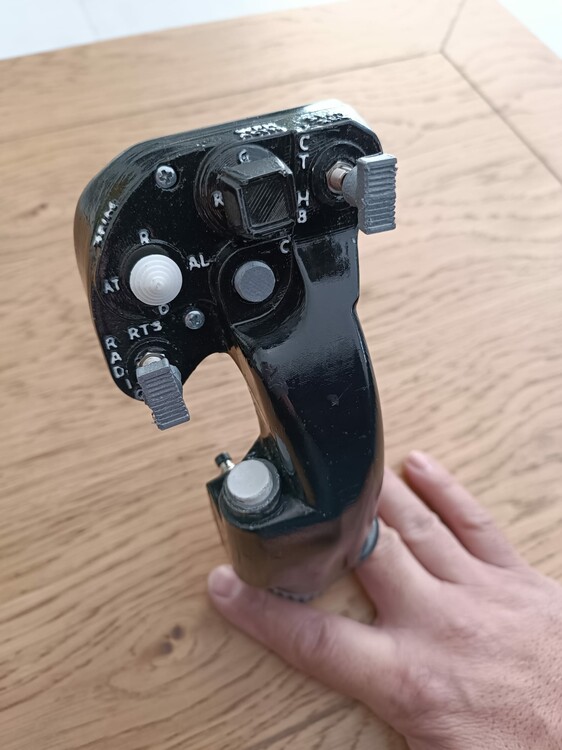

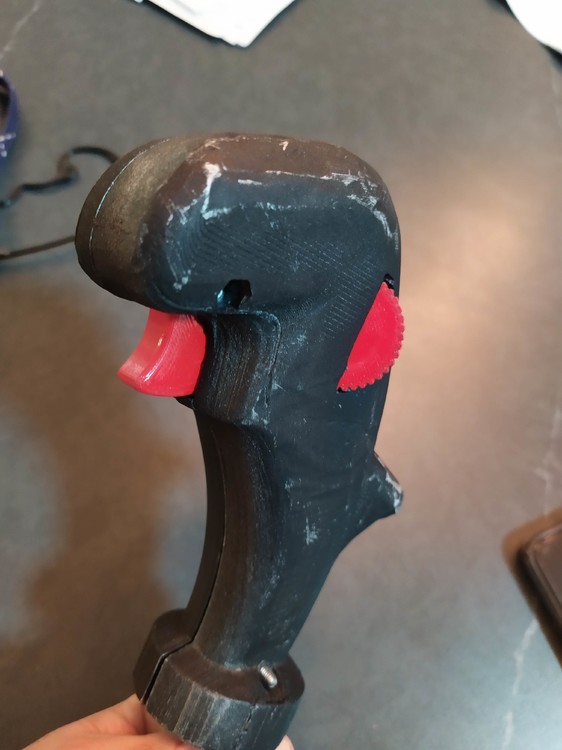

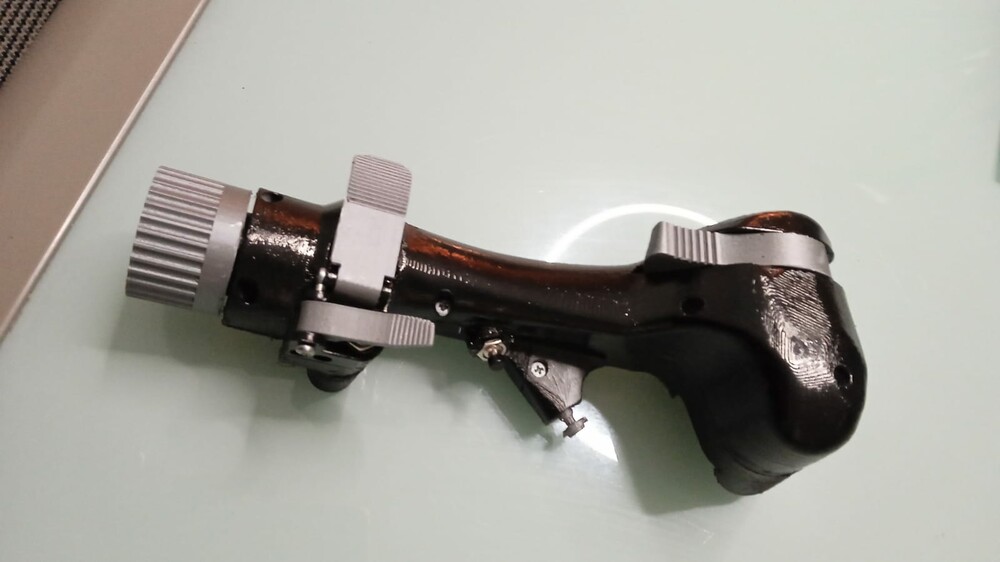

Hi all, Want to update about work in progress on the HCU stick. Finished the design and printed the prototype. Assembled it with 2 miicroswitch for the two stage trigger and with encoder for the radar antenna. Two red buttons are missing but I've order them from ebay. Painted the stick with 2 colours to make it look like an old stick. Here are some photos:

thanks! I`m working hard on the HCU stick and Panel. I`m now printing mine to make sure the model is printable and everything fits

Yes, I wanted to do the HCU, but I didnt find any dimension or drawing so I'll have to design from the sim....

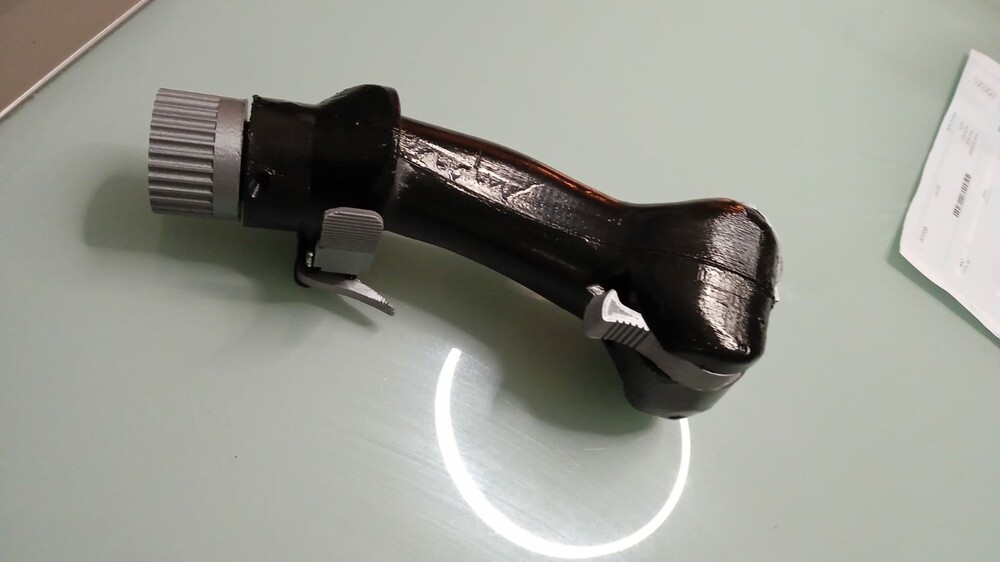

Hi all, Wanted to share my recent built: I have design and built the RIO Lantirn stick and connected it to the sim via Arduino Micro in it. It`s not accurate model of the real thing but pretty close. If you want the model you can get it at this URL: https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/f-14-rio-lantirn-stick-suitable-for-dcs-f-14-simulation

Hi, I have answer you at CGTrade but for every body else: here are some links from ebay: Pot: https://www.ebay.com/itm/3PCS-6mm-3-pin-Knurled-Shaft-Single-Linear-B-Type-B10K-ohm-Rotary-Potentiometer/311774720035?hash=item489738b023:g:lvgAAOSw9GhYb6rR:rk:15:pf:0 Trigger first and second microswitch: https://www.ebay.com/itm/5X-Micro-Push-Button-Micro-Switch-On-Off-12-x-12mm-Pressure-Button-Button/172966674191?hash=item28459dff0f:m:mIDszetmycERNWhqPzLGZbA:rk:28:pf:0 Pinkeye and pickel: https://www.ebay.com/itm/12mm-Metal-ON-OFF-1NO-2Pin-Maintained-SPST-Push-Button-Switch-High-Round/172273317998?hash=item281c4a386e:g:3qAAAOSwT2daBW2G:rk:36:pf:0 Side microswitch: https://www.ebay.com/itm/10pcs-15mm-Mounting-Dia-Momentary-Push-Button-Switch-SPST-AC125V-3A-250V-1-5A/310992876811?hash=item48689eb50b:g:pFQAAOSwDRxbYcm4:rk:16:pf:0 4 way hat: https://www.ebay.com/itm/Momentary-Tactile-Push-Button-Switch-Mini-Micro-Small-4-3-15mm-Height-12x12mm/142817447798?hash=item2140954f76:m:m1XfHZQTrVhQTyslLHkhgUg:rk:15:pf:0 4 way rotery switch: https://www.ebay.com/itm/5-4-Way-Rotary-Switch-3-Pole-4-Position-for-Guitar-Amplifier-Lamp-Audio-15-Pins/401525230098?epid=1247825220&hash=item5d7cc4ca12:g:uWgAAOSw91NTt1jj:rk:6:pf:0 good luck :)

thanks! It`s very useful

Hi all, I want to built a f-14 throttle after the success of building the stick. Does anyone have the right dimensions of it? or maybe a drawing? Thanks in advance
