derbynew

The solution. Bottom of Map. Click Show Objects. It is a little ICON of a tank in the editor. Near the Sat buttom.

Disabling all Shadows and the problem is gone. I think we need a better Shadow Render algorithm to take into account tilting the head and working well with a TrackIR system. I did implement a deadzone to reduce it, but I think I am going to fly without shadows until we get better shadows. Any plans in the future to improve shadows? Especially with TrackIR running...

Alright, here is a video showing just how bad the shimmering is when using a device to track head movements like TrackIR. Its pretty terrible. Notice at 33 seconds, I disable trackir and the image is perfect. Surely this is not by design and is unacceptable?

Hi, I understand your comment, however I chose the pedals as an example as I could remove all usb devices. I will post a video showing how bad it is when using TrackIR, that is just moving my head in the cockpit, which does not move the plane, and the shadows and text in the cockpit shimmer really badly that I cannot play with TrackIR. Will post a video shortly :)

Any help is appreciated. I used the pedals as an example, but with Trackir It is really bad. I just move my head and the shadows in cockpit shimmer and text as well. Trackir is not moving the aircraft. Happy to post a video with how it looks using trackir. Sent from my SM-G950F using Tapatalk

I set up shadows to flat and low and still have the shimmering on Shadows when moving the Pedals.

I am not sure that is correct. Look at this video, when he moves the aircraft, there is no shimmering on shadows, so I do not think this is expected behaviour.

I logged a issue in Bugs and Problems here: https://forums.eagle.ru/showthread.php?p=3681143#post3681143 I think that is the right place for this issue.

When I am in the cockpit, if I just move the rudder pedals, I get a lot of shimmering on the shadows and lines in the distance shimmer and flicker to. Using TrackIR makes the problem extreme to the point where I do not use TrackIR anymore. I do not have this problem with other games. I totally removed and added my NVidia Game drivers. This is a brand new PC. So would love the graphics to be perfect. Below is a link to the Video. Below is my machine info: ------------------ System Information ------------------ Time of this report: 11/8/2018, 08:47:12 Machine name: DESKTOP-PVUD3CB Machine Id: {6015D98A-039D-43E1-B55A-9A342398B268} Operating System: Windows 10 Pro 64-bit (10.0, Build 17134) (17134.rs4_release.180410-1804) Language: English (Regional Setting: English) System Manufacturer: Micro-Star International Co., Ltd. System Model: MS-7B17 BIOS: Default System BIOS (type: BIOS) Processor: Intel® Core i5-9600K CPU @ 3.70GHz (6 CPUs), ~3.7GHz Memory: 32768MB RAM Available OS Memory: 32708MB RAM Page File: 6275MB used, 26432MB available Windows Dir: C:\Windows DirectX Version: DirectX 12 DX Setup Parameters: Not found User DPI Setting: 96 DPI (100 percent) System DPI Setting: 96 DPI (100 percent) DWM DPI Scaling: Disabled Miracast: Available, with HDCP Microsoft Graphics Hybrid: Not Supported DxDiag Version: 10.00.17134.0001 64bit Unicode DXDiag DxDiag.txt Sys info DCS Settings options.lua

Hi, When I am in the cockpit, if I just move the rudder pedals, I get a lot of shimmering on the shadows and lines in the distance shimmer and flicker to. Using TrackIR makes the problem extreme to the point where I do not use TrackIR anymore. I do not have this problem with other games. I totally removed and added my NVidia Game drivers. This is a brand new PC. So would love the graphics to be perfect. Below is a link to the Video. Below is my machine info: ------------------ System Information ------------------ Time of this report: 11/8/2018, 08:47:12 Machine name: DESKTOP-PVUD3CB Machine Id: {6015D98A-039D-43E1-B55A-9A342398B268} Operating System: Windows 10 Pro 64-bit (10.0, Build 17134) (17134.rs4_release.180410-1804) Language: English (Regional Setting: English) System Manufacturer: Micro-Star International Co., Ltd. System Model: MS-7B17 BIOS: Default System BIOS (type: BIOS) Processor: Intel® Core i5-9600K CPU @ 3.70GHz (6 CPUs), ~3.7GHz Memory: 32768MB RAM Available OS Memory: 32708MB RAM Page File: 6275MB used, 26432MB available Windows Dir: C:\Windows DirectX Version: DirectX 12 DX Setup Parameters: Not found User DPI Setting: 96 DPI (100 percent) System DPI Setting: 96 DPI (100 percent) DWM DPI Scaling: Disabled Miracast: Available, with HDCP Microsoft Graphics Hybrid: Not Supported DxDiag Version: 10.00.17134.0001 64bit Unicode ------------ DxDiag Notes ------------ Display Tab 1: No problems found. Sound Tab 1: No problems found. Sound Tab 2: No problems found. Sound Tab 3: No problems found. Sound Tab 4: No problems found. Input Tab: No problems found. -------------------- DirectX Debug Levels -------------------- Direct3D: 0/4 (retail) DirectDraw: 0/4 (retail) DirectInput: 0/5 (retail) DirectMusic: 0/5 (retail) DirectPlay: 0/9 (retail) DirectSound: 0/5 (retail) DirectShow: 0/6 (retail) --------------- Display Devices --------------- Card name: NVIDIA GeForce RTX 2070 Manufacturer: NVIDIA Chip type: GeForce RTX 2070 DAC type: Integrated RAMDAC Device Type: Full Device (POST) Device Key: Enum\PCI\VEN_10DE&DEV_1F07&SUBSYS_37321462&REV_A1 Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER] Device Problem Code: No Problem Driver Problem Code: Unknown Display Memory: 24384 MB Dedicated Memory: 8031 MB Shared Memory: 16353 MB Current Mode: 1920 x 1080 (32 bit) (144Hz) HDR Support: Not Supported Display Topology: Internal Display Color Space: DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709 Color Primaries: Red(0.680188,0.314953), Green(0.275891,0.662609), Blue(0.151867,0.070813), White Point(0.313977,0.329602) Display Luminance: Min Luminance = 0.500000, Max Luminance = 270.000000, MaxFullFrameLuminance = 270.000000 Monitor Name: CFG70_C27FG70 (DisplayPort) Monitor Model: C27FG70 Monitor Id: SAM0DCA Native Mode: 1920 x 1080(p) (143.981Hz) Output Type: Displayport External Monitor Capabilities: HDR Not Supported Display Pixel Format: DISPLAYCONFIG_PIXELFORMAT_32BPP Advanced Color: Not Supported Driver Name: C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_f4187dc256a67a6b\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_f4187dc256a67a6b\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_f4187dc256a67a6b\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_f4187dc256a67a6b\nvldumdx.dll Driver File Version: 25.21.0014.1634 (English) Driver Version: 25.21.14.1634 DDI Version: 12 Feature Levels: 12_1,12_0,11_1,11_0,10_1,10_0,9_3,9_2,9_1 Driver Model: WDDM 2.4 Graphics Preemption: Pixel Compute Preemption: Dispatch Miracast: Not Supported by Graphics driver Hybrid Graphics GPU: Not Supported Power P-states: Not Supported Virtualization: Paravirtualization Block List: No Blocks Catalog Attributes: Universal:False Declarative:False Driver Attributes: Final Retail Driver Date/Size: 10/10/2018 11:00:00 AM, 957768 bytes WHQL Logo'd: Yes WHQL Date Stamp: Unknown Device Identifier: {D7B71E3E-5C47-11CF-B071-3C171BC2D435} Vendor ID: 0x10DE Device ID: 0x1F07 SubSys ID: 0x37321462 Revision ID: 0x00A1 Driver Strong Name: oem34.inf:0f066de317b73331:Section002:25.21.14.1634:pci\ven_10de&dev_1f07 Rank Of Driver: 00D12001 Video Accel: DXVA2 Modes: DXVA2_ModeMPEG2_VLD DXVA2_ModeVC1_D2010 DXVA2_ModeVC1_VLD DXVA2_ModeH264_VLD_Stereo_Progressive_NoFGT DXVA2_ModeH264_VLD_Stereo_NoFGT DXVA2_ModeH264_VLD_NoFGT DXVA2_ModeHEVC_VLD_Main DXVA2_ModeHEVC_VLD_Main10 DXVA2_ModeMPEG4pt2_VLD_Simple DXVA2_ModeMPEG4pt2_VLD_AdvSimple_NoGMC DXVA2_ModeVP9_VLD_Profile0 DXVA2_ModeVP9_VLD_10bit_Profile2 Deinterlace Caps: {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(IMC1,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(IMC1,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC1,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC1,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(IMC2,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(IMC2,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC2,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC2,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(IMC3,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(IMC3,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC3,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC3,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(IMC4,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(IMC4,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC4,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC4,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(S340,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(S340,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(S340,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(S340,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {6CB69578-7617-4637-91E5-1C02DB810285}: Format(In/Out)=(S342,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {F9F19DA5-3B09-4B2F-9D89-C64753E3EAAB}: Format(In/Out)=(S342,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(S342,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(S342,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps= D3D9 Overlay: Supported DXVA-HD: Supported DDraw Status: Enabled D3D Status: Enabled AGP Status: Enabled MPO MaxPlanes: 1 MPO Caps: Not Supported MPO Stretch: Not Supported MPO Media Hints: Not Supported MPO Formats: Not Supported PanelFitter Caps: Not Supported PanelFitter Stretch: Not Supported

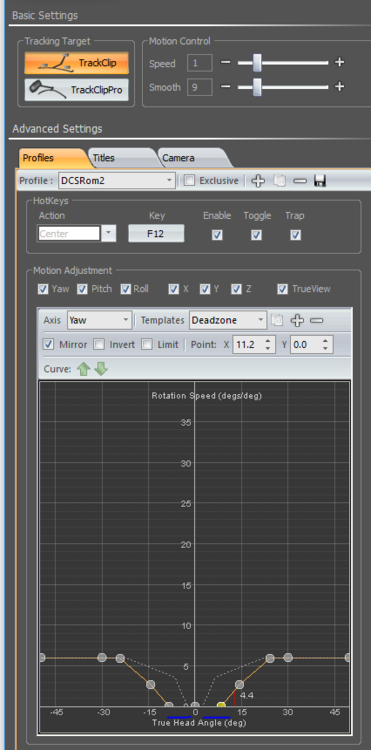

Hi, I finally got rid of shimmering with TrackIR. I created a DEADZONE in the profile for Yaw, Pitch and Role. SO happy this is now fixed :) No more lines and jagged edgess

I ran Memtest86 3DMark Heaven Memtest showed corrupt memory, so i swapped it out and the new sticks passed. 3dmark showed a fault graphics card, so i swapped it out and got a new one. Crazy but true, had two brand new fault parts. ALWAYS test your hardware when you do a new build. Happy to get tips on making the graphics better :) As I mentioned since I do not have g-sync, i limit fps to 100, its a great compromise.

So, here is how i avoid tearing. ----autoexec.cfg---- options.graphics.maxfps = 100 affinity_mask = 0 Nvidia Settings -> VSync -> FAST My FPS is always 100 now and my monitor is 100 MHZ. (Changed from 144 to 100). So zero tearing occurs.

Correct, freesync does not work, hence I use NVidia V-Sync set to "Fast". I now have my monitor set to 100Mhz and FPS in game set to 100fps which stays constant, so no tearing :)

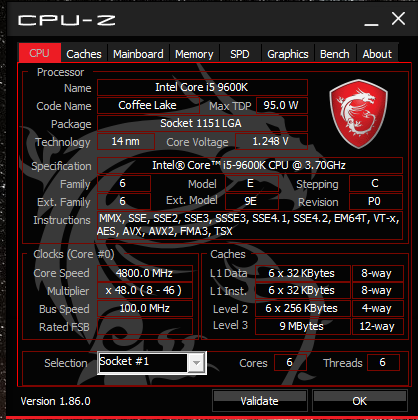

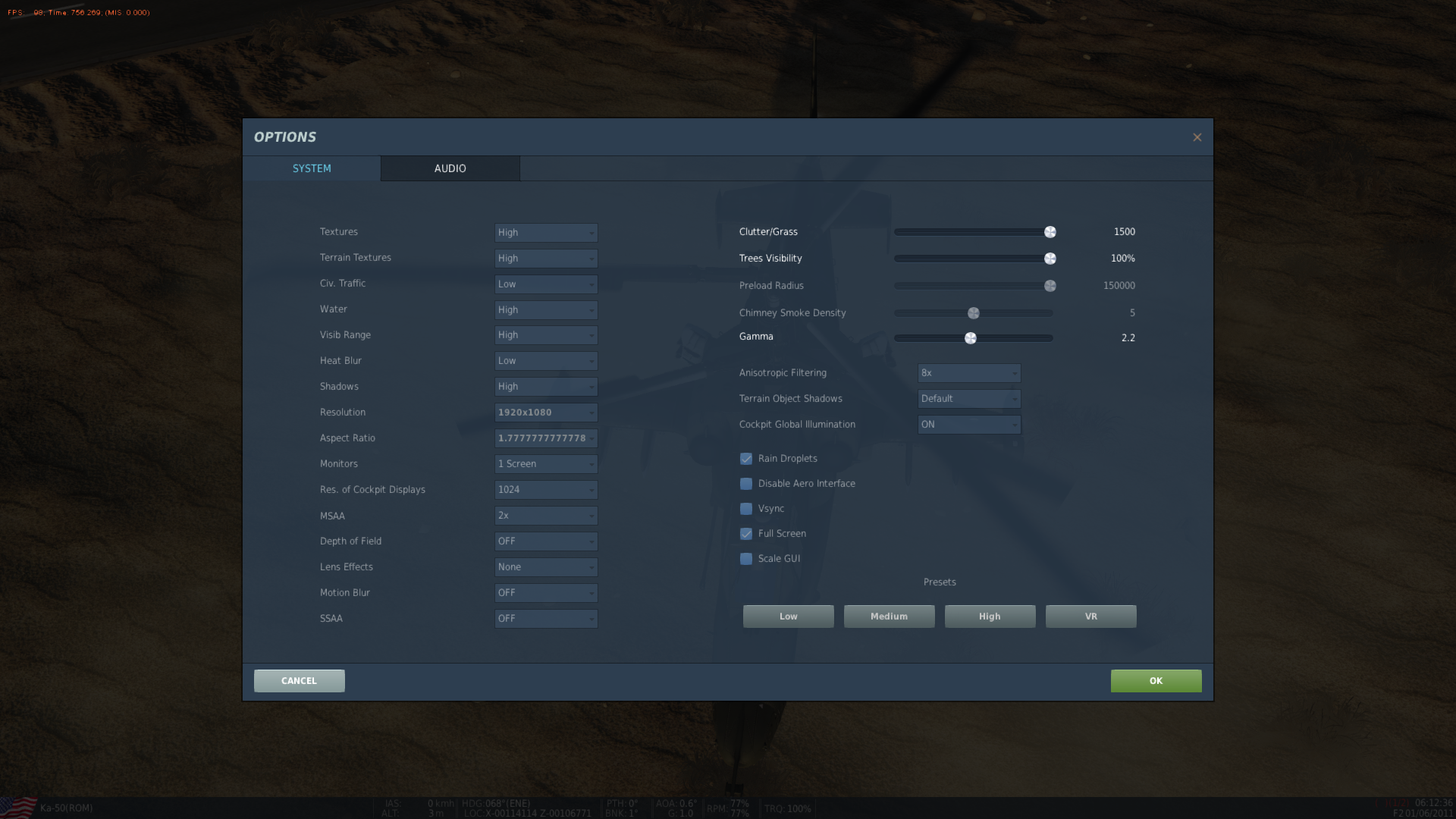

Hi, I did several tests and finally found the best graphics settings. Core I5-9600k at 4.8Ghz Memory Corsair Vengeance XPS 32GB MSI Nvidia RTX 2070 Gaming Z 8GB MSI Gaming Edge AC Z390 See attachments. Essentially I have FXAA on in NVidia MSAA 2x amd anisoptric 8x in DCS, texture object shadows are set to default (important!) I use 144Mhz Screen, so I use Fast VSync (My monitor is freesync not gsyc), so you will need to adjust according to your specs Would be awesome to get feedback on recommendations you guys have to make the graphics awesome. My main issue was shimmering on far away building where there is a lot of lines. I fly the helicopters, so flying low you notice these things.
