BB.

Trigger "Remove effect smoke" AI unit unlimited weapons and unlimited fuel options

Server Client

Same problem. If groupID and unitID of carrier are the same number, only 4 aircraft can be put. Therefore, by creating a group including multiple units before creating the carrier, I was able to avoid it.

LED is embedded in the groove. The structure is very simple.

I can spawn without problems if it is an airplane. Please tell me if there are other values needed to spawn the helicopter. Or is it a bug? function PlaneSpawn() local ZoneTable = trigger.misc.getZone("TestZone1") local Altitude = land.getHeight( {x = ZoneTable.point.x , y = ZoneTable.point.z} ) Altitude = Altitude + 100 local groupData = { ["modulation"] = 0, ["tasks"] = { }, -- end of ["tasks"] ["task"] = "Transport", ["uncontrolled"] = false, ["route"] = { ["points"] = { [1] = { ["alt"] = Altitude, ["action"] = "Turning Point", ["alt_type"] = "BARO", ["speed"] = 55.555555555556, ["task"] = { ["id"] = "ComboTask", ["params"] = { ["tasks"] = { }, -- end of ["tasks"] }, -- end of ["params"] }, -- end of ["task"] ["type"] = "Turning Point", ["ETA"] = 0, ["ETA_locked"] = true, ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "", ["formation_template"] = "", ["speed_locked"] = true, }, -- end of [1] }, -- end of ["points"] }, -- end of ["route"] ["groupId"] = 1, ["hidden"] = false, ["units"] = { [1] = { ["alt"] = Altitude, ["alt_type"] = "BARO", ["livery_id"] = "USAF 364th FS", ["skill"] = "High", ["speed"] = 138.88888888889, ["type"] = "TF-51D", ["unitId"] = 1, ["psi"] = 0, ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "DictKey_UnitName_17", ["payload"] = { ["pylons"] = { }, -- end of ["pylons"] ["fuel"] = 340.68, ["flare"] = 0, ["chaff"] = 0, ["gun"] = 100, }, -- end of ["payload"] ["heading"] = 0, ["callsign"] = { [1] = 1, [2] = 1, [3] = 1, ["name"] = "Enfield11", }, -- end of ["callsign"] ["onboard_num"] = "010", }, -- end of [1] }, -- end of ["units"] ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "GroupName1", ["communication"] = true, ["start_time"] = 0, ["frequency"] = 251, } coalition.addGroup(country.id.USA, Group.Category.AIRPLANE, groupData) end PlaneSpawn() UnitSpawn_Plane.miz

Hello DCS crashes when spawn helicopter with script. Version DCS OpenBeta 2.5.1.16543 Is this Lua written correctly? function HeliSpawn() local ZoneTable = trigger.misc.getZone("TestZone1") local Altitude = land.getHeight( {x = ZoneTable.point.x , y = ZoneTable.point.z} ) Altitude = Altitude + 100 local groupData = { ["modulation"] = 0, ["tasks"] = { }, -- end of ["tasks"] ["task"] = "Transport", ["uncontrolled"] = false, ["route"] = { ["points"] = { [1] = { ["alt"] = Altitude, ["action"] = "Turning Point", ["alt_type"] = "BARO", ["speed"] = 55.555555555556, ["task"] = { ["id"] = "ComboTask", ["params"] = { ["tasks"] = { }, -- end of ["tasks"] }, -- end of ["params"] }, -- end of ["task"] ["type"] = "Turning Point", ["ETA"] = 0, ["ETA_locked"] = true, ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "", ["formation_template"] = "", ["speed_locked"] = true, }, -- end of [1] }, -- end of ["points"] }, -- end of ["route"] ["groupId"] = 1, ["hidden"] = false, ["units"] = { [1] = { ["alt"] = Altitude, ["hardpoint_racks"] = true, ["alt_type"] = "BARO", ["livery_id"] = "Army Standard", ["skill"] = "High", ["ropeLength"] = 15, ["speed"] = 55.555555555556, ["AddPropAircraft"] = { ["GunnersAISkill"] = 90, ["ExhaustScreen"] = true, }, -- end of ["AddPropAircraft"] ["type"] = "UH-1H", ["unitId"] = 1, ["psi"] = 0, ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "UnitName1", ["payload"] = { ["pylons"] = { }, -- end of ["pylons"] ["fuel"] = "631", ["flare"] = 60, ["chaff"] = 0, ["gun"] = 100, }, -- end of ["payload"] ["heading"] = 0, ["callsign"] = { [1] = 1, [2] = 1, [3] = 1, ["name"] = "Enfield11", }, -- end of ["callsign"] ["onboard_num"] = "050", }, -- end of [1] }, -- end of ["units"] ["y"] = ZoneTable.point.z, ["x"] = ZoneTable.point.x, ["name"] = "GroupName1", ["communication"] = true, ["start_time"] = 0, ["frequency"] = 251, } coalition.addGroup(country.id.USA, Group.Category.AIRPLANE, groupData) end HeliSpawn() UnitSpawn.miz dcs.log-20180427-134354.zip

Since I don't have a 3D printer, I made a knob using 3D print service.

The switch I used is below. https://www.aliexpress.com/item/Free-shipping-200Pcs-lot-Wholesale-6mm-6mm-Snap-in-Micro-Push-Button-Tactile-Tact-Momentary-Electronic/1253618109.html?spm=a2g0s.9042311.0.0.eobAn6 All the way to make the button is the same. 1, Milling acrylic boards 2, Paint 3, Milling paint film (Make characters)

1, Milling acrylic boards (Make a panel) 2, Paint 3, Milling paint film (Make a string) By lighting from the back with this it glows only character. PCB is also made with milling machine.

Although it is probably a pull switch with an actual machine, it was difficult to reproduce it, so I used an encoder with a push switch.

I'm not using a potentiometer. All knob switches are using rotary encoders. I used the evaluation board on which PIC18F4553 was installed. But I don't know if it's best. If you want to use more potentiometer, you should use A/D converter. https://www.digikey.com/products/en?keywords=MCP3008-I%2FP :D

Key switches > 6x6 Tactile Switches (Green LED) https://www.aliexpress.com/item/Free-shipping-200Pcs-lot-Wholesale-6mm-6mm-Snap-in-Micro-Push-Button-Tactile-Tact-Momentary-Electronic/1253618109.html?spm=a2g0s.9042311.0.0.eobAn6 or https://www.aliexpress.com/item/100Pcs-6mm-6mm-White-Button-Snap-in-Micro-Push-Button-Tactile-Tact-Momentary-Electronic-Switch-With/32762591668.html?spm=2114.10010108.1000013.2.8d1324bbgeIAq&traffic_analysisId=recommend_2088_1_90158_iswistore&scm=1007.13339.90158.0&pvid=34702d58-ba05-489e-a187-7edcf50d7983&tpp=1 Rotary switches > NKK Switches MRY-106 http://www.nkkswitches.com/pdf/MRpowerLevel.pdf Rotary encoders > ALPS EC12E2420801 http://www.alps.com/prod/info/E/HTML/Encoder/Incremental/EC12E/EC12E2420801.html Monitor > BuyDisplay 10.1 inch http://www.buydisplay.com/default/10-1-inch-raspberry-pi-screen-w-hdmi-video-vga-driver-board-1024x600

I looked for parts when designing. However, I could not find anything that matched the font and size, so I decided to make it myself. It was very hard to make. :cry:

On my design it will be this distance. (millimeter) I processed acrylic board with CNC. DDI is handmade. I adjusted it to the 10.1 inch monitor. I used a handmade 16 segment display.

Hello, I am making a home cockpit of F/A-18C. The front upper part was completed.:thumbup: work in progress...

Take Off

Thank you for improving.

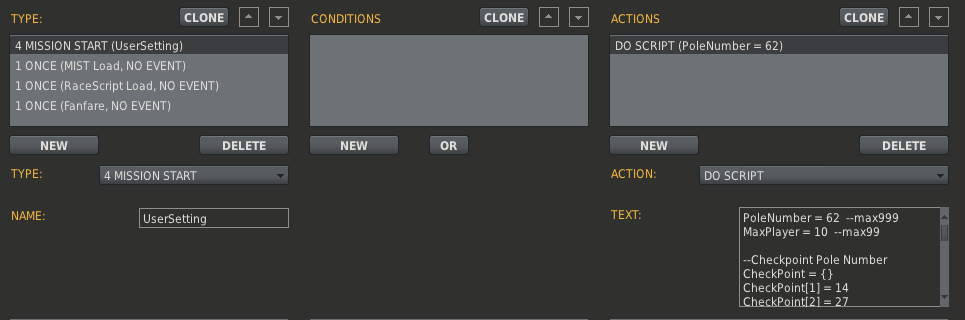

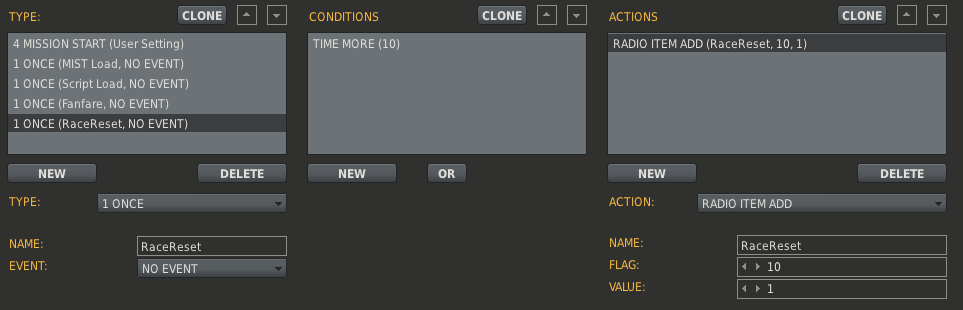

Multiplay RaceScript_v1.04b (TestVersion) http://www.en.wiki.eagle.ru/attachment.php?attachmentid=92893&stc=1&d=1389455251 Change log A fanfare flag number can be specified by UserSetting. The race re-starting (reset) function was added. Race will be reset if the flag 10 is set ON. (Default Flag10. When you change a flag number, please change the line 19 of UserSetting. ). Example: RaceReset I am creating the script which saves a course record now. It will take some time before it is complete. Thanks MP_RaceScript_v1.04b.zip

I'm sorry if the meaning of a question is misunderstood.

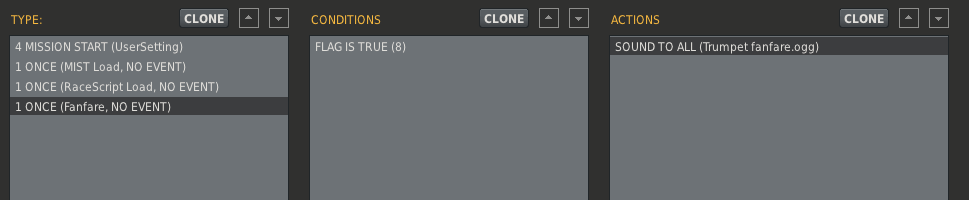

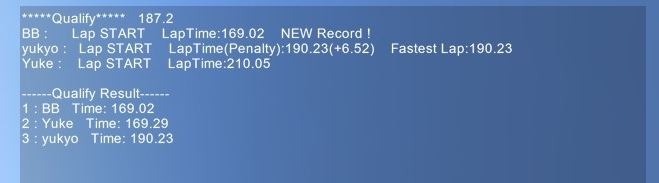

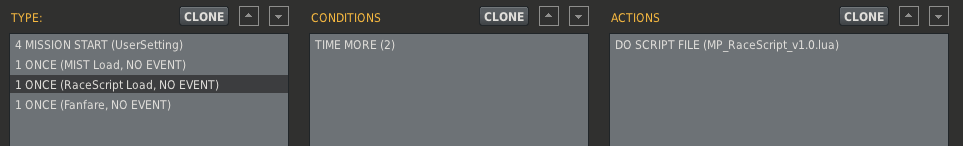

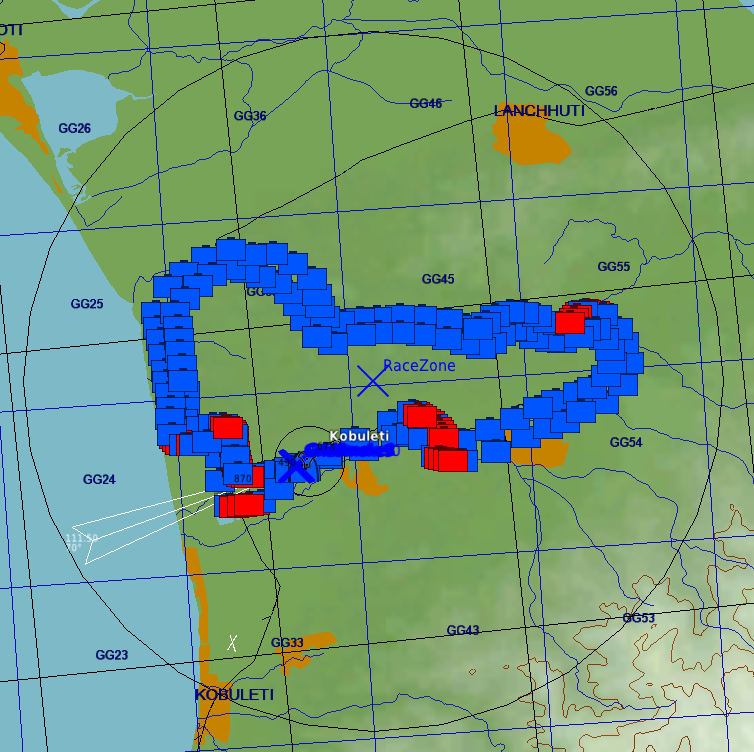

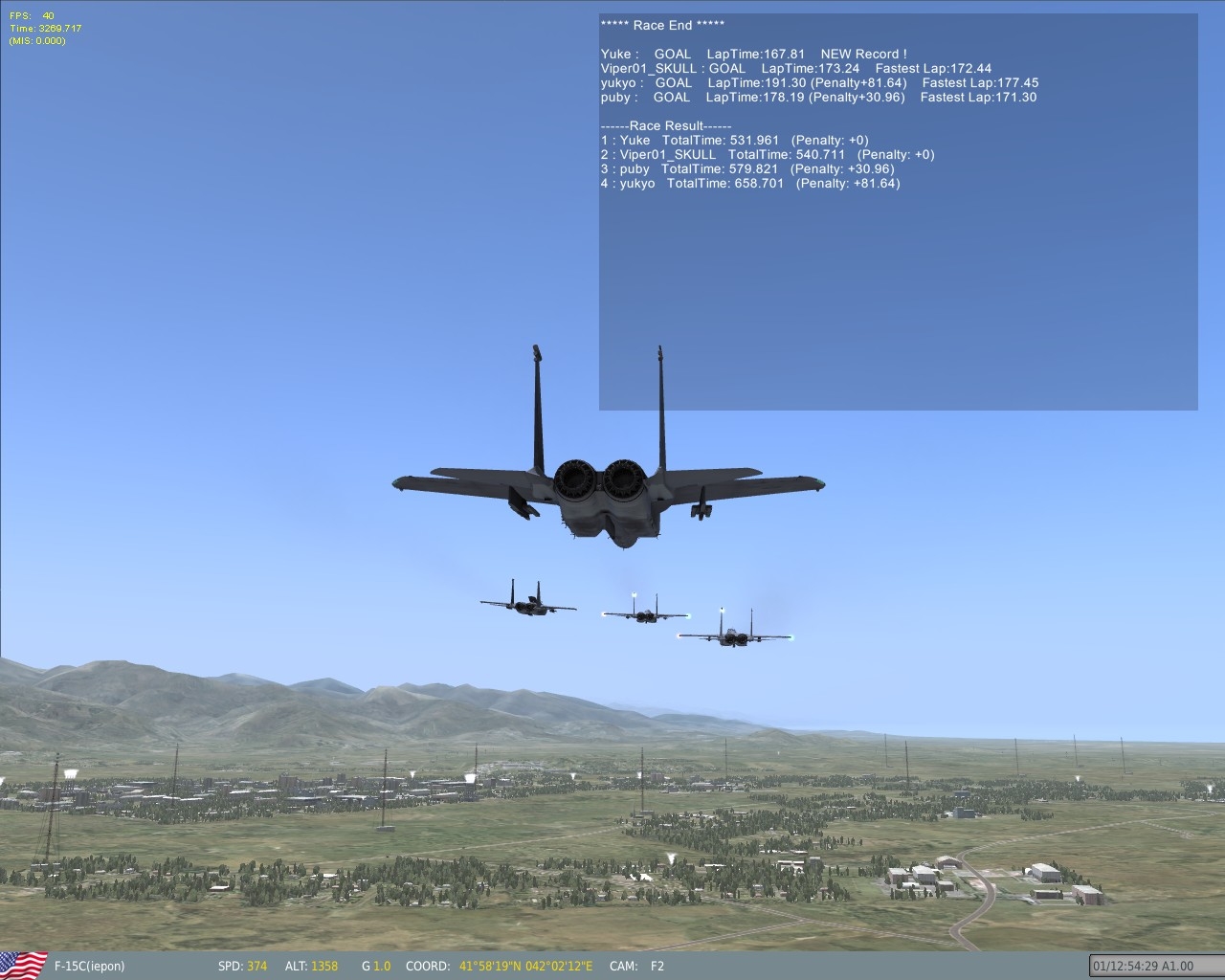

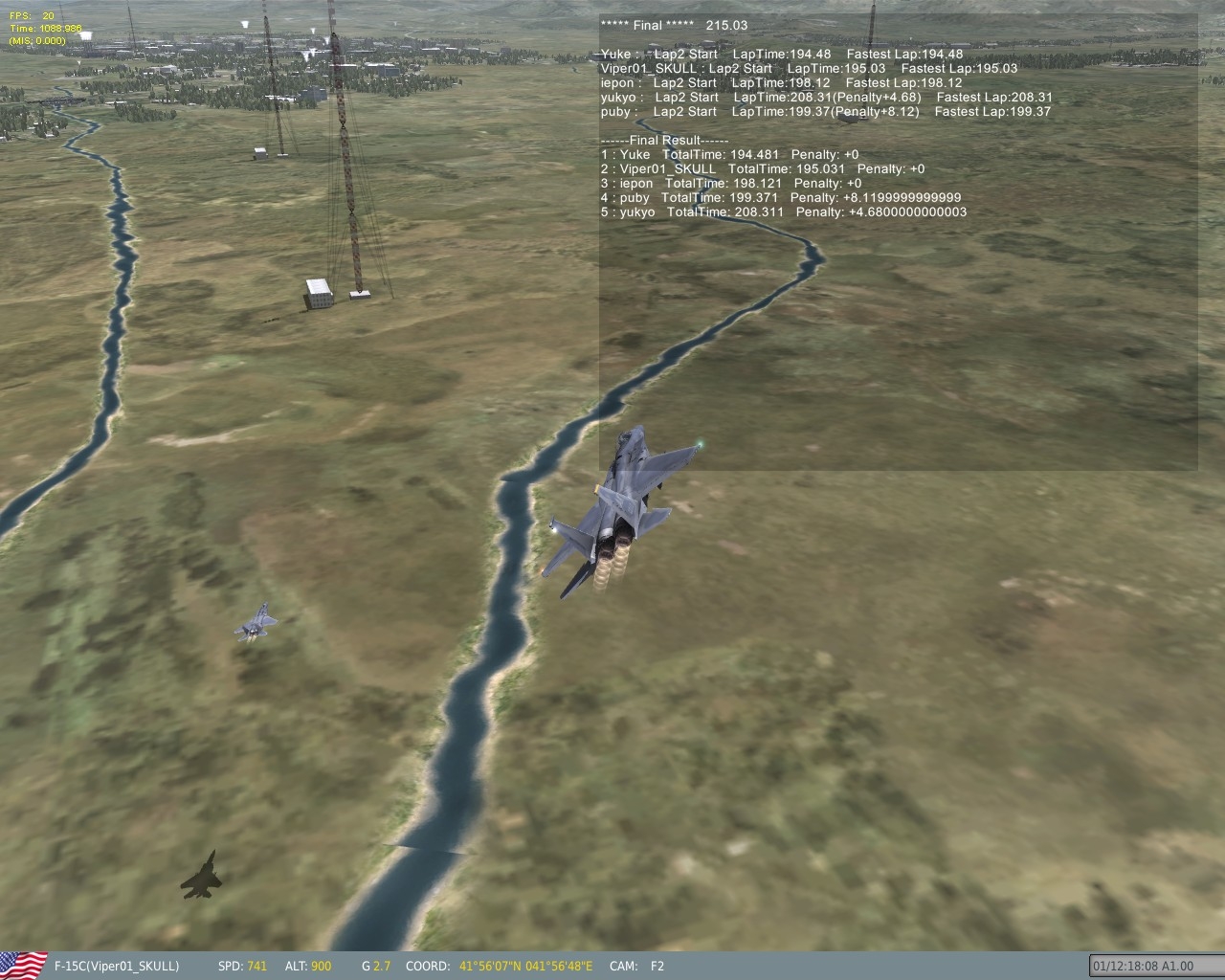

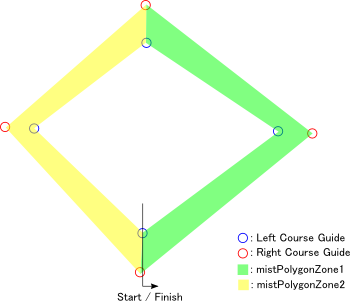

This script can multi-play the course which the user created. The flow of a race "FreeRun" -> "Qualify" -> "Starting Grid" -> "Final" DOWNLOAD SCRIPT FILE http://www.en.wiki.eagle.ru/attachment.php?attachmentid=92655&stc=1&d=1388939082 DOWNLOAD 4 COURSE http://www.en.wiki.eagle.ru/attachment.php?attachmentid=92656&stc=1&d=1388939082 Stage-1 : F-15x10 Stage-2 : MiG-29x10 Stage-3 : UH-1x10 Stage-4 : P-51x12 (Time Attack Ver) *User create course 1. MIST load 2. This script load 3. If there is a fanfare file, it will load sound file. (DefaultFlagNumber8. When you change a flag number, please change the line:760 of lua file. ) 4. Course guide (static objects) create Left side is made into the name "LeftSide #001" ... "LeftSide #002" ... "LeftSide #999"(Maximum number) Right side is made into the name "RightSide #001" ... "RightSide #002" ... "RightSide #999"(Maximum number) Note : LeftSide #Number = RightSide #Number 5. Grid Zone create TriggerZone Name "Grid1" ... "Grid2" ... "Grid99"(Maximum number) Please create a smoke zone near a grid zone. Zone name "GridSmoke1" ... "GridSmoke99"(Maximum number) Note : Grid number = GridSmoke number 6. RaceZone create This trigger zone should cover the whole course. Record time will be erased if a player comes out of this zone. 7. Client Plane or Heli create Grid number = Client AirPlane 8. UserSetting Edit PoleNumber = 67 --Please fill in the placed number of "Course guide". Example "LeftSide #067" and "RightSide #067" MaxPlayer = 10 --Please fill in the placed number of Grid & Client AirPlane. --Checkpoint Pole Number CheckPoint = {} CheckPoint[1] = 13 CheckPoint[2] = 32 CheckPoint[3] = 53 FreeRunTime = 600 --(sec) QualifyTime = 600 --(sec) PenaltyVolume = 2 --Course Out Penalty PrematureStartPenalty = 15 --(sec) maxalt = 3000 --meter The maximum altitude. It will be "course out" if it becomes higher than this. LapNumber = 3 --Final Race LapNumber smokecolor = "Orange" --Grid Smoke Color (Green , Red , White , Orange , Blue) FanfareWaitTime = 11 --(sec) Fanfare sound play time PrematureStartSpeed = 1 --Premature start check speedKnown problem When it respawn after the pilot ejected, a script stops. If "Russia Infantry Soldier Rus" is specified as a course guide, will be nil error. (bug?) If four or more players participate, it cannot fly with server PC. (Very high load) I am a programming beginner. Since I think that there are many problems and improving points, please point out a correction part. Thank you. MP_RaceScript_v1.0.zip BigBird AirRace CousePack.zip

:thumbup:

These skins real paint. JASDF 303sq was used in TAC MEET of 2006. http://blogs.yahoo.co.jp/shyuyuri12/archive/2013/03/03 http://www.amv83.fr/Asm/galleryjapanF15-303sqn.htm Download Link;) https://docs.google.com/file/d/0B52YxSsZ_9q_Z0haTE03aWdkbWM/edit?usp=sharing https://docs.google.com/file/d/0B52YxSsZ_9q_TmRVOHJ4NXlnVm8/edit?usp=sharing I have never made Longbow Apache Skin. Wow, 23sq 10th Special paint! Very nice!:thumbup:

:thumbup:

Unfortunately, there is no function of the backlight. But, I plan to improve in the near future.

Thank you all for the response! :) This time I used acrylic plate that is already gray coloured so print seal on the button wont peel off. Last time I made buttons for CDU, I was suffering from the seal peeling off from the button as I was putting seal on the gray painting, painted over the white acrylic plate. You mean how did I linked the LED caution light with the SIM? The process of recognizing LED status is done by following sequence. DCS Export.lua > Socket > Socket Receiver > USB IO Device > LED
