FlyingFighter511

Hello, this is a nice work, i'd like to know what type of screen do you use for this MFCD ?

Hello! What do you mean by this is your idea? If I plan to give my plans? I'll share the uh-1 lever' stl in some month, right now I can't access them

Axis ?

Behind this collective project I'm as well trying to solve this cyclic problem. Before my TM warthog that I didn't like that much and now my virpil, I had the logitech G940 Flight System using FFB. It was the best stick I had to use for helicopter + trimmming your jet and having your stick moving by itself is just awesome. But this system is old, and had some problems due to FFB driven by motors. That's why I'm now trying to develop a magnetic held stick, just like it would be IRL. Again not the first one to do so, but i'll try to have my vision of the thing done. ATM, I did just tried to use this magnetic brake to anchor a collective prototype. Thank you guys I appreciate !

1st huey unit, still some work to be done on the code for hatswitch and design a new start trigger. Tested on dcs Huey felling very nice!

Approaching final step of developpment

Twist handle done ! tested and fully working !

Test design for twist handle

Hello everyone ! Today's update draft prototype for UH-1 Collective. Still only the head for now, working on a good twist throttle handle. The head is sized down to match micro inverter switch in order to get a good price, biggers for 1:1 scale costs 5€ each reaching 20€ of inverters only per head and I think it's pretty expensive. By the way, I think downsized collective head helps getting the controller easier to place around or on your chair. Do not pay attention about printing failure, it's only a prototype for me to test mount and validate my quotes. Definitive one will also get the under extension with start trigger !

Hello everyone ! Here are some picture of prototype AS332 Super Puma collective, still need a lot of work to improve but I think the prototype is quite satisfaying

WIP AS332 Collective

Hello! I could be interested!

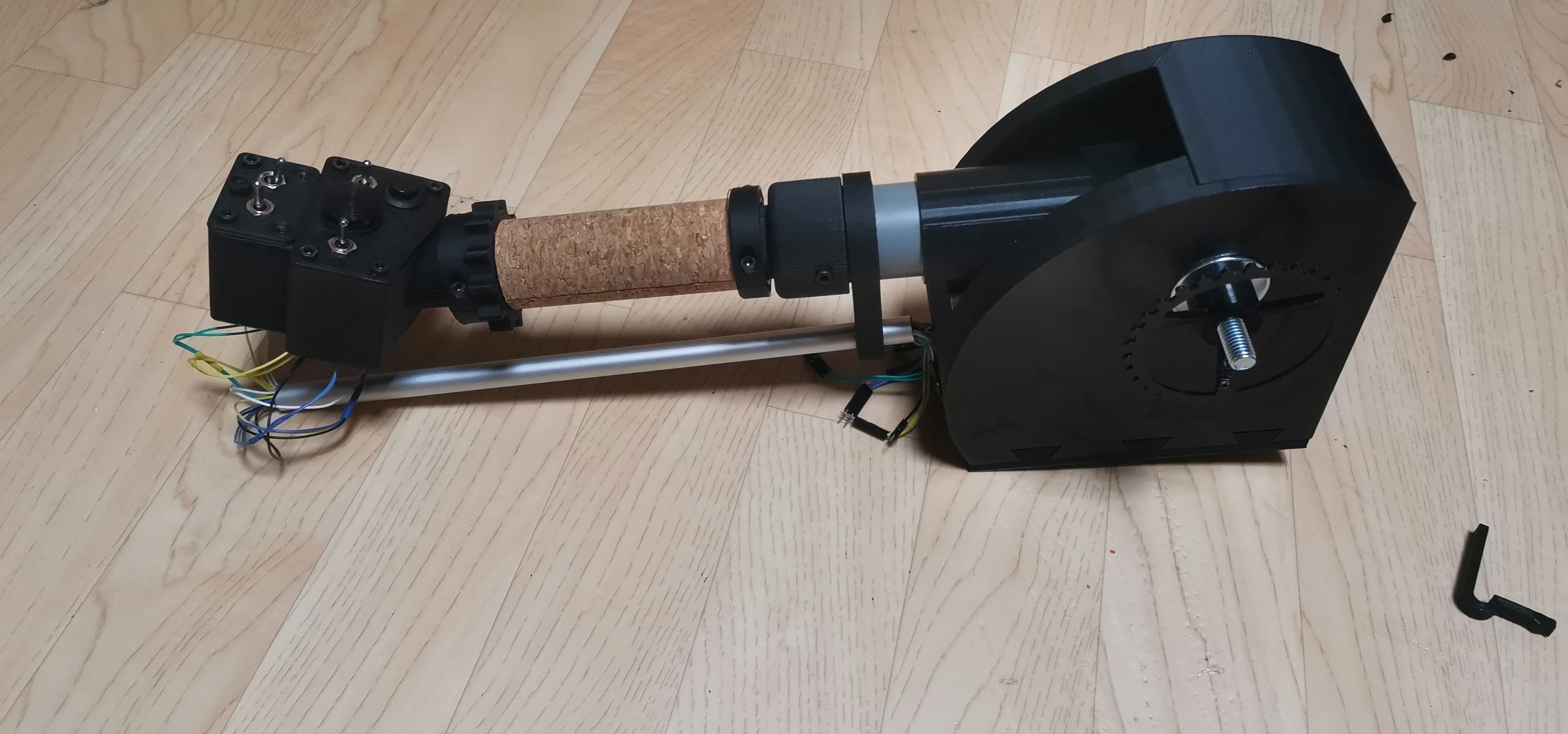

Little update : Warrior model, 2 2pos switch , 1 3pos (unstable) switch, 3 push and one 4 way hat. The grip is easy and comfy to use, it have a slight curve profile. Friction can be set adjusting the tightness of the nut on the left side of the box, a wheel will be added in the future. Very pleasant to use with any dcs helicopter The box is fixed with two bolts (on the wooden support) located on the inside face of the right surface. It's easy to open by just untigntening the screw passing through the central axis with the maintain and friction nut.

Very nice works!

Thank you Pavidovich !
