Pilot trimmer problem with FFB

[Reflected]

Hi All,



I'm a totally new Huey pilot, barely managing a hover, but having a lot of fun :)



Anyway, I'm having problems with my pilot trimmer button. As far as I understand it trims the cyclic in the position where the pilot is pushing it. This only partly works:



I own a MS FFB2 stick. When I have to apply a lot of forward pressure I press the button and the "force center" position will be as far forward as I was pushing the cyclic when pressing the button. Cool.



However, when I have to apply, say, a lot of right cyclic, and press the pilot trimmer button, the "force center " doesn't move to the right, but to the left, and I end up having to push it even harder to the right.



Is it bugged or am I doing something wrong? :joystick:



Thanks a lot in advance.



Greg

[PeroperoDokkiri]

It seems your ffb x axis are off. I am pretty sure there is a FFB tweak option in controlers settings inside DCS.

[j0nx]

I have a FFB2 on the way myself. Samek is right from what I understand as well. I'll link a post that explains what you need to do to fix this. Hope it works because mine is otw and I'm looking forward to using it for the Huey and mi8.



http://forums.eagle.ru/showpost.php?p=2803262&postcount=2

[Reflected]

Well, when I just fly around and push the stick right, the FFB is pushing it back to the left, so it works properly. It's only the trim position that changes the other way around.

[Ramsay]

However, when I have to apply, say, a lot of right cyclic, and press the pilot trimmer button, the "force center " doesn't move to the right, but to the left, and I end up having to push it even harder to the right.



Is it bugged or am I doing something wrong?



It is the normal default DCS action for a MS FFB2.

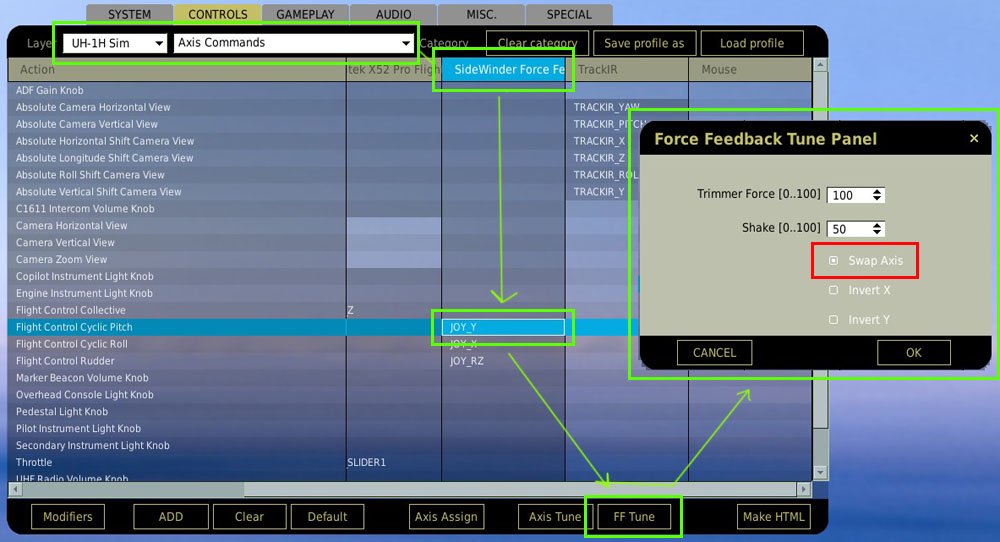

You'll need to swap the (force) axis in the 'Force Feedback Tune Panel'





AFAIK you need to apply the settings outside of flying the Huey as applying the settings while in flight cause the FFB settings to reset to ED's defaults,



Default FFB settings for some other modules are listed in this post



Ka-50:

[DCS World]>>[Options] >> [Controls] >> [Layer: Ka-50 Sim - Axis Commands] :

Top MSFFB2 : Y axis assigned as Pitch - X axis assigned as Roll

>> [FF Tune] :

Swap axis = Checked

Invert X = Un-Checked

Invert Y = Un-Checked



UH-1H (beta 1.2.6.18651):

[DCS World]>>[Options] >> [Controls] >> [Layer: UH-1H Sim - Axis Commands] :

Top MSFFB2 : Y axis assigned as Pitch - X axis assigned as Roll

>> [FF Tune] :

Swap axis = Checked

Invert X = Un-Checked

Invert Y = Un-Checked



Mi-8MTV2 (beta 1.2.6.18651):

[DCS World]>>[Options] >> [Controls] >> [Layer: Mi-8MTV2 - Axis Commands] :

Top MSFFB2 : Y axis assigned as Pitch - X axis assigned as Roll

>> [FF Tune] :

Swap axis = Checked

Invert X = Checked

Invert Y = Checked

Edited June 9, 2016 by Ramsay

[Jantar]

Hello,

I wanted to start a new thread but wondering if I could just continue on from this one.

I have recently start using the LaserWing FFB Stick. It goes really good, however I am having some issues with the Huey trim system.

I have set the stick to provide some centering force (not a lot) as I understand this is how the real Huey works. When I push the trim button on the cyclic the stick goes into dead mode as it should. If I then hold the cyclic forward so the Huey is in a cruise attitude and release the trimmer button, the stick over compensates and wants to move forward a little further than where I have it. It's almost like its reading how far I've moved the stick from center and then applying that to the new position. So if you have trimmed the cyclic forward it uses that value from center and applies it again to the new position that exagerates it even more. If I hold the stick slightly forward and keep pressing the trim button it wants to move the stick further and further forward.

Is anyone else having similar issues with their FFB stick/s, regardless of brand?

[some1]

Sounds like you have curves set in DCS. Curves on joystick axis and FFB don't work together.

[Jantar]

Legend. That was it. Good to know.

[jpuk]

On 1/22/2024 at 10:08 AM, Jantar said:

Hello,

I wanted to start a new thread but wondering if I could just continue on from this one.

I have recently start using the LaserWing FFB Stick. It goes really good, however I am having some issues with the Huey trim system.

I have set the stick to provide some centering force (not a lot) as I understand this is how the real Huey works. When I push the trim button on the cyclic the stick goes into dead mode as it should. If I then hold the cyclic forward so the Huey is in a cruise attitude and release the trimmer button, the stick over compensates and wants to move forward a little further than where I have it. It's almost like its reading how far I've moved the stick from center and then applying that to the new position. So if you have trimmed the cyclic forward it uses that value from center and applies it again to the new position that exagerates it even more. If I hold the stick slightly forward and keep pressing the trim button it wants to move the stick further and further forward.

Is anyone else having similar issues with their FFB stick/s, regardless of brand?

Are you sure the cyclic stick provides any centering force? I thought it doesn't.

Edited March 7, 2024 by jpuk

[UncleStains]

According to my dad, who flew Hueys and Kiowas in the early 1980's, the Huey had very light centering force and he did not recall ever using the force trim. Of course, he's an old man now and who knows how good his memory is! I was shocked when he tried my setup and was immediately able to fly like a pro without touching a helicopter (or simulator/video game of any kind) in 40 years.
