I found a useful quote, with cited source that offers some supplemental information:



From "Flying Guns – the Modern Era: Development of Aircraft Guns, Ammunition and Installations since 1945"



"Accuracy of the guns varies depending on the weapon and the installation. It is measured in mils (one mil equals one metre dispersion at 1,000 m). The .50 inch M3 could manage about 5 mils. The four Mk.12 cannon in the F8U were regarded as inaccurate, reportedly achieving only 12 mils (or 3.6 m at 300 m). The F 100 with four M39 cannon could get all of the shots within 8 mils and 75% within 4 mils. The M61 is capable of about 3-4 mils when internally mounted, although the centreline gunpod used in the F 4 is less rigid and can manage only 8-10 mils."

Link to comment
Share on other sites

  • 3 weeks later...

Does anyone have a copy of that Northrup F5 maintenance manual gun accuracy image? It seems it was yet another victim of the photobucket fiasco. Belsimtek is going to need to see that when they get around to fixing bugs on the F-5 again. It seems they're very big on needing verifiable sources before they're willing to make changes.

Link to comment
Share on other sites

Does anyone have a copy of that Northrup F5 maintenance manual gun accuracy image?

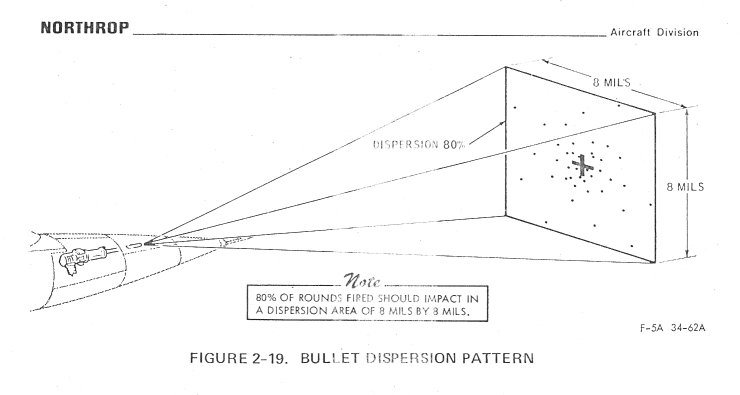

Here you go:



attachment.php?attachmentid=172561&stc=1&d=1511330132

191299929_F-5ABulletdispersionF5EHarm1_zpskqgfruoh.jpg.f0f698de56ecc347e2f617af12765262.jpg

i9 9900K @4.7GHz, 64GB DDR4, RTX4070 12GB, 1+2TB NVMe, 6+4TB HD, 4+1TB SSD, Winwing Orion 2 F-15EX Throttle + F-16EX Stick, TPR Pedals, TIR5, Win 10 Pro x64, 1920X1080

Link to comment
Share on other sites

Here you go:



attachment.php?attachmentid=172561&stc=1&d=1511330132



Interesting, I always thought it would be a circle instead of a square - a diameter of 8 mil (although I don't know how relevant this is).


Edited by PeaceSells
replaced the word "radius" with the word "diameter"

My DCS modding videos:



Modules I own so far:

Black Shark 2, FC3, UH-1H, M-2000C, A-10C, MiG-21, Gazelle, Nevada map

Link to comment
Share on other sites

Interesting, I always thought it would be a circle instead of a square - a radius of 8 mil

A circular dispersion with a standard deviation of 4 mil would have 68% of the shell impacts.



I'd guess, the 80% threshold takes the additional area from using a square target into account while making the target easier to construct/measure.



Proving the solution would perhaps be an interesting integral ?


Edited by Ramsay
Fixed SD, 8 mil diameter -> 4 mil radius, thanks to Aries144

i9 9900K @4.7GHz, 64GB DDR4, RTX4070 12GB, 1+2TB NVMe, 6+4TB HD, 4+1TB SSD, Winwing Orion 2 F-15EX Throttle + F-16EX Stick, TPR Pedals, TIR5, Win 10 Pro x64, 1920X1080

Link to comment
Share on other sites

Ramsay, thank you for providing that image!



Regarding the "Dispersion Area" mentioned in the illustration, you're over thinking it a bit. The illustration isn't intended to be used that literally. Remember, this kind of information is intended for maintenance crews, not engineers. wink.gif



Picture a circle on a target 8 mil in diameter. "8 mil, 80%" means 80% of rounds must impact within an 8 mil circle. If more than 80% of rounds, for a given number of rounds fired (we don't have that information), impact outside an 8 mil circle, maintenance is required.



8 mil, 80% would also be the minimum level of performance before parts replacement or other repairs would be required, not the norm. i.e. "If it get's worse than this, we need to fix something."



Please note also that "Standard Deviation" is not what is meant here, but diameter. "Dispersion Area" is naturally a circle.
