Recommended Posts

I know there are loads of people on here who would love a British harrier over the av8b. I also know it may be coming in the future but what are the differences between the 2?



Kind of late to the party mate. A few months back RAZBAM put together a poll asking which Harrier the community would prefer, the AV-8B(NA)\Plus or the GR.7/9. The GR harriers won by a respectable amount so that is what was decided to be done. However shortly after RAZBAM ran into trouble with the module. Classified material meant they couldn't have access to too many systems, they specifically mentioned the Targeting Pod was a point of contention, though hardly the only one. On the reverse side of that, they found that they had much more detailed information available to them to do an AV-8B Harrier, and so after apologizing to the community they switched over, thus putting ourselves in this position today.



They have not ruled out a GR.7/9 Harrier, however barring the sudden declassification of a number of systems by the MoD, I wouldn't hold my breath for it.

Link to comment
Share on other sites

The engine have a different designation but it's the same.(except for gr7A with uprated engine)

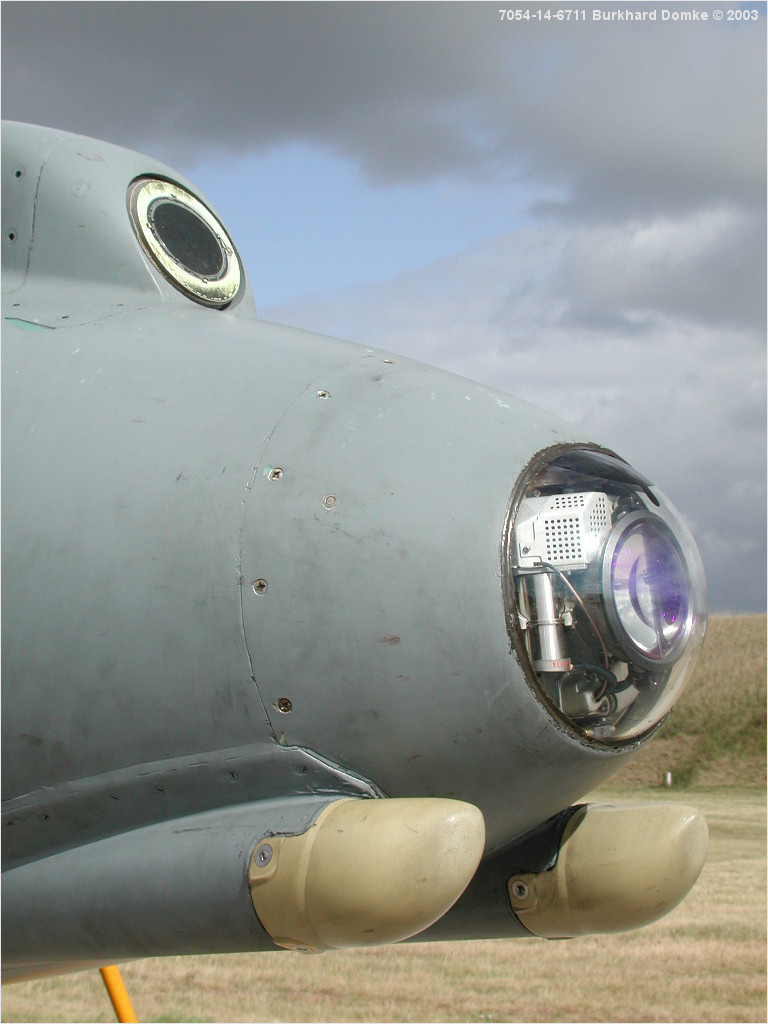

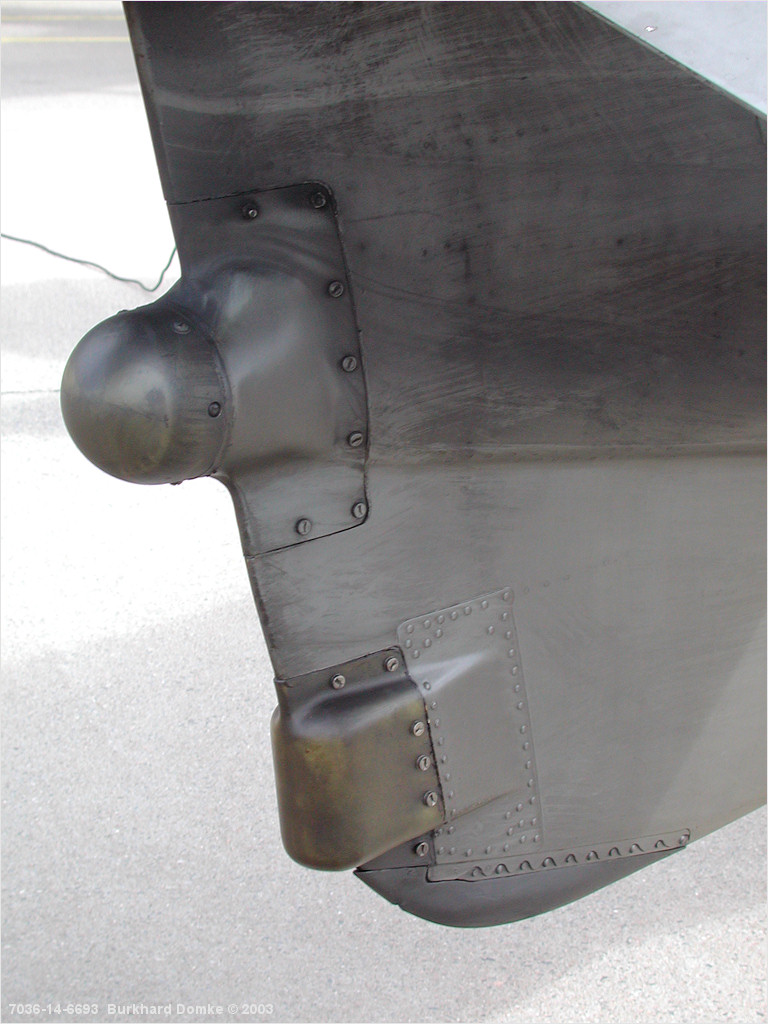

Externally you can see 2 small budges under the nose and on the rear: this contains the Marconi Zeus ECM antenna

FRONT


REAR




Different profile for leading edge of the wing, reinforced for sustaining severe bird strike, and one pylon more under each wing.




Cockpit use U.K. avionics, Marconi moving map, wide angle HUD and an improve MBB MK12 typ 2 ejection seat.

Obviously armament have some differences
