Layzie Posted September 14, 2018 Share Posted September 14, 2018 ARE THESE FOR SALE? They will be available free of charge when completed. I believe they are accepting donations on their site if anyone wanted show support since these guys are doing this for free and on their free time. Link to comment Share on other sites More sharing options...
jrsteensen Posted September 15, 2018 Author Share Posted September 15, 2018 So finally broke through my block on the Left AUX. Structure on the left console is progressing again. Also, I've transitioned the model to SolidWorks 2018. OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
Salsam Posted September 16, 2018 Share Posted September 16, 2018 Any chance you will include ejection seat as well? A part of NOSIG Link to comment Share on other sites More sharing options...
jrsteensen Posted September 16, 2018 Author Share Posted September 16, 2018 Any chance you will include ejection seat as well? A part of NOSIGAbsolutely! We are seeking good information on the seat, since we have far fewer references on the seat than we do the main cockpit. Sent from my SM-G960U using Tapatalk OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
ddanoismac.com Posted September 16, 2018 Share Posted September 16, 2018 What does the update timeline look like for starting to make the files available? Link to comment Share on other sites More sharing options...
jrsteensen Posted September 16, 2018 Author Share Posted September 16, 2018 What does the update timeline look like for starting to make the files available?Unfortunately, going to have to stick with our normal answer of, "When they are ready." Trying to not rush this out the door. A lot of design work still, followed by a significant QA process to try to catch as many errors as possible. Sent from my SM-G960U using Tapatalk OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
ddanoismac.com Posted September 16, 2018 Share Posted September 16, 2018 Ok, thanks. Link to comment Share on other sites More sharing options...
ICEMAN2647 Posted September 19, 2018 Share Posted September 19, 2018 ARE U SELLING THESE ICEMAN2647 Link to comment Share on other sites More sharing options...
ICEMAN2647 Posted September 19, 2018 Share Posted September 19, 2018 ARE THEY 4 SALE YET ICEMAN2647 Link to comment Share on other sites More sharing options...
Buckeye Posted September 19, 2018 Share Posted September 19, 2018 ARE THESE FOR SALE? They will be available free of charge when completed. I believe they are accepting donations on their site if anyone wanted show support since these guys are doing this for free and on their free time. ARE U SELLING THESE Already answered numerous times in this thread....the answer is no, is it that difficult to just read? VR Cockpit (link): Custom Throttletek F/A-18C Throttle w/ Hall Sensors + Otto switches | Slaw Device RX Viper Pedals w/ Damper | VPC T-50 Base + 15cm Black Sahaj Extension + TM Hornet or Warthog Grip | Super Warthog Wheel Stand Pro | Steelcase Leap V2 + JetSeat SE VR Rig: Pimax 5K+ | ASUS ROG Strix 1080Ti | Intel i7-9700K | Gigabyte Z390 Aorus Master | Corsair H115i RGB Platinum | 32GB Corsair Vengeance Pro RGB 3200 | Dell U3415W Curved 3440x1440 Link to comment Share on other sites More sharing options...
ICEMAN2647 Posted September 19, 2018 Share Posted September 19, 2018 IS IT 4 SALE YET ICEMAN2647 Link to comment Share on other sites More sharing options...
ICEMAN2647 Posted September 19, 2018 Share Posted September 19, 2018 OK SORRY IM NEW HERE. I DIDNT SEE IT. BUT UR WORK LOOKS GREAT. IM ABOUT TO BUY ONE FROM ANOTHER MAKER. IF U GET EM TO SELLING POINT. LET ME KNOW ASAP. TY ICEMAN2647 Link to comment Share on other sites More sharing options...
Layzie Posted September 20, 2018 Share Posted September 20, 2018 OK SORRY IM NEW HERE. I DIDNT SEE IT. BUT UR WORK LOOKS GREAT. IM ABOUT TO BUY ONE FROM ANOTHER MAKER. IF U GET EM TO SELLING POINT. LET ME KNOW ASAP. TY These plans are not and will not be for sale. They will he released for free to the public because they are only the plans (blue prints) to use to build your own cockpit using parts and labor you source or hand build yourself. Keywords being YOU and BUILD. These are not full pits. I know you're new here, bro, but you really might want to spend some time skimming through the previous posts to avoid asking questions and receiving answers that have literally been posted more than a 30 times. Its proper "forum etiquette". Just subscribe to this thread and you will receive updates on it and know the current status Link to comment Share on other sites More sharing options...
Bullant Posted September 21, 2018 Share Posted September 21, 2018 And please stop typing all in caps, it is incredibly rude. 1 Intel i7 13700K @ 5.3 GHz / ASUS TUF Gaming Z490-Plus / 64 Gb G.Skill DDR4-3600 / RTX 4090 / 2TB Kingston KC3000 NVME / Win 10 x64 Pro / Pimax Crystal / WINWING F/A-18 HOTAS A-10C, AJS-37, AV-8B, F-4E, F-5E, F-14, F-15E, F-16, F/A-18C, F-86F, FC3, Christen Eagle 2, FW190D-9, Mosquito, P-47D, P-51D, Spitfire, AH-64D, KA-50, UH-1H Combined Arms, WWII Asset Pack, China Assets Pack, Super Carrier, Falklands Assets Nevada, Normandy, Persian Gulf, The Channel, Syria, Mariana Islands, South Atlantic, Sinai Link to comment Share on other sites More sharing options...
Mr_Burns Posted September 22, 2018 Share Posted September 22, 2018 Ah a Millennial, a product of the must have now era, no time to read, gimmie gimmie... So are they for sale yet (SORRY). Link to comment Share on other sites More sharing options...
Guppy Posted September 22, 2018 Share Posted September 22, 2018 (edited) [delete] Edited September 22, 2018 by Guppy off topic My Simpit Progress and Update Learn how to build a SimPit like mine: Follow my Blog here! Link to comment Share on other sites More sharing options...
jrsteensen Posted September 22, 2018 Author Share Posted September 22, 2018 (edited) Easy gentlemen. Let's keep this on topic. Edited October 6, 2018 by jrsteensen OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...

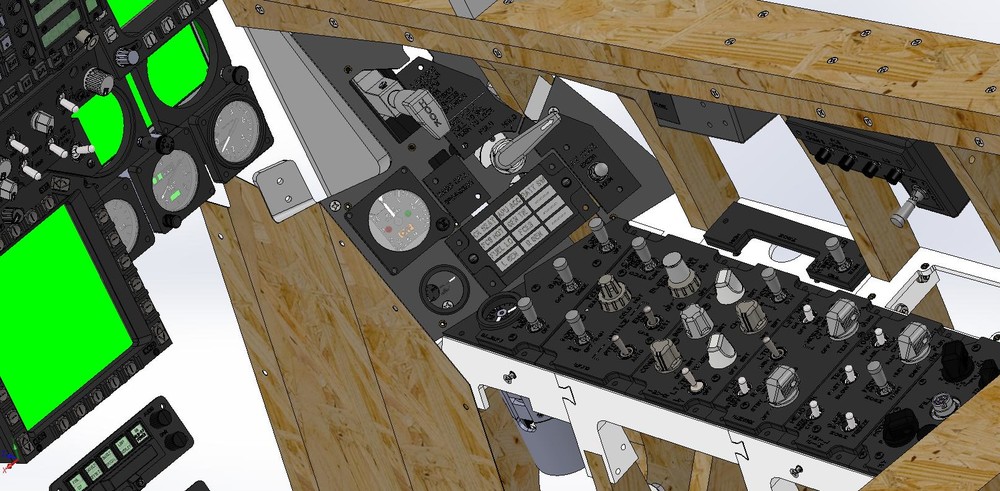

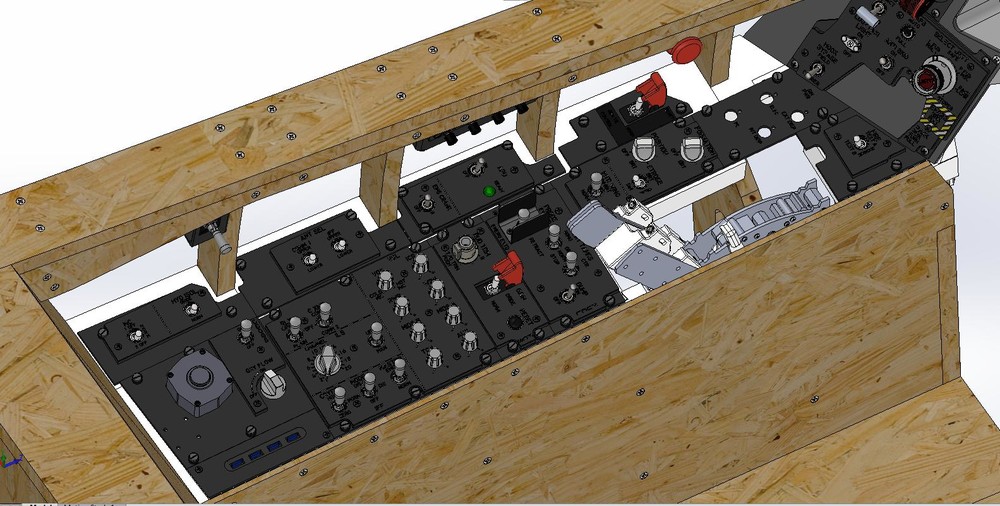

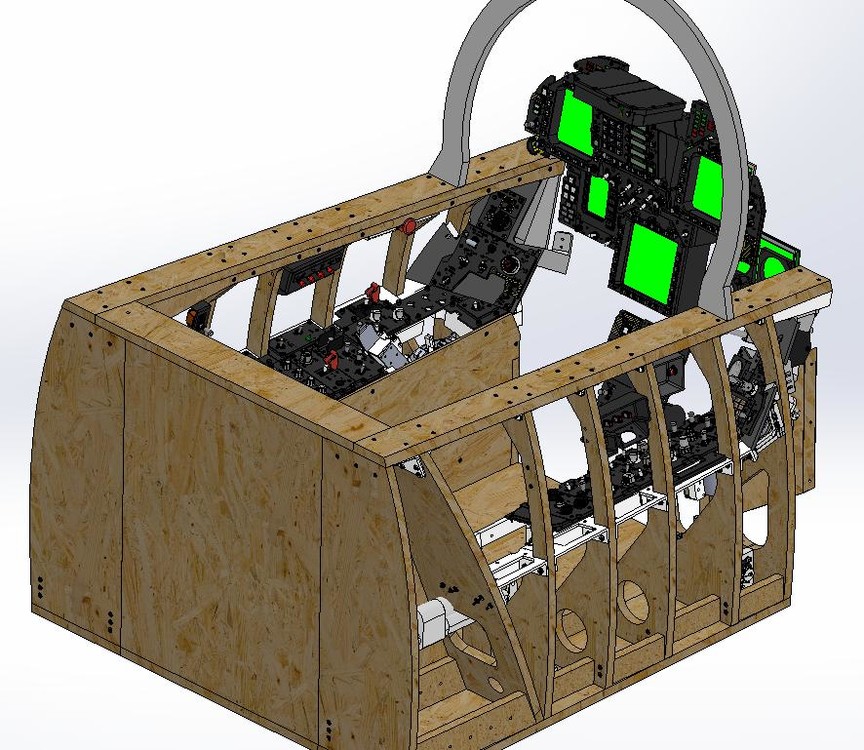

jrsteensen Posted October 6, 2018 Author Share Posted October 6, 2018 So its starting to look like a real pit. These screen caps are from before I'd done much more than mirror the left console to the right console. The face of the right console and AUX are not correct. The left console will be build ready once I finish the throttle (down the line), and finish the brake pressure gauge and brake handle. Right console currently needs to have the face finished up, what I can do of the AUX, and integrating the servo and linkage system for the pitch control of the stick for ACLS landings. Unfortunately, looks like I mis-selected my steppers for the gauges so they all are going to have to be redesigned. Going to go with the common VID29 stepper for the gauges, with a 360* mod where required. I am trying to find a dual stepper of the same series to drive the coax needle gauges. (Very much would appreciate any pointers or direction there.) OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
Dropship Pilot Posted October 7, 2018 Share Posted October 7, 2018 I really like what I see :thumbup: The VID28-05 is a coaxial stepper motor from that series. It might do the trick. Cheers DSP Link to comment Share on other sites More sharing options...
jrsteensen Posted October 7, 2018 Author Share Posted October 7, 2018 DSP, Judging by the data sheet, that looks like exactly what I need. Do you know where I can find a drawing of it so I can make the CAD model? A preliminary search didnt turn it up. I was able to find the VID29 drawing though. Sent from my SM-G960U using Tapatalk OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
robump Posted October 7, 2018 Share Posted October 7, 2018 Looking seriously impressive guys. How did the prototypeing of the interface pcbs go? Link to comment Share on other sites More sharing options...
jrsteensen Posted October 7, 2018 Author Share Posted October 7, 2018 Looking seriously impressive guys. How did the prototypeing of the interface pcbs go?We decided the 0603 components were going to be just too small for most people to comfortably hand solder, so we are redesigning with larger components. Sent from my SM-G960U using Tapatalk OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
DeadMeat Posted October 7, 2018 Share Posted October 7, 2018 DSP, Judging by the data sheet, that looks like exactly what I need. Do you know where I can find a drawing of it so I can make the CAD model? A preliminary search didnt turn it up. I was able to find the VID29 drawing though. Sent from my SM-G960U using Tapatalk I used this this drawing (under manuals) for my own designs My mods --> Mil-spec upgrades for TM Warthog, Hornet & Cougar grips | Mil-spec upgrade for TM Warthog throttle | Real Tornado gear switch modded into gear and hook lever switches Link to comment Share on other sites More sharing options...
jrsteensen Posted October 7, 2018 Author Share Posted October 7, 2018 I used this this drawing (under manuals) for my own designsOkay, that is perfect. That will get me all the critical interfaces I need. Thanks! Sent from my SM-G960U using Tapatalk OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
jrsteensen Posted October 8, 2018 Author Share Posted October 8, 2018 Does anyone know what the indicator for the hook light is? Trying to locate it so I can get the dimensions right. Just realized I completely overlooked it in my model. OpenHornet F/A-18C 1:1 SimPit Website :: DCS Thread Link :: Discord :: Github :: Link to comment Share on other sites More sharing options...
