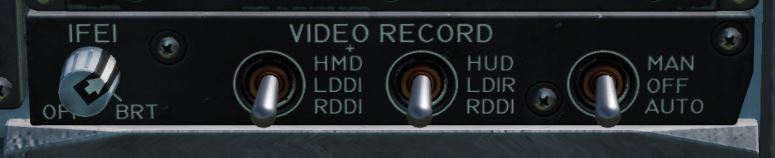

Hippo Posted June 19, 2018 Posted June 19, 2018 See images. System spec: Intel i7 12700k @ stock, ASUS TUF Gaming GeForce RTX 3080 Ti 12GB GDDR6X, Gigabyte Z690 UD DDR4, Corsair Vengeance LPX 32GB (2 x 16GB) DDR4 3200MHz C16, Samsung 980 EVO 500 GB NVME M.2 SSD (system drive), WD Black SN 850X 2TB NVME M.2 SSD (games drive), Thermalright Assassin Spirit 120 Evo Cooler, Asus XG43UQ Monitor, Oculus Quest Pro, Thrustmaster Warthog HOTAS Prev System spec (leaving here because I often reference it in my posts): Intel i9 13900KF @ stock, Gigabyte GeForce RTX 4090 Gaming OC 24GB GDDR6X, Gigabyte Z690 UD DDR4, Corsair Vengeance RGB PRO SL 32GB (2 x 16GB) DDR4 3600MHz C18, Samsung 980 EVO 500 GB NVME M.2 SSD (system drive), Samsung 970 EVO 1 TB NVME M.2 SSD (games drive), Cooler Master ML360 Illusion CPU Cooler, Asus XG43UQ Monitor, Oculus Quest Pro, Thrustmaster Warthog HOTAS, MFG Crosswind Rudder Pedals

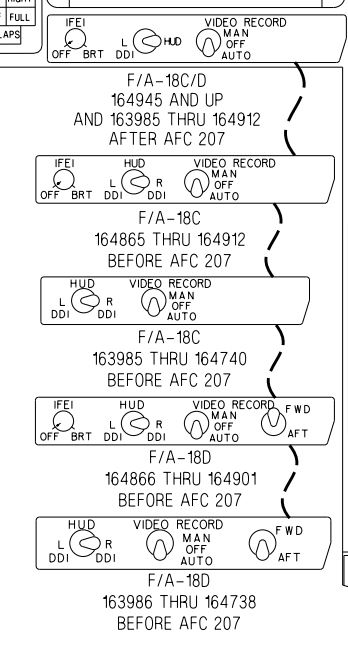

VKing Posted June 19, 2018 Posted June 19, 2018 Since none of the switches in the diagram mention the HMD, yet section 2.21.8 explicitly says: "VTR selector switches located on the forward and aft CVRS Control panels allow selection of HMD video recording.", I assume the panel changed when the HMD system was installed.
Hippo Posted June 19, 2018 Author Posted June 19, 2018 Since none of the switches in the diagram mention the HMD, yet section 2.21.8 explicitly says: "VTR selector switches located on the forward and aft CVRS Control panels allow selection of HMD video recording.", I assume the panel changed when the HMD system was installed. Ah, RTFM. Thanks for clearing that up. I also notice that the LDDI - HUD - RDDI switch is sideways in the NATOPS (which makes sense). System spec: Intel i7 12700k @ stock, ASUS TUF Gaming GeForce RTX 3080 Ti 12GB GDDR6X, Gigabyte Z690 UD DDR4, Corsair Vengeance LPX 32GB (2 x 16GB) DDR4 3200MHz C16, Samsung 980 EVO 500 GB NVME M.2 SSD (system drive), WD Black SN 850X 2TB NVME M.2 SSD (games drive), Thermalright Assassin Spirit 120 Evo Cooler, Asus XG43UQ Monitor, Oculus Quest Pro, Thrustmaster Warthog HOTAS Prev System spec (leaving here because I often reference it in my posts): Intel i9 13900KF @ stock, Gigabyte GeForce RTX 4090 Gaming OC 24GB GDDR6X, Gigabyte Z690 UD DDR4, Corsair Vengeance RGB PRO SL 32GB (2 x 16GB) DDR4 3600MHz C18, Samsung 980 EVO 500 GB NVME M.2 SSD (system drive), Samsung 970 EVO 1 TB NVME M.2 SSD (games drive), Cooler Master ML360 Illusion CPU Cooler, Asus XG43UQ Monitor, Oculus Quest Pro, Thrustmaster Warthog HOTAS, MFG Crosswind Rudder Pedals
SkateZilla Posted June 19, 2018 Posted June 19, 2018 See images. None of those Diagrams are for Lot 20: Bunos 165399 - 165416 Windows 10 Pro, Ryzen 2700X @ 4.6Ghz, 32GB DDR4-3200 GSkill (F4-3200C16D-16GTZR x2), ASRock X470 Taichi Ultimate, XFX RX6800XT Merc 310 (RX-68XTALFD9) 3x ASUS VS248HP + Oculus HMD, Thrustmaster Warthog HOTAS + MFDs
Residual Posted June 19, 2018 Posted June 19, 2018 The current panel matches up for a F/A-18D model between F/A-18D 164866 THRU 165687 AFTER F/A-18 AFC 444 listed as legend item 13. The correct panel should be legend 7 which I have outlined since it has the AFC-400 installed which is the HMD mod, as is evident by the HMD knob on the spin mode switch panel.
