Spitty Posted October 25, 2018 Share Posted October 25, 2018 Hi guys.Been an exciting and challenging couple of months.Due a request by a couple of guys who needed some realistic,functioning parts for their P51 flight sims I proceeded to get knee deep in aircraft drawings,manuals and pilfering any info I could find online..Many thanks to Kelly and Stang4me as their initial info was invaluable to start production.First things is there is not a lot of drawings available for all the parts needed to do a complete throttle as parts were a mix of B and D or simply could not be found.Even with the parts manual diagram there were differences between different blocks of Mustangs.Also thanks to Kellys detective work I was able to get some original type screws and bolts. After initially drawing it all up in CAD then in 3D a design started to make sense so major components could be started in the 3D printer and the larger sheetmetal aluminium parts fabricated.Eventually as I started assembling parts things didnt work 100% so a process of redesign and fine tuning parts needed to be done.Especially with the splined cylinders and the length of the centre lock axle.Also I had to change materials on the centre threaded bush..This was done to ensure the friction knobs at the front of the assembly worked as needed to lock the handles in position.Also the K14 twist handle needed looking at as it needed to turn a bike cable to work the K14 gunsight wheel. If anyone has any questions or interested in one please PM me and Im quite happy to answer questions. Link to comment Share on other sites More sharing options...

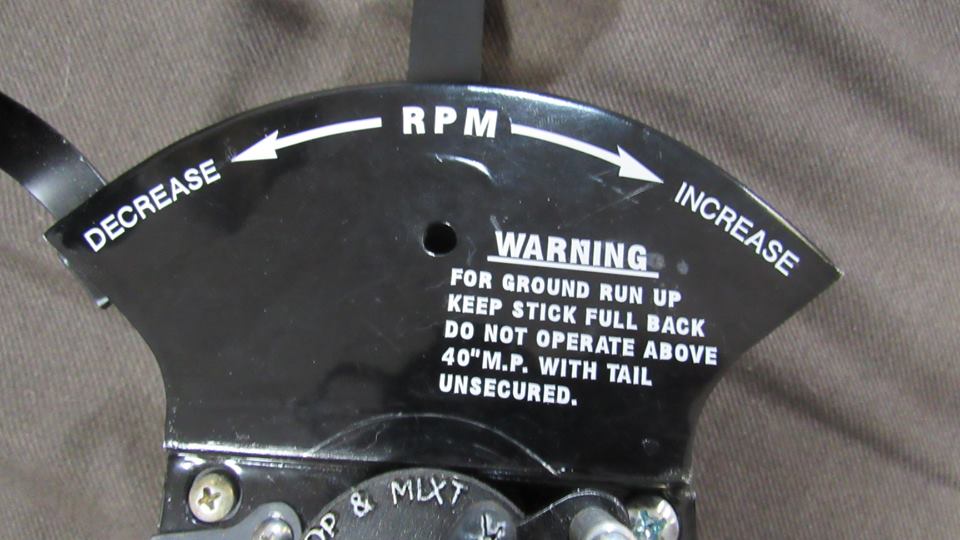

Spitty Posted November 2, 2018 Author Share Posted November 2, 2018 (edited) Some pics of the majority of parts involved.This is the second one coming together. Edited November 2, 2018 by Spitty Pics Link to comment Share on other sites More sharing options...
Stang Posted November 2, 2018 Share Posted November 2, 2018 Really Awesome Work Link to comment Share on other sites More sharing options...
Bazooka Posted November 3, 2018 Share Posted November 3, 2018 Im waiting for mine to arrive and after Ive had some play time with it I'll be doing a review. Im really impressed with the workmanship I've seen in the pictures so far. This should be a welcome addition to any P-51 pit. Link to comment Share on other sites More sharing options...
draken152 Posted November 3, 2018 Share Posted November 3, 2018 Amazing work :thumbup::thumbup::thumbup: I love this kind of WW2 birds stuff... [sIGPIC][/sIGPIC] Building FW190D pit ,,To Dora with love" http://forums.eagle.ru/showthread.php?t=132743 Link to comment Share on other sites More sharing options...
Spitty Posted November 4, 2018 Author Share Posted November 4, 2018 Thanks guys..More coming.. Link to comment Share on other sites More sharing options...
Spitty Posted January 22, 2019 Author Share Posted January 22, 2019 Just gauging some interest in a basic "mechanics" pack of parts for the throttle that guys put together themselves.Might be an easier and cheaper option for some guys. Link to comment Share on other sites More sharing options...
adrianstealth Posted January 22, 2019 Share Posted January 22, 2019 yes i'd maybe prefer to build myself anyhow, also it keeps cost down Link to comment Share on other sites More sharing options...
dmwierz Posted November 4, 2019 Share Posted November 4, 2019 Did anything ever come of this effort? I've been browsing the forum, and these "P-51 Throttle Projects" seem to start off with a ton of enthusiasm, then they just fade away. i9-9900K @5.1Ghz w/ 32GB RAM, RTX2080 Super w/ 8G, Samsung Odyssey VR HMD, 1 TB SSD, VKB Gladiator MKII, TM TWCS throttle, Saitek Pro Yoke, Saitek Throttle Quadrant x2, CH Pro Pedals, Obutto Ozone Link to comment Share on other sites More sharing options...
Spitty Posted November 5, 2019 Author Share Posted November 5, 2019 Parts are here. https://www.shapeways.com/shops/spit?section=P51+Mustang&s=0 Build pics here. https://simhq.com/forum/ubbthreads.php/topics/4445294/p51d-throttle-quadrants#Post4445294 Link to comment Share on other sites More sharing options...
Stang Posted November 5, 2019 Share Posted November 5, 2019 Awesome work!! Link to comment Share on other sites More sharing options...
jojo Posted November 6, 2019 Share Posted November 6, 2019 Parts are here. https://www.shapeways.com/shops/spit?section=P51+Mustang&s=0 Build pics here. https://simhq.com/forum/ubbthreads.php/topics/4445294/p51d-throttle-quadrants#Post4445294 Looks great, is there any example of one functional with DCS ? Mirage fanatic ! I7-7700K/ MSI GTX 1080Ti Gaming X/ RAM 32 Go/ SSD / TM Hornet stick-Virpil WarBRD + Saitek X-55 Throttle + MFG Crosswind + Rift S M-2000C X-55 VR profile / M-2000C custom SERVAL symbols assignation Flickr gallery: https://www.flickr.com/gp/71068385@N02/728Hbi Link to comment Share on other sites More sharing options...
Spitty Posted November 6, 2019 Author Share Posted November 6, 2019 Have to ask one of the guys whos building them.I built it to be the same as the originals so its all mechanical. https://www.facebook.com/P-51-Mustang-Sim-Builders-2197804450538639/ Link to comment Share on other sites More sharing options...
Stang Posted November 8, 2019 Share Posted November 8, 2019 Spitty's work is incredible and most importantly ACCURATE! You get what you pay for....remember that! Stang out Link to comment Share on other sites More sharing options...
Spitty Posted September 7, 2020 Author Share Posted September 7, 2020 Another lot of throttles Sorry for delay,real lifes been stealing my time in getting another set of 5 done.Two down,three to go. Link to comment Share on other sites More sharing options...
