Help exporting F18 MPCD

[andrewd251]

evening all







As the title suggests i'm looking for some help exporting the hornets MPCD.

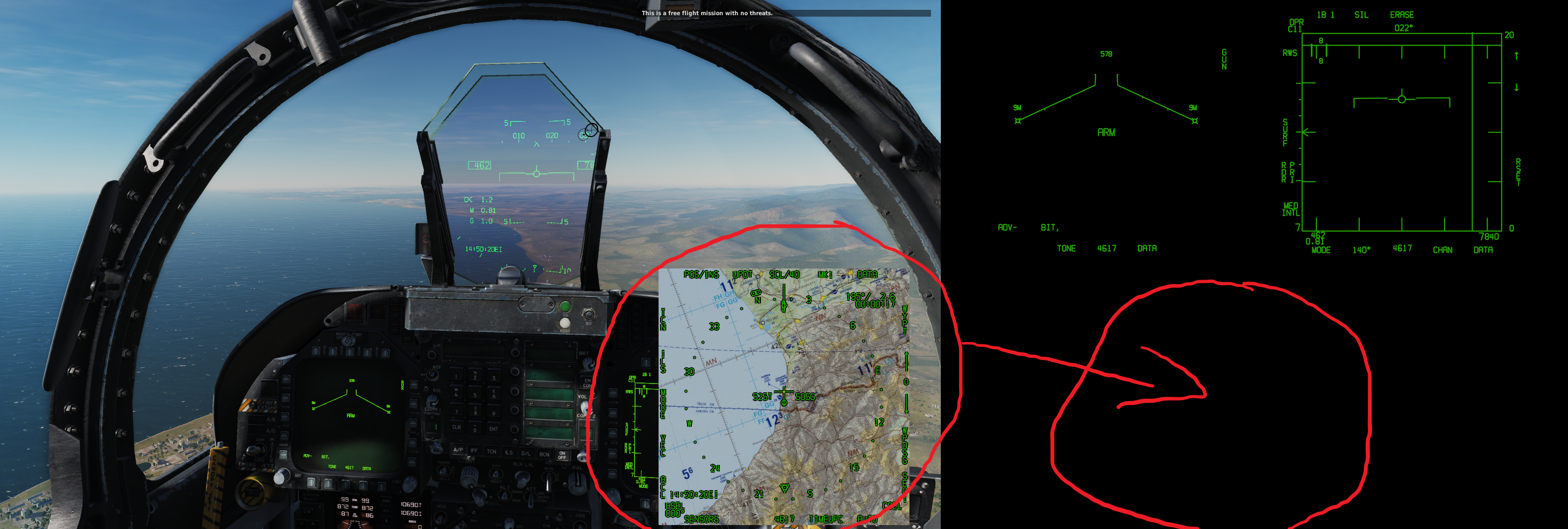

I have managed to get the top left and right screens to work, however the MPCD wont move from my main monitor no matter what values i put in the x & y sections of the monitor .lua file.





Below is my monitor.lua file.





_ = function(p) return p; end;

name = _('1 Screen + 3 MFD on second screen');

Description = 'One monitor with 3 MFD on second screen configuration'

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 1920;

height = 1080;

viewDx = 0;

viewDy = 0;

aspect = 1920/1080;

}

}





Gui =

{

x = 0;

y = 0;

width = 1920;

height = 1080;

}







LEFT_MFCD =

{

x = 1920 + 73;

y = 5;

width = 530;

height = 530;

}



RIGHT_MFCD =

{

x = 1920 + 676;

y = 5;

width = 530;

height = 530;

}







F18_AMPCD =

{

x = 1920 + 275;

y = 540;

width = 530;

height = 530;

}



UIMainView = Gui





Any help would be appreciated.

[xoxen]

Instead of "F18_AMPCD" use "CENTER_MFCD".

[andrewd251]

Thanks will give it a try.

[Capt Zeen]

Yes, use "CENTER_MFCD"
