T flight stick X problem

[Reax178]

Hello,



I tried to "wash" my T flight stick because the yaw axis was buggy . But now i am stuck at the point where i have to attach the little spring to the left part of my stick : I don't know where i have to put the two edges of my spring . I don't speak english well so here is two photos :



The "spring" :

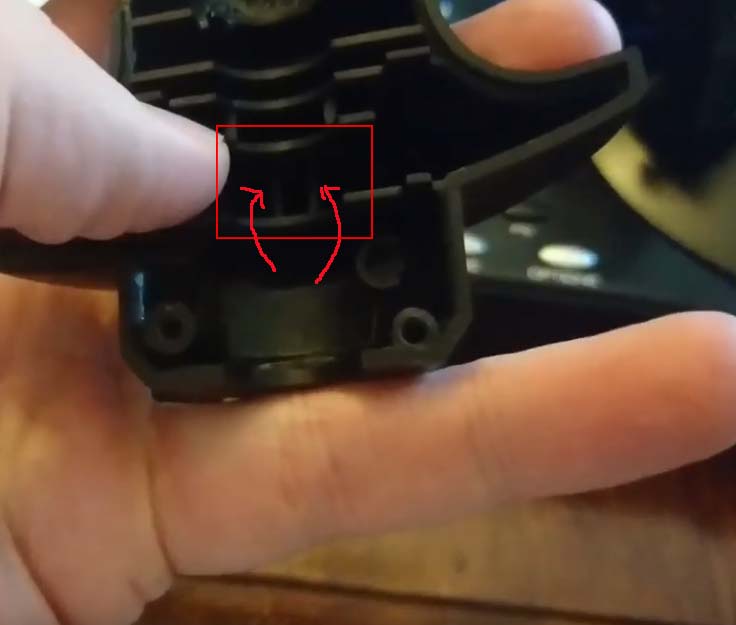

And the left side of my stick :



Because of this problem my yaw axis is not functionning correctly ( i don't have the twist effect ) :/



Can someone explain me where i have to put those two edges please ?

[David OC]

Welcome to the forum Reax178



Perhaps post it down in the



Input and Output » Thrustmaster thread section.



Someone their may have pulled one apart.



Edit:



Forward to the 2:15 time

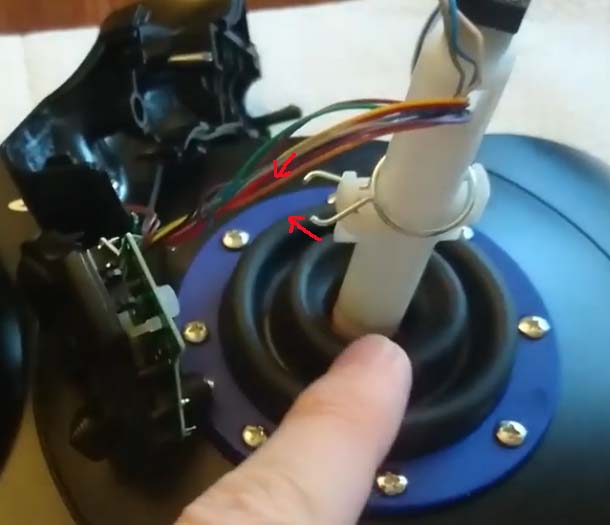

1. You have reversed the spring it seems, it should sit and point inward like this.







2. The spring go's around the two poles seen here.









Hello,



I tried to "wash" my T flight stick because the yaw axis was buggy .



Not like this I hope lol.:)



Edited November 24, 2019 by David OC

[Reax178]

Thanks for your help ! The yaw axis is now working alot better but there is a zone where it can be moved but it will not recenter automatically . I will try to put the spring on the other side and see what happen !

[Reax178]

It works perfectly now, i had to reverse the two edges of the spring like on my first image . Thanks for telling me where to put it :)
