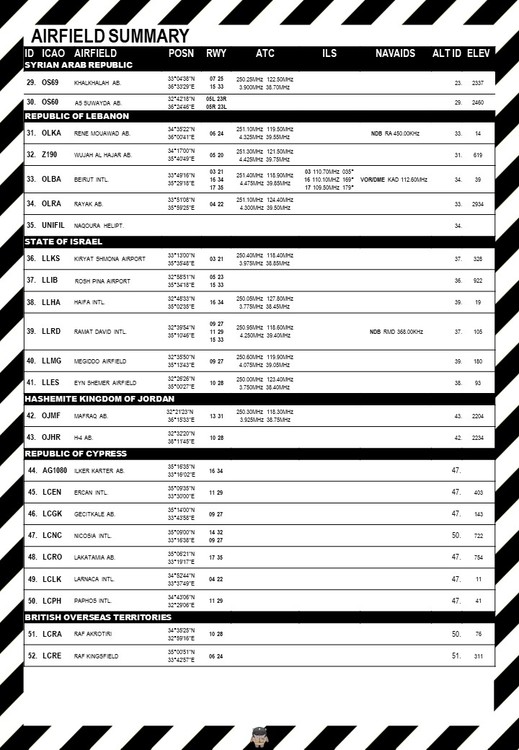

trelos57 Posted December 5, 2020 Share Posted December 5, 2020 5 hours ago, shu77 said: This is what the airfield list sits like on the index, As part of my work on these I normally take opensource info to start then update as I can reference the sim which is why some items are filled in, but also because in a couple cases the navaids are present. as mentioned 13. OSDZ is a long way further EAST but requires a complete restart of the diagram so I have just left it offset for the minute. All of this is provisional, and based on feedback from the Ugra rather than being officially approved. I also note despite several weeks of searching I couldnt find a proper identifier for the UNIFIL base in Lebanon 35. But it looks to be another awesome Heliport, so any help there would be appreciated. *Republic of CYPRUS Link to comment Share on other sites More sharing options...
shu77 Posted December 5, 2020 Author Share Posted December 5, 2020 9 hours ago, trelos57 said: *Republic of CYPRUS Cheers, I think thats the only place its slipped through. 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

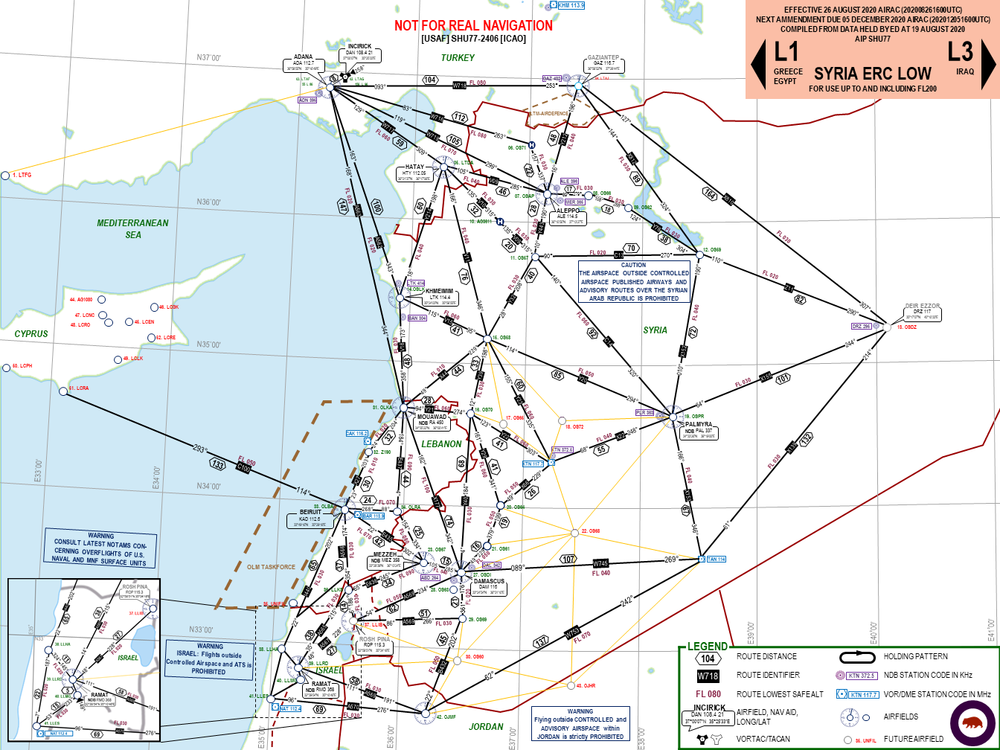

shu77 Posted December 17, 2020 Author Share Posted December 17, 2020 17DEC2020: Version 4.0 Pre-release update to the diagrams in the first post ahead of the expected update, quite a lot of work to do. Will look at what else the update includes and see if I cant add some proper MAGVAR etc. Expect individual diagrams to drop as I get though them though Mandalorian finale tomorrow.... 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...
Relayer Posted December 27, 2020 Share Posted December 27, 2020 Have Ugra sorted out the terrain kneeboard folder yet? Link to comment Share on other sites More sharing options...
Rudel_chw Posted January 11, 2021 Share Posted January 11, 2021 On 12/27/2020 at 10:05 AM, Relayer said: Have Ugra sorted out the terrain kneeboard folder yet? No, just tested on latest Openbeta, and found that Ugra has still not implemented the Kneeboard folder for this Map Wonder how hard can that be, as the basic kneeboard functionality is built-in on the DCS core engine. 1 For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600X - 32 GB DDR4 2400 - nVidia GTX1070ti - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar - Oculus Rift CV1 Mobile: iPad Pro 12.9" of 256 GB Link to comment Share on other sites More sharing options...
Ala12Rv-Tundra Posted January 16, 2021 Share Posted January 16, 2021 Excuse my question, so the Syria user made charts are only base diagrams, they don´t include arrival and departure sheets, right? is that info available online somewhere else? i5 8400 | 32 Gb RAM | RTX 2080Ti | Virpil Mongoose T-50 base w/ Warthog & Hornet sticks | Warthog throttle | Cougar throttle USB | DIY Collective | Virpil desk mount | VKB T-Rudder Mk IV | Oculus Rift S | Buddy-Fox A-10 UFC | 3x TM MFDs | 2x bass shakers pedal plate| SIMple SIMpit chair | WinWing TakeOff panel | PointCTRL v2 | Andre JetSeat | Winwing Hornet UFC | Winwing Viper ICP FC3 - Warthog - F-5E - Harrier - NTTR - Hornet - Tomcat - Huey - Viper - C-101 - PG - Hip - SuperCarrier - Syria - Warthog II - Hind - South Atlantic - Sinai - Strike Eagle Link to comment Share on other sites More sharing options...
shu77 Posted January 17, 2021 Author Share Posted January 17, 2021 20 hours ago, Ala12Rv-Tundra said: Excuse my question, so the Syria user made charts are only base diagrams, they don´t include arrival and departure sheets, right? is that info available online somewhere else? Honestly Ive not bothered to explore it as the ATC engine doesnt really support it at the moment. 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

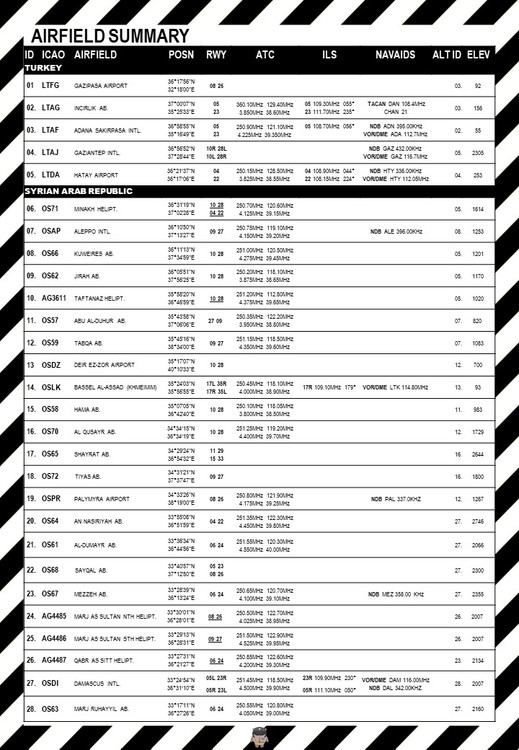

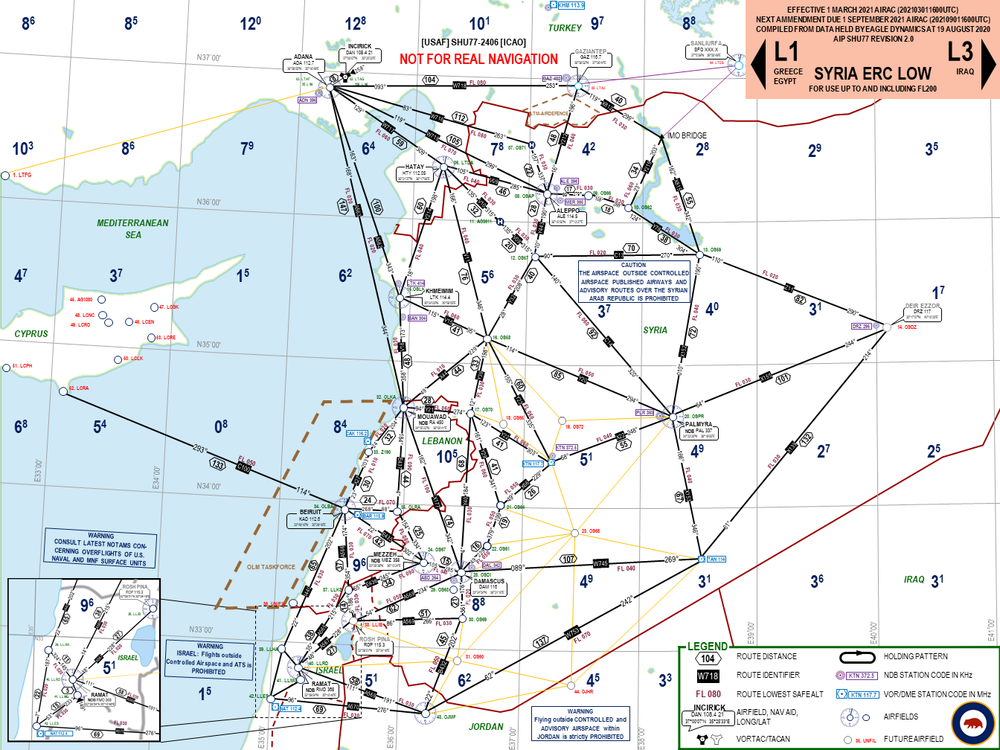

shu77 Posted February 21, 2021 Author Share Posted February 21, 2021 The Syrian ERSA has been updated to Version 2.0. This sees a shift to Landscape format, primarily to accommodate the location of Deir Ezzor but also includes placement of anticipated airfields. Numbering has been updated to align with those assigned for the Airfield Diagrams. https://www.digitalcombatsimulator.com/en/files/3311965/ Network will be expanded to properly include the new fields and potentially some reporting points once complete. I tend not to bother too much about IFR charts, Reporting points, or holding patterns as the sims ATC does not accommodate them 5 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...
Snakedoc Posted February 28, 2021 Share Posted February 28, 2021 thank you @shu77 for your amazing work!! I managed to install your PG charts with no issues but I'm having a problem with the Syria charts. I installed them into DCS World OpenBeta/Mods/terrains/Syria/Kneeboard but once in game they don't show up when I use the kneeboard. I tried to change the format to .jpg but same result. Does Syria Map have a different folder where you should install the map-specific kneeboard images? Thanks ASUS ROG STRIX Z490 F-GAMING | i7-10700K | RTX3090 TUF OC | 32GB DDR4 3200Mhz | Windows 10 64bit | Acer Predator X34P | TrackIR 5 | TM Warthog | TM T.Flight Rudder Pedals A-10C | A-10C II | F/A-18C | F-16C | FC3 | PG | Syria | SC Home made F-16C simulator Forum Thread: DCS World forum - The Viper Project - Home Cockpits Instagram: The Viper Project YouTube The Viper Project - Youtube channel Link to comment Share on other sites More sharing options...
Snakedoc Posted February 28, 2021 Share Posted February 28, 2021 I should add that if I copy your files in the /Saved Games/DCS OpenBeta/Kneeboard folder it works just fine (both .png and .jpg) however I'm looking to have those charts visible only when you are flying specifically on Syria map, hence my question regarding the directory for Syria map ASUS ROG STRIX Z490 F-GAMING | i7-10700K | RTX3090 TUF OC | 32GB DDR4 3200Mhz | Windows 10 64bit | Acer Predator X34P | TrackIR 5 | TM Warthog | TM T.Flight Rudder Pedals A-10C | A-10C II | F/A-18C | F-16C | FC3 | PG | Syria | SC Home made F-16C simulator Forum Thread: DCS World forum - The Viper Project - Home Cockpits Instagram: The Viper Project YouTube The Viper Project - Youtube channel Link to comment Share on other sites More sharing options...
Rudel_chw Posted February 28, 2021 Share Posted February 28, 2021 42 minutes ago, Snakedoc said: ... Does Syria Map have a different folder where you should install the map-specific kneeboard images? The Syria Map has not implemented a Kneeboard yet ... let's hope that ED will talk Ugra media into implementing it. For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600X - 32 GB DDR4 2400 - nVidia GTX1070ti - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar - Oculus Rift CV1 Mobile: iPad Pro 12.9" of 256 GB Link to comment Share on other sites More sharing options...
Snakedoc Posted February 28, 2021 Share Posted February 28, 2021 2 hours ago, Rudel_chw said: The Syria Map has not implemented a Kneeboard yet ... let's hope that ED will talk Ugra media into implementing it. Thank you @Rudel_chw, I didn't know it wasn't implemented yet. That's a bummer, I hope they'll add the support soon. guess I'll have to use them via my Saved Games folder until then ASUS ROG STRIX Z490 F-GAMING | i7-10700K | RTX3090 TUF OC | 32GB DDR4 3200Mhz | Windows 10 64bit | Acer Predator X34P | TrackIR 5 | TM Warthog | TM T.Flight Rudder Pedals A-10C | A-10C II | F/A-18C | F-16C | FC3 | PG | Syria | SC Home made F-16C simulator Forum Thread: DCS World forum - The Viper Project - Home Cockpits Instagram: The Viper Project YouTube The Viper Project - Youtube channel Link to comment Share on other sites More sharing options...
Rudel_chw Posted February 28, 2021 Share Posted February 28, 2021 3 minutes ago, Snakedoc said: Thank you @Rudel_chw, I didn't know it wasn't implemented yet. That's a bummer, I hope they'll add the support soon. guess I'll have to use them via my Saved Games folder until then Currently, I place the Syrian Airbase Diagrams inside the MIZ file of the Syrian missions that I've edited, that way they won't appear on missions set in other Maps. 1 For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600X - 32 GB DDR4 2400 - nVidia GTX1070ti - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar - Oculus Rift CV1 Mobile: iPad Pro 12.9" of 256 GB Link to comment Share on other sites More sharing options...
Snakedoc Posted February 28, 2021 Share Posted February 28, 2021 2 hours ago, Rudel_chw said: Currently, I place the Syrian Airbase Diagrams inside the MIZ file of the Syrian missions that I've edited, that way they won't appear on missions set in other Maps. Great tip! Thanks for that, I'll try this out ASUS ROG STRIX Z490 F-GAMING | i7-10700K | RTX3090 TUF OC | 32GB DDR4 3200Mhz | Windows 10 64bit | Acer Predator X34P | TrackIR 5 | TM Warthog | TM T.Flight Rudder Pedals A-10C | A-10C II | F/A-18C | F-16C | FC3 | PG | Syria | SC Home made F-16C simulator Forum Thread: DCS World forum - The Viper Project - Home Cockpits Instagram: The Viper Project YouTube The Viper Project - Youtube channel Link to comment Share on other sites More sharing options...
shu77 Posted February 28, 2021 Author Share Posted February 28, 2021 I noticed Maestro back in the forums recently so Im hopeful a fairly substantial update is approaching. 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...
shu77 Posted April 8, 2021 Author Share Posted April 8, 2021 (edited) Sanliurfa added to ERC as per discussion with Maestro, Version 2.1 of ERC Updated. Also my first attempt at starting to integrate Reporting/Turning Points into the Chart to try and add a little more realism and allow for cleaner routs in the future. Edited April 8, 2021 by shu77 2 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

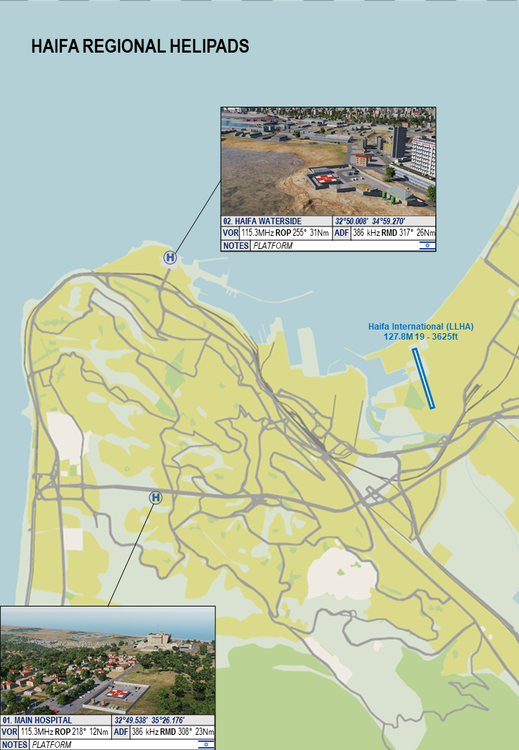

shu77 Posted April 9, 2021 Author Share Posted April 9, 2021 Based on the excellent work of @Bailey I am going to incorporate the following Helipad boards into the next release. 2 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

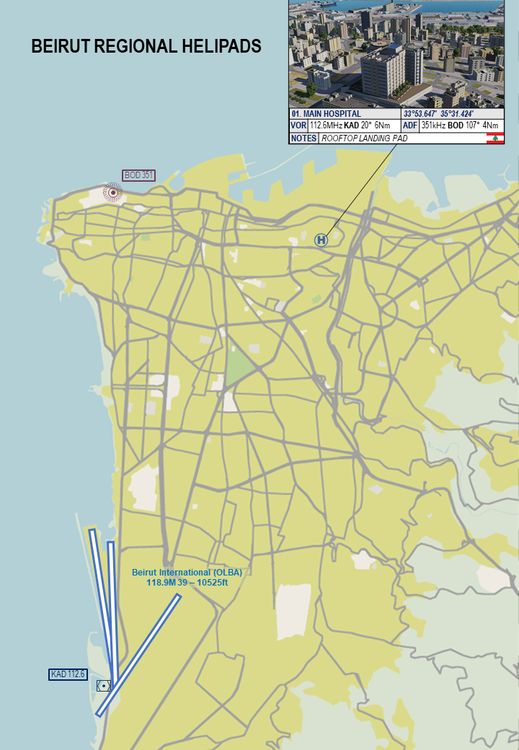

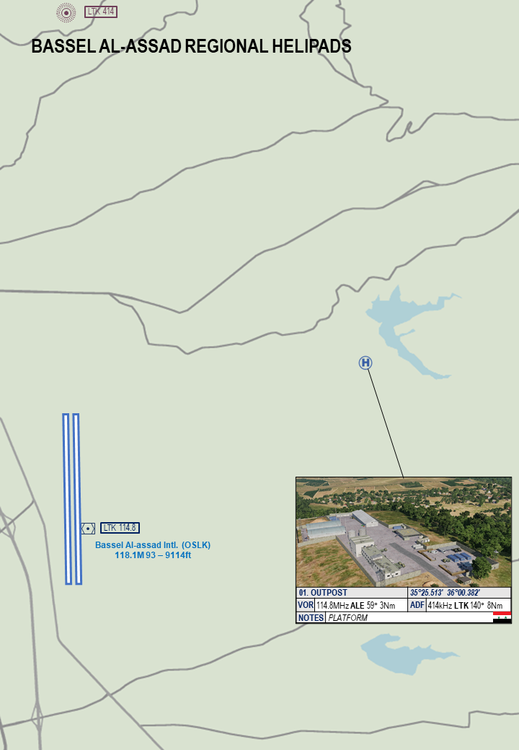

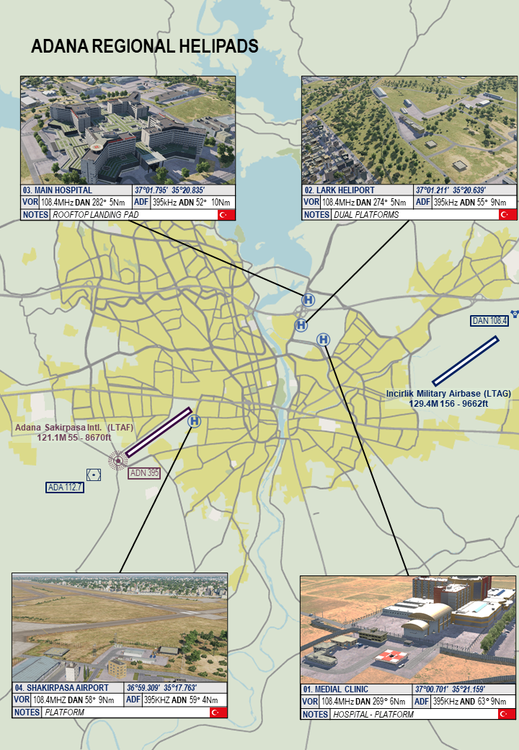

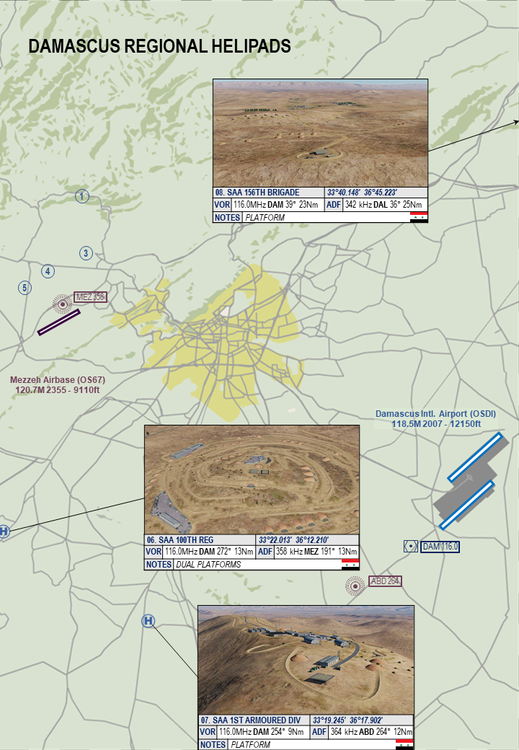

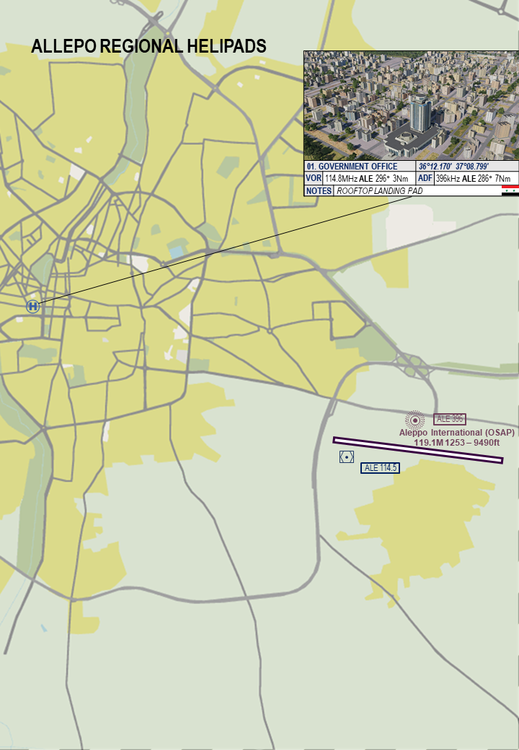

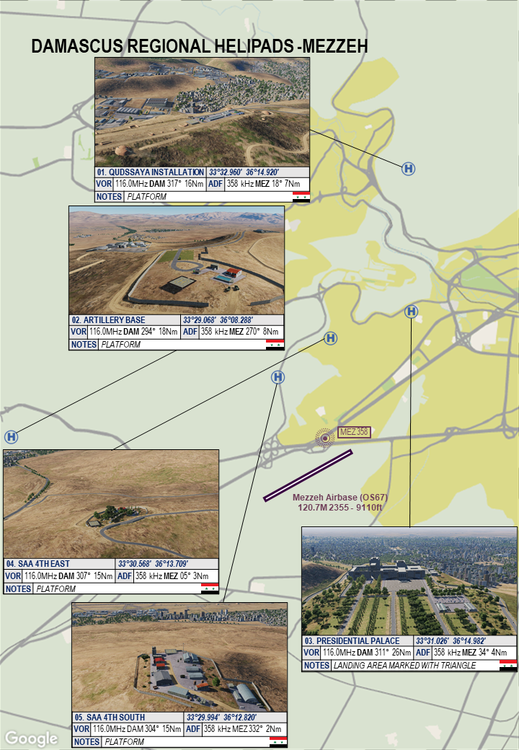

shu77 Posted April 11, 2021 Author Share Posted April 11, 2021 I have split out the Heliports and Helipad diagrams into a specific Rotary supplement which is Here https://www.digitalcombatsimulator.com/en/files/3315926/ 2 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

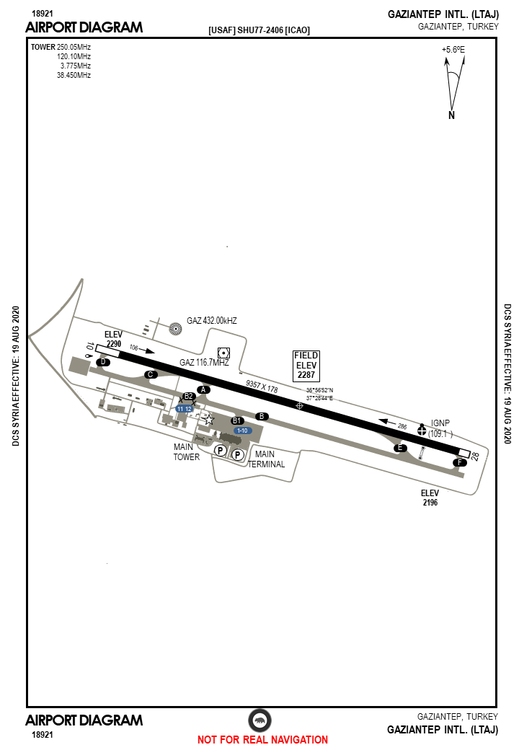

shu77 Posted April 15, 2021 Author Share Posted April 15, 2021 Gaziantep LTAJ 2 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

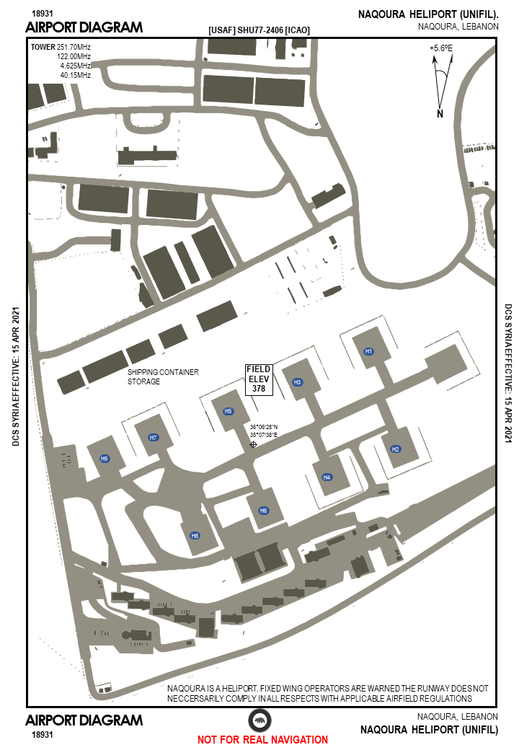

shu77 Posted April 15, 2021 Author Share Posted April 15, 2021 (edited) UNIFIL. By far my favourite base ever. Edited April 16, 2021 by shu77 3 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

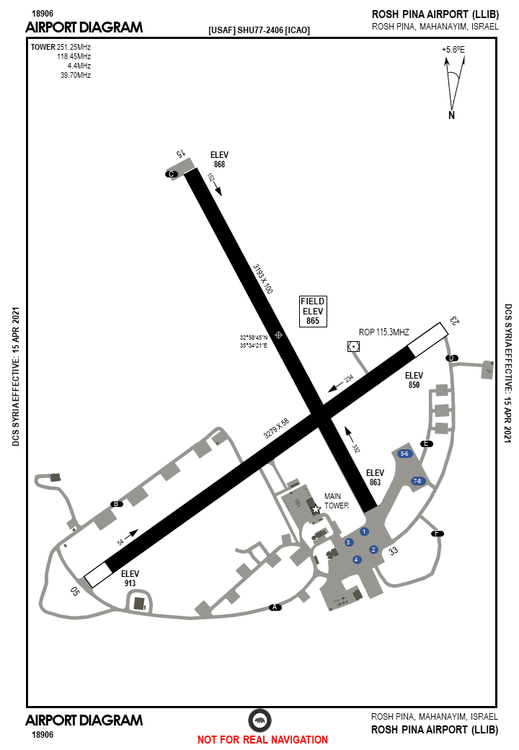

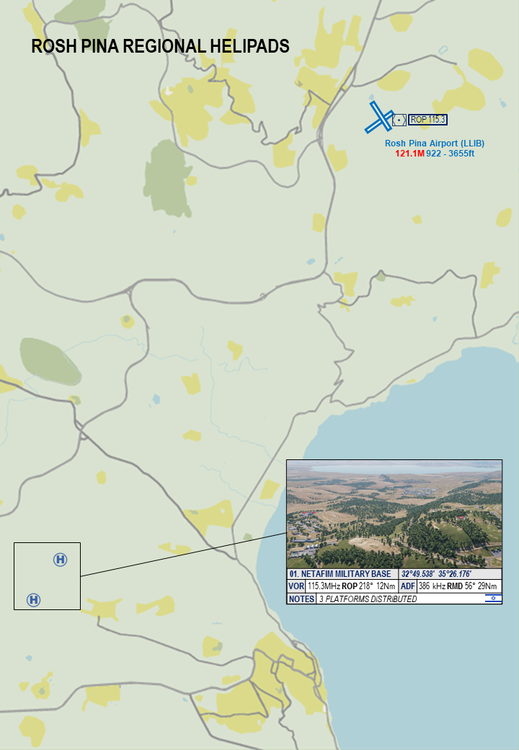

shu77 Posted April 15, 2021 Author Share Posted April 15, 2021 ROSH PINA, LLIB, my other favourite field, I love the fact we are getting firelds specifically tailored to helos and the A-29B. 2 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

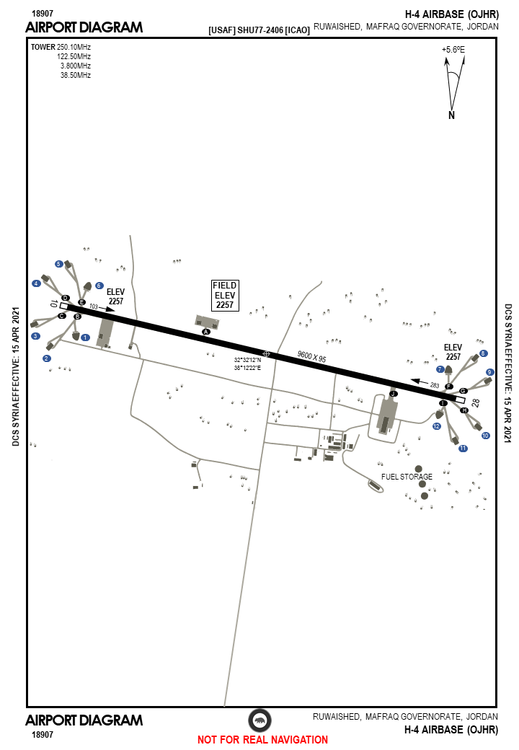

shu77 Posted April 15, 2021 Author Share Posted April 15, 2021 H4 the other Jordan Base 2 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

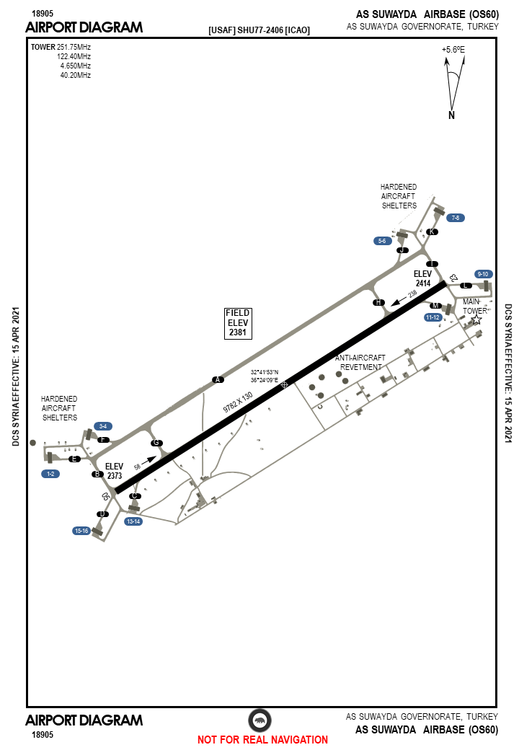

shu77 Posted April 16, 2021 Author Share Posted April 16, 2021 AS SUWAYDA AIRBASE (OS60) 2 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

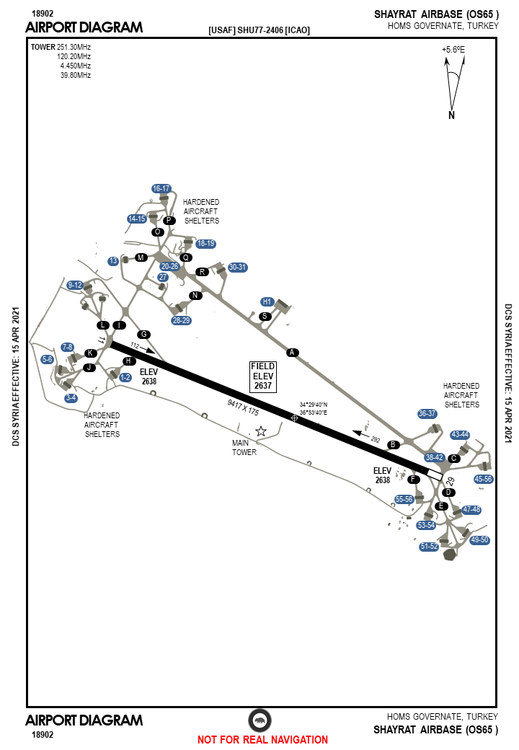

shu77 Posted April 16, 2021 Author Share Posted April 16, 2021 (edited) SHAYRAT AIRBASE (OS65 ) Edited April 16, 2021 by shu77 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...

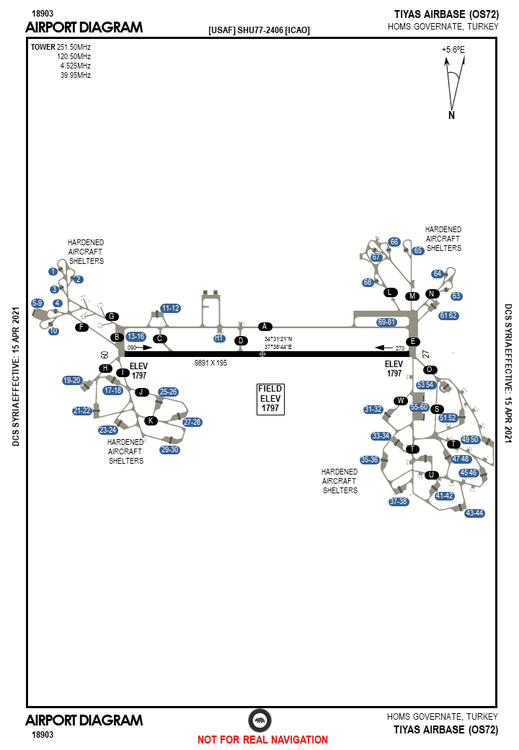

shu77 Posted April 16, 2021 Author Share Posted April 16, 2021 TIYAS AIRBASE (OS72) 1 Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools Link to comment Share on other sites More sharing options...
