Razorback Posted October 4, 2020 Share Posted October 4, 2020 Hello, I am currently building my Mi-24P simpit. I have already a real Mi-8 collective lever connected with a Leo Bodnar BU0836A board. All if working perfecly fine in DCS. I just added a 2 positions switch to this card in order to connect my simpit gear lever. In DCS, with this card, a 2 positions switch is just recognized as one position. So It seems that I have to edit a Lua file if I want that DCS recognize the switch with the 2 position I never wrote a Lua file and I even don't know where to place it in the DCS tree. So any help is more than welcome ! Thxxx a lot, Chris Link to comment Share on other sites More sharing options...
Fusedspine33 Posted October 4, 2020 Share Posted October 4, 2020 (edited) Gear level - Bodnar BU0836A card- switch 2 positions Pretty sure this is the thread you want. Some talented folks in this treads group. LeCuvier is very capable in helping to understand this subject and you may find others have already posted the edit you need. https://forums.eagle.ru/showthread.php?t=89226 Sent from my iPad using Tapatalk Edited October 4, 2020 by Fusedspine33 Link to comment Share on other sites More sharing options...

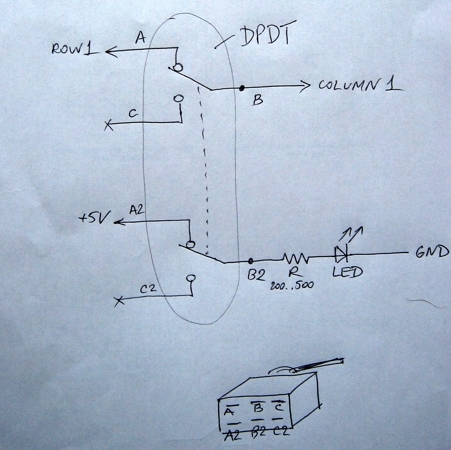

Sokol1_br Posted October 4, 2020 Share Posted October 4, 2020 A two positions switch (SPST): ON-OFF don't send electrical information for BU0836 when toggled for OFF position, neither BU0836 recognize this change, so the card send nothing for Windows/game. DCS at least allow you edit LUA files and add command for OFF state (0) of command. How edit LUA files is explained there: https://forums.eagle.ru/showthread.php?t=89226 But if instead you use a (DPDT) ON-OFF-ON switch will have button press in UP (ON) and down (ON) and can assign this two buttons for raise and lower landing gear. The second pins row (DP) can be used for lit a LED depending or switch position. https://i.postimg.cc/sXnXK5FN/BU0836-LED.jpg Link to comment Share on other sites More sharing options...
Fusedspine33 Posted October 4, 2020 Share Posted October 4, 2020 RSMapper can help with with using on-off switches with only one electrical position. It's another option to solve challenges. https://forums.eagle.ru/showthread.php?t=205492 Sent from my iPad using Tapatalk Link to comment Share on other sites More sharing options...
Razorback Posted October 4, 2020 Author Share Posted October 4, 2020 Thx for all your replies. I will check the different links and I hoping to find the solution... If someone is already using such a lua, thx to contact me in PM. Chris Link to comment Share on other sites More sharing options...
