Miguelito.MH Posted February 13, 2021 Share Posted February 13, 2021 Hi Chuls! I have an Brunner yoke CLS-E MK II. Except of P3D which works fine, I want it to use for racing games like F1 2020 and I was happy to find your Arduino solution, but I didn't get it to work. Is it a problem, that I have installes vJoy? What are the exact settings in CLS2Sim? (for example: Is it "Emulate USB HID Joystick"? And which Port do I have to wite in the brunnerdx.py file - TCP, UDP, UDP response Port ...?) By the way, I have connected the yoke via USB. Is this correct? A lot of questions ;) Thank you very much! Miguelito Link to comment Share on other sites More sharing options...
Lynchsl62 Posted February 13, 2021 Share Posted February 13, 2021 1 hour ago, Chuls said: that's great news! just curious, what DCS module are you using? by the way, I just updated the Arduino code because some shakes were much weaker than they should. If you download the zip file again and compile and upload to the Arduino, you will get better effects I am using the Bf-109 and yes the effexts needed to be increased PC: 9980XE @ 64GB RAM /2080Ti, Samsung C49RG90 Joystick bases: VKB GFIII, FSSB R3L, Brunner CLS-E, Virpil Mongoos CM2 Joystick grips: Realsimulator (F-18CGRH, F-16SGRH-CE), VKB (MCG Pro, F-14, KG-12), Virpil Warbrd Throttles: Virpil CM2, Kantorrin, Other: TrackIR, TM MFDx2 (Cubesim Screenx2), Virpil Control Panel 1 Link to comment Share on other sites More sharing options...
Chuls Posted February 13, 2021 Author Share Posted February 13, 2021 1 hour ago, Miguelito.MH said: Hi Chuls! I have an Brunner yoke CLS-E MK II. Except of P3D which works fine, I want it to use for racing games like F1 2020 and I was happy to find your Arduino solution, but I didn't get it to work. Is it a problem, that I have installes vJoy? What are the exact settings in CLS2Sim? (for example: Is it "Emulate USB HID Joystick"? And which Port do I have to wite in the brunnerdx.py file - TCP, UDP, UDP response Port ...?) By the way, I have connected the yoke via USB. Is this correct? A lot of questions Thank you very much! Miguelito I would have never thought of using this for driving games but I guess it should work! You can have VJoy installed, that shouldn't affect anything. The important settings in CLS2Sim is that you need to have the checks "Enable" and "External Control" under the "Remote Control" in the settings screen. Just in case, did you follow the instructions I updated recently in https://github.com/jmriego/brunnerdx? When you say this is not working for you what is the problem you are facing? Which step was giving you a problem or what error message did you get? Link to comment Share on other sites More sharing options...
Miguelito.MH Posted February 13, 2021 Share Posted February 13, 2021 Now I followed the instructions. I had not installed Python, but now it is. The game is recognising the yoke, but I don't get force feedback effects. And I can't calibrate the yoke with the Windows gamecontroller settings. The cross doesn't follow the yoke inputs. Any ideas? Thanks a lot! Link to comment Share on other sites More sharing options...
Chuls Posted February 14, 2021 Author Share Posted February 14, 2021 ok, so if it's recognizing the yoke that means you are almost there. I think you might be missing some of these steps? Open a command prompt (Windows button, then open Command Prompt) type pip install pyserial Execute the brunnerdx.py file that it's on the folder you extracted on step 1. You can double click on it or right click->Edit with IDLE->Run->Run Module The goal with the last step is to have a windows open that says "Connected to Arduino". That is a program that needs to be running on the background to connect the Arduino and the Brunner. So every time you want to play a game you have to have CLS2Sim and brunnerdx.py running Link to comment Share on other sites More sharing options...
Miguelito.MH Posted February 14, 2021 Share Posted February 14, 2021 vor 4 Stunden schrieb Chuls: ok, so if it's recognizing the yoke that means you are almost there. I think you might be missing some of these steps? Open a command prompt (Windows button, then open Command Prompt) type pip install pyserial Execute the brunnerdx.py file that it's on the folder you extracted on step 1. You can double click on it or right click->Edit with IDLE->Run->Run Module The goal with the last step is to have a windows open that says "Connected to Arduino". That is a program that needs to be running on the background to connect the Arduino and the Brunner. So every time you want to play a game you have to have CLS2Sim and brunnerdx.py running You are right! With "Open the brunnerdx.py" I thought you mean "open in an editor" for the IP and force settings. But "execute" was the key word! Now it works in principle, but: The forces sent to the yoke appear to be more random than correct. Regardless of whether in the flight simulator or in the racing game. Do you think you might need some kind of ffb translation specifically for this yoke? Link to comment Share on other sites More sharing options...
Chuls Posted February 14, 2021 Author Share Posted February 14, 2021 no worries, I actually changed the phrasing of that to make it clearer. I guess if you are finding it working kind of randomly maybe there's a difference between the yoke and the CLS-E base? I didn't see anything on the docs but might be. One thing you could do to help me figure this out, do you mind (while you have both the CLS2Sim and the brunnerdx.py file running) executing the "reference/ForceTest.exe" file and run these tests? 1. Mark the "Spring Center" effect with pitch and roll both at 100. This should make the yoke try to return to the center when you move it in any direction 2. Change the Pitch force from 100 to 0. Does the yoke try to return to center only on the roll axis? 3. Now the opposite test, pitch 100, roll 0. Does the yoke move freely on the roll axis but want to return to center pitch? Link to comment Share on other sites More sharing options...
Miguelito.MH Posted February 14, 2021 Share Posted February 14, 2021 (edited) vor 2 Stunden schrieb Chuls: 1. Mark the "Spring Center" effect with pitch and roll both at 100. This should make the yoke try to return to the center when you move it in any direction 2. Change the Pitch force from 100 to 0. Does the yoke try to return to center only on the roll axis? 3. Now the opposite test, pitch 100, roll 0. Does the yoke move freely on the roll axis but want to return to center pitch? Pitch and roll centering in "Spring center" works perfectly. But a pitch offset -100 is not forward, but 6 o'clock! "Constant force" left and right seems to be the opposit direction (90 deg = left, 180 deg = right, but 0 deg = 12 o'clock and 180 = 6 o'clock). In "Grooves" the spacing has no effect. "Friction" feels a little bumpy, it means, not really constant. And "Damping" is ok. I hope, this helps Edited February 14, 2021 by Miguelito.MH Link to comment Share on other sites More sharing options...
Chuls Posted February 14, 2021 Author Share Posted February 14, 2021 yes that helps a lot! I think the pitch, both the position and the forces, are being inverted in the Brunner Yoke. Testing against the Microsoft FFB2, the correct forces would be: Direction Spring pitch offset Spring roll offset Constant Force Angle Down 100 0 0 Left 0 -100 90 Up -100 0 180 Right 0 100 270 I am uploading this file here to test if this is the correct solution for the yoke. Can you overwrite the brunnerdx.py file with this version and let me know if this fixes it for you? https://gist.github.com/jmriego/772f6940ed23c8f7c2b05d98d4a121ab Link to comment Share on other sites More sharing options...
heloguy Posted February 15, 2021 Share Posted February 15, 2021 I remember with the MSFFB2, you have to use the ‘Tune FFB’ option under the controls for each axis, and check the ‘invert’ box. Not sure if that helps. i9 12900k @ 4.9ghz, 32gb RAM Nvidia RTX 3090 Windows 11 x64 Valve Index Brunner CLS-E w/RS F16GRH, Virpil TCS Rotor Plus Collective, BRD F1 Pedals, WH Throttle, FSSB R3 w/WH Grip, PointCTRL v1 Link to comment Share on other sites More sharing options...
Miguelito.MH Posted February 15, 2021 Share Posted February 15, 2021 I tested the new file: Spring center works fine (negative offset = forward / left). But now constant force is totally inverted (90: yoke moves left, like it was before / 180: yoke moves to 6 o'clock position). One question of definition: in the help windows of ForceTest.exe you can read: "...specifies the direction in which the force comes from". So, if the force comes FROM 90 degrees, the yoke has to move to the left! ?? Link to comment Share on other sites More sharing options...
Miguelito.MH Posted February 15, 2021 Share Posted February 15, 2021 vor 16 Stunden schrieb Chuls: Direction Spring pitch offset Spring roll offset Constant Force Angle Down 100 0 0 Left 0 -100 90 Up -100 0 180 Right 0 100 270 Does "Down" means 6 o'clock and "Up" is 12 o'clock? Link to comment Share on other sites More sharing options...
Chuls Posted February 15, 2021 Author Share Posted February 15, 2021 yes, that sounds like it's doing what it's supposed to do. By down I mean 6 o'clock, or towards you (that would move the nose of a plane up). Up would be 12 o'clock, away from you (nose down). Sorry, I'm not sure I understand the problem then. On 2/14/2021 at 8:33 PM, Miguelito.MH said: "Constant force" left and right seems to be the opposit direction (90 deg = left, 180 deg = right, but 0 deg = 12 o'clock and 180 = 6 o'clock). 6 hours ago, Miguelito.MH said: But now constant force is totally inverted (90: yoke moves left, like it was before / 180: yoke moves to 6 o'clock position). The correct thing to happen is that 0 degrees moves the yoke towards you, nose up. Not sure if that would be the original file or the new one I sent you to test Link to comment Share on other sites More sharing options...

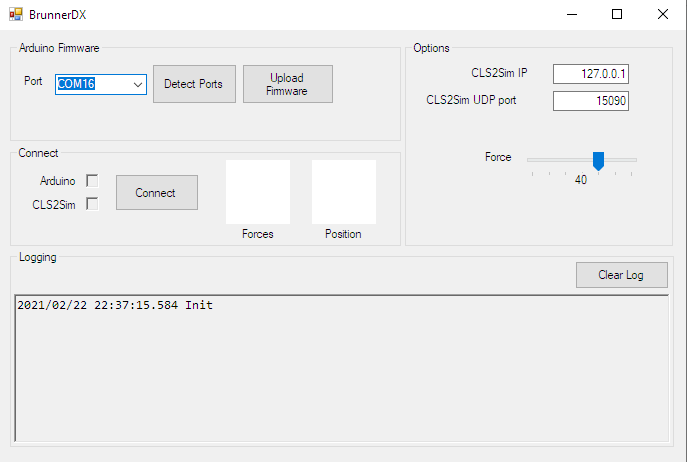

Chuls Posted February 26, 2021 Author Share Posted February 26, 2021 I have made huge changes to the way this works and it's now a proper app instead of a script. Hope this is going to make things easier for anyone who wants to try this! I have done lots of testing with IL-2 Cliffs of Dover and Battle of Stalingrad but I am going to keep on working on it and improving it little by little. Let me know if you find any issues! https://github.com/jmriego/brunnerdx Link to comment Share on other sites More sharing options...
Lynchsl62 Posted February 27, 2021 Share Posted February 27, 2021 Downloaded, installed and set up all very easy and confirm that it works for DCS - buffeting in the Bf-109 before leading edge stall excellent. Suggestion is to have multiple tabs for the force feed back forces, or at least the option of forces based on speed and forces based on effects - but so far very happy - Thank You for this excellent app. Have you uploaded this to the Bruuner Forum? I feel it deserves wider credit PC: 9980XE @ 64GB RAM /2080Ti, Samsung C49RG90 Joystick bases: VKB GFIII, FSSB R3L, Brunner CLS-E, Virpil Mongoos CM2 Joystick grips: Realsimulator (F-18CGRH, F-16SGRH-CE), VKB (MCG Pro, F-14, KG-12), Virpil Warbrd Throttles: Virpil CM2, Kantorrin, Other: TrackIR, TM MFDx2 (Cubesim Screenx2), Virpil Control Panel 1 Link to comment Share on other sites More sharing options...
Chuls Posted February 28, 2021 Author Share Posted February 28, 2021 Thanks @Lynchsl62! No, I didn't yet as I'm not sure Brunner will really like this existing as they have been saying they will eventually work with DirectX, but I'll post it and see I still have some effects like friction and joystick damper (similar to hydraulics) to improve, then I'll investigate adding some adjustments tabs. Enjoy! Link to comment Share on other sites More sharing options...
Lynchsl62 Posted March 12, 2021 Share Posted March 12, 2021 The program has been updated - yet to try it out, but was great to see the app actually informed me that there was an update. Great works thanks. As a tip for Il-2, I set the pitch and roll axis in the control settings, but this was for the CLS-E joystick and was joystick_0. I then opened the devises file in the input directory and cut and paste the Arduino joystick to the 0 configuration, and the CLS-E to the setting of the Arduino which in my case was 7 0,%220b136e90-6d56-11eb-0000545345440180%22,Arduino%20Micro| 7,%22f9041c70-3d47-11ea-0000545345440180%22,CLSE%20Joystick%20HOTAS| For £20 I get great force feed back effects in the simulator and the game. Outstanding, I cannot recommend this enough and looking forward to contimued development PC: 9980XE @ 64GB RAM /2080Ti, Samsung C49RG90 Joystick bases: VKB GFIII, FSSB R3L, Brunner CLS-E, Virpil Mongoos CM2 Joystick grips: Realsimulator (F-18CGRH, F-16SGRH-CE), VKB (MCG Pro, F-14, KG-12), Virpil Warbrd Throttles: Virpil CM2, Kantorrin, Other: TrackIR, TM MFDx2 (Cubesim Screenx2), Virpil Control Panel 1 Link to comment Share on other sites More sharing options...
Chuls Posted March 13, 2021 Author Share Posted March 13, 2021 Thanks! Glad to hear to you are enjoying it! I didn't know you could change the mapping that way, that's a really good solution. I was having that issue too because while this program is running you have the Brunner and the Arduino moving at the same time so when trying to map the axes in IL-2 it detects the first one to move. I have added another solution for this in the new version with a delay parameter. The idea is that it will introduce a delay between your Brunner moving and the Arduino moving after a few seconds. You set it at let's say 5 seconds, go to IL-2 and move the joystick, then click on the control you want to map. It won't detect the Brunner because you are not moving it but after a few seconds the Arduino will move so that's the axis that will be mapped. Besides that there's also some improvements with the speed of transfer with CLS2Sim and some forces so it just feels a bit smoother in general Link to comment Share on other sites More sharing options...
Jharvis Posted April 11, 2021 Share Posted April 11, 2021 (edited) Thanks a lot for this cool tool, I'm enjoying it a lot. Haven't been testing other simulations, but in DCS it's working great. I have only often the problem, that in DCS half of the time the FFB will not be activated when first entering a module. In the external forcetest.exe tool all the effects are working, but when entering the for example the Hip, then the joystick will not be centered. I'm doing then some random magic (restarting DCS, the Brunner software ( incl disabling active roll and pitch, then reenabling), restarting your tool and most of the time it's working after this. But I don't know which is the cause of this behaviour, because sometimes the random magic doesn't solve the problem. I'm assuming a DCS problem, not one in your software, but maybe someone using your tool has a workaround for this Thanks again for this nice tool. Edit: Sometimes by restarting DCS, starting a SP Mission, waiting for FFB, then going for MP is working. Strange... Edited April 11, 2021 by Jharvis Link to comment Share on other sites More sharing options...
Lynchsl62 Posted April 11, 2021 Share Posted April 11, 2021 4 hours ago, Jharvis said: I have only often the problem, that in DCS half of the time the FFB will not be activated when first entering a module. In the external forcetest.exe tool all the effects are working, but when entering the for example the Hip, then the joystick will not be centered. I'm doing then some random magic (restarting DCS, the Brunner software ( incl disabling active roll and pitch, then reenabling), restarting your tool and most of the time it's working after this. But I don't know which is the cause of this behaviour, because sometimes the random magic doesn't solve the problem. I'm assuming a DCS problem, not one in your software, but maybe someone using your tool has a workaround for this I have experienced the same issue and my workaround is to unplug completely the Brunner from the power and the USB and then reinstate power and USB to allow Windows to recognise the devise. This typically occurs when stopping and starting DCS in the same Windows session and occasionally between DCS flights. Not a show stopper for me compared to the outstanding benefits. there are reports that there is a thermal cut out which causes the Brunner to switch off, this at well be the issue but it has never occurred inflight. PC: 9980XE @ 64GB RAM /2080Ti, Samsung C49RG90 Joystick bases: VKB GFIII, FSSB R3L, Brunner CLS-E, Virpil Mongoos CM2 Joystick grips: Realsimulator (F-18CGRH, F-16SGRH-CE), VKB (MCG Pro, F-14, KG-12), Virpil Warbrd Throttles: Virpil CM2, Kantorrin, Other: TrackIR, TM MFDx2 (Cubesim Screenx2), Virpil Control Panel 1 Link to comment Share on other sites More sharing options...
Chuls Posted April 11, 2021 Author Share Posted April 11, 2021 No worries! Glad to see more people using it I really don't know what might be causing this but I'm working right now on some changes to the USB communication. I found out that Windows was not receiving the current status of the effects. So it was able to play some forces but Windows didn't know if they were working or not. When I upload the new version you will see a link to it on the log window. I have no idea if that will fix this DCS issue but let's hope it does! Link to comment Share on other sites More sharing options...
Chuls Posted April 17, 2021 Author Share Posted April 17, 2021 On 4/11/2021 at 9:09 PM, Lynchsl62 said: ... there are reports that there is a thermal cut out which causes the Brunner to switch off, this at well be the issue but it has never occurred inflight. To me that has happened a lot when playing Elite Dangerous. Basically because there are many times in which you have to push the joystick at max deflection. What I did is lower the strength of the joystick by going to CLS2Sim and setting a higher hydraulics value. It seems to work but not sure if it's the best solution On 4/11/2021 at 5:04 PM, Jharvis said: ... I have only often the problem, that in DCS half of the time the FFB will not be activated when first entering a module .... Edit: Sometimes by restarting DCS, starting a SP Mission, waiting for FFB, then going for MP is working. Strange... I have just uploaded a newer version of this tool that sends back to DCS the status of the FFB joystick. If we are lucky that might solve the issue. When I manage to get a GPU I'll do some debugging in DCS Link to comment Share on other sites More sharing options...
TaygaMongun Posted April 19, 2021 Share Posted April 19, 2021 Very excited to try this out; just wondering if it's possible to 'blend' DCS FFB with CLS2Sim effects with this? Link to comment Share on other sites More sharing options...
Chuls Posted April 19, 2021 Author Share Posted April 19, 2021 I'm sure you're going to love your Brunner joystick even more It would be really difficult to get the blend effects to work. The main issue is that CLS2Sim only allows marking "external control" yes or no. There doesn't seem to be a way to connect to DCS and at the same time allow external control. I guess the most logical way would be if the Brunner DCS plugin was open sourced so we can run something similar that blends with the normal FFB. Another option could be trying to make a device that CLS2Sim believes is a Brunner joystick but I guess for that we'd have to reverse engineer the device communications Link to comment Share on other sites More sharing options...
TaygaMongun Posted April 19, 2021 Share Posted April 19, 2021 (edited) I see, so when 'external control' is used, pretty much All of the options under the 'effects' tab are inhibited because it is no longer connected to the Simulator, but to external control instead? That's a shame, I was hoping to be able to have ground rumbles or hydraulics failure (if that is supported in DCS) in addition to Heatblur's decent FFB effects. I've only just received my brunner, recent upgrade from a G940, haven't tried it out yet. Edited April 19, 2021 by faycheung Link to comment Share on other sites More sharing options...
