[RESOLVED] <TEST FILES AVAILABLE> MFD Text and symbology still messy with latest update VER 2.7.3.8494

[JIGGAwest]

****UPDATE 7.13.21*******



see files below

replace in your core DCS install folder. Backup up your original if you like.



Mods\aircraft\AV8BNA\Cockpit\MPCD\indicator :
MPCD_definitions.lua

Mods\aircraft\AV8BNA\Cockpit\Displays :(edited)
Display_StrokeDefs.lua

Mods\aircraft\AV8BNA\Cockpit :
materials.lua


**************************************





Sorry to beat a dead horse here...



I know this has been posted serval times.  But, the solution to a previously offered "fix" is not clear or defined.

other posts related to this bug have been marked duplicate or FIX.



The recent update had made no change to this issue.



My setup:



4k main rendered screen

1920*1080 secondary rendered screen for MFD exports (dedicated screen)  700x700 MFD exports

This export setup works for all other aircraft I own modules.



The following solutions have been offered for MFD exports:

--------------------------------------------------------------------------------------------------------------------------------------------

SOLUTION 1

@RAZBAM_ELMO posted:



From our lead dev on the matter:



"YEs it is a known issue. it is a problem with the stroke (SVG) system. Fortunately it can be fixed in code, but it is a case by case basis. What is happening is that we are using a fixed thickness and fuzziness value when the display is exported.



static const double thickness_fix = 1 / 0.8;
static const double fuzziness_fix = 1 / 0.5;

if (purpose == CURR_PURPOSE_GENERAL)
{
//Normal stroke processing for inscreen display
}
else
{
//Exported displays values
shaderLineVariableParams.thickness = 8.0 * thickness_fix;
shaderLineVariableParams.fuzziness = 3.0 * fuzziness_fix;
}



This solution looks like this may actually do something. But there is no reference as where to put this fix. I read every thread I could locate.

Not one filename, possible folder, or possible file location for where to make these changes.



Would someone please identify the file or the folder to make this change?

----------------------------------------------------------------------------------------------------------------------------------------------

Solution 2: This solution works for readability, but the STORES page is affected and you can't read the ordinance.



-----------------------------------------------------------------------------------------------------------------------------------------------

NON Solution 3: This fix breaks my aircraft. folds the wheels on start and the cockpit is empty

I have to delete Display_StrokeDefs.LUA and run a DCS repair.



MPCD_definitions.lua materials.lua Display_StrokeDefs.lua

Edited April 16, 2022 by JIGGAwest
update

[JIGGAwest]

I have to add to this original post.



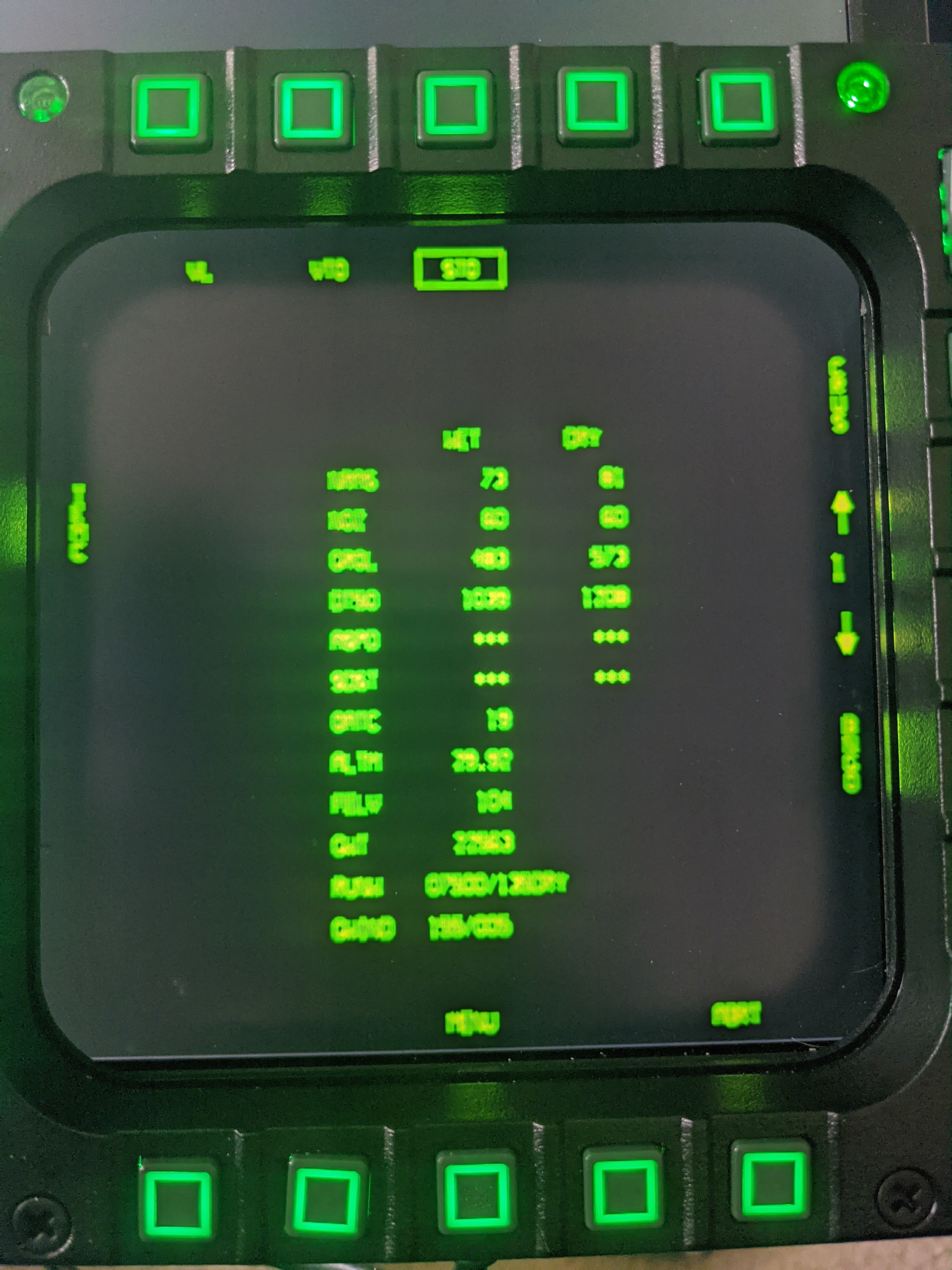

The latest update has pretty much broke the Harrier exported MFD's for my setup. There was a fix working, I was using, and I could deal with it at that point.



Someone posted a MFD readability fix in the user files section, but this no longer works with the latest update.



The imaken fix still works for me, but It will break the hot spot indicator from time to time requiring a slow repair of DCS.



again my display setup;

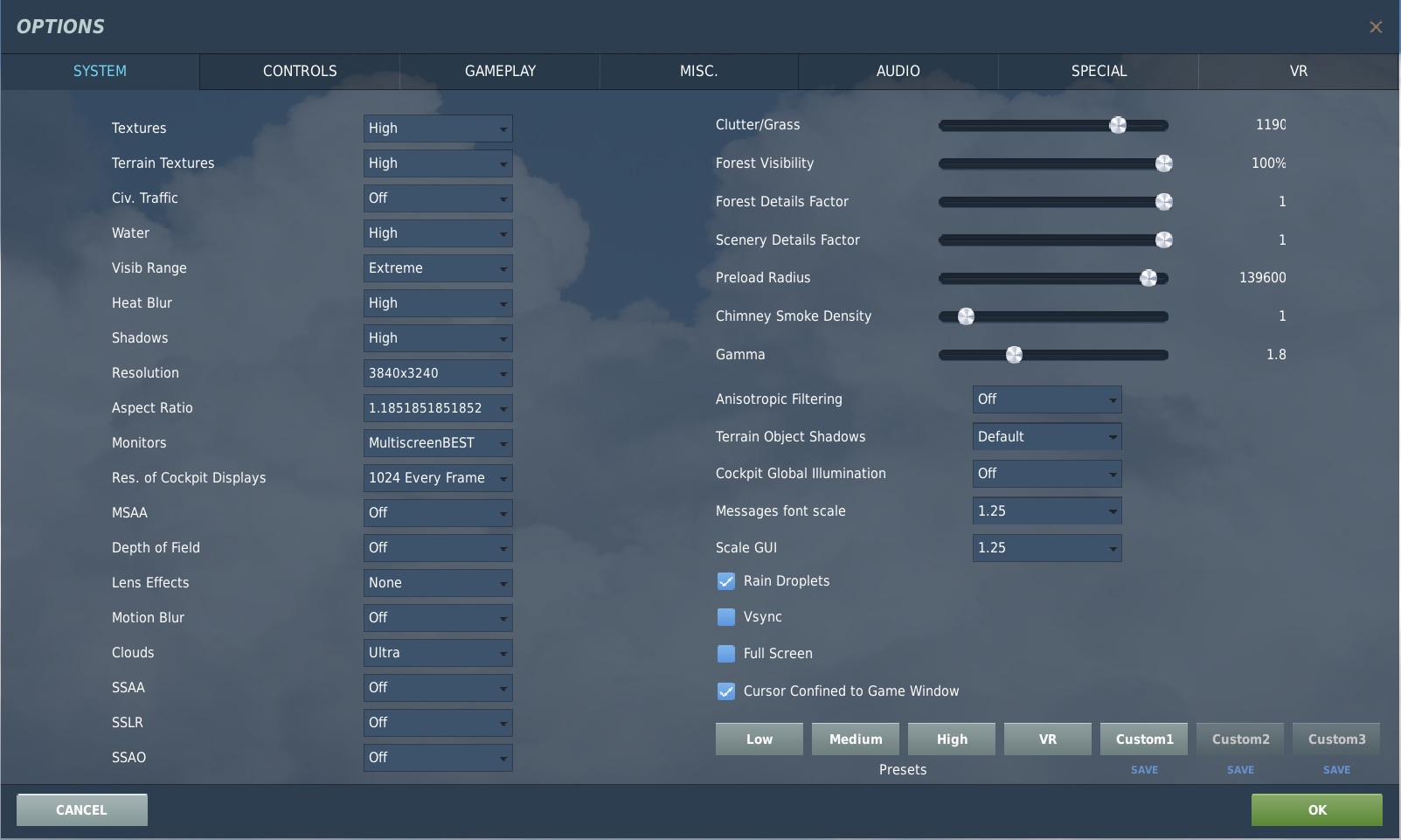

Windows10 display settings:

display 1 3840x2160 120hz - 10bit RGB HDR on, scaling 100%

display 2 1920x1080  60hz - 10bit RGB SDR, scaling 100%



dcs render settings

3840x3240



monitor setup LUA:



_  = function(p) return p; end;
name = _('MultiscreenBEST');
Description = 'Multiscreen MultiAircraft'
Viewports =
{
     Center =
     {
          x = 0;
          y = 0;
          width = 3840;
          height = 2160;
          viewDx = 0;
          viewDy = 0;
          aspect = 3840/2160;
     }
}

UIMainView = Viewports.Center

--/////////////////
-- BLACK SHARK - Shkval
--/////////////////

Shkval =
{
    x = 10;
    y = 2655;
    width = 700;
    height = 486;
}

--/////////////////
-- COMMON MFCD-CENTER
--/////////////////

CENTER_MFCD =
{
    x = 801;
    y = 2160;
    width = 426;
    height = 461;
}

--/////////////////
-- COMMON MFCD-RIGHT
--/////////////////

RIGHT_MFCD =
{
    x = 1215;
    y = 2540;
    width = 700;
    height = 700;
}
--/////////////////
-- BLACK SHARK - ABRIS
--/////////////////

ABRIS =
{
    x = 1295;
    y = 2540;
    width = 553;
    height = 700;
}
--/////////////////
-- COMMON MFCD-LEFT
--/////////////////

LEFT_MFCD =
{
    x = 10;
    y = 2540;
    width = 700;
    height = 700;
}


Edited May 31, 2021 by JIGGAwest

[Gryzor]

In VR are totally messed in the latest update. CANNOT READ ANYTHING!!!

[myHelljumper]

Hi guys, thanks for the report. The issue has been fixed and should be available next update.

[Gryzor]



15 hours ago, myHelljumper said:

Hi guys, thanks for the report. The issue has been fixed and should be available next update.

I´m sorry BUT It is not fixed in today´s patch

[Raidhen]

40 minutes ago, Gryzor said:



I´m sorry BUT It is not fixed in today´s patch

Have you read the patch note of the update ?

[myHelljumper]

9 hours ago, Gryzor said:



I´m sorry BUT It is not fixed in today´s patch



Yes, ED did not release any 3rd party change in the last update. We don't control when ED is pushing our changes into the OB.



The change should come out in the next 3rd party update :).

[JIGGAwest]

On 6/2/2021 at 12:02 AM, myHelljumper said:

Hi guys, thanks for the report. The issue has been fixed and should be available next update.





THANK YOU !!!



[Draken35]

Tested in 2.7.2.7910.1 and EHSD fonts still seem to vibrate and are unreadable with the moving map on in VR.

Edited June 16, 2021 by Draken35

[Gryzor]

Just to report... In latest patch it is not fixed. Text in MFD are a blurry mess in VR. When can we have a fix???

3 hours ago, Draken35 said:

Tested in 2.7.2.7910.1 and EHSD fonts still seem to vibrate and are unreadable with the moving map on in VR.





Just to report... In latest patch it is not fixed. Text in MFD are a blurry mess in VR. When can we have a fix??? COME ON IT IS UNPLAYABLE NOW!!

[Loophole]

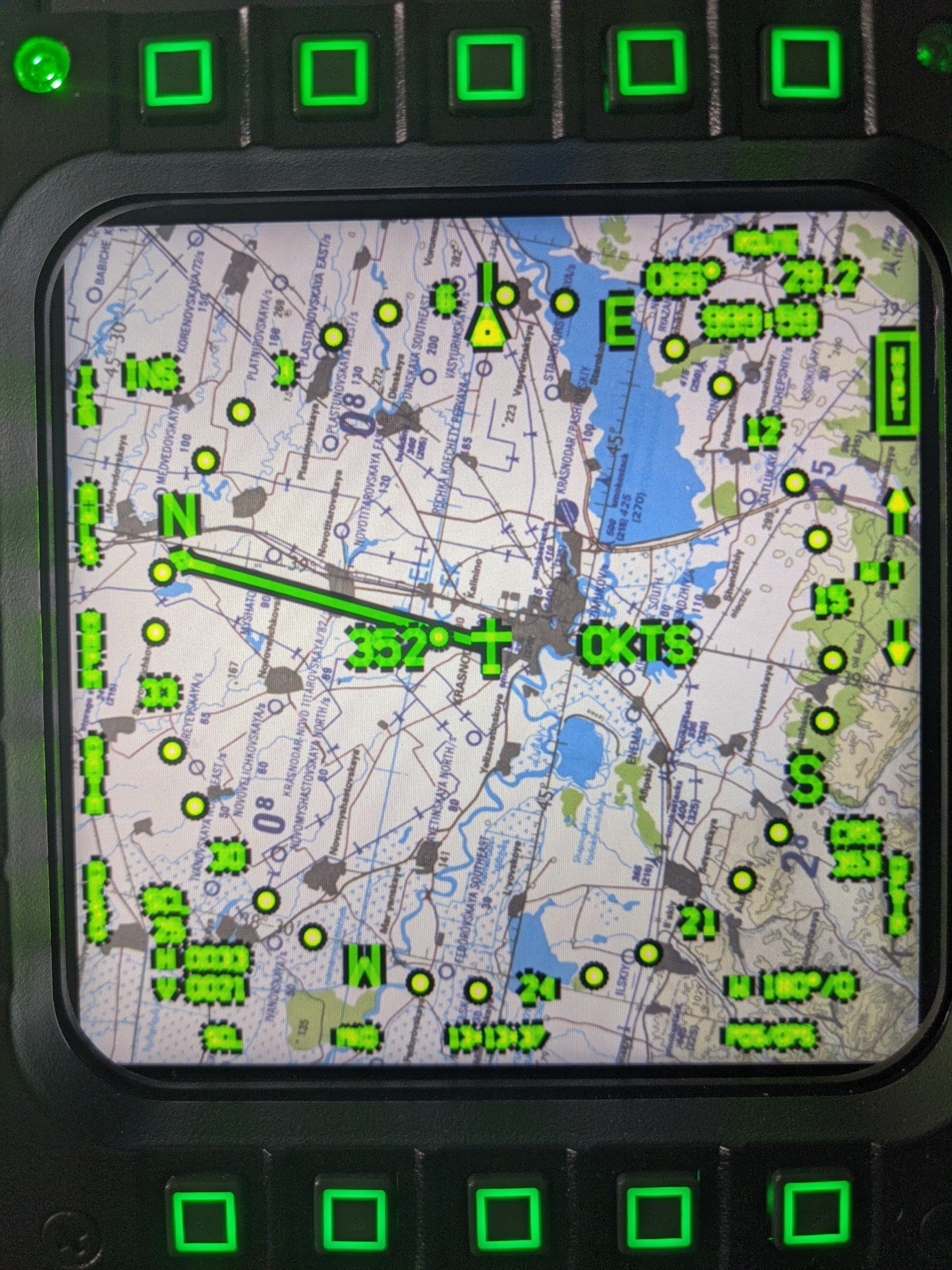

I have a similar setup to the original poster (3840x2160 over a 1920x1080) and can confirm that the "fuzzy export text" is still a problem in the 2.7.2 Open Beta release:



In close-up:



I have a fix for this that I normally apply after each update, but it involves editing 4 different LUA files and in the end is a compromise between minimal readability both in-cockpit and in exported viewport.  See this file for the edits (goes in mods\aircraft): https://www.dropbox.com/s/ab0voeer0qpb92u/AV8BNA.zip?dl=1



After applying the above fix, the display looks thus:

Edited June 17, 2021 by Loophole
Clarification & example of fix effect & fix incorrect download link

[Alpiinoo]

Not fixed in 2.7.2

[Thanatos31]

Same here. Hard to read. Reverb g2 hmd

[Hornet81]

Hello guys,



@Thanatos31 Do you have this reading problem with all maps or with some of them?

[Thanatos31]

Tested on Syria, PG and Caucasus



syria seems the most „faded“ and very „skinny“

PG seems blurry , and I need to zoom in or move my head super close to read it , skinny text.

caucasus same as PG

Edited June 19, 2021 by Thanatos31

[Draken35]

As posted on the other thread, these are the values I'm using to make the map "usable" (plus playing with gain and contrast based on map)



C:\Program Files\Eagle Dynamics\DCS World OpenBeta\Mods\aircraft\AV8BNA\Cockpit\DisplaysDisplay_StrokeDefs.lua

Quote

stroke_thickness  = 0.5
stroke_fuzziness  = 0.4

-- Currently is used for DMC generated fonts black outline
DMC_outline_thickness = 0 -- stroke_thickness * 3
DMC_outline_fuzziness = 0 -- stroke_fuzziness * 1.1
DMC_stroke_thickness  = 0.65
DMC_stroke_fuzziness  = 0.42

-- MPCDs
-- MFDs
MPCD_stroke_thickness  = 2.0 -- 0.9
MPCD_stroke_fuzziness  = 0 -- 0.4
MPCD_outline_thickness  = 0 --MPCD_stroke_thickness * 3
MPCD_outline_fuzziness  = 0 --MPCD_stroke_fuzziness * 1.1



Edit: I'm a VR user, Oculus Quest 2 at max resolution, DCS PD at 1. I fly only in SP so I have no idea if this workaround pass IC. If any MP pilot knows, let us know.

Edited June 20, 2021 by Draken35

[Alpiinoo]

Today we have a update. I hope it fixed.

Still pending update...

Edited June 23, 2021 by Alpiinoo

[Draken35]

Still pending....

[Draken35]

Marked as WIP on 2.7.3.84.94.

Can't wait to test in the Marianas  ... Will report back with, hopefully good news after testing.

[Draken35]

@myHelljumper (making sure this post is seem  )



First off, thanks for working on this! Might not be as fancy and as interesting as some other aspects of the simulation but those would be kind of point less if we cannot use the MPCDs.



Some feedback about 2.7.3.84.94.

1) I noticed that the fonts on most, if not all, of the screen are bigger and thicker. This helps a lot!

2) Default gain level if way too high still for the EHSD. Has to be reduced by several clicks

3) The black outline around the symbols make them vibrate on VR. Fix posted about by me still works for me.

4) Night mode brightness seems too low. My work around is to switch to day mode and reduce brightness (MPCD top knob, not gain rocker)

5) MPCDs with VR Zoom are still quite fuzzy. Looks a lot better when getting closer to the MPCDs by leaning forward.



Overall, I count this patch as win on this regard. Thank you RAZBAM team!

[Kappa]

9 ore fa, Draken35 ha scritto:

2) Default gain level if way too high still for the EHSD. Has to be reduced by several clicks





Hell yeah

[myHelljumper]

Thanks for the help guys, we are committed to fix this issue and your feedback helps a lot.

Edited July 1, 2021 by myHelljumper

[horstweihrauch]

Hello, i am new to the harrier and really like it so far. My one big problem is the readability of the MPCD in VR, especially the map. Even if i kiss the virtual display its hard to read any text.

I play in open beta with HP reverb G2 with VR optician lenses.

[Draken35]

5 hours ago, horstweihrauch said:

Hello, i am new to the harrier and really like it so far. My one big problem is the readability of the MPCD in VR, especially the map. Even if i kiss the virtual display its hard to read any text.

I play in open beta with HP reverb G2 with VR optician lenses.

I see your post was merged to this thread. See my post (7 or 8 above this) of June 19th about some changes to a lua file and adjusting gain (a lot, 20 to 50 clicks) and contrast.



Those changes combined with the last patch works decently for me (Quest 2, also VR Optician lenses). With the is a lot easier to read the bigger symbols and to guess what the others are. I still need to go head down to read/guess the the smaller ones. VR zoom can be used in a hurry but is still kind of fuzzy for the MCPD.

[horstweihrauch]

Thank you Draken, very kind of youWill try it later today.
