Kenpilot Posted March 11, 2021 Posted March 11, 2021 Hey Guys, I'm going to purchase an A10C CDU panel from PC Flights and I was wondering what people use for the circuit board that goes underneath and has all of tactile switches attached? Any suggestions would be greatly appreciated. Thanks! Windows 10 ASRock Z370 Extreme4 LGA 1151 (300 Series) MOBO intel i7-8700k (Not overclocked) 16 GB Ram EVGA GeForce GTX 108ti SC Black Edition SSD Trackir
dukovac Posted March 12, 2021 Posted March 12, 2021 1 hour ago, Kenpilot said: what people use for the circuit board Prototype circuit board from local electronic store
dukovac Posted March 12, 2021 Posted March 12, 2021 Are you planning to add 3.5" display to CDU? I bought a TFT display and is very difficult to read anything unless you are watching directly from above.
crash test pilot Posted March 12, 2021 Posted March 12, 2021 @Kenpilot: Prototype board or strip grid board. @dukovac: What display are you using? I use this: https://www.ebay.de/itm/3-5in-ILI9486-Control-IC-TFT-LCD-Display-Module-320x480-for-Ar-Mega2560-16-Bit-R/133455625846 I can read it very clear even under the smoked cover plate from the pcflights offering.
Kenpilot Posted March 12, 2021 Author Posted March 12, 2021 Did you have to cut the board to size or were you able to find one about the same size as the CDU panel? Yes, I'm planning on adding a display. Thanks for the heads up about the viewing angle. Windows 10 ASRock Z370 Extreme4 LGA 1151 (300 Series) MOBO intel i7-8700k (Not overclocked) 16 GB Ram EVGA GeForce GTX 108ti SC Black Edition SSD Trackir

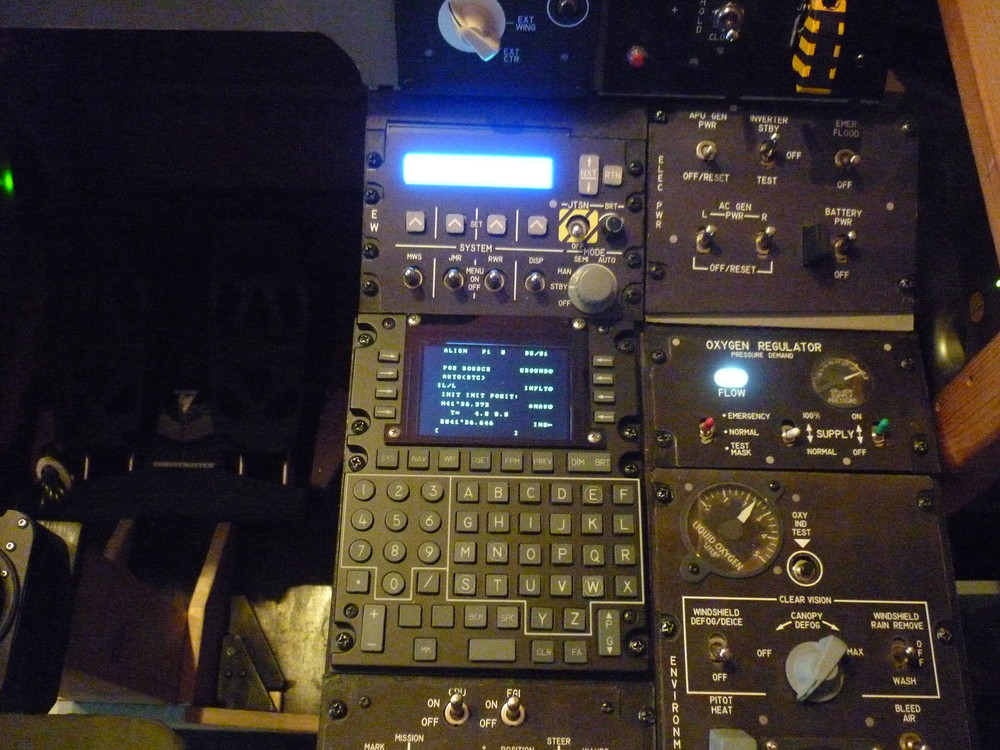

crash test pilot Posted March 12, 2021 Posted March 12, 2021 (edited) No, i had to cut it. It is not easy to make it fit because keys are very close to the edges but is manageable. edit: readability Edited March 12, 2021 by crash test pilot
Kenpilot Posted March 12, 2021 Author Posted March 12, 2021 Ok thanks. Nice looking pit! Windows 10 ASRock Z370 Extreme4 LGA 1151 (300 Series) MOBO intel i7-8700k (Not overclocked) 16 GB Ram EVGA GeForce GTX 108ti SC Black Edition SSD Trackir

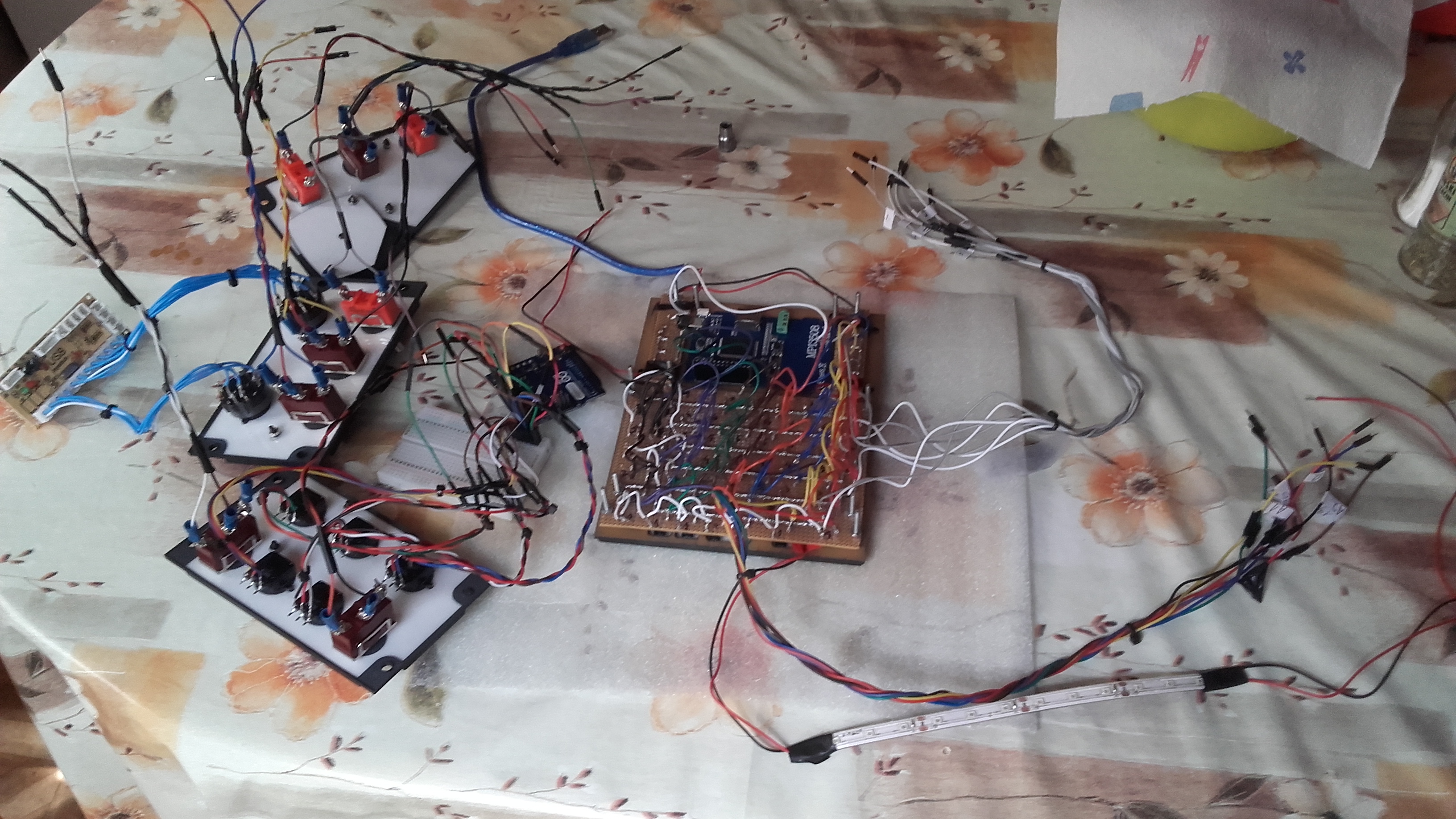

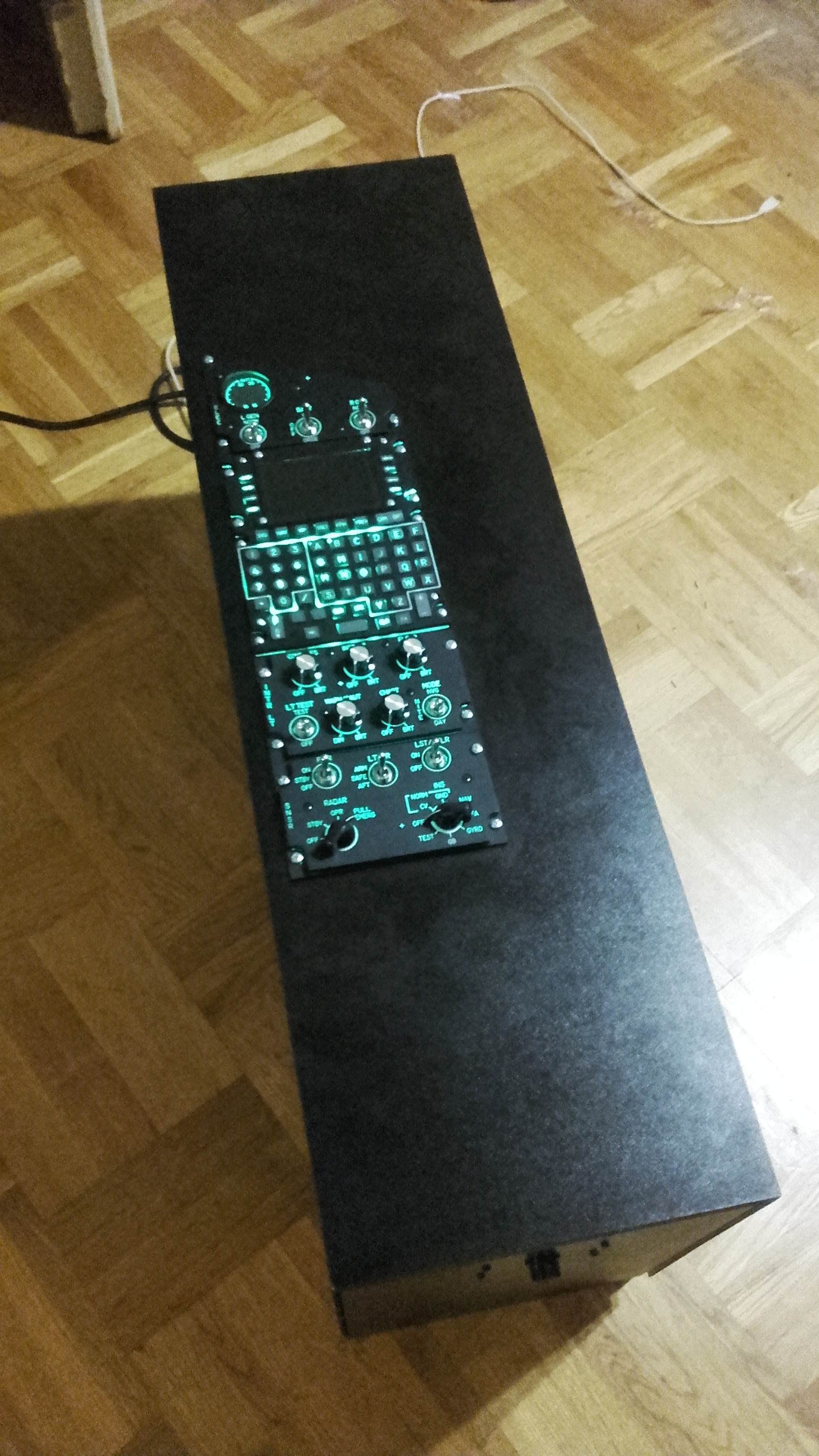

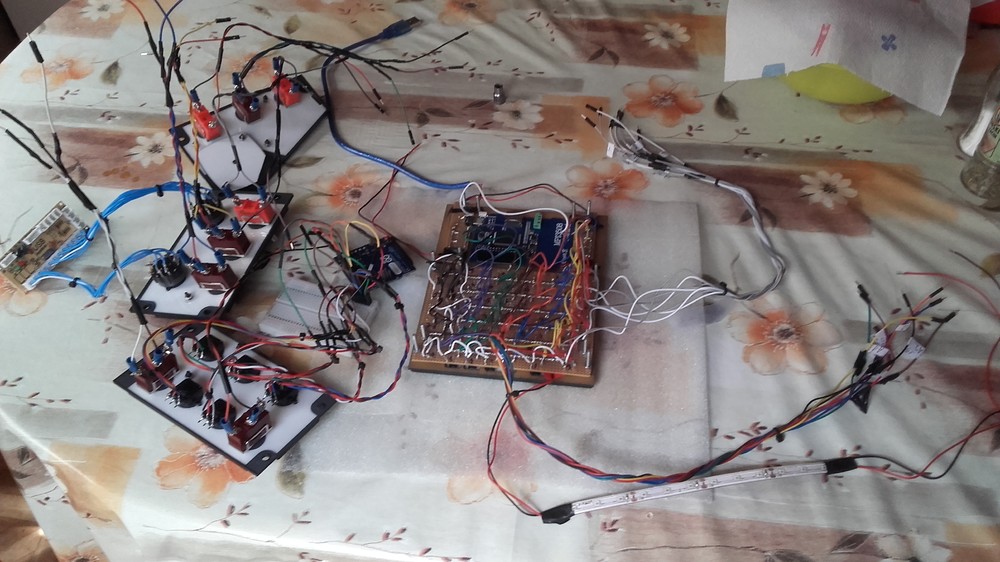

dukovac Posted March 12, 2021 Posted March 12, 2021 @crash test pilot https://www.ebay.com/itm/3-5-in-Display-Panel-Resistance-Touch-Support-HDMI-Audio-Output-MPI3508-480x320/323981976872 Nice work with the pit! I have incomplete right side built into an Ikea Lack tv bench. Hornet-a10c hybrid. I'm planning to dismantle everything and build full a10c pit
crash test pilot Posted March 12, 2021 Posted March 12, 2021 Do you use your display with helios? That may be a more versatile solution than mine. I used an arduino-shield display because it was cheap but so it only displays the A-10 CDU.
jj3 Posted March 12, 2021 Posted March 12, 2021 I started a build with custom PCB's, https://forums.eagle.ru/topic/251428-flights-cdu-panel/ I do have a couple extra sets, but I haven't had the chance to wire everything up and test it all yet.
dukovac Posted March 16, 2021 Posted March 16, 2021 On 3/12/2021 at 3:23 AM, crash test pilot said: Do you use your display with helios? I'm using Helios only to create additional viewports after every DCS update. I found better screen, but it's expensive. https://www.waveshare.com/3.5inch-hdmi-lcd.htm
