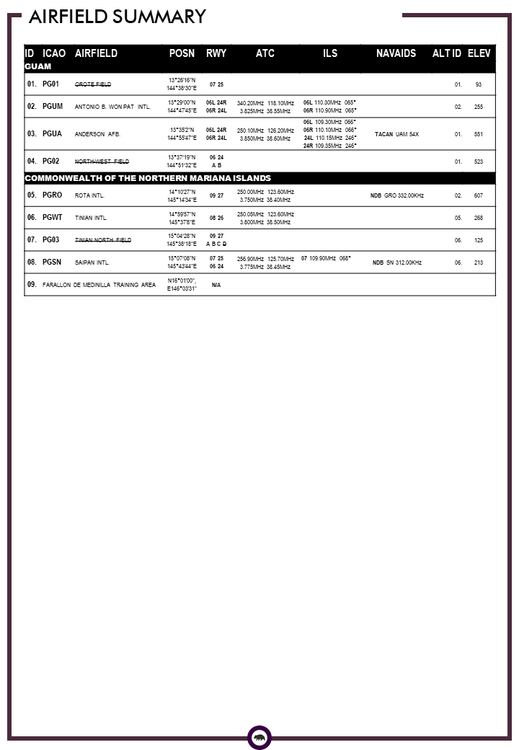

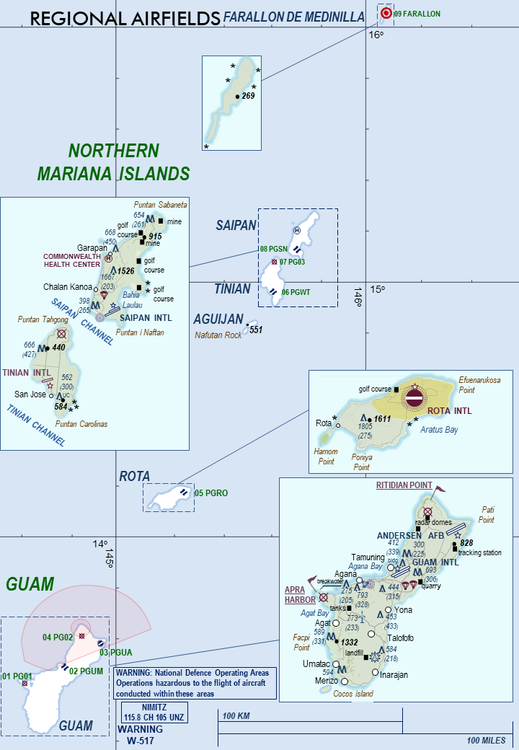

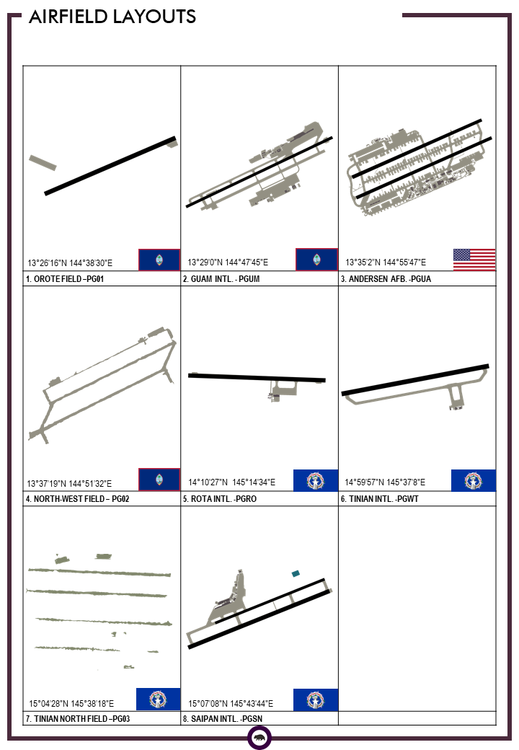

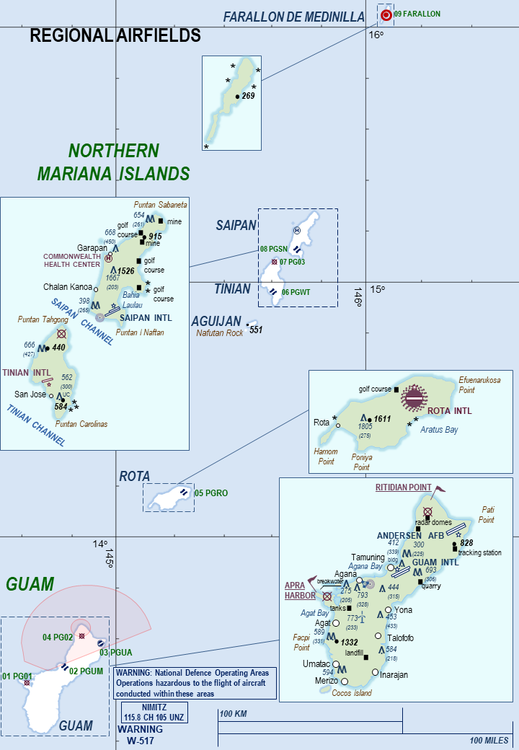

I've been doing some pre-work over the last few weeks for the upcoming map so I thought I would start a Wombat Guide airfield thread for the upcoming Mariana Islands map.  If you are like me you probably didn't know much about this region, so some positioning and general layout may help to conceptualise the map.  At present Airfields 1 to 8 and the Weapons range at 9 have been confirmed.  The remaining islands North of Farallon have not been confirmed however the only other airfield in the region is at Pagan listed here as 10.  The region diagram is subject to change as Im playing with this layout and will be rescaled when ED confirm the map. As is the usual approach I will update the Airfield Layouts diagram as I add items to this thread post release.

File is now up here: https://www.digitalcombatsimulator.com/en/files/3317345/



History:

Version 1.0 Initial release













Edited July 5, 2021 by shu77

[shu77]

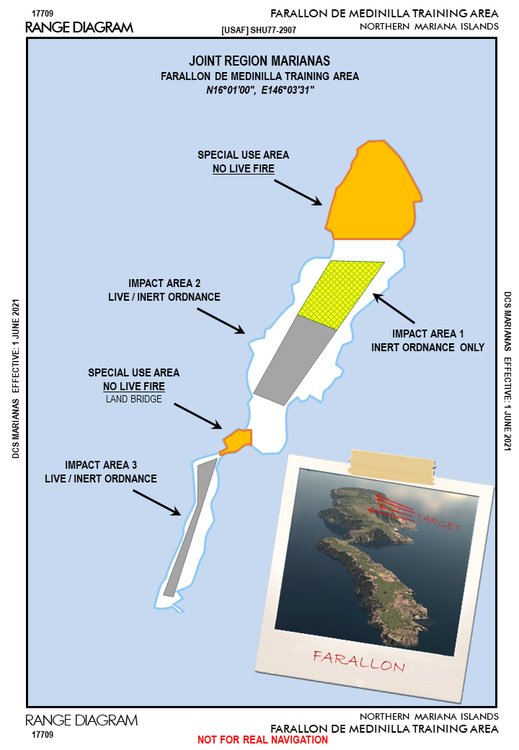

Something a little different,  Joint Region Medinilla, Farallon De Medinilla





Edited July 4, 2021 by shu77

[shu77]

Thanks.

I have to admit for a non-airfield diagram based on the wish list threads I am happy with how Farallon came out. I wish I could get a beta pass to start on the others.

[shu77]

I think this version is more or less finalised, have zoomed in on the area Wags indicated would be included initially though have the option to resize as needed.

[Northstar98]

6 hours ago, shu77 said:

I think this version is more or less finalised, have zoomed in on the area Wags indicated would be included initially though have the option to resize as needed.



Awesome work!

[Glow]

Using google you can find a very cool pdf, with full Andersen AFB procedures.

[shu77]

On 4/11/2021 at 2:35 AM, Glow said:

Using google you can find a very cool pdf, with full Andersen AFB procedures.

Hey Yes I have these.  The DCS map doesn't always align with the real world, sometimes its based on a different year to the present some times there's a change to suit the sim so all you can do is start with a good base and see what happens with the actual map.

[shu77]

See you take a day off reading the forums and this happens.  Might tackle these before Cyprus as I was keen to see this map in action.

[shu77]

Here we go again.

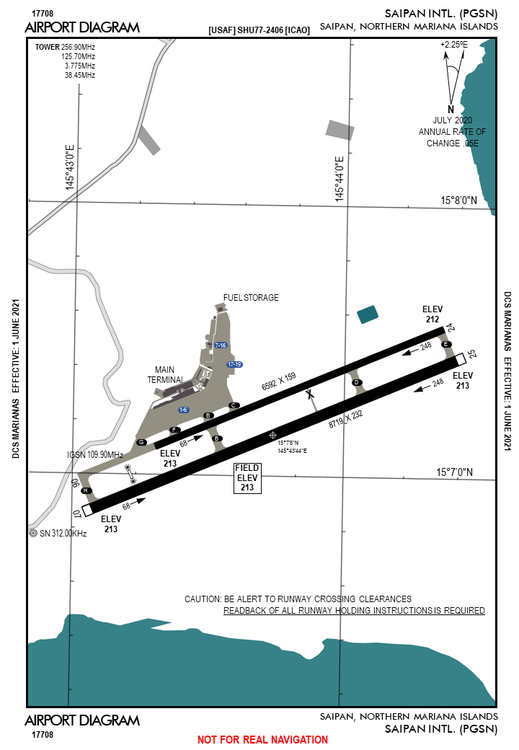

SAIPAN INTL. (PGSN)

[Snakedoc]

Awesome work!!! Thank you so much for this!!

[shu77]

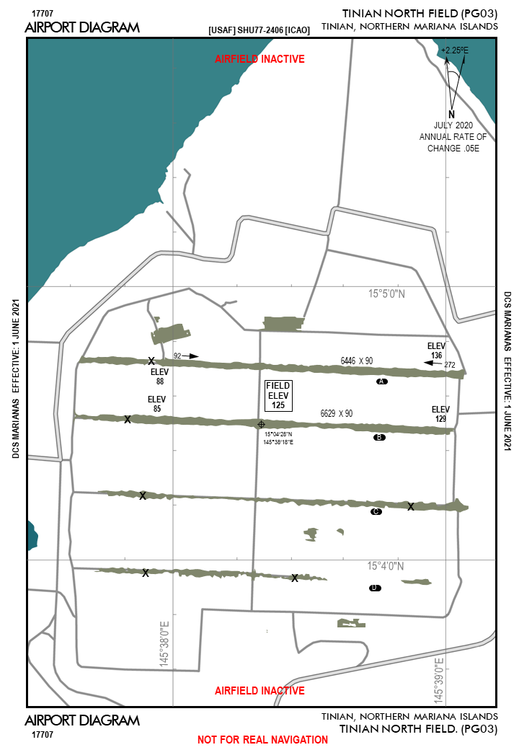

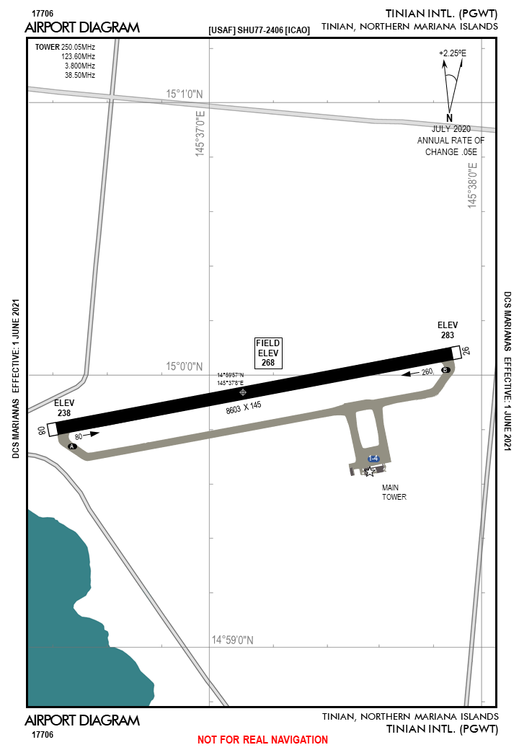

Todays effort includes the island of Tinian.  Tinian international and the abandoned North field.

[shu77]

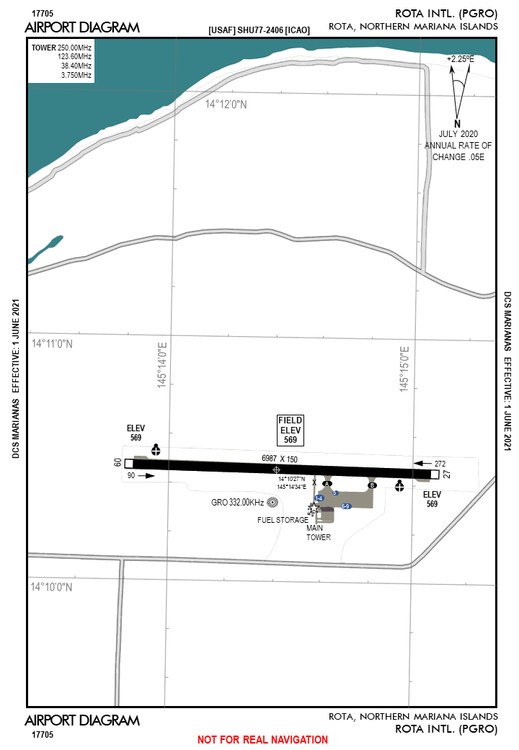

ROTA INTL.

[shu77]

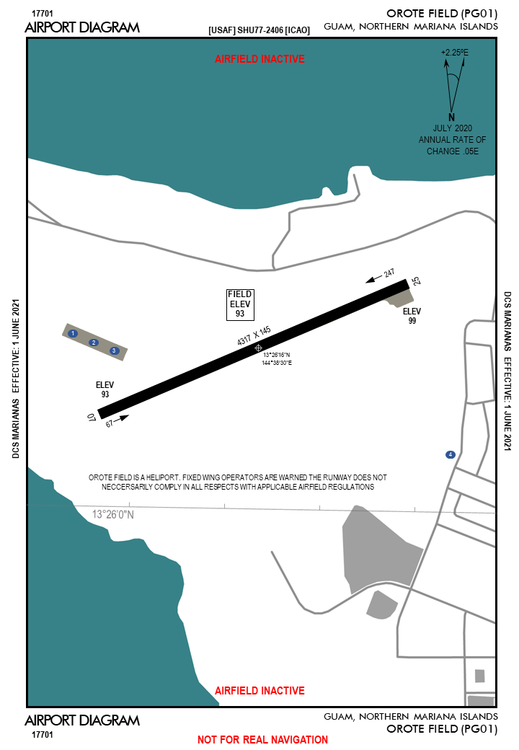

OROTE Field, Currently Inactive but has Parking assigned so potentially a future Helibase.

[shu77]

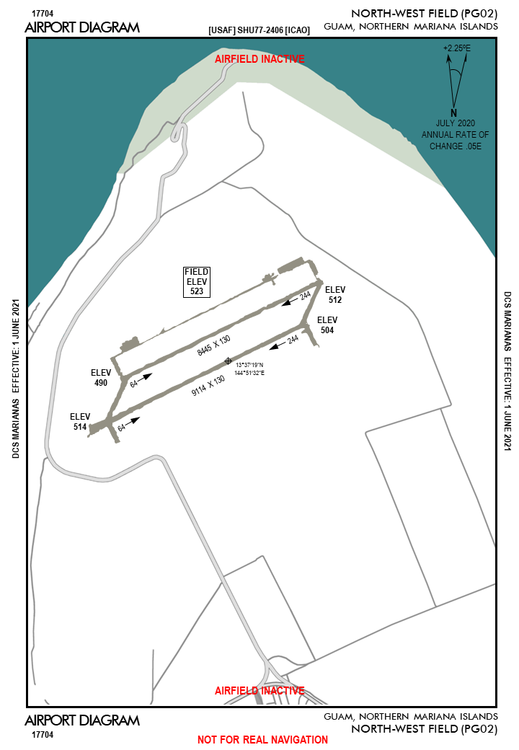

North West Field Guam

[shu77]

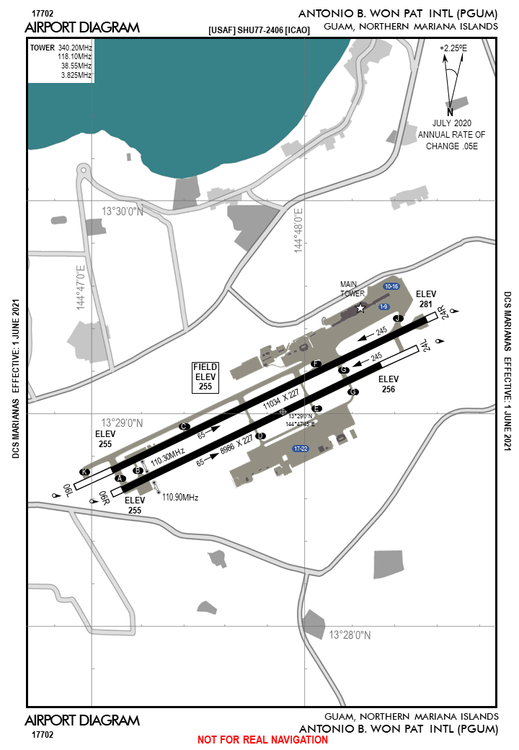

Guam International

[shu77]

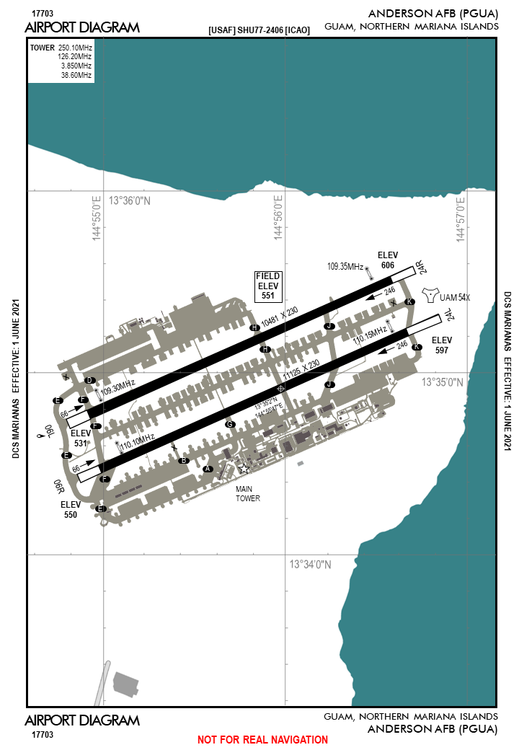

Andersen.  Far too many parking spos for the main diagram so may look at some seperate diagrams in the future

[shu77]

document submitted to ED for review will post the link in the first post when approved

[shu77]

After a little messing around I also figured out how to get magnetic variation which varies between .9E at Guam and .6E at Saipan with a .06W annual change.  I will correct the slides once the upload is approved.

[Recoil16]

3 hours ago, shu77 said:

Andersen.

Looks like your Andersen chart is missing the center taxiway as taxiway Charlie.

[Diesel_Thunder]

I know Orote Field is listed as inactive, but is very much usable. I lived in the nearby base housing when I was stationed there, and on occasion would hear C-130's practicing on that field. Touch and goes, and full stop landings.



The single eastern helipad was always there, the three on the western end are more recent (mid 2000's). The munitions bunkers were built around then as well.

[shu77]

Orote is not an active field in the game at present. It has parking numbers assigned, but you can’t access them and there’s not radio so I suspect it may become active in the future.

[shu77]

File available now here: https://www.digitalcombatsimulator.com/en/files/3317345/

[Rudel_chw]

4 hours ago, shu77 said:

File available now here: https://www.digitalcombatsimulator.com/en/files/3317345/



Thanks a lot for this, but I have found that when I try to place them on the path:



\Program Files\Eagle Dynamics\DCS World OpenBeta\Mods\terrains\MarianaIslands\Kneeboard



they dont appear within the Sim's kneeboard. I tried also the "Kneeboard_orig" folder name to no avail.



Of course this is no fault of your own, but a bug of the new map .. while we wait for ED to address this, I will place the pages that I need inside the MIZ file of my missions, so that they can show up on the kneeboard, like this:





Thanks a lot



Eduardo

[Diesel_Thunder]

On 7/4/2021 at 4:22 PM, shu77 said:

Orote is not an active field in the game at present. It has parking numbers assigned, but you can’t access them and there’s not radio so I suspect it may become active in the future.

That’s a solid bet given Orote Field’s history. I’m certain it will be an active one, alongside the old abandoned fields on the other islands when the WWII version of this map comes around (minus the trio of helipads).



To summarize the history, the US was interested in putting an airfield there in 1941, but never did before the Japanese invaded and captured the island. The IJN liked the area and built one. It was damaged during the Battle of Guam when the US recaptured the island in 1944. Our Seabees repaired the airfield, which then saw regular use until shortly after the end of the war.


I’m not sure how much maintenance it got past 1946, it seemed in pretty good shape when I was there (even drove my truck on it once). No facilities (radios, fuel, maintenance, etc) as we see on the map, though the Navy keeps the grass mowed regularly. Looking forward to seeing how this map shapes up in the future for us in DCS.


Thanks for posting your maps! Really like the one highlighting the various bomb zones on Farallon

[Minsky]

@shu77

DCS 2.7.4.9632 Open Beta - 21.07.2021



- Antonio B. Won Pat Intl: the runway is now completely flat (255 ft), which differs from the real-world sloped runway.



Seems to be no other changes.

Edited July 22, 2021 by Minsky
