DCS: AH-64 HOTAS - U.S. Army Cyclic and Collective for Mid-Block II, 2005-2010

[Wags]

Dear all,



I created this today, and I thought it might be interesting/useful for those wishing to get a head start on your controller profiles.



Kind regards,

Matt

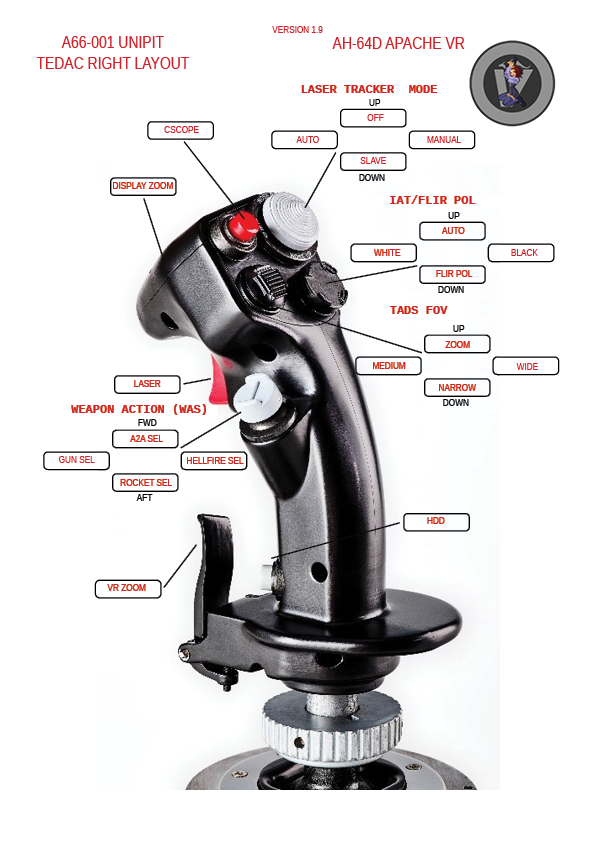

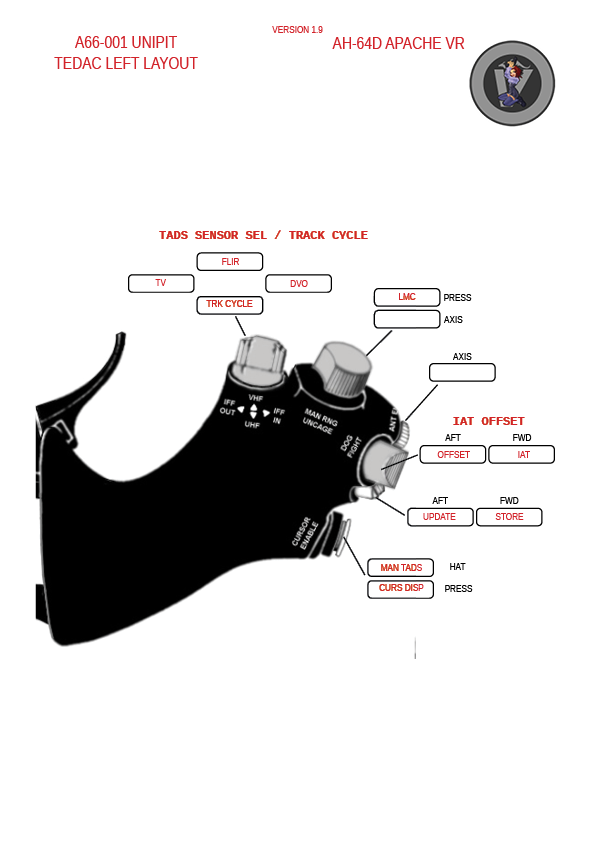

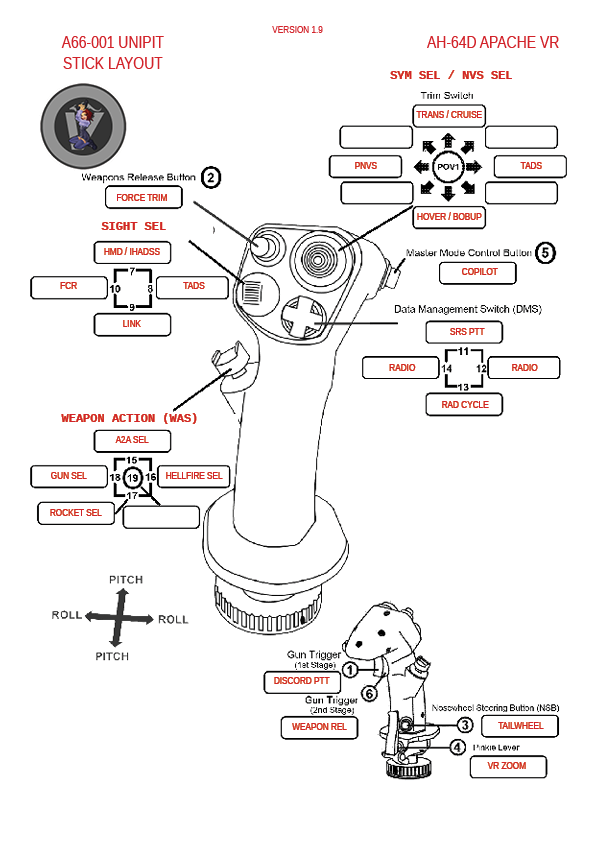

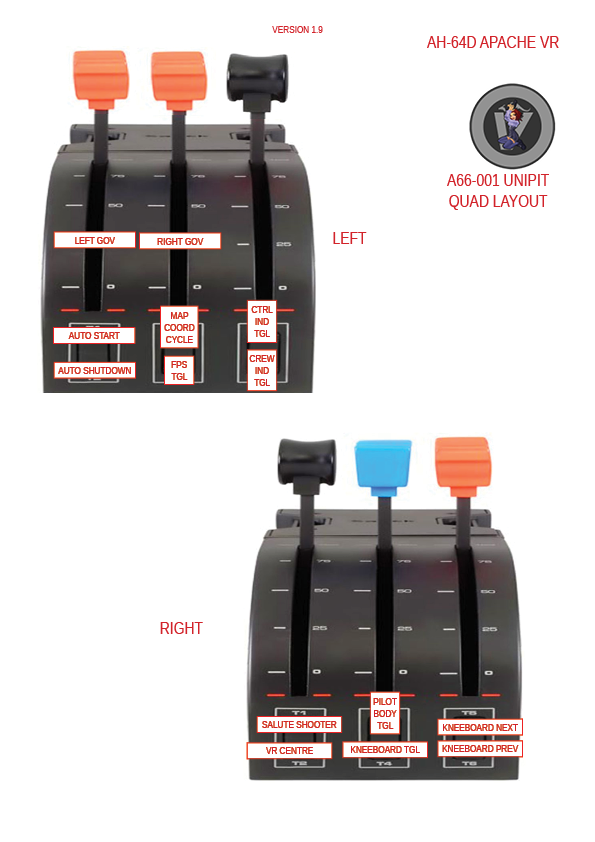

AH-64D Block II Cyclic and Collective HOTAS.pdf

[MAXsenna]

Dear all,

I created this today, and I thought it might be interesting/useful for those wishing to get a head start on your controller profiles.

Kind regards,
Matt
AH-64D Block II Cyclic and Collective HOTAS.pdf

Awesome! Thanks Wags!

Sent from my MAR-LX1A using Tapatalk

[Topo]

This is cruelty...

Thanks anyway

[lil-hammer84]

Thanks a lot there @Wags ... here, you wouldn't happen to know the dimensions of say, the collective or the cyclic by any chance, would you?

Edited June 22, 2021 by lil-hammer84

[Meathawk]

Hey @Wags can you give us a guess on what functions/buttons might not be as important for the module (like Target store switch), so we can determine the transition to e.g. the Warthog better?



And yes @Topo - pure and evil cruelty ...

[Meathawk]

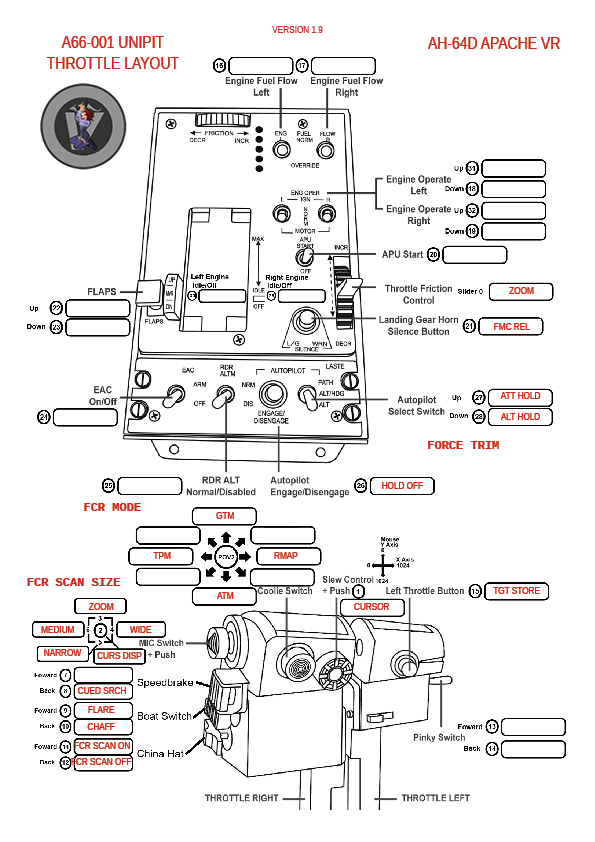

that might help as well - credit to someone else - dont know where I found that anymore

[Alpiinoo]

Thanks Wags.

[hannibal]

Now I can start building a DIY apache collective

[hannibal]

@Wags can you tell us if any of the elements of the collective that have analog functions.. ie, axis commands?



I'm think of making a mini joystick, for the collective head, instead in place of one of the many hat switches



Edited July 1, 2021 by hannibal

[Maxito]

Anyone know the functions of Button: 6. FCR Scan. When FCR is selected as sight ? I am currently modeling and making a collective stick and I wanted to know what type of hat switch ( 2-way ,4-way, does it depress?) It is. It looks like a 4 way hat to me but I don't know.

[hannibal]

39 minutes ago, Maxito said:

Anyone know the functions of Button: 6. FCR Scan. When FCR is selected as sight ? I am currently modeling and making a collective stick and I wanted to know what type of hat switch ( 2-way ,4-way, does it depress?) It is. It looks like a 4 way hat to me but I don't know.

I like to know this also...

i was planning out buttons needed to fill all of the buttons of the collective, and its looking like 40+ buttons



CAN SOMEONE TELL US if the FCR Scan is a 2 way or 4 way hat?

Edited July 6, 2021 by hannibal

[Raptor9]

1 minute ago, hannibal said:

CAN SOMEONE TELL US if the FCR Scan is a 2 way or 4 way hat?



It's a 2-way.  Forward and Aft.

[hannibal]

appreciate @Raptor9

[Eldur]

On 6/22/2021 at 11:59 AM, Meathawk said:

that might help as well - credit to someone else - dont know where I found that anymore



Looks like a screenshot from YouTube. So I'm rather certain it comes from one of Casmo's videos. Here's the full thing, everything important explained:





[sirrah]

On 6/22/2021 at 12:37 AM, Wags said:

Dear all,



I created this today, and I thought it might be interesting/useful for those wishing to get a head start on your controller profiles.



Kind regards,

Matt



AH-64D Block II Cyclic and Collective HOTAS.pdf 402.17 kB · 514 downloads



Quick count:



• 19 stick buttons (hey, my TM grip has 19 )
• 35 collective buttons (hey, my Virpil collective + Alpha-L has 35 buttons )



Yay! It seems I'm ready!



(It'll take me a year to remember all button binds though )

[pii]

On 6/22/2021 at 5:59 AM, Meathawk said:



that might help as well - credit to someone else - dont know where I found that anymore

 OH ma,n this is going to be a nightmare.

[Gascan39]

Guess I'll run my TM Warthog and behind it to my left the T16000M TWCS. Should be interesting. looking forward to flying around in this one.

[mikkebos]

Guys is NVS select switch (number 13 form pdf collective) a momentary switch or classic one?

[Viper1970]

I can tell you tomorrow. Will take a look in my docs. PM me for the case I forget to answer your question.

[Raptor9]

1 hour ago, mikkebos said:

Guys is NVS select switch (number 13 form pdf collective) a momentary switch or classic one?

It's a momentary. Three-position, spring-loaded to center.

[Viper1970]

Yes, that's right. I did not have it in mind, but someone else was faster.

[ruprecht]

On 7/6/2021 at 11:57 PM, Maxito said:

Anyone know the functions of Button: 6. FCR Scan. When FCR is selected as sight ? I am currently modeling and making a collective stick and I wanted to know what type of hat switch ( 2-way ,4-way, does it depress?) It is. It looks like a 4 way hat to me but I don't know.

Activates and deactivates the FCR transmitter. Two position momentary.

[ruprecht]

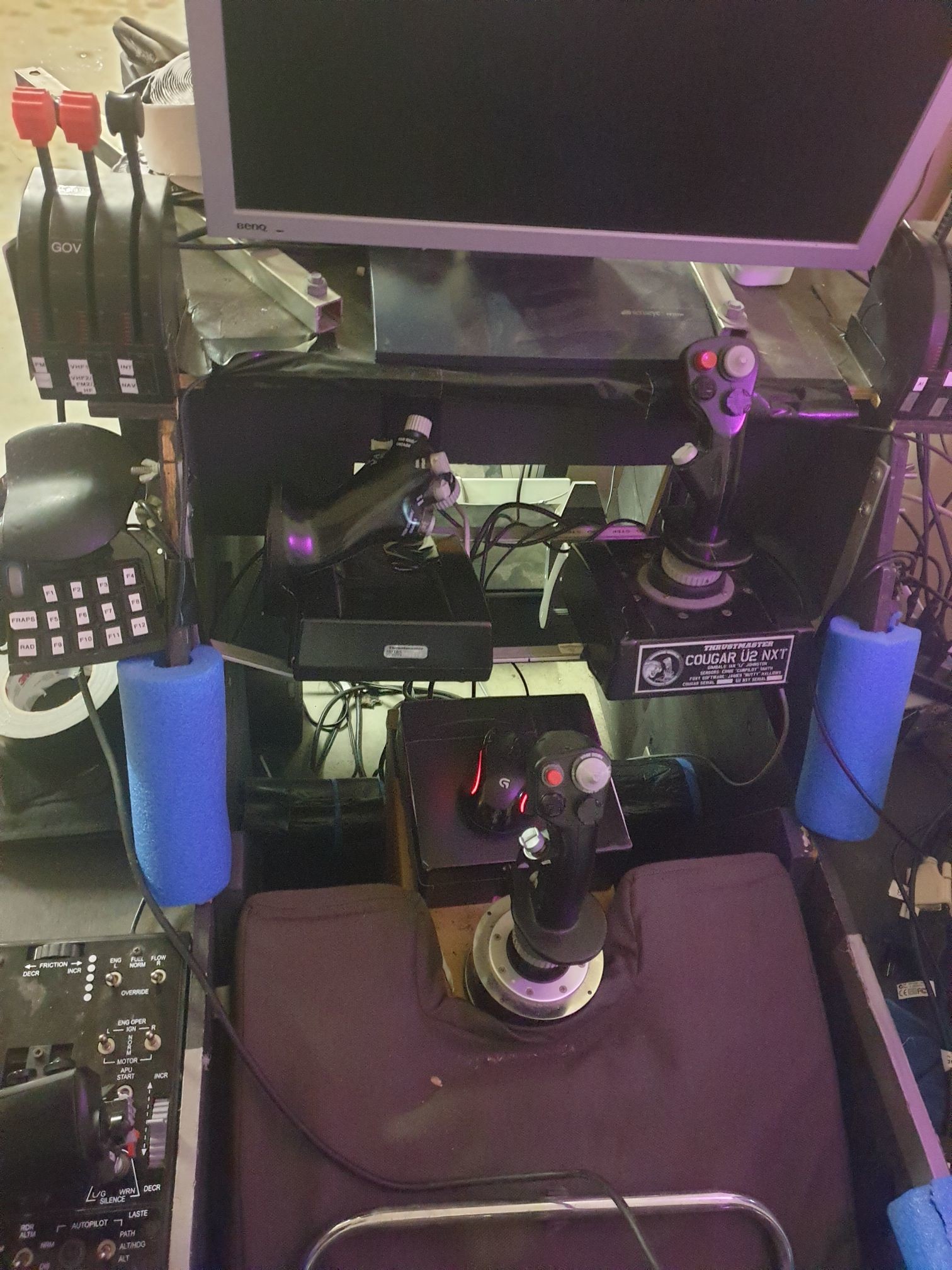

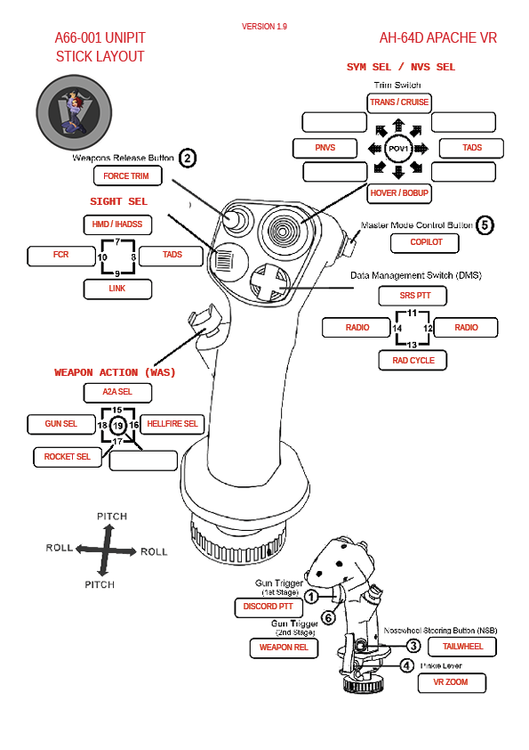

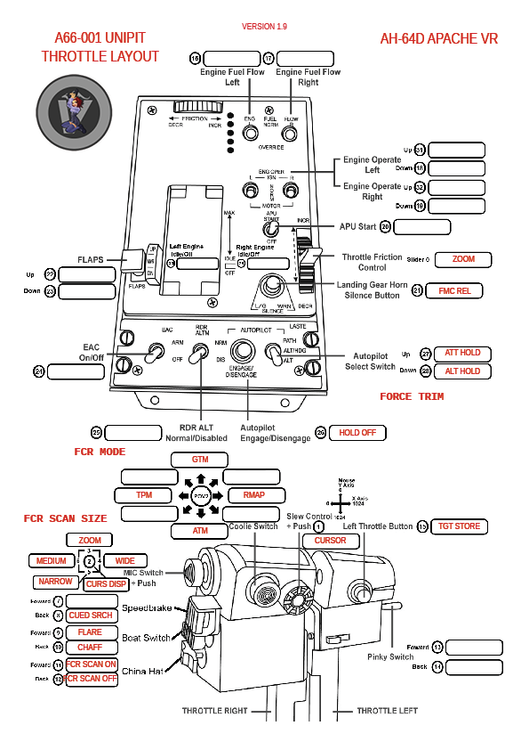

Here's what I'm looking at so far for a mapping. I've activated my old HOTAS Cougar as a TEDAC in addition to my Warthog. I fly exclusively in VR, so I can't be reaching for a keyboard.

No point trying to map everything 1:1 as the controls are too different. So I've generally gone for:

TADS on the Cougar

FCR on the Warthog Throttle

Flight stuff on the Warthog stick

... with some exceptions for Hornet familiarity (e.g. location of the countermeasures in panic situations).

It will very very likely change, especially on release when we see what the actual mappable functions are. Hopefully ED will continue the excellent support they've provided for switches.

Hope it helps, roast me



[kgillers3]

8 hours ago, ruprecht said:

Here's what I'm looking at so far for a mapping. I've activated my old HOTAS Cougar as a TEDAC in addition to my Warthog. I fly exclusively in VR, so I can't be reaching for a keyboard.

No point trying to map everything 1:1 as the controls are too different. So I've generally gone for:

TADS on the Cougar

FCR on the Warthog Throttle

Flight stuff on the Warthog stick

... with some exceptions for Hornet familiarity (e.g. location of the countermeasures in panic situations).

It will very very likely change, especially on release when we see what the actual mappable functions are. Hopefully ED will continue the excellent support they've provided for switches.

Hope it helps, roast me



Just waking up so I’m probably gonna miss somethings but you don’t need hdd. It’s redundant for this block I believe. It might have another renamed function like for the Izlid but it’s nothing that should affect dcs gameplay.  Dont need a2a was. Change governors to throttles, it’s auto governed until you hit lockout. Iat flir polar you’ll probably rarely use, recommend that go to a secondary and you relocate more important things there. Iat image polarity you’ll rarely use. Flir polarity you may use a lot idk that’s a personal question. Remember the dual stage for the laser on the ah is first click single lase second click continuous lazing. I’d recommend just binding second detent. Continuing you don’t need dvo, should be redundant for this model, could be wrong but I believe it does nothing. Man tads? Is that cursor? I’m assuming the right joystick axis will be your thumb force controller.


Cyclic drop a2a doesn’t do anything, just so you know for the hold modes, fcr scan continuous scan, one time push, turns them on, push it again turns it off. So not switches, however that works in dcs from your controls idk.


hope my comments help

[Raptor9]

@kgillers3 is correct regarding HDD, DVO and the ATA functions (A2A/Air-to-Air/A-A, so many ways to type it).

The HDD/Heads Down Display was for the older ORT gunner sight, which the TEDAC assembly replaced.

DVO/Direct View Optics was an AH-64A sensor (similar to the Mi-24 Raduga sight), and I don't know if the earliest AH-64D's retained it or not; the 2005-2010 era AH-64D Block 2's didn't have them.

The ATA weapon select and the Cage buttons did nothing for this era of AH-64D.  They were just buttons you could press if you were bored, they weren't hooked up to anything.  Simply a "growth option".

Talking about this makes me want an AH-64A in DCS.  I think it would be so much fun (as will the D-model, I just think both would be fun as hell).  But at least we are getting an Apache at all.

Edited October 20, 2021 by Raptor9
