wiggles5289 Posted June 30, 2021 Share Posted June 30, 2021 (edited) EDIT: Added working code for FFI. Needs help to make it multifunctional to support Altimeter and Fuel QTY in the future. https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI/ Anyone have working code for an FFI for the Viper? I have tried for months trying to work with displays and am about done with even trying. I have found a good FFI font and some code from the DEDuino repo on GitHub(the alpha under releases) but cant even get basic info to display because of my poor coding skills. //Scrolling Indicator for F-16 FFI for DCS BIOS using generic 128x32 SSD1306 !!!WITH I2C!!! display(tested on 0.91" screen from Amazon) //Final code by JohnnyChicago and slightly modified/tested by Wiggles5289 on the DCS Forums //Can work for Altimeter/Fuel QTY //WIP on GitHub //Updated for DCS 2.7 on 13SEP2022 //Working on making the font higher definition for future OLEDs with higher pixel density to eliminate the ugly screen door effect //COMMENT OUT SECTIONS YOU DO NOT NEED AND READ THE COMMENTS BEFORE USE! //REQUIRED FOR COMPILING: Adafruit SSD1306, Adafruit GFX, and dcs-bios-arduino library //Updates Found at: https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI //#define DCSBIOS_FOR_STM32 #ifdef DCSBIOS_FOR_STM32 //This sets Default Serial for STM32, will not compile with IRQ without an error #define DCSBIOS_DEFAULT_SERIAL #ifndef DCSBIOS_FOR_STM32 //This sets IRQ Serial as the default option for Arduino Nano/Uno, its much faster than Default Serial #define DCSBIOS_IRQ_SERIAL #endif #include "DcsBios.h" //#include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "characters.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) //Comment for barometric pressure #define FUELFLOW int updateInterval = 100; //the number of milliseconds between updates(17 for 60FPS, 41 for 24FPS, 100 for Default) struct scrollDigit { int digit; //The digit that is displayed int y; // The vertical position of the digit }; struct disp { Adafruit_SSD1306 display; int width; int numberOfDigits; scrollDigit digits[5]; }; #ifdef FUELFLOW disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 24, 5, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #else disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 16, 4, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #endif void setup() { if (!oled.display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32 for (;;); // Don't proceed, loop forever } DcsBios::setup(); } void UpdateDisplay() { oled.display.clearDisplay(); for (int i = 0; i < oled.numberOfDigits; i++) { printScrollingDigit(oled.digits[i].digit, oled.width, oled.digits[i].y, i + 1, &oled); } //Clear the area below the the numbers if we are using the small font if (oled.width == 16) { oled.display.fillRect(0, 25, 67, 7, BLACK); } oled.display.display(); } int YPos() { return (oled.width + 9) * -1; } void printScrollingDigit(int digit, int width, int y, int pos, disp *oled) { int x = (width * pos) - width + pos; #ifdef FUELFLOW switch (digit) { case -1: oled->display.drawBitmap(x, y, c24_Empty, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; case 1: oled->display.drawBitmap(x, y, c24_1, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_2, 24, 32, 1); break; case 2: oled->display.drawBitmap(x, y, c24_2, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_3, 24, 32, 1); break; case 3: oled->display.drawBitmap(x, y, c24_3, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_4, 24, 32, 1); break; case 4: oled->display.drawBitmap(x, y, c24_4, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_5, 24, 32, 1); break; case 5: oled->display.drawBitmap(x, y, c24_5, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_6, 24, 32, 1); break; case 6: oled->display.drawBitmap(x, y, c24_6, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_7, 24, 32, 1); break; case 7: oled->display.drawBitmap(x, y, c24_7, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_8, 24, 32, 1); break; case 8: oled->display.drawBitmap(x, y, c24_8, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_9, 24, 32, 1); break; case 9: oled->display.drawBitmap(x, y, c24_9, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_0, 24, 32, 1); break; default: oled->display.drawBitmap(x, y, c24_0, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; } #else switch (digit) { case -1: oled->display.drawBitmap(x, y, c16_Empty, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; case 1: oled->display.drawBitmap(x, y, c16_1, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_2, 16, 24, 1); break; case 2: oled->display.drawBitmap(x, y, c16_2, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_3, 16, 24, 1); break; case 3: oled->display.drawBitmap(x, y, c16_3, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_4, 16, 24, 1); break; case 4: oled->display.drawBitmap(x, y, c16_4, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_5, 16, 24, 1); break; case 5: oled->display.drawBitmap(x, y, c16_5, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_6, 16, 24, 1); break; case 6: oled->display.drawBitmap(x, y, c16_6, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_7, 16, 24, 1); break; case 7: oled->display.drawBitmap(x, y, c16_7, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_8, 16, 24, 1); break; case 8: oled->display.drawBitmap(x, y, c16_8, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_9, 16, 24, 1); break; case 9: oled->display.drawBitmap(x, y, c16_9, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_0, 16, 24, 1); break; default: oled->display.drawBitmap(x, y, c16_0, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; } #endif } #ifdef FUELFLOW void onFuelflowcounter10kChange(unsigned int newValue) { if (newValue == 0) { oled.digits[0].digit = -1; oled.digits[0].y = 0; } else { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[0].digit = mappedValue; oled.digits[0].y = y; } } void onFuelflowcounter1kChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[1].digit = mappedValue; oled.digits[1].y = y; } void onFuelflowcounter100Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[2].digit = mappedValue; oled.digits[2].y = y; } DcsBios::IntegerBuffer fuelflowcounter100Buffer(0x44e8, 0xffff, 0, onFuelflowcounter100Change); DcsBios::IntegerBuffer fuelflowcounter10kBuffer(0x44e4, 0xffff, 0, onFuelflowcounter10kChange); DcsBios::IntegerBuffer fuelflowcounter1kBuffer(0x44e6, 0xffff, 0, onFuelflowcounter1kChange); //#else #endif unsigned long time = 0; void loop() { DcsBios::loop(); time = millis(); if (time % updateInterval == 0) { UpdateDisplay(); } } Edited September 13, 2022 by wiggles5289 Link to comment Share on other sites More sharing options...
uri_ba Posted June 30, 2021 Share Posted June 30, 2021 Unfortunately I've never tried to figure out pulling data from, maybe DCS BIOS can help with that aspect and you just need to transmit to the arduino. DEDunio's communication protocol is fairly straight forward to "hack" most of the heavy lifting is on the PC side (I've done it to save precious MCU cycles on low end Arduinos) Creator of Hound ELINT script My pit building blog Few DIY projects on Github: DIY Cougar throttle Standalone USB controller | DIY FCC3 Standalone USB Controller Link to comment Share on other sites More sharing options...
wiggles5289 Posted June 30, 2021 Author Share Posted June 30, 2021 DCSBIOS has the Fuel Flow Counter 10K, 1K, and 100 places separately output to 16 bit values. I used a simple map() function to change it to 0-9 int and changed the ascii value correction functions to the non ascii output from DCSBIOS, but beyond that I couldn't reverse engineer your code to make it work with an arduino mega. Link to comment Share on other sites More sharing options...
JohnnyChicago Posted July 1, 2021 Share Posted July 1, 2021 i'll send you one tomorrow ... works great Link to comment Share on other sites More sharing options...
hy-fye1 Posted July 5, 2021 Share Posted July 5, 2021 Am 2.7.2021 um 00:10 schrieb JohnnyChicago: i'll send you one tomorrow ... works great Hi, can you send me too? Thanks in forward. Best Regards Markus Link to comment Share on other sites More sharing options...

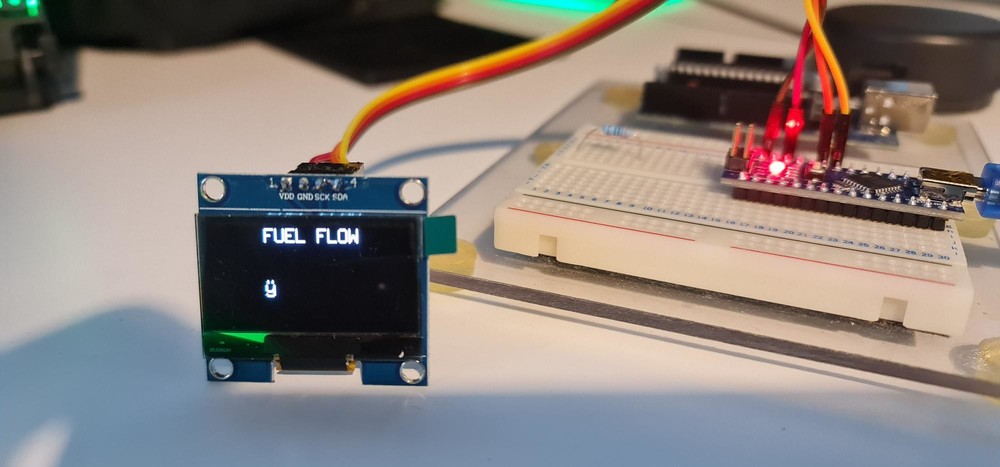

Detent666 Posted November 15, 2021 Share Posted November 15, 2021 (edited) Can anyone share their code for this, I've got Nano connected to a SH1106 my code below only to show the 10k portion to prove, but not getting the required display. /*DCS BIOS FFI FOR VIPER*/ #define DCSBIOS_IRQ_SERIAL #include "DcsBios.h" #include <Arduino.h> #include <U8g2lib.h> #include <Wire.h> U8G2_SH1106_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE); unsigned int flowtenk; int tenko; void onFuelflowcounter10kChange(unsigned int newValue) { flowtenk = (newValue); tenko = map(flowtenk, 0,65535,0,9); } DcsBios::IntegerBuffer fuelflowcounter10kBuffer(0x44d6, 0xffff, 0, onFuelflowcounter10kChange); void setup(void) { DcsBios::setup(); u8g2.begin(); u8g2.clearBuffer(); u8g2.setFont(u8g2_font_7x13_tf); } void loop(void) { u8g2.clearBuffer(); u8g2.drawStr(35,10, "FUEL FLOW"); u8g2.drawStr(35,45, tenko); u8g2.sendBuffer(); // Transfer to display delay(1000); } ``` Edited November 15, 2021 by Detent666 Link to comment Share on other sites More sharing options...
wiggles5289 Posted November 15, 2021 Author Share Posted November 15, 2021 Try Default Serial instead of IRQ. Link to comment Share on other sites More sharing options...
Ares63 Posted January 30, 2022 Share Posted January 30, 2022 Il 2/7/2021 at 00:10, JohnnyChicago ha scritto: i'll send you one tomorrow ... works great can you send me too??? Link to comment Share on other sites More sharing options...
Kurdishfighter Posted August 3, 2022 Share Posted August 3, 2022 (edited) On 7/1/2021 at 6:10 PM, JohnnyChicago said: i'll send you one tomorrow ... works great Will you send the code for us please ?.I didn't find any working code for ffi. Edited August 3, 2022 by Kurdishfighter Link to comment Share on other sites More sharing options...
Its_Mercury_NOR Posted August 11, 2022 Share Posted August 11, 2022 On 7/2/2021 at 12:10 AM, JohnnyChicago said: i'll send you one tomorrow ... works great I have also been trying to get this to work, but no joy could you please send me code also? Thanks in advance, Daniel Link to comment Share on other sites More sharing options...
BuffNav Posted September 10, 2022 Share Posted September 10, 2022 Anyone ever get a good working F16 Fuel Flow working? Link to comment Share on other sites More sharing options...
wiggles5289 Posted September 13, 2022 Author Share Posted September 13, 2022 On 9/10/2022 at 1:49 PM, BuffNav said: Anyone ever get a good working F16 Fuel Flow working? I think I have something that works. Ill update it in the first post. Link to comment Share on other sites More sharing options...
Enabler Posted June 18, 2023 Share Posted June 18, 2023 I'm trying to make this code work for a Hiletgo 1.3" IIC serial 128x64 SSH1106 Oled. It's scrambled and scrolls portions of digits along the top edge of the screen from right to left. Anyone have input about how to adapt to this screen? GD ViperWorks - YouTube F-16CM Block 50 Replica Sim Pit Construction Link to comment Share on other sites More sharing options...
Enabler Posted July 2, 2023 Share Posted July 2, 2023 On 6/30/2021 at 12:22 PM, wiggles5289 said: EDIT: Added working code for FFI. Needs help to make it multifunctional to support Altimeter and Fuel QTY in the future. https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI/ Anyone have working code for an FFI for the Viper? I have tried for months trying to work with displays and am about done with even trying. I have found a good FFI font and some code from the DEDuino repo on GitHub(the alpha under releases) but cant even get basic info to display because of my poor coding skills. //Scrolling Indicator for F-16 FFI for DCS BIOS using generic 128x32 SSD1306 !!!WITH I2C!!! display(tested on 0.91" screen from Amazon) //Final code by JohnnyChicago and slightly modified/tested by Wiggles5289 on the DCS Forums //Can work for Altimeter/Fuel QTY //WIP on GitHub //Updated for DCS 2.7 on 13SEP2022 //Working on making the font higher definition for future OLEDs with higher pixel density to eliminate the ugly screen door effect //COMMENT OUT SECTIONS YOU DO NOT NEED AND READ THE COMMENTS BEFORE USE! //REQUIRED FOR COMPILING: Adafruit SSD1306, Adafruit GFX, and dcs-bios-arduino library //Updates Found at: https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI //#define DCSBIOS_FOR_STM32 #ifdef DCSBIOS_FOR_STM32 //This sets Default Serial for STM32, will not compile with IRQ without an error #define DCSBIOS_DEFAULT_SERIAL #ifndef DCSBIOS_FOR_STM32 //This sets IRQ Serial as the default option for Arduino Nano/Uno, its much faster than Default Serial #define DCSBIOS_IRQ_SERIAL #endif #include "DcsBios.h" //#include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "characters.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) //Comment for barometric pressure #define FUELFLOW int updateInterval = 100; //the number of milliseconds between updates(17 for 60FPS, 41 for 24FPS, 100 for Default) struct scrollDigit { int digit; //The digit that is displayed int y; // The vertical position of the digit }; struct disp { Adafruit_SSD1306 display; int width; int numberOfDigits; scrollDigit digits[5]; }; #ifdef FUELFLOW disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 24, 5, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #else disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 16, 4, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #endif void setup() { if (!oled.display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32 for (;;); // Don't proceed, loop forever } DcsBios::setup(); } void UpdateDisplay() { oled.display.clearDisplay(); for (int i = 0; i < oled.numberOfDigits; i++) { printScrollingDigit(oled.digits[i].digit, oled.width, oled.digits[i].y, i + 1, &oled); } //Clear the area below the the numbers if we are using the small font if (oled.width == 16) { oled.display.fillRect(0, 25, 67, 7, BLACK); } oled.display.display(); } int YPos() { return (oled.width + 9) * -1; } void printScrollingDigit(int digit, int width, int y, int pos, disp *oled) { int x = (width * pos) - width + pos; #ifdef FUELFLOW switch (digit) { case -1: oled->display.drawBitmap(x, y, c24_Empty, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; case 1: oled->display.drawBitmap(x, y, c24_1, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_2, 24, 32, 1); break; case 2: oled->display.drawBitmap(x, y, c24_2, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_3, 24, 32, 1); break; case 3: oled->display.drawBitmap(x, y, c24_3, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_4, 24, 32, 1); break; case 4: oled->display.drawBitmap(x, y, c24_4, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_5, 24, 32, 1); break; case 5: oled->display.drawBitmap(x, y, c24_5, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_6, 24, 32, 1); break; case 6: oled->display.drawBitmap(x, y, c24_6, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_7, 24, 32, 1); break; case 7: oled->display.drawBitmap(x, y, c24_7, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_8, 24, 32, 1); break; case 8: oled->display.drawBitmap(x, y, c24_8, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_9, 24, 32, 1); break; case 9: oled->display.drawBitmap(x, y, c24_9, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_0, 24, 32, 1); break; default: oled->display.drawBitmap(x, y, c24_0, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; } #else switch (digit) { case -1: oled->display.drawBitmap(x, y, c16_Empty, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; case 1: oled->display.drawBitmap(x, y, c16_1, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_2, 16, 24, 1); break; case 2: oled->display.drawBitmap(x, y, c16_2, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_3, 16, 24, 1); break; case 3: oled->display.drawBitmap(x, y, c16_3, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_4, 16, 24, 1); break; case 4: oled->display.drawBitmap(x, y, c16_4, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_5, 16, 24, 1); break; case 5: oled->display.drawBitmap(x, y, c16_5, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_6, 16, 24, 1); break; case 6: oled->display.drawBitmap(x, y, c16_6, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_7, 16, 24, 1); break; case 7: oled->display.drawBitmap(x, y, c16_7, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_8, 16, 24, 1); break; case 8: oled->display.drawBitmap(x, y, c16_8, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_9, 16, 24, 1); break; case 9: oled->display.drawBitmap(x, y, c16_9, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_0, 16, 24, 1); break; default: oled->display.drawBitmap(x, y, c16_0, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; } #endif } #ifdef FUELFLOW void onFuelflowcounter10kChange(unsigned int newValue) { if (newValue == 0) { oled.digits[0].digit = -1; oled.digits[0].y = 0; } else { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[0].digit = mappedValue; oled.digits[0].y = y; } } void onFuelflowcounter1kChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[1].digit = mappedValue; oled.digits[1].y = y; } void onFuelflowcounter100Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[2].digit = mappedValue; oled.digits[2].y = y; } DcsBios::IntegerBuffer fuelflowcounter100Buffer(0x44e8, 0xffff, 0, onFuelflowcounter100Change); DcsBios::IntegerBuffer fuelflowcounter10kBuffer(0x44e4, 0xffff, 0, onFuelflowcounter10kChange); DcsBios::IntegerBuffer fuelflowcounter1kBuffer(0x44e6, 0xffff, 0, onFuelflowcounter1kChange); //#else #endif unsigned long time = 0; void loop() { DcsBios::loop(); time = millis(); if (time % updateInterval == 0) { UpdateDisplay(); } } This code is working for me. Even though I'm trying to get a SH1106 to do this, on the SD1306 it works. IS there a way to center the top line of the display to the middle of the screen though? GD ViperWorks - YouTube F-16CM Block 50 Replica Sim Pit Construction Link to comment Share on other sites More sharing options...
BeBe Posted September 30, 2023 Share Posted September 30, 2023 On 6/30/2021 at 6:22 PM, wiggles5289 said: EDIT: Added working code for FFI. Needs help to make it multifunctional to support Altimeter and Fuel QTY in the future. https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI/ Anyone have working code for an FFI for the Viper? I have tried for months trying to work with displays and am about done with even trying. I have found a good FFI font and some code from the DEDuino repo on GitHub(the alpha under releases) but cant even get basic info to display because of my poor coding skills. //Scrolling Indicator for F-16 FFI for DCS BIOS using generic 128x32 SSD1306 !!!WITH I2C!!! display(tested on 0.91" screen from Amazon) //Final code by JohnnyChicago and slightly modified/tested by Wiggles5289 on the DCS Forums //Can work for Altimeter/Fuel QTY //WIP on GitHub //Updated for DCS 2.7 on 13SEP2022 //Working on making the font higher definition for future OLEDs with higher pixel density to eliminate the ugly screen door effect //COMMENT OUT SECTIONS YOU DO NOT NEED AND READ THE COMMENTS BEFORE USE! //REQUIRED FOR COMPILING: Adafruit SSD1306, Adafruit GFX, and dcs-bios-arduino library //Updates Found at: https://github.com/wiggles5289/Orange-Viper-Simulations/blob/main/F16/FFI //#define DCSBIOS_FOR_STM32 #ifdef DCSBIOS_FOR_STM32 //This sets Default Serial for STM32, will not compile with IRQ without an error #define DCSBIOS_DEFAULT_SERIAL #ifndef DCSBIOS_FOR_STM32 //This sets IRQ Serial as the default option for Arduino Nano/Uno, its much faster than Default Serial #define DCSBIOS_IRQ_SERIAL #endif #include "DcsBios.h" //#include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "characters.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) //Comment for barometric pressure #define FUELFLOW int updateInterval = 100; //the number of milliseconds between updates(17 for 60FPS, 41 for 24FPS, 100 for Default) struct scrollDigit { int digit; //The digit that is displayed int y; // The vertical position of the digit }; struct disp { Adafruit_SSD1306 display; int width; int numberOfDigits; scrollDigit digits[5]; }; #ifdef FUELFLOW disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 24, 5, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #else disp oled = {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 16, 4, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}}}; #endif void setup() { if (!oled.display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32 for (;;); // Don't proceed, loop forever } DcsBios::setup(); } void UpdateDisplay() { oled.display.clearDisplay(); for (int i = 0; i < oled.numberOfDigits; i++) { printScrollingDigit(oled.digits[i].digit, oled.width, oled.digits[i].y, i + 1, &oled); } //Clear the area below the the numbers if we are using the small font if (oled.width == 16) { oled.display.fillRect(0, 25, 67, 7, BLACK); } oled.display.display(); } int YPos() { return (oled.width + 9) * -1; } void printScrollingDigit(int digit, int width, int y, int pos, disp *oled) { int x = (width * pos) - width + pos; #ifdef FUELFLOW switch (digit) { case -1: oled->display.drawBitmap(x, y, c24_Empty, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; case 1: oled->display.drawBitmap(x, y, c24_1, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_2, 24, 32, 1); break; case 2: oled->display.drawBitmap(x, y, c24_2, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_3, 24, 32, 1); break; case 3: oled->display.drawBitmap(x, y, c24_3, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_4, 24, 32, 1); break; case 4: oled->display.drawBitmap(x, y, c24_4, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_5, 24, 32, 1); break; case 5: oled->display.drawBitmap(x, y, c24_5, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_6, 24, 32, 1); break; case 6: oled->display.drawBitmap(x, y, c24_6, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_7, 24, 32, 1); break; case 7: oled->display.drawBitmap(x, y, c24_7, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_8, 24, 32, 1); break; case 8: oled->display.drawBitmap(x, y, c24_8, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_9, 24, 32, 1); break; case 9: oled->display.drawBitmap(x, y, c24_9, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_0, 24, 32, 1); break; default: oled->display.drawBitmap(x, y, c24_0, 24, 32, 1); oled->display.drawBitmap(x, y + 33, c24_1, 24, 32, 1); break; } #else switch (digit) { case -1: oled->display.drawBitmap(x, y, c16_Empty, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; case 1: oled->display.drawBitmap(x, y, c16_1, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_2, 16, 24, 1); break; case 2: oled->display.drawBitmap(x, y, c16_2, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_3, 16, 24, 1); break; case 3: oled->display.drawBitmap(x, y, c16_3, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_4, 16, 24, 1); break; case 4: oled->display.drawBitmap(x, y, c16_4, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_5, 16, 24, 1); break; case 5: oled->display.drawBitmap(x, y, c16_5, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_6, 16, 24, 1); break; case 6: oled->display.drawBitmap(x, y, c16_6, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_7, 16, 24, 1); break; case 7: oled->display.drawBitmap(x, y, c16_7, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_8, 16, 24, 1); break; case 8: oled->display.drawBitmap(x, y, c16_8, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_9, 16, 24, 1); break; case 9: oled->display.drawBitmap(x, y, c16_9, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_0, 16, 24, 1); break; default: oled->display.drawBitmap(x, y, c16_0, 16, 24, 1); oled->display.drawBitmap(x, y + 25, c16_1, 16, 24, 1); break; } #endif } #ifdef FUELFLOW void onFuelflowcounter10kChange(unsigned int newValue) { if (newValue == 0) { oled.digits[0].digit = -1; oled.digits[0].y = 0; } else { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[0].digit = mappedValue; oled.digits[0].y = y; } } void onFuelflowcounter1kChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[1].digit = mappedValue; oled.digits[1].y = y; } void onFuelflowcounter100Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); oled.digits[2].digit = mappedValue; oled.digits[2].y = y; } DcsBios::IntegerBuffer fuelflowcounter100Buffer(0x44e8, 0xffff, 0, onFuelflowcounter100Change); DcsBios::IntegerBuffer fuelflowcounter10kBuffer(0x44e4, 0xffff, 0, onFuelflowcounter10kChange); DcsBios::IntegerBuffer fuelflowcounter1kBuffer(0x44e6, 0xffff, 0, onFuelflowcounter1kChange); //#else #endif unsigned long time = 0; void loop() { DcsBios::loop(); time = millis(); if (time % updateInterval == 0) { UpdateDisplay(); } } HI i downloaded this code used it but its not FUEL FLOW INDICATOR but FUEL QUANTITY somebody know what to do? code is downloaded from link above. Link to comment Share on other sites More sharing options...
Vinc_Vega Posted September 30, 2023 Share Posted September 30, 2023 Why don't you look here and replace the display driver to the original SSD1306 one? Regards, Vinc Regards, Vinc real life: Royal Bavarian Airforce online: VJS-GermanKnights.de [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
BeBe Posted October 4, 2023 Share Posted October 4, 2023 On 9/30/2023 at 8:45 PM, Vinc_Vega said: HI i tried your code, it shows fuel flow and pph but instead of FFI it still shows fuel quantity Why don't you look here and replace the display driver to the original SSD1306 one? Regards, Vinc Link to comment Share on other sites More sharing options...
Vinc_Vega Posted October 4, 2023 Share Posted October 4, 2023 (edited) 3 hours ago, BeBe said: HI i tried your code, it shows fuel flow and pph but instead of FFI it still shows fuel quantity Hi BeBe, No, it displays the Fuel Flow Couter values of the F-16. Have a second look at the clip posted here: According to the control reference the addresses for the flow counter are 0x44e8, 0x44e4 and 0x44e6. That of the fuel totalizer display are 0x44f2, 0x44ee and 0x44f0. We already had an issue with the A-10 and Bf-109 in the past, that some addresses had changed. So maybe you have to update your DcsBios files? Regards, Vinc Edited October 4, 2023 by Vinc_Vega Regards, Vinc real life: Royal Bavarian Airforce online: VJS-GermanKnights.de [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
BeBe Posted October 4, 2023 Share Posted October 4, 2023 Well, I found out the problem I don't know why but the addresses you used didn't work for me so I had to use these codes: 0x44de, 0x44da, and 0x44dc now it's finally working. Thank you very much without you mentioning the address I wouldn't have find out the problems Link to comment Share on other sites More sharing options...
