[RESOLVED] HUD house symbol on the opposite side?

[dorianR666]

Im not entirely sure this is a bug, but it is suspect.

m2000_inverted_house.trk

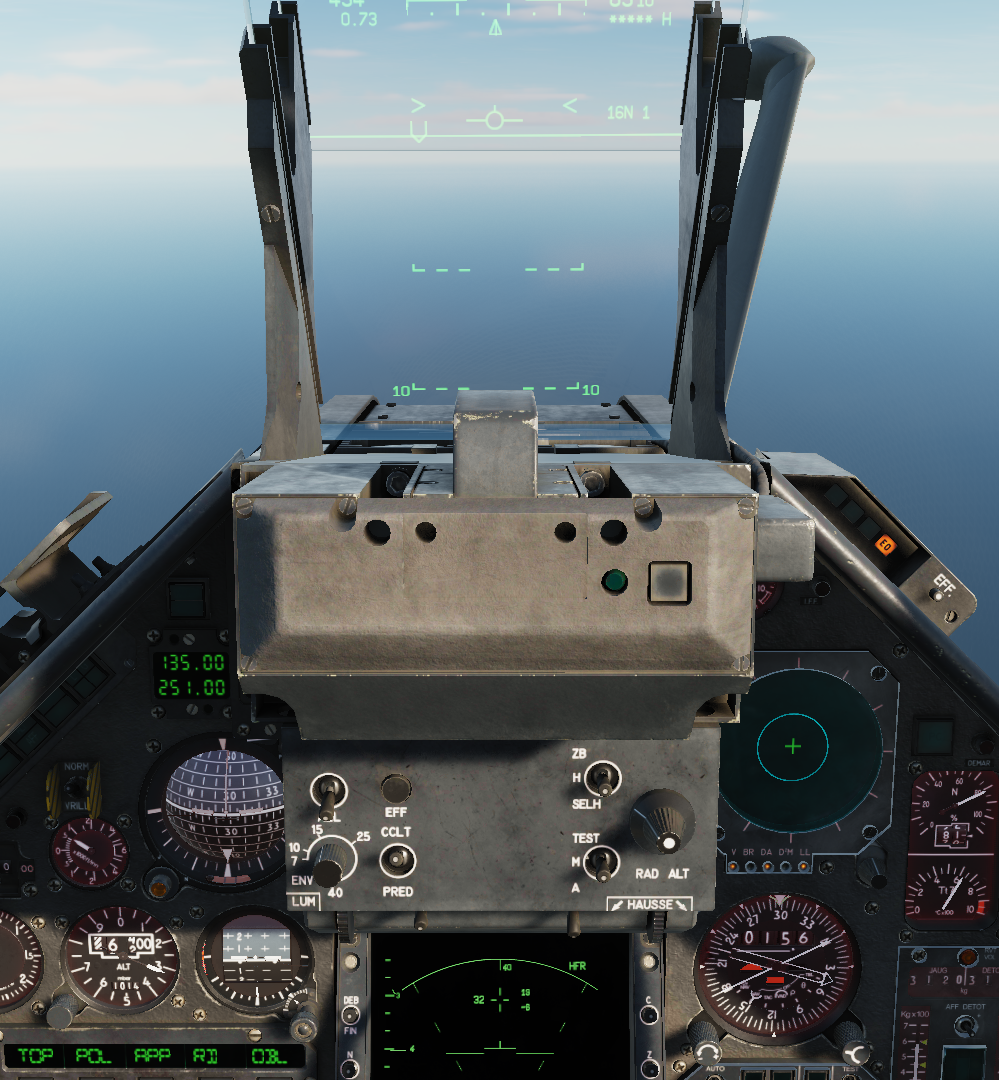

when you look at this picture. the current waypoint is roughly at my 4 o'clock. you can see that on the HSI/IDN.

yet HUD is telling me to turn left? i'd be doing a 270 degree turn instead of 90 degree.



when the house is roof-up, so to speak, im supposed to chase it. when its roof-down, im supposed to turn in the opposite direction of it (???), with current implementation.

is this how its supposed to work? shouldnt i be chasing it in both cases? its confusing and counter-intuitive for no reason.

Edited July 8, 2021 by dorianR666

[Kercheiz]

It indicates where to turn if you want to fly away from the waypoint. In other words it directs you to the waypoint 180 direction

[dorianR666]

I see. Its not explained in the manual.



Thanks.

[myHelljumper]

Hi,



As explained by @Kercheiz, this is correct behavior. The manual is being rewritten and this behavior will be explained in it.



Thanks for the report anyway, moving this to resolved.

[El Chapo]

Hi,

Sorry to post in there so late, but there is indeed an issue with the HUD indication and dorianR666 is actually right: the "tiny house" should be on the right side in this case.

You always turn in the direction of the reticule to get the shortest way to the waypoint.



Eg: if you fly with the waypoint on your right, when you cross the 90° line the reticule with go from "up right" to "down right"...



Tks



Quote

Ce réticule, qui se déplace sur une parallèle à l'horizon passant par le vecteur vitesse présente l'erreur de route.

Le sens de la flèche indique si l'on va vers le but ou si le but est derrière.

Le passage de rapprochement en éloignement se fait à la traversée de la ligne perpendiculaire à la route suivie.

Après dépassement du but, le réticule erreur de route indique la direction du but en éloignement.



Edited July 14, 2021 by Габихан

[myHelljumper]

Hi,



Thanks, we got the same info confirmed just now, we will fix it as Габихан said



Thanks for the help guys.

[myHelljumper]

Hi,

This issue has been fixed in the last open beta update.

Thanks.
