Kneeboards for JF-17 Thunder for guided weapon employment

[609_Relentov]

Not really a tutorial, closer to a guide, but hopefully helpful to anyone new to the JF-17 or rusty with employing some of the weapons.

I put together some simple procedural kneeboards for the JF-17, placed in the User Files section.

https://www.digitalcombatsimulator.com/en/files/3319057/

As stated these are not official procedures, just what I've put together as a quick reminder on how to employ various guided weapons on the JF-17 (after not flying it for a while).  Kneeboards included:

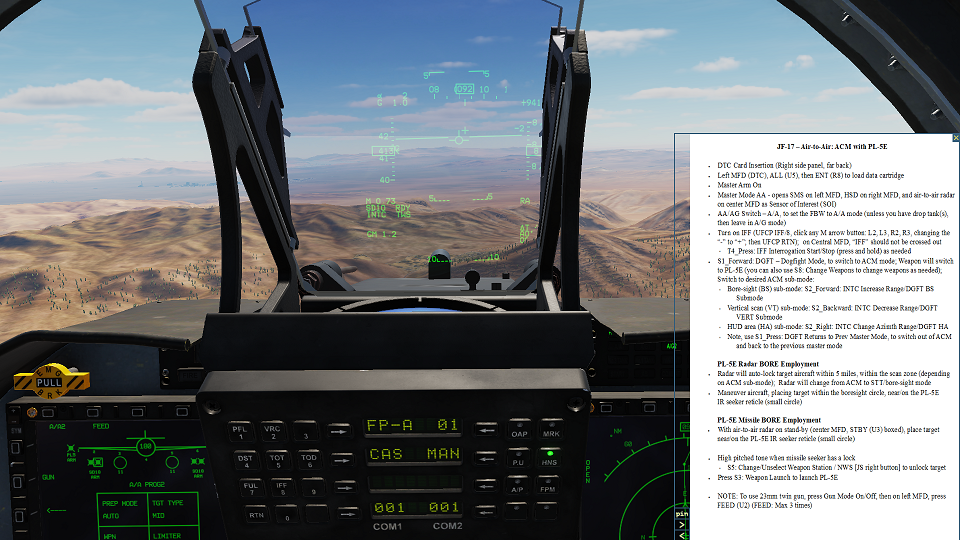

JF-17 - AIR-TO-AIR ACM PL-5E.png
JF-17 - AIR-TO-AIR BVR ACM SD-10-1.png
JF-17 - AIR-TO-AIR BVR ACM SD-10-2.png
JF-17 - BRM-1 TPOD.png
JF-17 - C-701 IR TV AGM.png

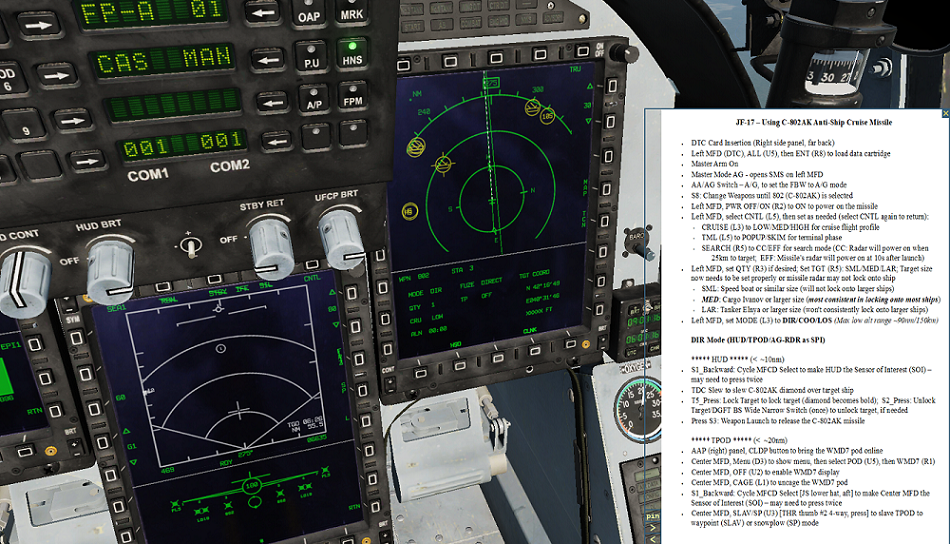

JF-17 - C-802AK HUD TPOD AG-RDR-1.png
JF-17 - C-802AK HUD TPOD AG-RDR-2.png
JF-17 - C-802AK HUD TPOD AG-RDR-3.png
JF-17 - C-802AK TARGET SIZE SETTING.png
JF-17 - C-802AKG MITL TPOD DLPOD-1.png
JF-17 - C-802AKG MITL TPOD DLPOD-2.png
JF-17 - Creating and Adding a Waypoint.png
JF-17 - GB-6 LS-6 TOO TPOD.png
JF-17 - GBU-12 TPOD.png
JF-17 - LD-10 ARM.png

Enjoy!
AKA_Relent (609_Relentov)

Edited December 14, 2021 by 609_Relentov

[609_Relentov]

Added

JF-17 - C-802AK HUD TPOD AG-RDR-1.png
JF-17 - C-802AK HUD TPOD AG-RDR-2.png
JF-17 - C-802AK HUD TPOD AG-RDR-3.png

as with the latest update the C-802AK missiles are locking onto ship targets now, so I could test my procedures



Edited December 5, 2021 by 609_Relentov

[609_Relentov]

Added JF-17 - C-802AK TARGET SIZE SETTING.png, updated JF-17 - C-802AK HUD TPOD AG-RDR-1.png, based on target size info provided by uboats.

[elchacal]

Awesome! Thanks for sharing it!
