How to color the wheels?

[hologram]

I want to change the wheel texture (mi8_main_wheel.dds - probably for all 3 wheels?) but i dont know how to load it in the description lua.

Can it be done?

Any help is appreciated

Edited February 11, 2022 by hologram

[Eight Ball]

On 2/9/2022 at 9:17 PM, hologram said:

I want to change the wheel texture (mi8_main_wheel.dds - probably for all 3 wheels?) but i dont know how to load it in the description lua.

You can try these:

	{"MAIN WHEELS_R",	DIFFUSE			,	"mi8_main_wheel", false};
	{"MAIN WHEELS_R",	NORMAL_MAP			,	"mi8_main_wheel_nm", false};
	{"MAIN WHEELS_L",	DIFFUSE			,	"mi8_main_wheel", false};
	{"MAIN WHEELS_L",	NORMAL_MAP			,	"mi8_main_wheel_nm", false};
	{"MAIN WHEELS_L",	DIFFUSE			,	"mi8_main_wheel", false};
	{"MAIN WHEELS_L",	NORMAL_MAP			,	"mi8_main_wheel_nm", false};
	{"FRONT WHEELS",	DIFFUSE			,	"mi8_front_wheel", false};
	{"FRONT WHEELS",	NORMAL_MAP			,	"mi8_front_wheel_nm", false};
	{"FRONT WHEELS",	DIFFUSE			,	"mi8_front_wheel", false};
	{"FRONT WHEELS",	NORMAL_MAP			,	"mi8_front_wheel_nm", false};

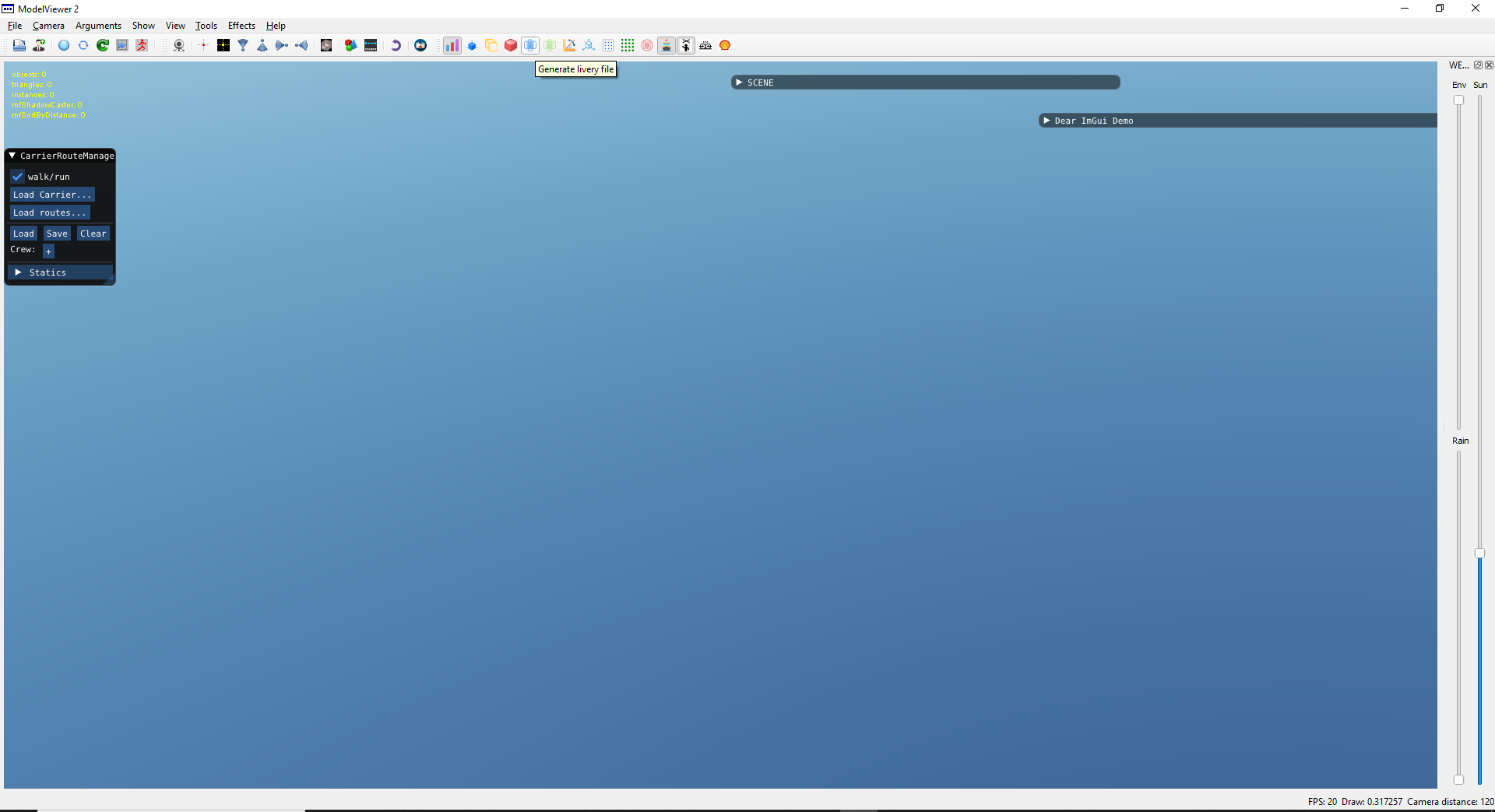

Using the model viewer you can generate a full description.lua of any model using this button in the tool bar:

Edited November 5, 2022 by Eight Ball
