F4U Cockpit (Cessna 310 Throttle Conversion)

[Krupi]

I have started on my next project in anticipation of Magnitude 3s next module the Corsair.

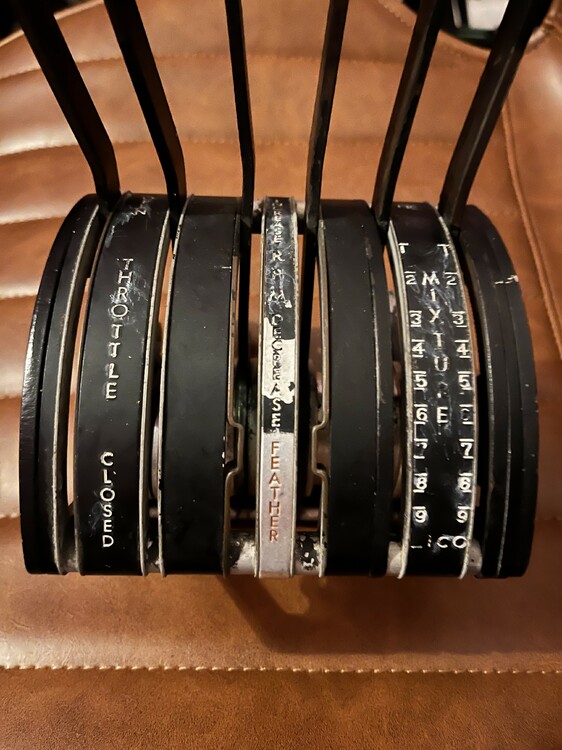

After a bit of research and some lucky finds (Two NAF 1124-17 Throttle Handles) and finding that these throttles use a similar type of frame I decided rather than build a throttle from scratch I purchased a Cessna 310 Quadrant.

Clearly this unit has quite a few more levers compared to the Corsair… the example below is actually from a F6F but they are virtually the same.

Today I stripped down the Throttle to see what is required to convert it to resemble the F4U.
