3D Print file repository for home cockpits

This is a place to share 3D STLs and printing plans for public use.

[Johan4668]

On 4/26/2023 at 9:35 AM, BIGNEWY said:

3D Print file repository for home cockpits

This is a place to share 3D STLs and printing plans for public use.

As plans are added I will link them in the first post. Please PM me if you add a link or attachment for printing

Links:


109 k4 files

Edited May 28, 2023 by Johan4668

[lesthegrngo]

Here are some miscellaneous A10 button and switch files plus a few other bits and bobs

https://grabcad.com/library/miscellaneous-3d-files-for-a10c-cockpit-parts-for-dcs-world-1

https://grabcad.com/library/a10c-knobs-for-dcs-world-based-cockpits-1

https://grabcad.com/library/a10c-knobs-solidworks-files-1

https://grabcad.com/library/a10c-knobs-2



Les

[lesthegrngo]

3D modelled Virpil Mongoos T-50 CM2 base so that you can use to integrate the base into your own cockpit

https://grabcad.com/library/virpil-mongoos-t-50-cm2-base-1

Les

[Lace]

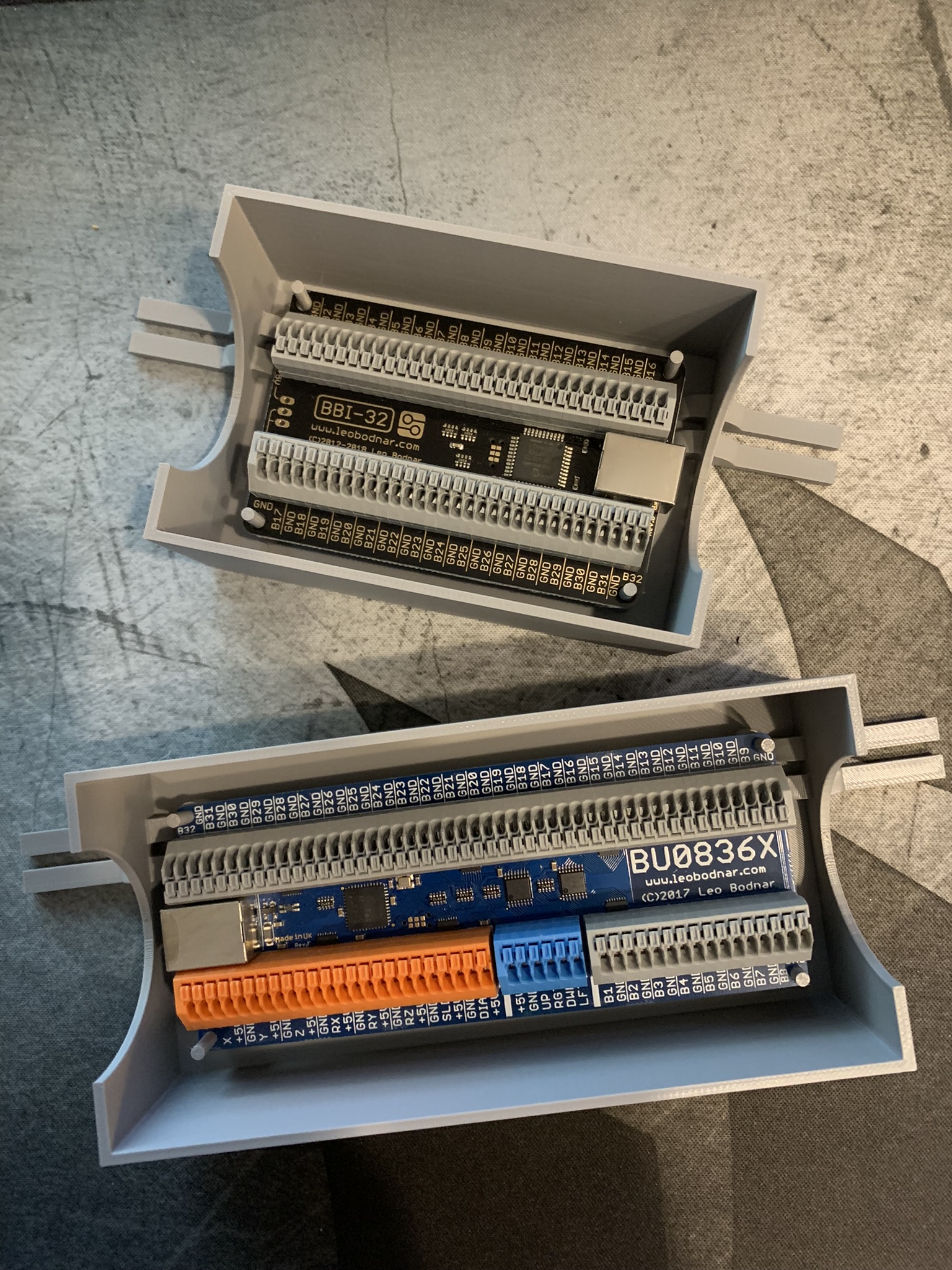

A couple of boxes (with lids) to house the Leo Bodnar BU0836X and BBI32 USB interface boards.  The legs allow bolting to MonsterTech (or similar) Al profile.

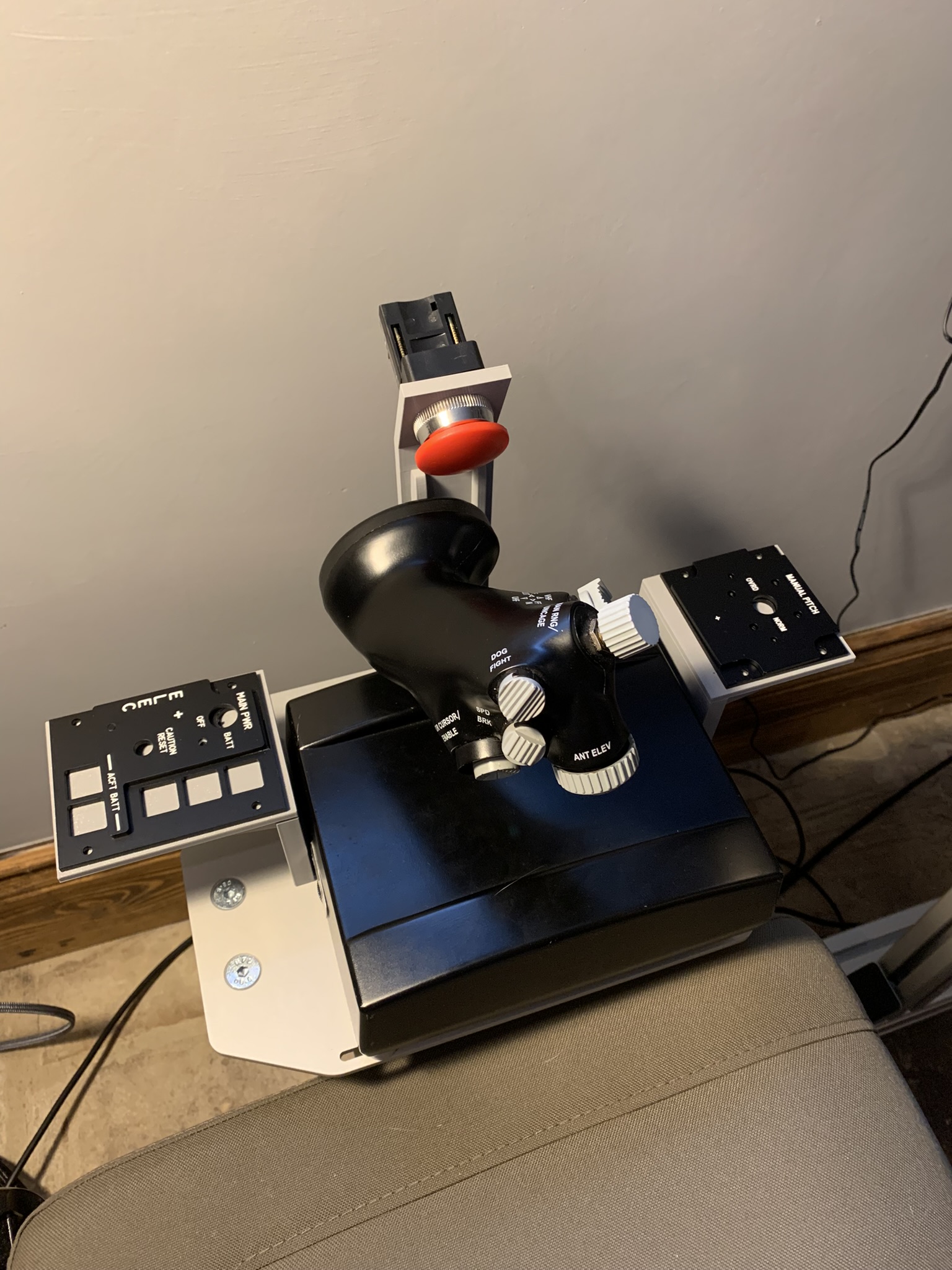

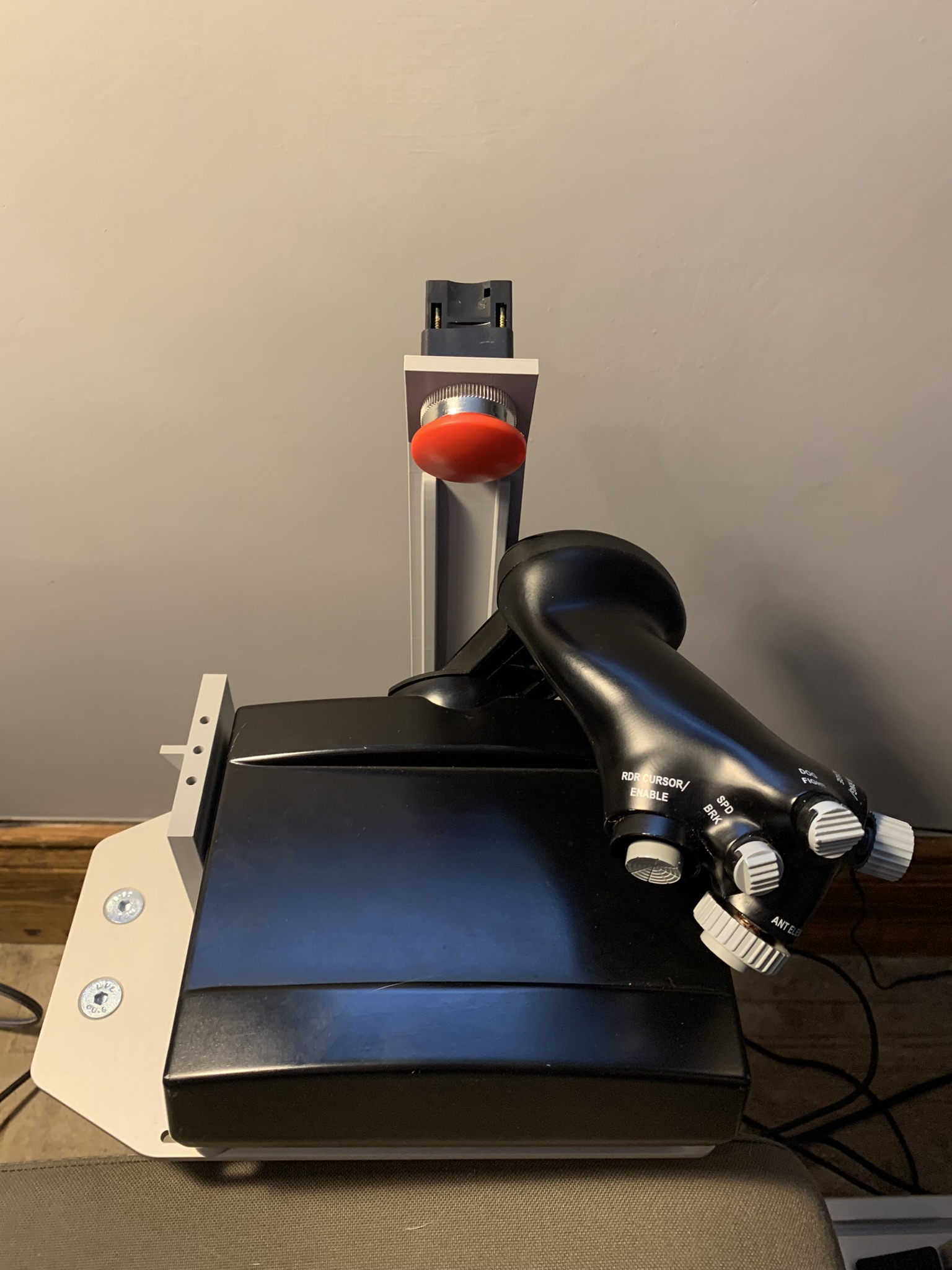

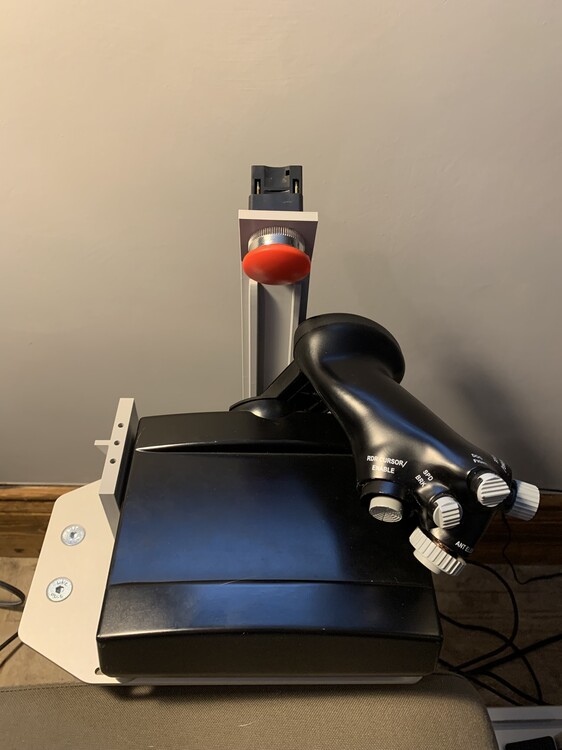

Viper Panic Dispense to fit Cougar Throttle.  For a standard 30mm panel cut out mushroom button.

Also has platforms for the ELEC SYS and MANUAL PITCH panels if required.

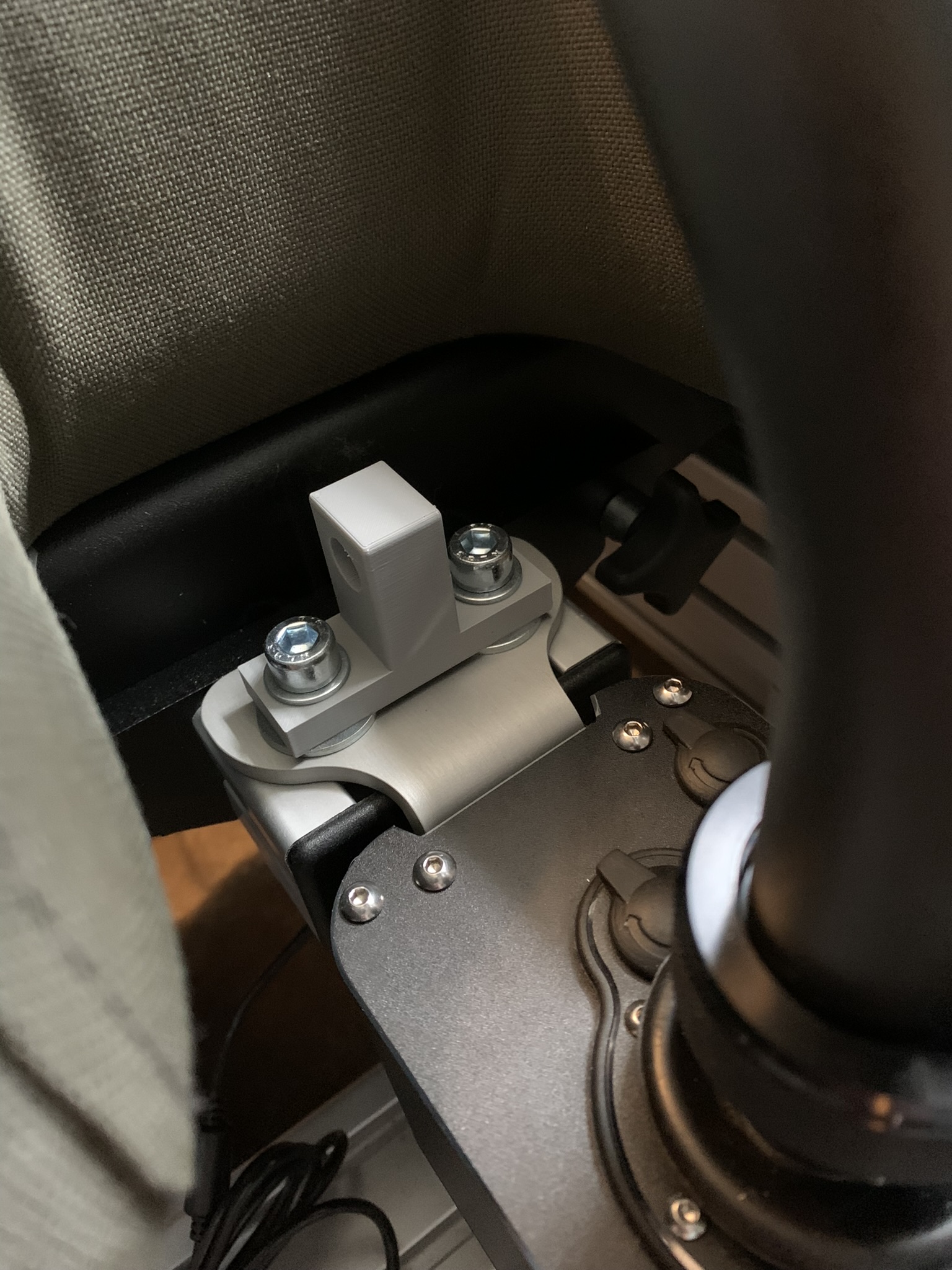

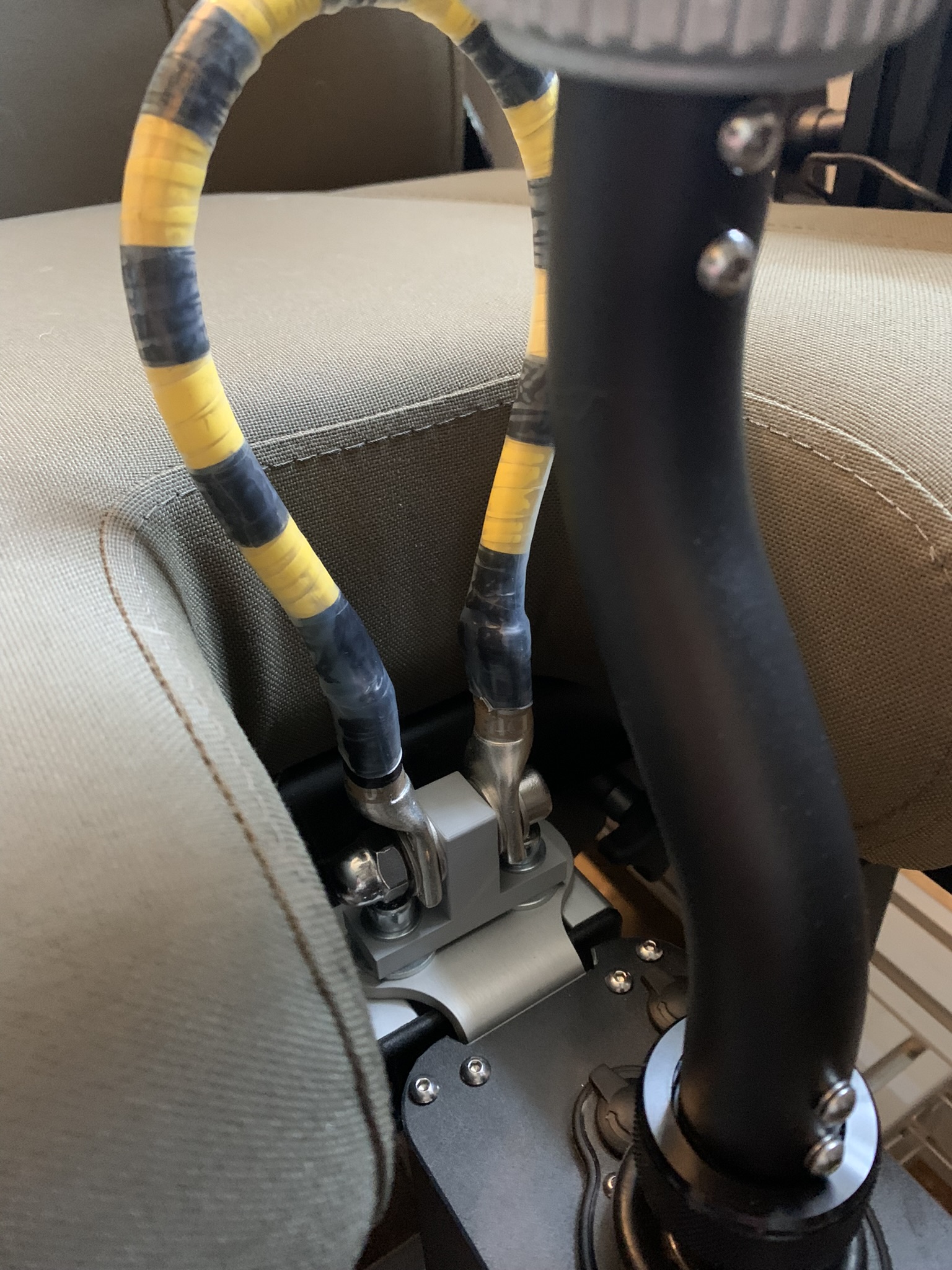

Added a small bracket for an eject handle which fits the Virpil CM2 or standard 80mm Al profile (40mm centres).

BBI32 Enclosure.stl BU0836X Enclosure.stlPanic Dispense Bracket.stl

Eject Bracket.stl

Edited May 20, 2023 by Lace
Adding parts

[Purzel]

You may have a look at my thingiverse-page:
https://www.thingiverse.com/purzel24/designs


F/A-18C
Thrustmaster Cougar Replacement:
https://www.thingiverse.com/thing:5923061




AOA Indexer:
https://www.thingiverse.com/thing:6274425

IFEI:
https://www.thingiverse.com/thing:6242816



Edited October 24, 2023 by Purzel

[No1sonuk]

Any reason why this isnt in the Home Cockpits forum?

[Invictus84]

https://www.thingiverse.com/thing:6132978



[yogi149]

Hi,

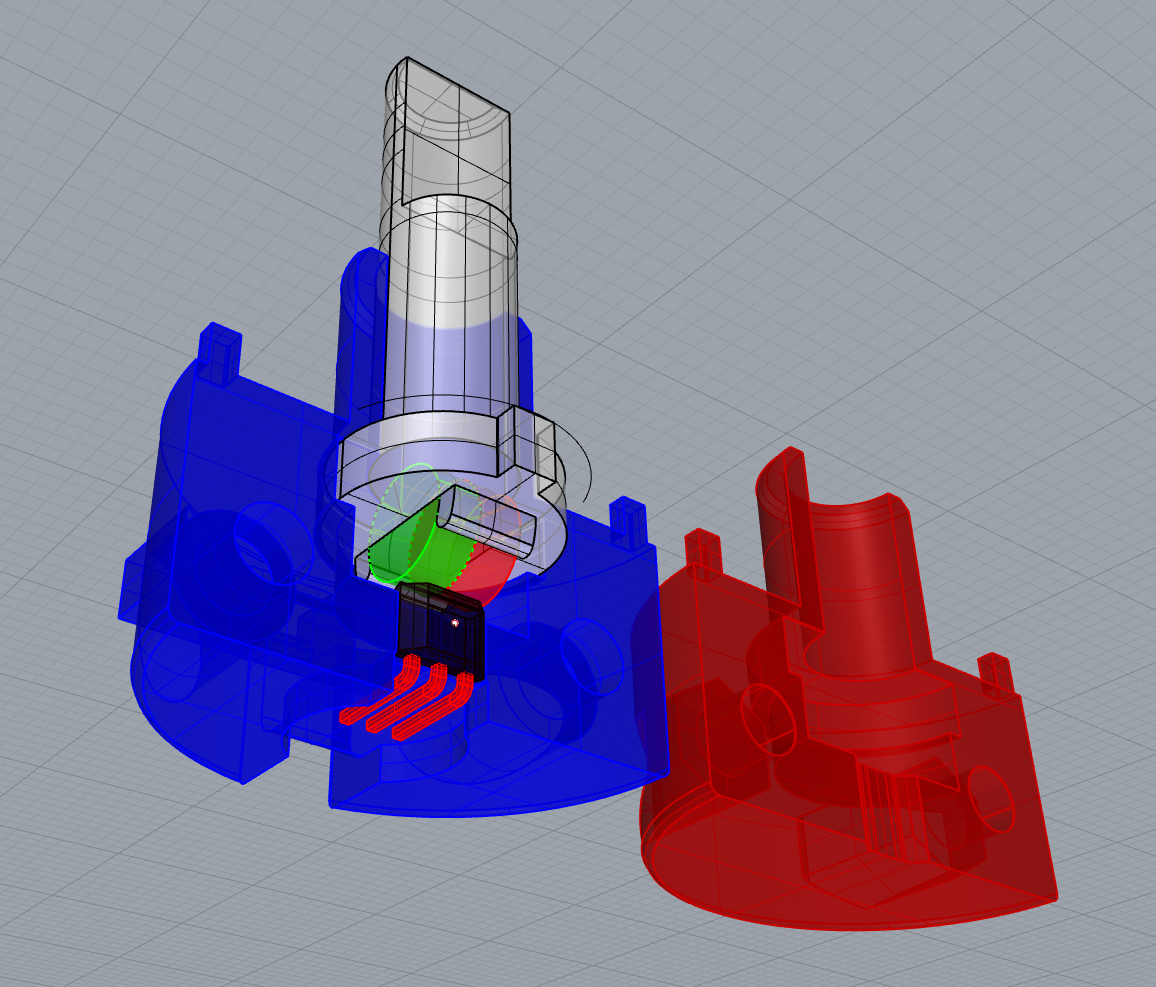

on request I place my STL for a HALL-sensor replacement for old CH-potentiometer.

I printed the "potis" in simple PLA.

You need:

Ø5 x 5mm neodym magnet

A1302 or SS49E Hall-effect sensor

2x M3 x2 allenscrew

2x M3 nut

in my shop a have a tutorial for soldering the sensor: soldering A1302

regards yogi

MHS-HALL-Poti.stl
