How to: Polished surfaces?



Is there any possibility to get polished surfaces on other planes than the P-51, F-86 and Mig-15? In my excample, the L-39.

I am new to skinning and I work with my good old Photoshop CS3.



Greetings...

Kelevra

Modules: Well... all of 'em



------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Motherboard: ASUS Maximus VIII Hero | CPU: i7-6700K @ 4.6GHz | RAM: 32GB Corsair Vengance LPX DDR4 | GPU: GTX TITAN X (Maxwell) | SSD1: 256GB NVMe SSD System | SSD2: 250GB Games | HDD 4TB WD Red

Link to comment
Share on other sites

  • Replies 160
  • Created
  • Last Reply

Top Posters In This Topic

Im working on a Tutorial for F-86, which could be applied to other jets, however I have several items I have to finish before then.

Windows 10 Pro, Ryzen 2700X @ 4.6Ghz, 32GB DDR4-3200 GSkill (F4-3200C16D-16GTZR x2),

ASRock X470 Taichi Ultimate, XFX RX6800XT Merc 310 (RX-68XTALFD9)

3x ASUS VS248HP + Oculus HMD, Thrustmaster Warthog HOTAS + MFDs

Link to comment
Share on other sites

Thank you Skate.

I can wait for your Tutorial.



Greetings...

Modules: Well... all of 'em



------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Motherboard: ASUS Maximus VIII Hero | CPU: i7-6700K @ 4.6GHz | RAM: 32GB Corsair Vengance LPX DDR4 | GPU: GTX TITAN X (Maxwell) | SSD1: 256GB NVMe SSD System | SSD2: 250GB Games | HDD 4TB WD Red

Link to comment
Share on other sites

Skatezilla, mate i would love to learn that and help you fill the community with good american aluminium skins!

[sIGPIC][/sIGPIC]



System

CPU: i7 4790K GPU: Asus GTX 970 4Gb MOBO: Asus Z97 PRO RAM: 16Gb OS: Win10 x64



Link to comment
Share on other sites

Hey speck



Go here

\Bazar\Textures\Su-27.zip

The textures with _SPC at the end are the specular ones you can edit those.

Link to comment
Share on other sites

Up this thread for 1.5 features



So .... has someone anderstood, the new "foggy" shame on old 1.2. textures when used in 1.5 ?



What about the 3 colousr channels in first posts ? what sort of effect in 1.5 ?



I've made some little experiment but have not the clue so far

Can't wait to read yours skinners



time to update this thread to update all of our skins, and work for the best metallic reflectiv texture in 1.5 ;-)



:pilotfly::music_whistling:



 i7-10700KF CPU  3.80GHz - 32 GO Ram - - nVidia RTX 2070 -  SSD Samsung EVO with LG  TV screen 40"  in 3840x2150 -  cockpit scale 1:1

- MS FFB2 Joystick  - COUGAR F16 throttle  - Saitek Pro Flight Rudder Pedals



Link to comment
Share on other sites

OK I've got it. but still need some tweaks and neet adjustement to be more realistic and less "plastic"



This is still true :



R- the intensity of the flare (the dark - no glare, bright - bright glare)

G- width of the specular spot

B-degree of reflection (dark - the surface does not reflect-mat, light - the maximum reflection - a mirror).

but for simplicity, the channel G is inverted R



but in 1.5 :

B the more blue the more reflection you'll have, but it will mask all the DIF texture and "greyish it". Look a bit too much plastic in maximum blue. So you will need to take care to all insigne and text and mark to have its own layer in pure green (mat )

for lines and dust : Use a light bluish green a bit less reflective but without any red.

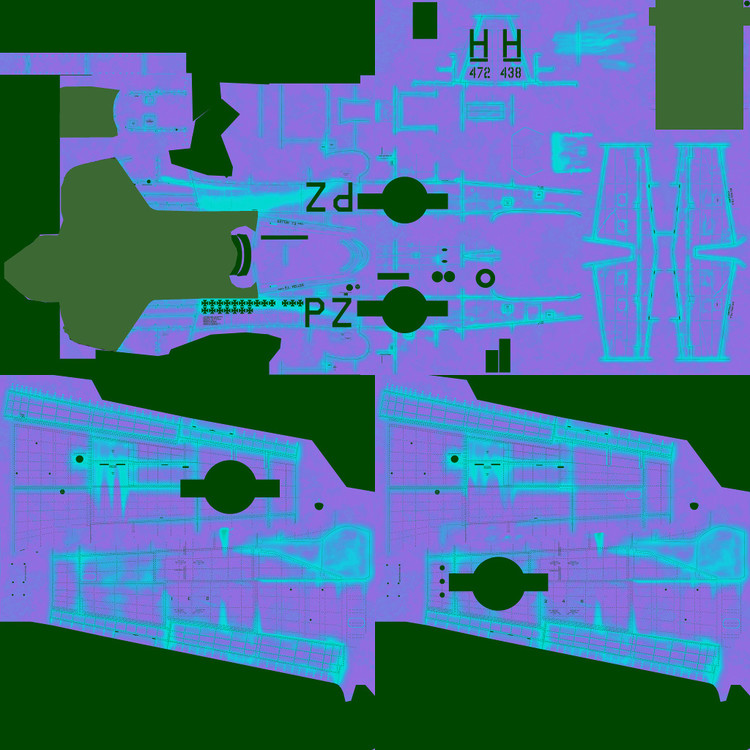

attachment.php?attachmentid=124942&stc=1&d=1445080926



here we go :

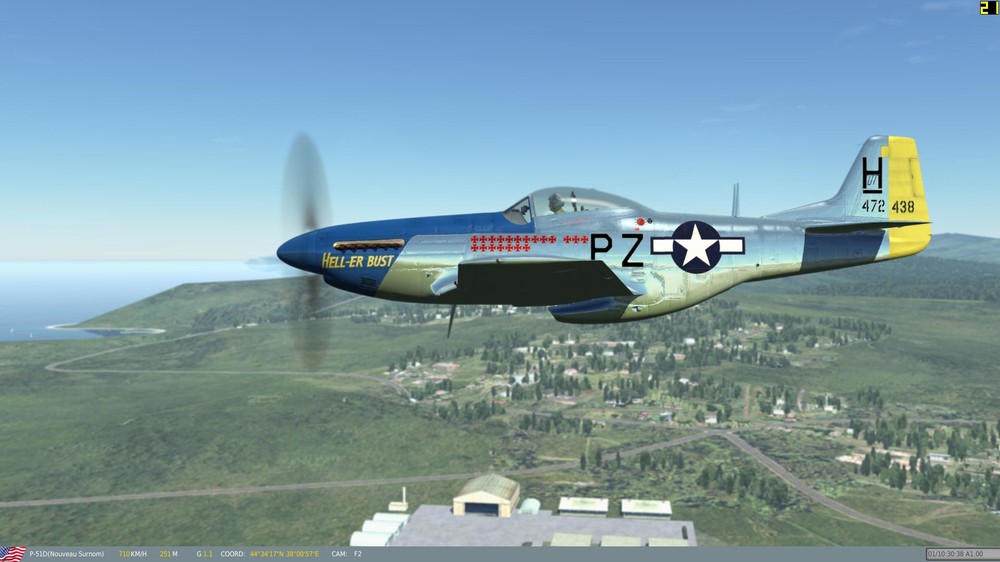

Heller bust update and tests :
