Hi everyone,

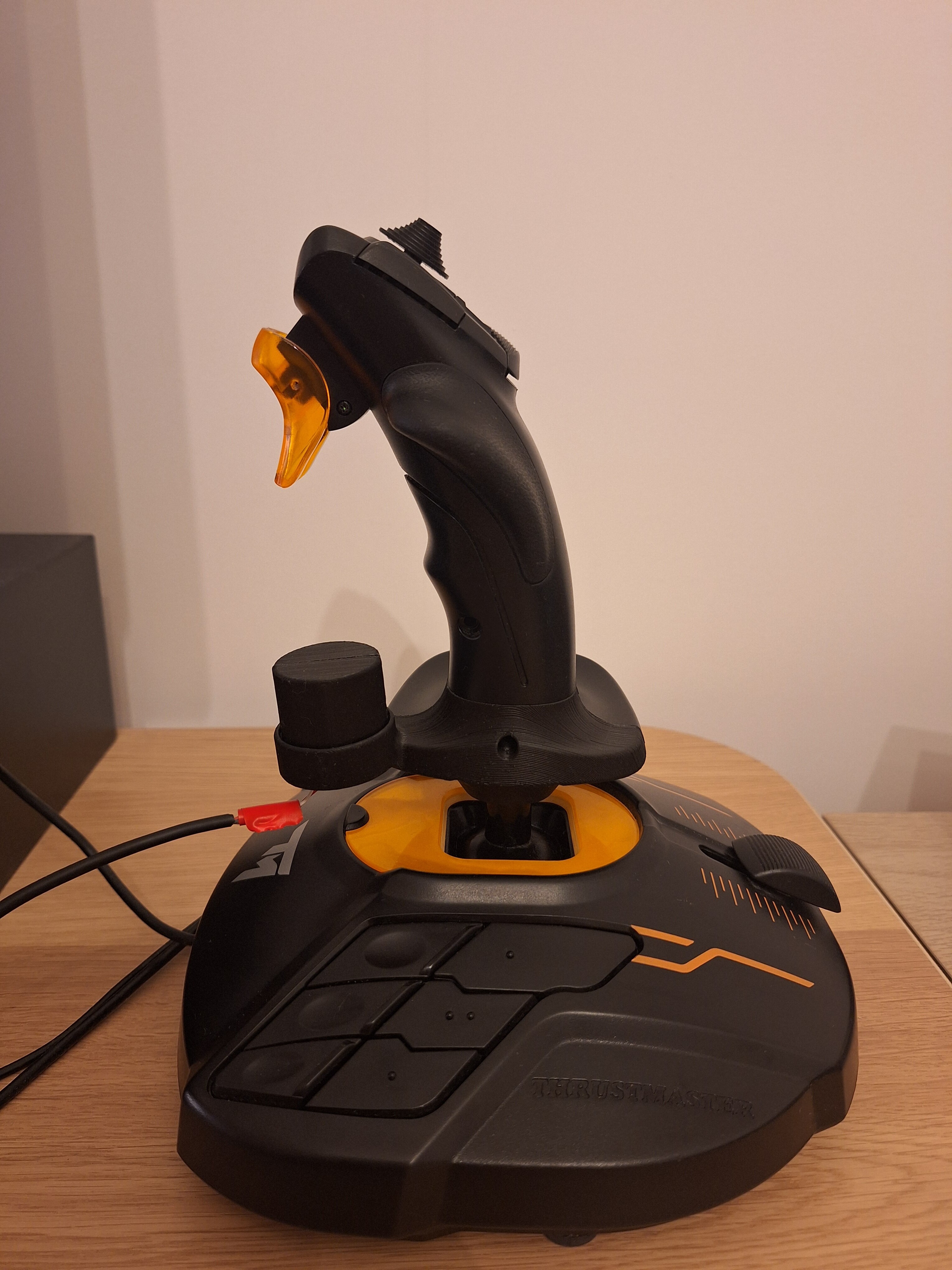

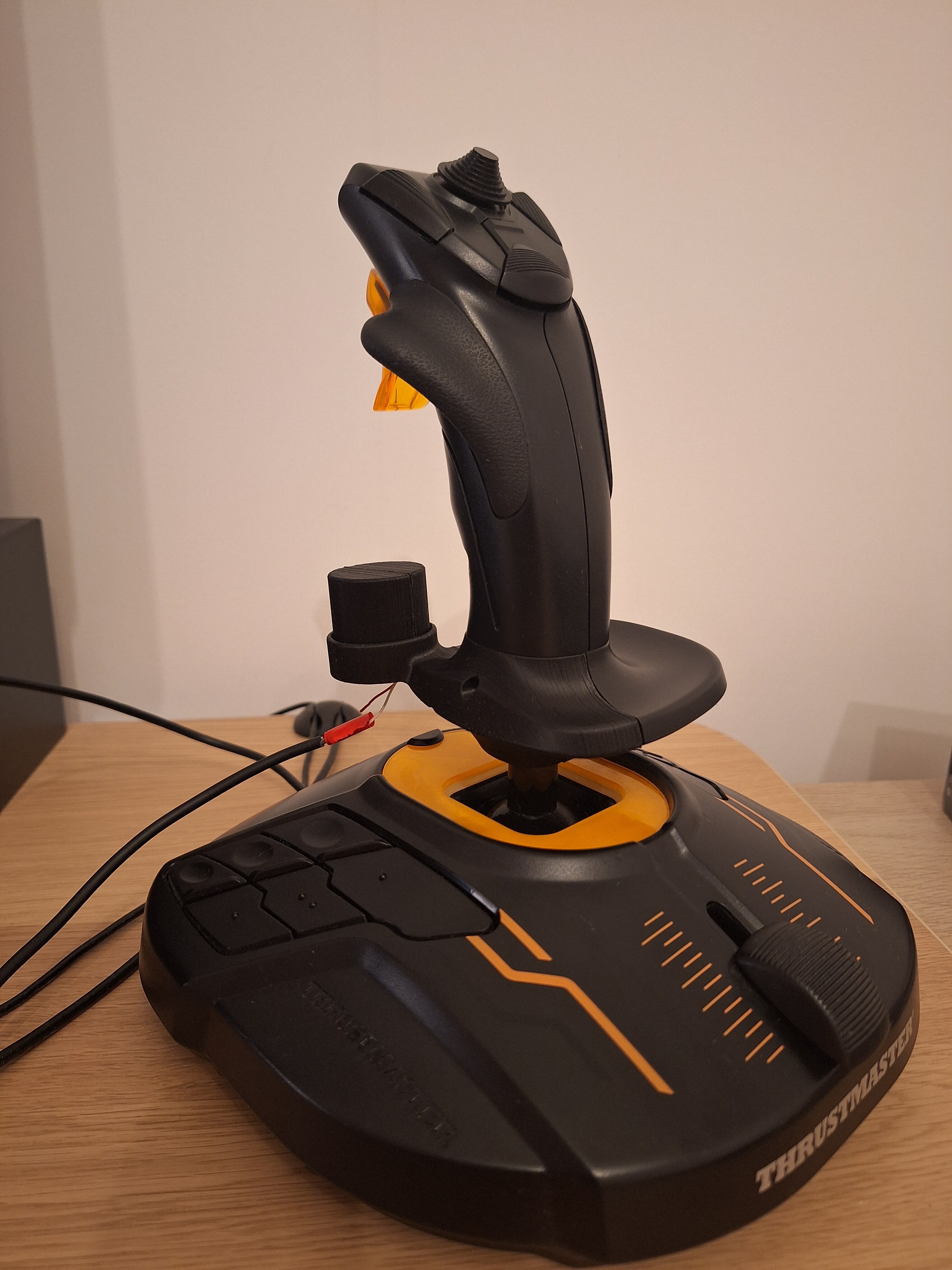

I wanna share my little project - a modular rumbler/shaker for a T.16000M joystick (the plan is to have adapters for other joysticks as well).
I would really appreciate your feedback, tips and thoughts.
Basic info:

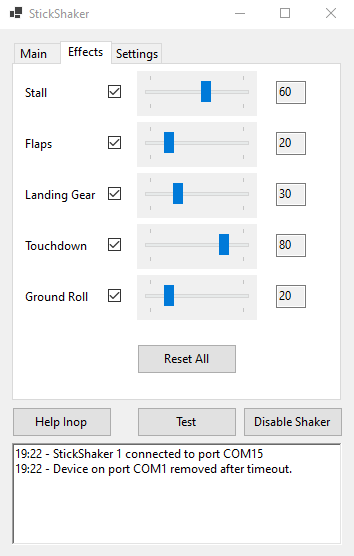

Supports MSFS with a help of a simple program
Supports DCS and for now runs only on native FFB HID protocol (no software interface needed)

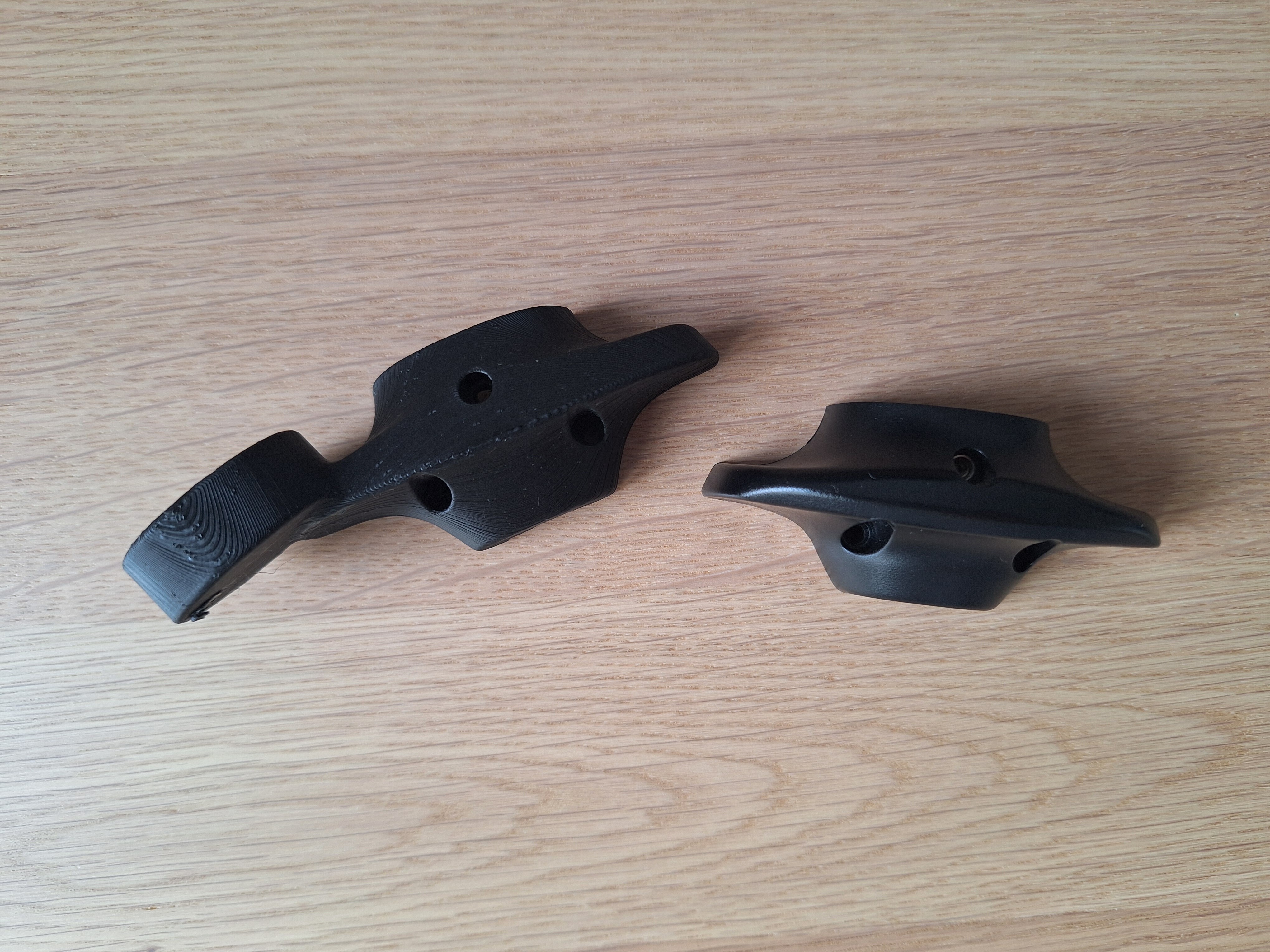

3D printed drop-in replacement (just remove 3 screws and put it on)

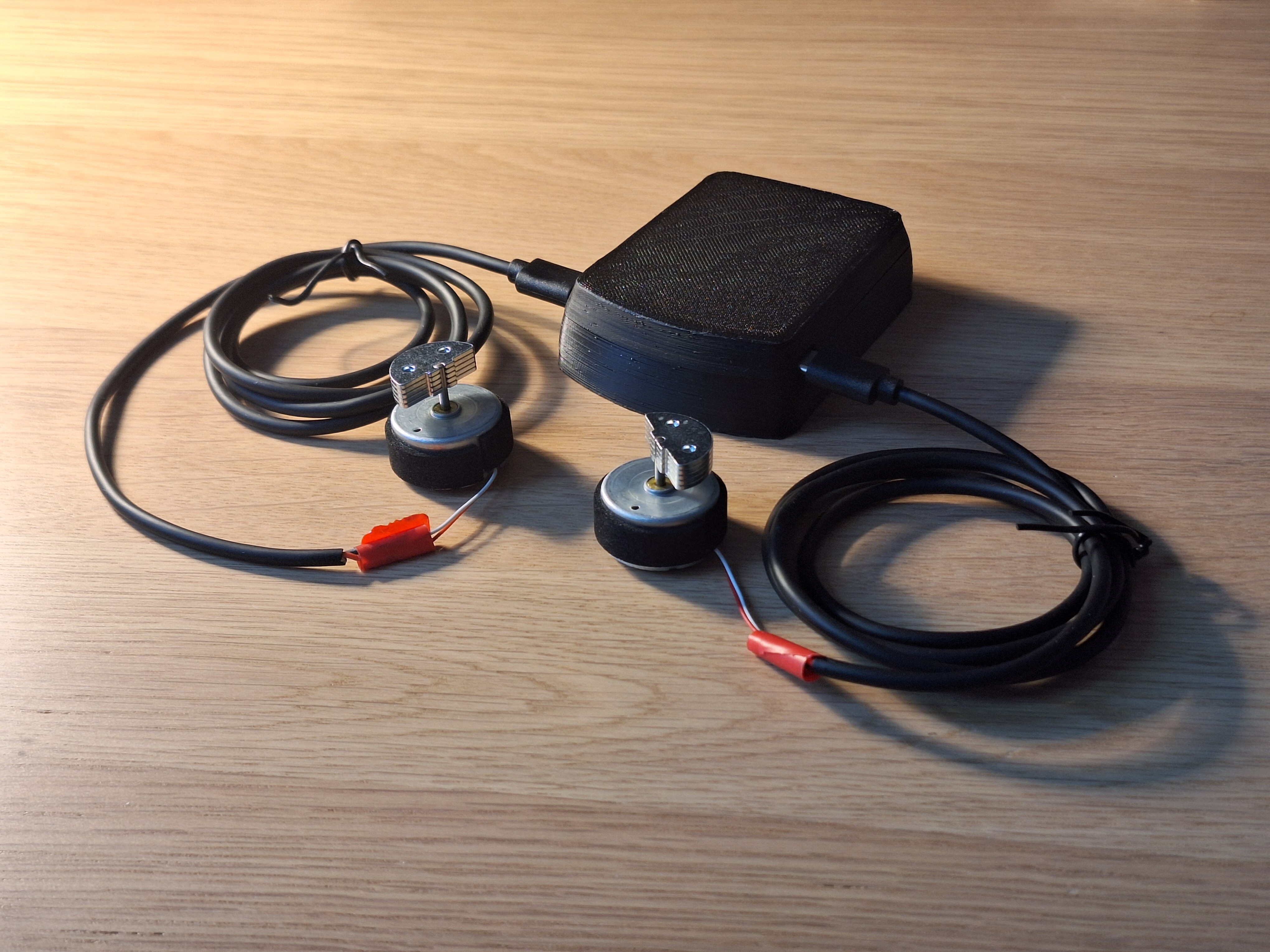

Uses an XBox gamepad rumble motor
Connected to PC via USB port, no external power needed
Should be possible to mount to most joysticks and yokes (columns)
DCS Features:
Wing buffeting when pulling high AoA, for some ED modules there is also a gun firing feedback
Tested so far on Tomcat, Phantom, Viggen, Flaming Cliffs modules, Mustang
Prototype demo video
DCS Drawbacks:
running on native FFB protocol only, reading of in-game telemetry not implemented yet
depending on each module whether there is a force feedback modeled
(for now) usable with non Fly-By-Wire aircraft only (so no buffeting with F-16, F-18)
MSFS Features:
Done: vibrations caused by touchdown, flaps, landing gear, wing buffeting and ground roll
To-do: overspeed
Trying to make it compatible with IL-2 GB too but I've not been able to find the correct joystick descriptor for it to be seen by the game.
Thanks for your input!
I will keep you posted about my progress.
