Sevens

Ok. The options file was deleted. I let DCS create a new one. Just working on monitor 4 and 5 to get them to show the MFCDs and I am ready to go! Thanks for your pateince with me.

I thought that those were the coordinates? LEFT_MFCD = { x = 5760; y = 600; width = 800; height = 600; } RIGHT_MFCD = { x = 6560; y = 600; width = 800; height = 600;

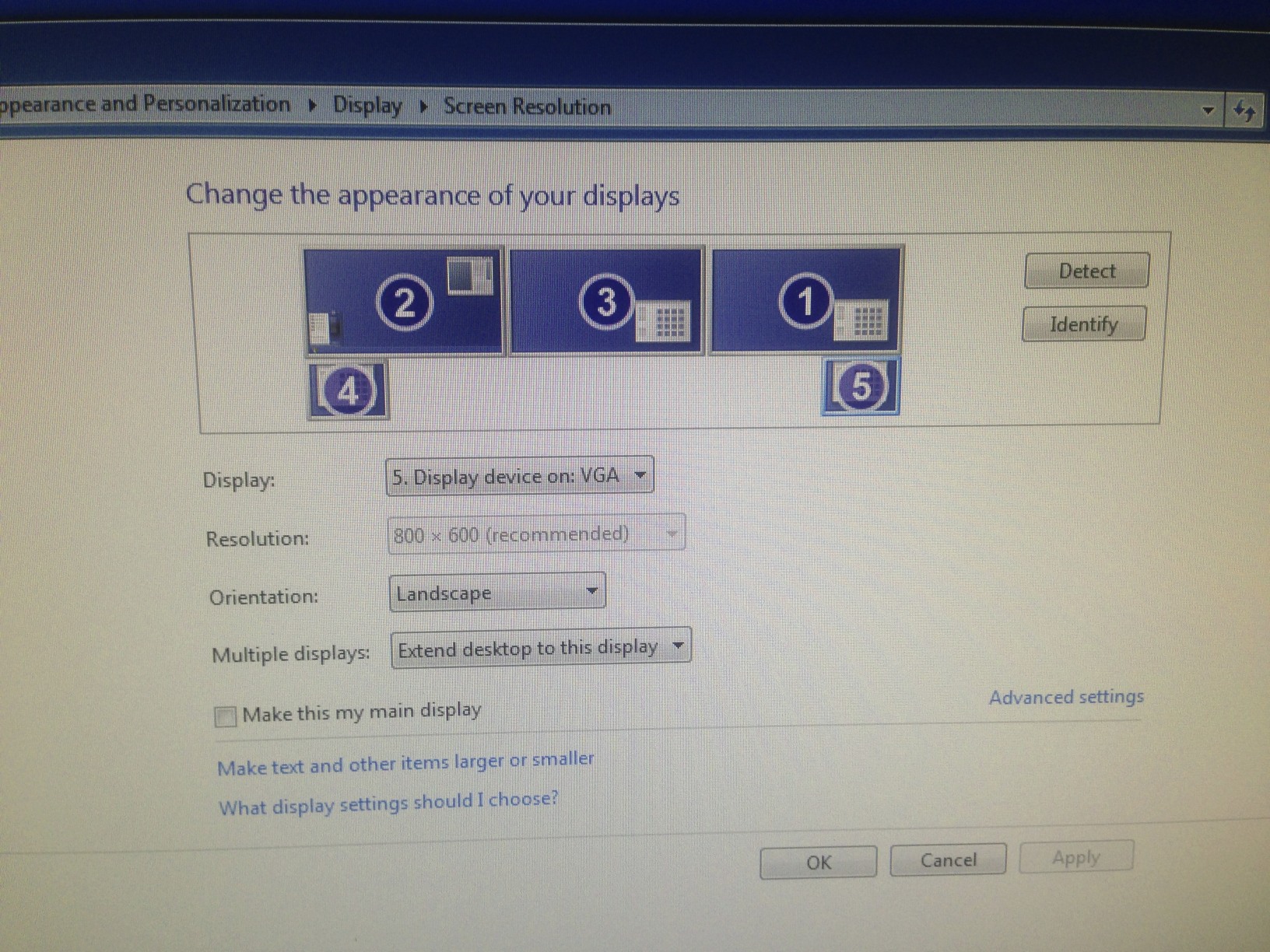

Update....I deleted the options.lua as you suggested and had the game create a new file. I then copied JG's settings (blue) and pasted them into my options.lua file. DCS is working now but both of my 8inch monitors are completely blank and not showing my mfcds. I can see the mouse cursor on the 8inch screen if I scroll off of the far right corner of my side monitor as it is positioned in windows. Steve

Kuky, The monitor name now shows up in the list with that fix. But DCS keeps crashing just like in the attached photo. Steve

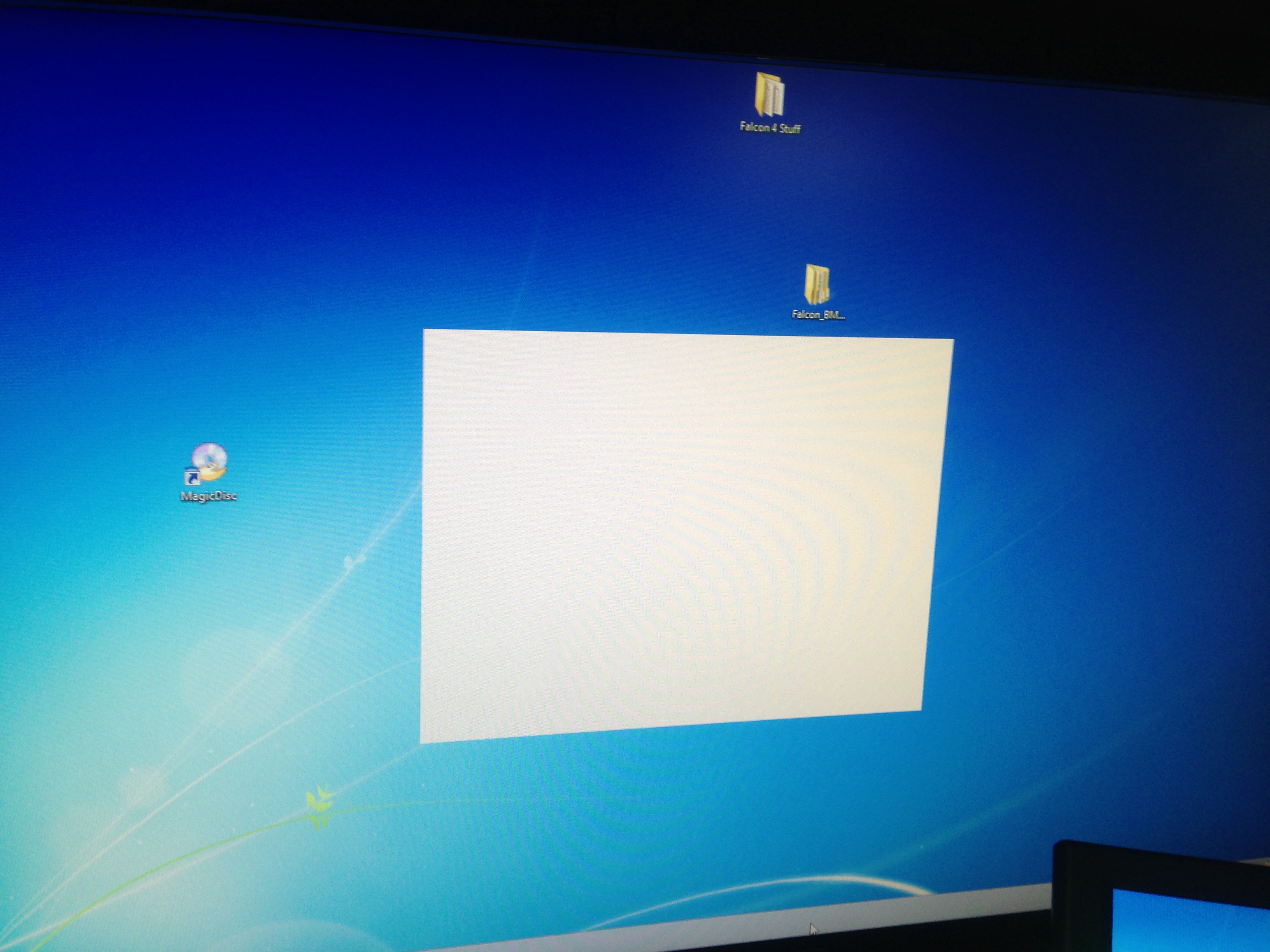

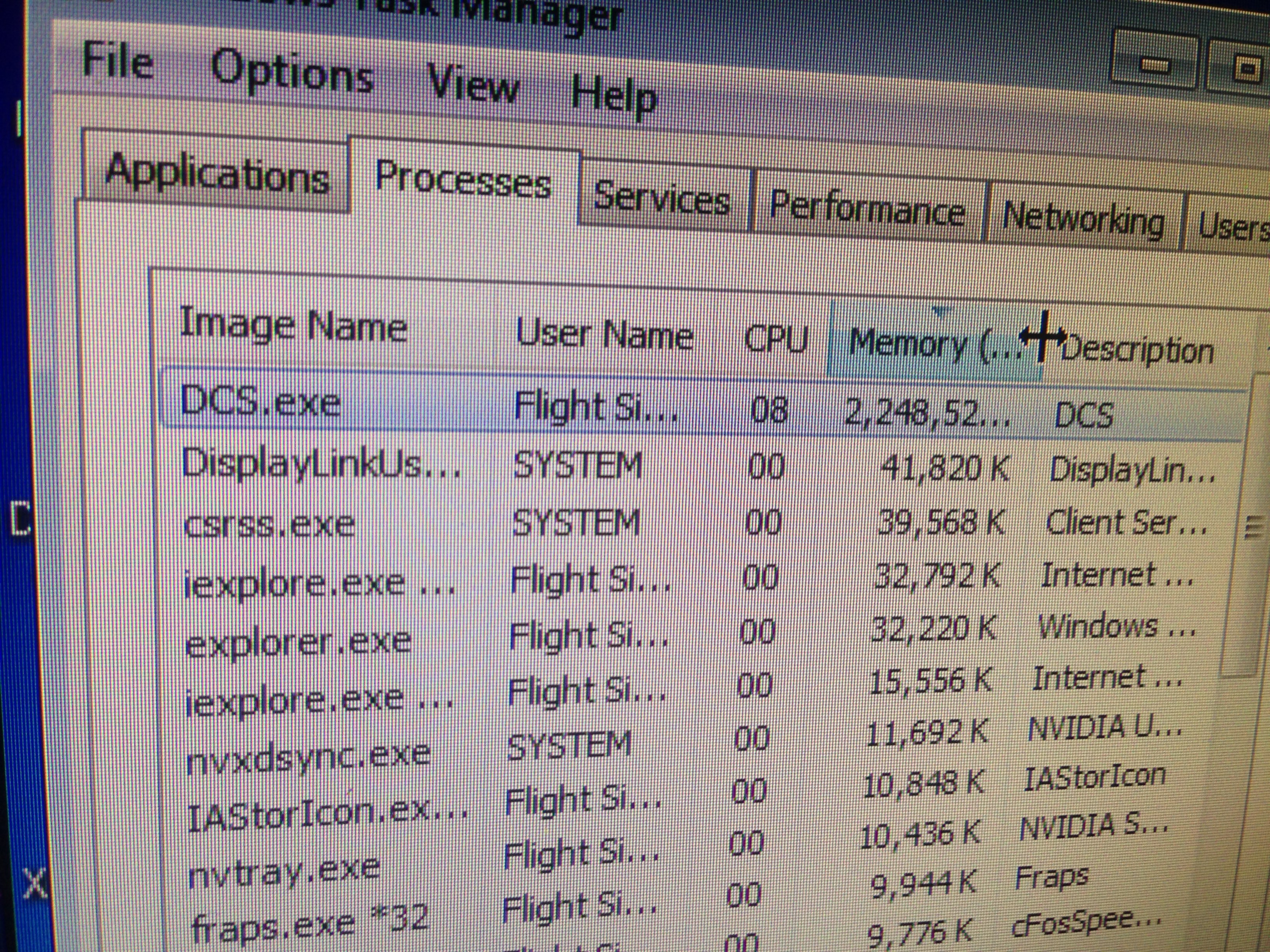

JG, I checked all files are in the correct places. When I go into DCS I see the correct aspect (that you put in) but a blank line not saying displaying the monitor setup name. When I try to enter the mission with the blank file name the DCS program screen turns white while trying to load the mission. I have to press ctl + alt + del and noticed that the DCS program is spiking to over 2,000,000. I attached pictures! Wow...this is more difficult that I suspected. Thanks for your help gentlemen, Steve

JG, I am using DCS World.

[main] renderResolution=7360x1080 nonlocalFormat=RGB16D keepComposition=0 smoothing=1 debugD3D=0 zClear=1 vsync=0 tripleBuffer=0 screenshotFormat=jpg dllPathD3D9=auto dllPathDXGI=auto dllPathD3D11=auto [overrides] forceResolution=0 antialiasing=0 processAffinity=0 FOVForceHorizontal=0 FOVForceVertical=0 [head_primary] sourceRect=0,0,1920,1080 screenMode=1920x1080 [head_1] ; Autodetected as \\.\DISPLAY2 at NVIDIA GeForce GTX 680 devID=1 sourceRect=1920,0,1920,1080 transportResolution=1920x1080 transportMethod=auto noSync=0 fpsLimit=0 [head_2] ; Autodetected as \\.\DISPLAY3 at NVIDIA GeForce GTX 680 devID=2 sourceRect=3840,0,1920,1080 transportResolution=1920x1080 transportMethod=auto noSync=0 fpsLimit=0 [head_3] ; Autodetected as \\.\DISPLAY4 at NVIDIA GeForce GTX 680 devID=3 sourceRect=5760,0,800,600 transportResolution=800x600 transportMethod=auto noSync=0 fpsLimit=0 [head_4] ; Autodetected as \\.\DISPLAY5 at NVIDIA GeForce GTX 680 devID=4 sourceRect=6560,0,800,600 transportResolution=800x600 transportMethod=auto noSync=0 fpsLimit=0 5_Monitors_MFCD.lua

Here is the options LUA file. Thanks for the help. I really do appreciate it. options.lua

I am about to give up. Everything that I try with this sim does not work.

I installed version 2.07 and it successfully created the config file. I then took the .dll from 2.08 and replaced it in the Bin folder. [main] renderResolution=7360x1080 nonlocalFormat=RGB16D keepComposition=0 smoothing=1 debugD3D=0 zClear=1 vsync=0 tripleBuffer=0 screenshotFormat=jpg dllPathD3D9=auto dllPathDXGI=auto dllPathD3D11=auto [overrides] forceResolution=0 antialiasing=0 processAffinity=0 FOVForceHorizontal=0 FOVForceVertical=0 [head_primary] sourceRect=0,0,1920,1080 screenMode=1920x1080 [head_1] ; Autodetected as \\.\DISPLAY2 at NVIDIA GeForce GTX 680 devID=1 sourceRect=1920,0,1920,1080 transportResolution=1920x1080 transportMethod=auto noSync=0 fpsLimit=0 [head_2] ; Autodetected as \\.\DISPLAY3 at NVIDIA GeForce GTX 680 devID=2 sourceRect=3840,0,1920,1080 transportResolution=1920x1080 transportMethod=auto noSync=0 fpsLimit=0 [head_3] ; Autodetected as \\.\DISPLAY4 at NVIDIA GeForce GTX 680 devID=3 sourceRect=5760,0,800,600 transportResolution=800x600 transportMethod=auto noSync=0 fpsLimit=0 [head_4] ; Autodetected as \\.\DISPLAY5 at NVIDIA GeForce GTX 680 devID=4 sourceRect=6560,0,800,600 transportResolution=800x600 transportMethod=auto noSync=0 fpsLimit=0 5_Monitors_MFCDs.lua

Should I try using earlier versions or maybe the 32 bit?

Yes I am.

I did a google search on that error without any luck. I am the admin for the computer and do not have multiple user accounts.

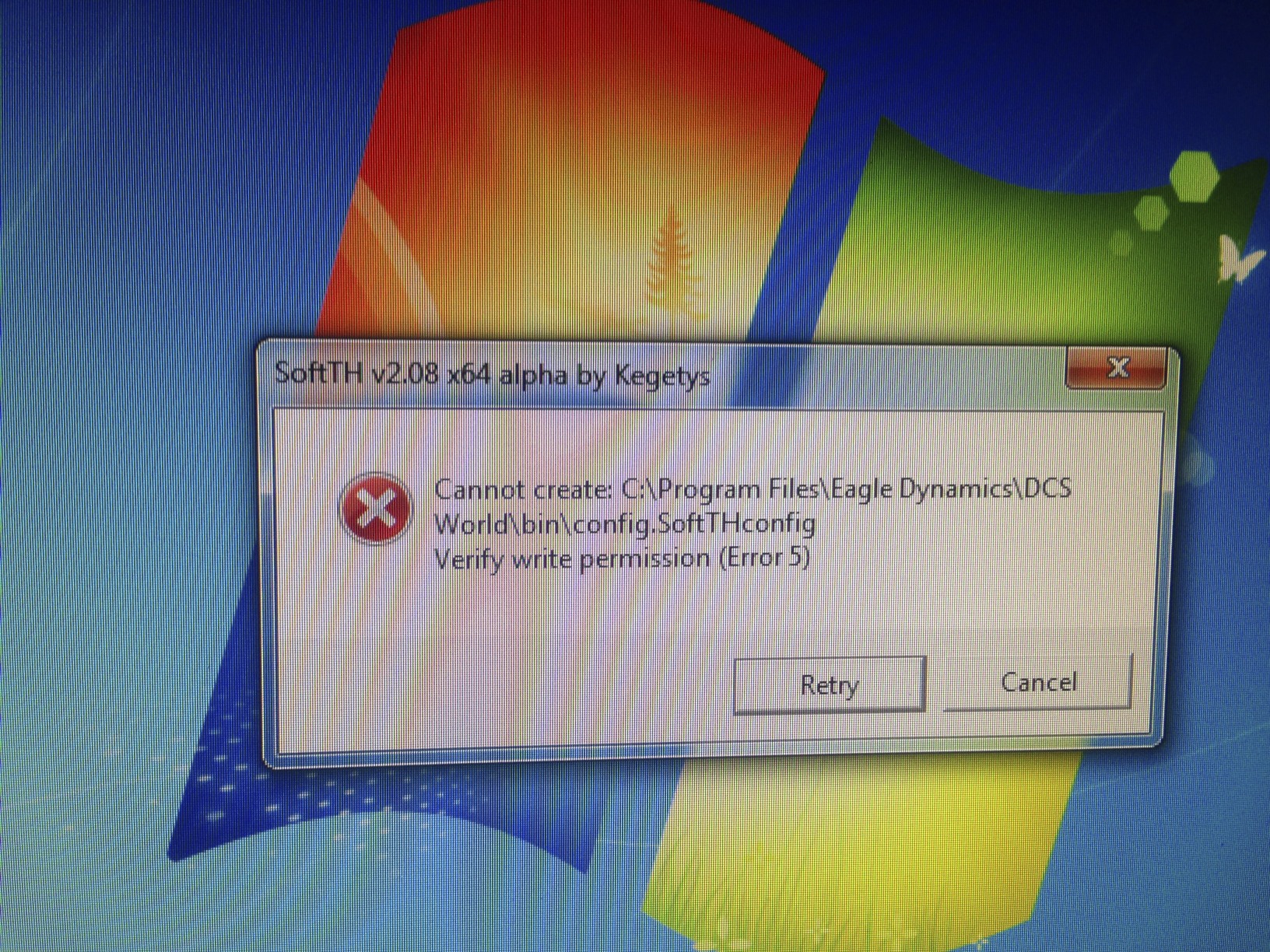

I am trying to setup softth and keep getting this error. Any idea? Is it because I have a current version of DirectX installed? Steve

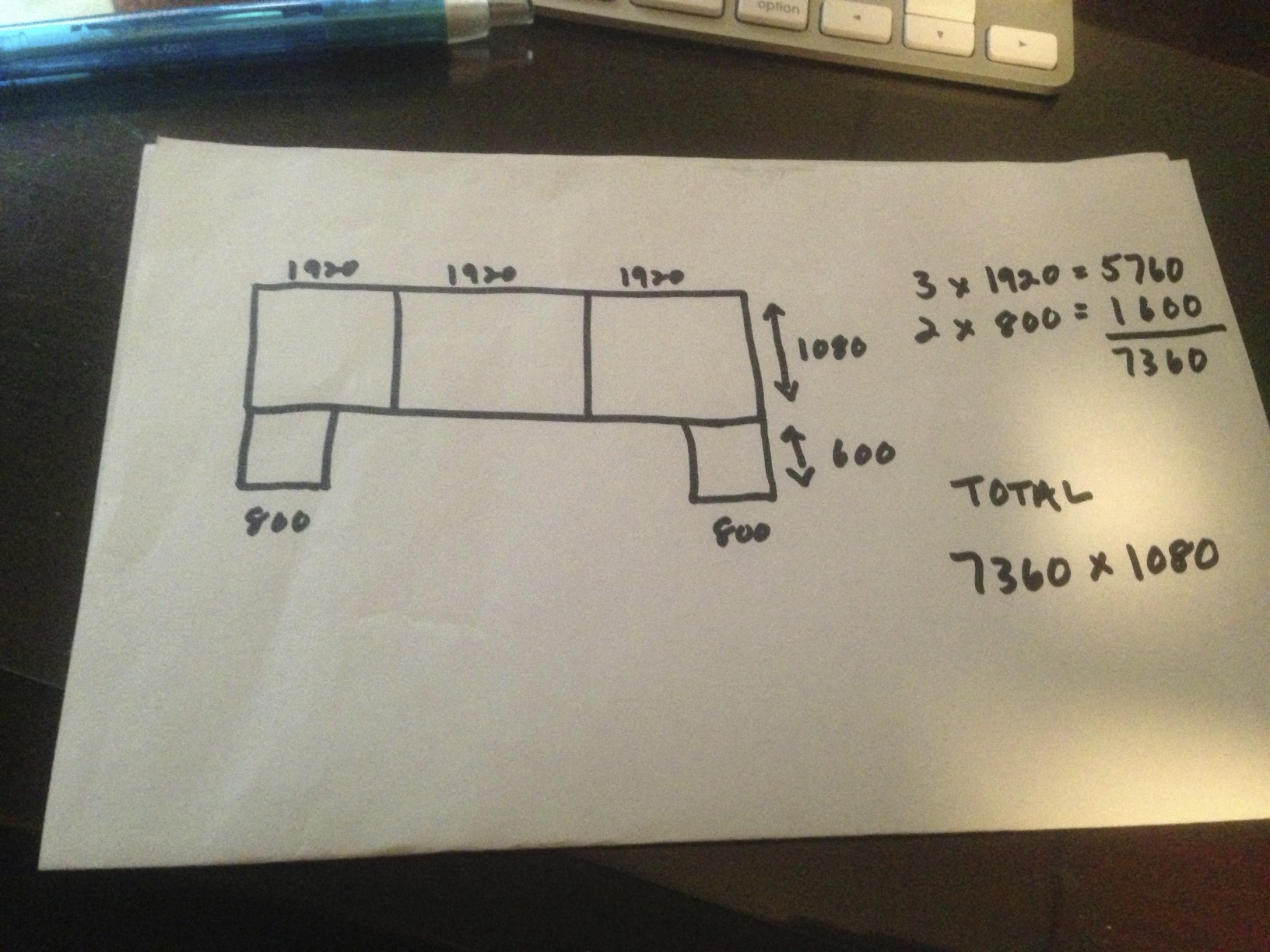

Hey Guys, So I unplugged my two Lilliput USB Monitors and was able to setup NVIDIA Surround. I had everything working stable with a total screen resolution of 5760 x 1080. I setup the monitor for 1 camera in the DCS settings. I know want to get my Lilliput Monitors working as MFCDs. I plugged them both in and my NVIDIA surround disappeared and now when I go into DCS it displays on only one monitor. I attached a drawing of what I am trying to accomplish. I am losing my mind.
