Yeah, sorry I haven't really provided any updates in a while. Due to some unforeseen changes in my professional life, I have suddenly taken on a new role with much added responsibilites. Due to the time commitments required, I have pushed back kickstarter release until at least the new year. The project is not dead, it is however delayed... I will still be working in the background to try and finish the units that have been spoken for since the beginning of this project, however I can't give a firm timeline on completion date. Also, with the help of VH-Rock and Pman taking the prototype to Duxford, some knowledgeable individuals were able to take a look at it and recommend a few changes. I will be taking the time to research and hopefully implement these changes.

Not quite available yet...however I am pleased to announce that the Kickstarter campaign will begin on October 1st. I'm still working on some of the details and final pricing. If you look at the previous page, you can see a very simple hardwood mount designed to mount the quadrant to a desk. I am still looking into a more polished version of a mount, but I suspect that most people will end up building a simple mount of their own from the dimensions that I will supply for mounting. The mount you see in the previous page was put together for about $10...

Happy to hear that it will be configured for Flightgear...that's great news! Honestly I'm not that familiar with that sim, how is the mixture lever simulated in it? In DCS, I couldn't find any way to assign an axis to it, so the way the mixture lever is currently programmed is to act as button presses depending on the range it is in. Seems to work pretty good, but I may also need to setup an actual axis configuration if that is how FG and other sims simulate it. There are still some loose ends to tidy up, but I'm getting to the point where the Kickstarter project is almost ready to launch. I'm planning on keeping the initial production batch separate of the Kickstarter project... which will be to build the units for those who have already spoken for them on this forum. Those units will be produced no matter what the result of the Kickstarter campaign is and at a significantly lower price than what they will be offered for afterwards. This is to keep in line with my original thinking of just charging enough to make a few units which will pay for some of the development. Believe it or not the development of this unit is in the thousands of dollars even without assigning any value to the labor I put into it. I'm putting together final pricing now...I'll be back soon with actual numbers and expected delivery info. In other news, a slightly improved prototype (let's call it prototype version 1.1) is on its way to the Duxford Air Show as a first glimpse of the (semi-) finished hardware. Unfortunately due to an issue of overtravel with the gearing for the sensors, (and also from running out of time) this unit is just the hardware (no sensors/USB). The gearing issue is minor (just needs a pinon with a slightly higher tooth count) but I just couldn't get it implemented in time for the show as the sensors had only been temporarily attached for proving out the location/actuation. VH-Rock and Pman of the Virtual Horsemen have graciously offered to bring it to Dux and let a few people get their hands on it. I know I'll get some feedback that will improve the final product. A big thank you to these guys for bringing it to the show! In the pic you can see the unit that is on its way. Slight improvements to the friction knobs (including real solid rivets this time) and face plate. I'm not 100% happy with the engraving on these, but a spring loaded engraving tool will solve those problems shortly. Currently I have to dial these parts up to within .001" flatness on the mill before engraving....and even that doesn't guarantee a perfect end result. The mixture and pitch knobs have been increased in diameter so that they almost match the size of that specified on the drawings. They are within 5% of the stated size, so that's close enough for me (original is 1.125" diameter....these are 30mm).

I wish I could. Going with FFB, I'm guessing it will be close to this time next year before I have a decent stick to accompany it. Unless the throttle is a total flop...then I'll have lots of time to focus on the stick! To be totally honest, I only have a couple hours (maybe) on DCS P-51. As soon as I started playing with my bargain basement joystick, I wondered if the tech drawings were available for the P-51 somewhere....and here we are. Don't worry, I need to stay on track so I can get better than a 10 year old computer to play it on (which is what I'm left with right now)! I'm hoping not, but I really haven't sat down and figured out the pricing yet. I know of another company making uncertified replica quadrants which sell for $1875 US....and that is without adding sensors/USB to it. I would actually consider that a fair price after seeing how much work is involved...if I had to pay someone's wages or machine time to make the parts I'd probably be close to that price as well. I'm hoping I come in with a number that is about 1/5 of that...I'll have a better idea shortly. I thought about that...and may offer that as one of the lower model kickstarter rewards when it is launch time. It is somewhat tricky to assemble though...and I would like to know that it is 100% working when it leaves. It has hall effect sensors for all axes and also for the mixture lever (even though mixture lever is simulated as 3 buttons). It is jumping around quite a bit in the video, but don't worry it's not cheap pots causing it. It's a combination of noise on the breadboard, not enough caps to smooth things out and some of my debugging code causing jitter. This will be sorted out...I have confirmed it isn't from the sensors themselves and it didn't exist before I started doing some math on the A to D conversion. I know a few people were wondering what a desk mount would look like. The very simple hardwood mount in the pic works quite well, though it isn't very pretty. A cleaned up version similar to this is what I'm leaning towards. Instructions on how to make your own are an option too...this is a single piece of 1/2"T x 2" wide hardwood and a few bits of standard hardware. If those interested in a throttle had the tools and the willingness to make their own mount it would probably save a bundle on shipping...did I mention that shipping from Canada to anywhere is ridiculously expensive?!

It's Alive So....it's been a long time since the last update. First test run in DCS P-51! I apologize for the terrible video...I just wanted to quickly show it's working as intended. It was taken on my old shop computer since I unfortunately had to sell my new sim computer to partially fund this prototype! It just goes to show that DCS P-51 will run on a lowly Intel Q6600 with 4GB ram. I have to say ED did a great job on the modeling of the quadrant...the range of movement in the sim matches the real hardware almost perfectly.

I don't mind if you point out the nits...it only makes for a better end result for everyone (myself included). I would like to know about anything that I didn't get right that I haven't noticed yet. Here are the ones I know about: 1. Pitch lever is not bent correctly. It is currently bent at a 90 deg angle, but should be bent in a radius and angled down toward the front of the faceplate. 2. THR LOCK knob should be a larger diameter (I messed up on the outside diameter when turning this part on the lathe and didn't find out until I had it on the mill). Also, technically this part used to be cast and would have had raised, instead of engraved lettering. 3. The markers on the mixture plate should be rectangular - since I'm machining and then filling with ink, they need to be radiused 4. The handle on the prop and mixt plate is attached with screws instead of rivets and the posts are put together with pop rivets instead of solid rivets. 5. Mixture lever pointer was put together with pop rivets instead of solid 6. Main body is a reasonable facsimile of the original since it isn't currently a casting - wall thickness is lighter in some spots and some webbing between the posts is missing. 7. For some reason the warning message on the faceplate doesn't look like it's quite in the right position...the text size and vertical spacing is good, but something seems off. The bend just below the warning is too deep, so that may be why it doesn't quite look right.

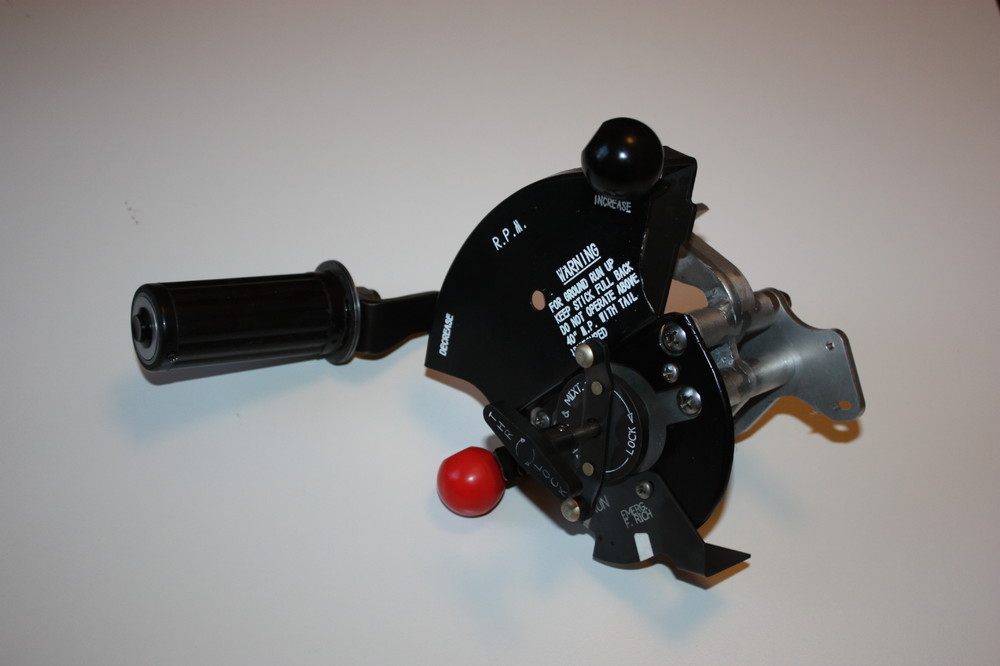

Assembly complete! Had (and still have) a couple minor issues, but overall I'm pretty pleased with how it went together. I realized I mixed up the lengths of the bosses on the main bracket, so I was grinding one side and adding spacers to the other. Also the die on my metal bender wouldn't allow me to get quite the right arm lengths on the levers so there is a bit of interference near the end of stroke...but that should be a quick fix. I'm happy to say the lever movement to emerg full rich works great...let's just say you'll never accidentally move it there! It takes a fair amount of force to break the wire. Time to add some sensors...

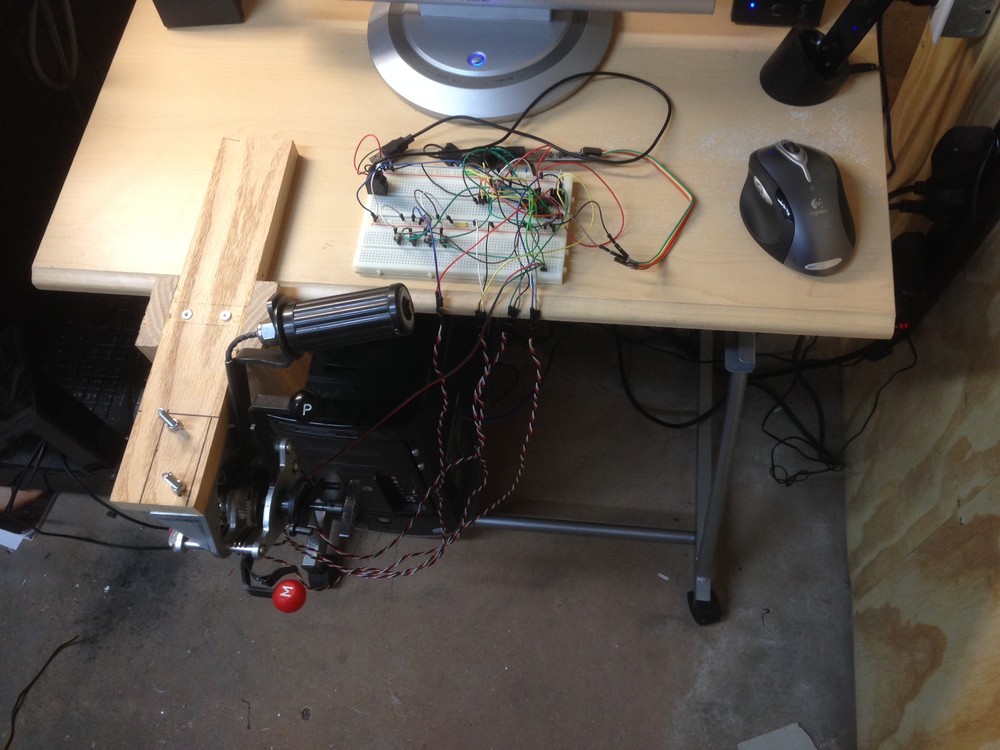

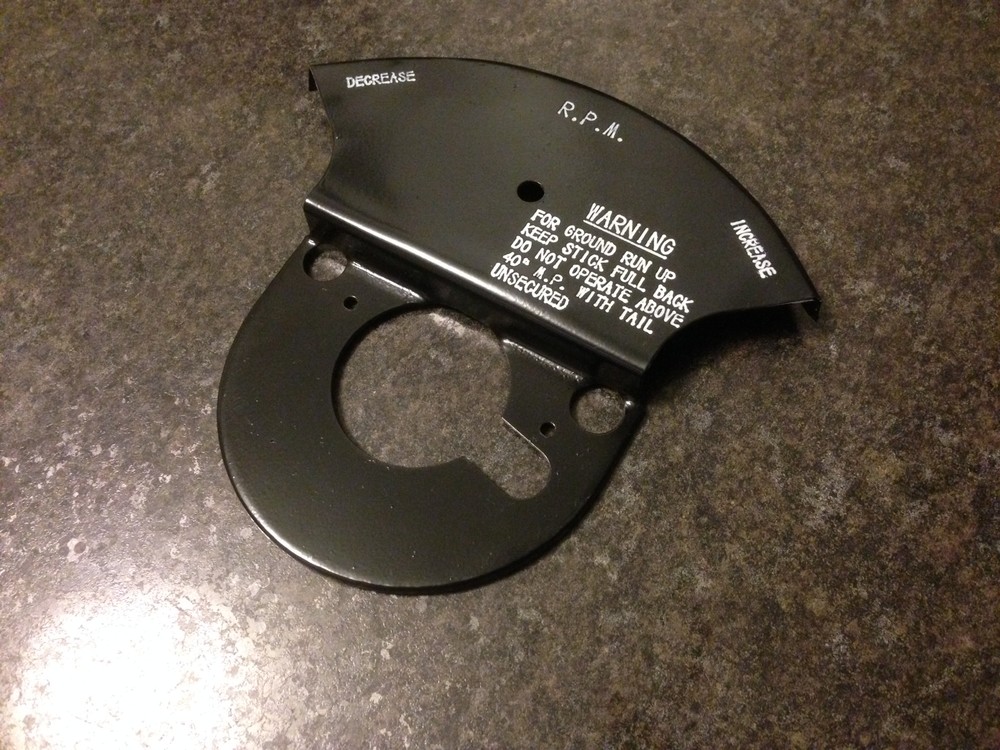

The hall sensors I spec'd are expensive for sure, however they do offer a few advantages over a diy solution. I will be working on a custom solution to reduce cost in parallel, but I suspect I will run into some issues with shielding which will add to the cost and complexity. In other news, the face plate is finished! This one is powder coated and turned out quite nicely. This one is a little worse for wear as I figured out the proper way to form it. I may do a separate black anodized plate, just to see which one I like better, though the powder coating method is pretty slick. I'm open to ideas on how people would like to see this get mounted to a desk...just keep in mind KISS! Mine will be hard mounted to the wall with an L-bracket...but I'm not so sure everyone else wants to do that! Final assembly begins this weekend (minus electronics)!

I have a pretty good idea of how it's going to work...hopefully the idea will be somewhat easily accomplished! The plan is to use hall effect sensors, though I don't know if everyone will agree that the extra cost is worth it. The sensors I have spec'd out are about $25 a pop so that's $100 just in sensors to add to the bill. There is the cheaper alternative of building my own sensors using just a hall effect IC and magnet, but then that adds significantly to the work required to build a unit. Like hvengel mentioned, the quadrant is really designed to be mounted by the top flange of the main bracket. I have a couple ideas floating around, but honestly I'm not 100% sure on the mounting yet...I'd like to try a couple different options and see which feels best. I also need to keep the mounting as simple (low cost) as possible, so I can actually keep these units at a price point where people are still able to afford them.

Face plate machining completed...ready for forming.

I have to say thank you to everyone who is interested in this project for being so patient. It is definitely taking much longer than I anticipated, but I am hoping the result is worth it! Yes, it was definitely a challenging piece...there were many "colorful" words used during the assembly of this piece! I have to say that there will not be many manufactured using this method...for any kind of volume I will need to look at casting, or simplifying the design for machining.
