solved [MISSING CRASH LOGS] F-16C's TGP causes the game to crash！

HappyVoo · November 5, 2020

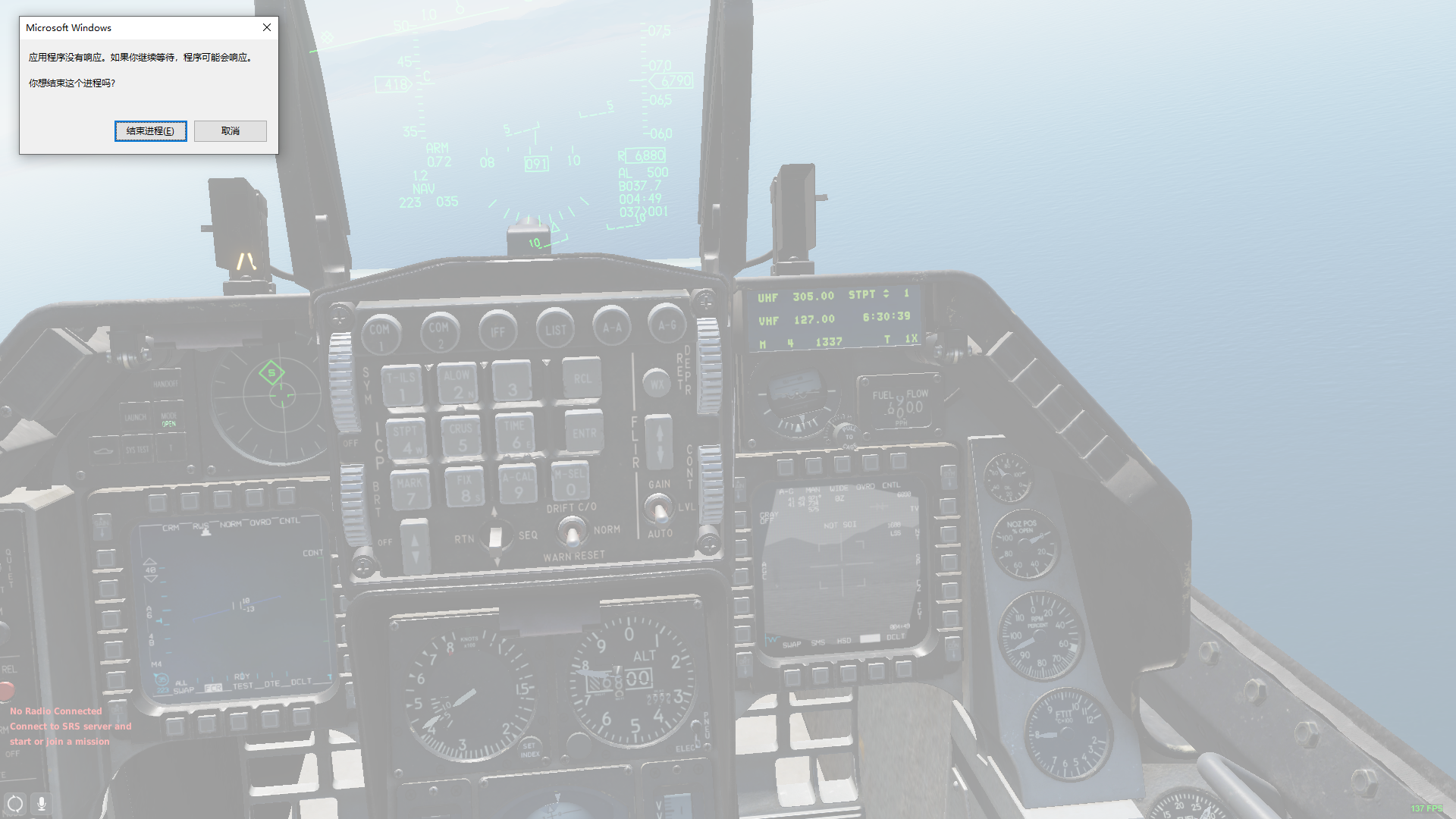

The F-16C’s TGP pod does not work and causes the game to crash！

As long as TGP is active, once I switch to TGP, my game will crash! When TGP is not activated, there is no problem, and other operations are no problem! Only when TGP is activated and I switch to display TGP, my game will definitely crash！

In previous versions, I could use TGP normally!

I'm the latest version of steam, and I've verified the integrity of the game, and ram is 32g, but when my game crashed, I only put a plane on my custom Black Sea map！

HappyVoo · November 5, 2020

我的游戏崩溃没有响应，我在哪里可以得到崩溃日志？

TOViper · November 5, 2020

Hello HappyVoo,

have you cleaned fxo and metashader folders after updating?

You might also try reducing TEXTURE setting by one (e.g. HIGH to MEDIUM, or MEDIUM to LOW).

A log file would help.

HappyVoo · November 5, 2020

Hello HappyVoo,

have you cleaned fxo and metashader folders after updating?
You might also try reducing TEXTURE setting by one (e.g. HIGH to MEDIUM, or MEDIUM to LOW).

A log file would help.

Thanks for your suggestion, I have found the reason, it is caused by DCS-ExportScript

Dagi85 · January 15, 2021

Hi HappyVoo

How did you fix this?

I have the same problem..

DCS crash each time I open the TGP on a MFD.

Only happens to F-16...

Posohm · January 19, 2021

Get rid of DCS-export if you´re using it, caused a crash with the TGP. Also caused a crash accessing P3 on the DED-Link16 page.

Tess · March 4, 2021

Hi,

The F16 Export Script needed a little tidying up as it still had a load of code relating to the F18. If you replace the current F16C_50.lua file in your Saved Games folder (file path something like this.... C:\Users\Admin\Saved Games\DCS.openbeta\Scripts\DCS-ExportScript\ExportsModules\F-16C_50.lua) with the attached file, you should find that using the TGP no longer causes the game to freeze.

Edit:

Not as simple as I thought! Yes, TGP works but at the expense of the export-script, so Streamdeck rendered inop

Edited March 4, 2021 by Tess

Tess · March 4, 2021

Took a while to figure out which code to exclude but finally got there.

The attached ExportScript lua file allows use of the Streamdeck without crashing the TGP.

F-16C_50.lua

hasole · March 8, 2021

Thank you for this, I was just about to report it as a bug.

Pekins · May 12, 2021

I just started having this problem, have had a StreamDeck for a while. Ive read the comments here but not sure what to do?

I have to delete DCS-export? But where is it? also what is that F16C_50.lua file should I download and put it somewhere?

Edit: I found a DCS-export folder in ...\Saved Games\DCS\Scripts do I delete the whole folder?

Edited May 12, 2021 by Pekins

ice41 · May 12, 2021

I don't use Streamdeck but from what I can find,

Saved Games\DCS\Scripts should have a DCS-ExportScript folder
inside DCS-ExportScript there should be ExportsModules folder
inside ExportsModules there should be a F-16C_50.lua

replace this file with Tess's F-16C_50.lua

and that should be all you need to do to not crash

Edited May 12, 2021 by ice41

Pekins · May 13, 2021

Nice that works!! Once again the community saves the day.

bones1014 · May 16, 2021

Has anyone tried exporting the F-16 Chaff and Flare counters? I have some script code that works in DCS-Bios but not when I enter it into the lua

       --chaff and flare quantity export
   local chaff1 = ExportScript.Tools.split(list_indication(16), "%c")[3]
   local flare1 = ExportScript.Tools.split(list_indication(16), "%c")[6]
   if chaff1 == nil then
       chaff1 = ""
   end

   if flare1 == nil then
       flare1 = ""
   end

   ExportScript.Tools.SendData(6000, string.format("%-3s", chaff1))
   ExportScript.Tools.SendData(6001, string.format("%-3s", flare1))

wess24m · November 19, 2021

Unable to display TGP and the ground radar without a crash still. I use a stream deck, I've read theres an issue with that. I shouldn't have to uninstall the stream deck software before flying the f-16.

dcs.log

rem27 · November 19, 2021

replace this file with Tess's F-16C_50.lua

https://forums.eagle.ru/topic/252202-missing-crash-logs-f-16cs-tgp-causes-the-game-to-crash/?do=findComment&comment=4589839

Edited November 19, 2021 by rem27

BIGNEWY · November 19, 2021

threads merged

Bailey · November 26, 2021

On 5/17/2021 at 3:01 AM, bones1014 said:

Has anyone tried exporting the F-16 Chaff and Flare counters? I have some script code that works in DCS-Bios but not when I enter it into the lua

       --chaff and flare quantity export
   local chaff1 = ExportScript.Tools.split(list_indication(16), "%c")[3]
   local flare1 = ExportScript.Tools.split(list_indication(16), "%c")[6]
   if chaff1 == nil then
       chaff1 = ""
   end

   if flare1 == nil then
       flare1 = ""
   end

   ExportScript.Tools.SendData(6000, string.format("%-3s", chaff1))
   ExportScript.Tools.SendData(6001, string.format("%-3s", flare1))

I have a working countermeasure export here, starting at line 1009.
https://github.com/asherao/DCS-ExportScripts/blob/master/Scripts/DCS-ExportScript/ExportsModules/F-16C_50.lua

You can either download the entire lua, or take the part from the spoiler below. If you do the below, remember to add `ExportScript.CountermeasureReadouts(mainPanelDevice)` to the
`function ExportScript.ProcessIkarusDCSConfigLowImportance(mainPanelDevice)` function block.

Spoiler

function ExportScript.CountermeasureReadouts(mainPanelDevice)

	local expendableReadout = ExportScript.Tools.split(list_indication(16), "%c")--this contains the formated table of the CMDS numbers

	local CMDS_O1_Amount
	local CMDS_O2_Amount
	local CMDS_CH_Amount
	local CMDS_FL_Amount

	if expendableReadout[2] == "CMDS_O1_Amount" then
		CMDS_O1_Amount = expendableReadout[3]
	elseif expendableReadout[5] == "CMDS_O1_Amount" then
		CMDS_O1_Amount = expendableReadout[6]
	elseif expendableReadout[8] == "CMDS_O1_Amount" then
		CMDS_O1_Amount = expendableReadout[9]
	elseif expendableReadout[11] == "CMDS_O1_Amount" then
		CMDS_O1_Amount = expendableReadout[12]
	else
		CMDS_O1_Amount = "--"
	end

	if expendableReadout[2] == "CMDS_O2_Amount" then
		CMDS_O2_Amount = expendableReadout[3]
	elseif expendableReadout[5] == "CMDS_O2_Amount" then
		CMDS_O2_Amount = expendableReadout[6]
	elseif expendableReadout[8] == "CMDS_O2_Amount" then
		CMDS_O2_Amount = expendableReadout[9]
	elseif expendableReadout[11] == "CMDS_O2_Amount" then
		CMDS_O2_Amount = expendableReadout[12]
	else
		CMDS_O2_Amount = "--"
	end

	if expendableReadout[2] == "CMDS_CH_Amount" then
		CMDS_CH_Amount = expendableReadout[3]
	elseif expendableReadout[5] == "CMDS_CH_Amount" then
		CMDS_CH_Amount = expendableReadout[6]
	elseif expendableReadout[8] == "CMDS_CH_Amount" then
		CMDS_CH_Amount = expendableReadout[9]
	elseif expendableReadout[11] == "CMDS_CH_Amount" then
		CMDS_CH_Amount = expendableReadout[12]
	else
		CMDS_CH_Amount = "--"
	end

	if expendableReadout[2] == "CMDS_FL_Amount" then
		CMDS_FL_Amount = expendableReadout[3]
	elseif expendableReadout[5] == "CMDS_FL_Amount" then
		CMDS_FL_Amount = expendableReadout[6]
	elseif expendableReadout[8] == "CMDS_FL_Amount" then
		CMDS_FL_Amount = expendableReadout[9]
	elseif expendableReadout[11] == "CMDS_FL_Amount" then
		CMDS_FL_Amount = expendableReadout[12]
	else
		CMDS_FL_Amount = "--"
	end

	CMDS_O1_Amount = trim(CMDS_O1_Amount)
	CMDS_O2_Amount = trim(CMDS_O2_Amount)
	CMDS_CH_Amount = trim(CMDS_CH_Amount)
	CMDS_FL_Amount = trim(CMDS_FL_Amount)

	ExportScript.Tools.SendData(3000, "OTHER1\n" .. CMDS_O1_Amount)
	ExportScript.Tools.SendData(3001, "OTHER2\n" .. CMDS_O2_Amount)
	ExportScript.Tools.SendData(3002, "CHAFF\n" .. CMDS_CH_Amount)
	ExportScript.Tools.SendData(3003, "FLARE\n" .. CMDS_FL_Amount)

	ExportScript.Tools.SendData(3004, "CH " .. CMDS_CH_Amount
										.. "\nFL " .. CMDS_FL_Amount)

	ExportScript.Tools.SendData(3005, "O1 " .. CMDS_O1_Amount
										.. "\nO2 " .. CMDS_O2_Amount
										.. "\nCH " .. CMDS_CH_Amount
										.. "\nFL " .. CMDS_FL_Amount)
end

Edited November 26, 2021 by Bailey

WolfK33 · November 27, 2021

On 3/4/2021 at 9:56 PM, Tess said:

Took a while to figure out which code to exclude but finally got there.

The attached ExportScript lua file allows use of the Streamdeck without crashing the TGP.

F-16C_50.lua 64.88 kB · 217 downloads

Just came here to report this. Thank you!

BaronVonVaderham · November 19, 2023

I realise this is an old thread, but Iäm looking into ikarus as helios does not work for me.

Simple question: where do I start___
