Add extra functions to ministick switch axes / buttons

[pabletesoy]



Hello,

I would like to add an extra keystroke pulsation to the swich axes / buttons of the ministick.

In a first press, I change from button to axes + F2 key, so I have the external view of the plane (f2 key) and I can move the external camera (axes).

In a second press, I change from axes to buttons + F1 key, so I have the cockpit view of the plane (f1 key) and I have a POV for other commands.

Then, toggle these two functions each time I press the button.



I hope I have explained myself correctly. Thnaks for the help!











Top



[Alex Oz]

​Ok, let's see.

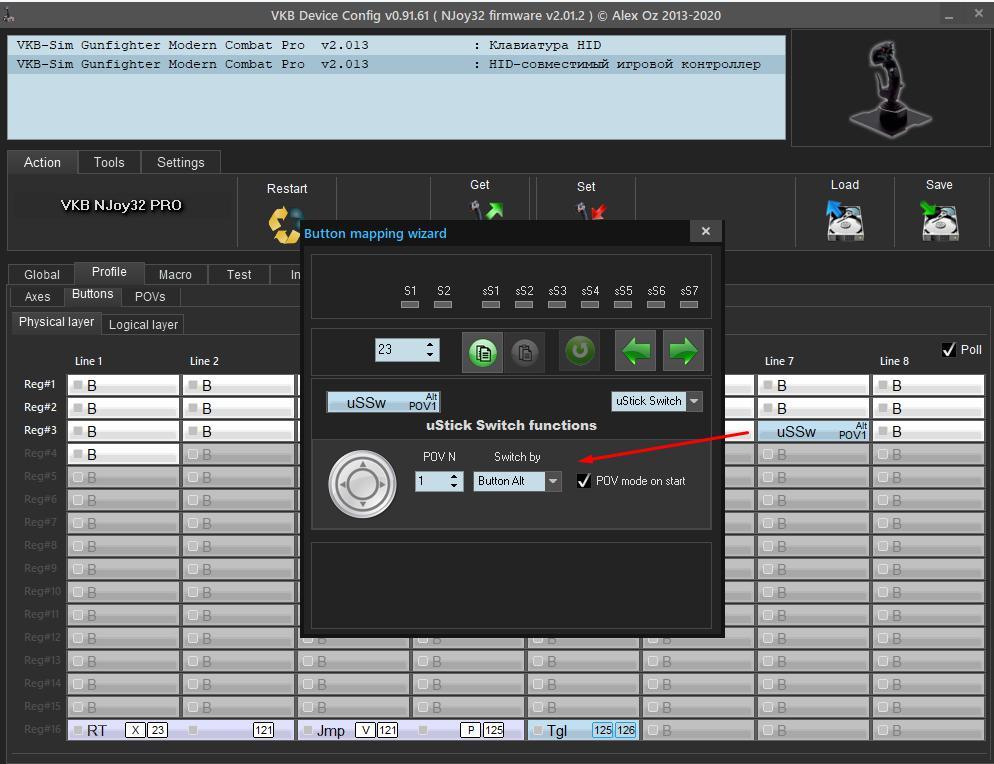

Pre-enable the virtual keyboard:





1 profile - simple but not correct way:

GF MCG uSwitch F1F2 (1).zip





There is a potential loss of synchronization between ButAlt mode uSSw and RT.

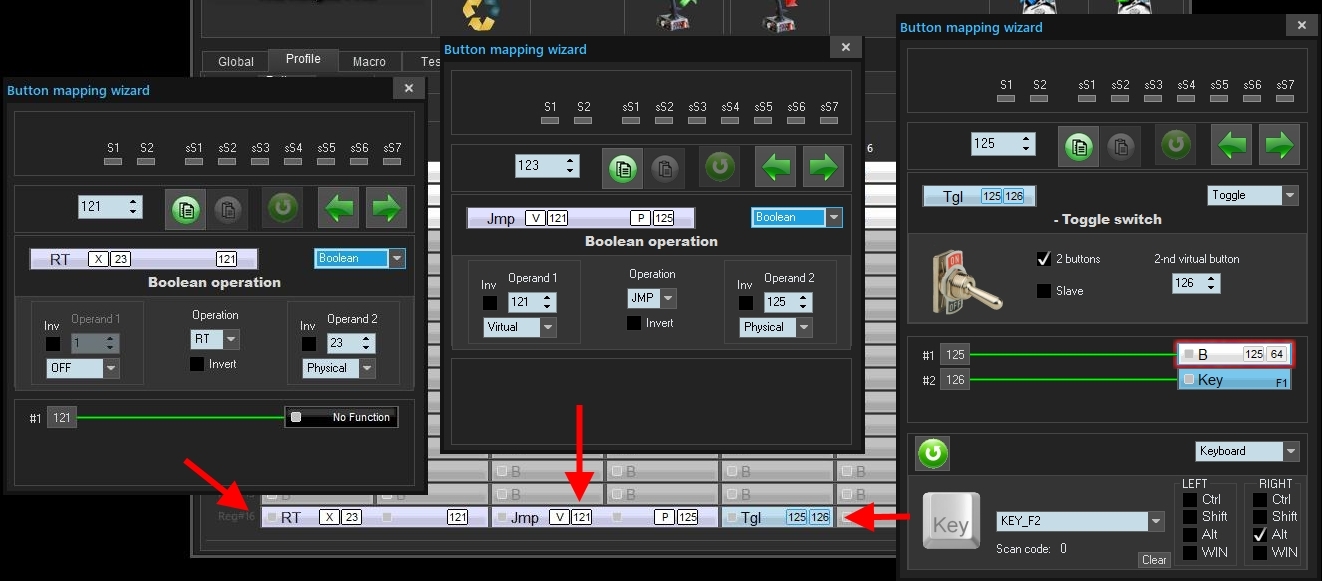

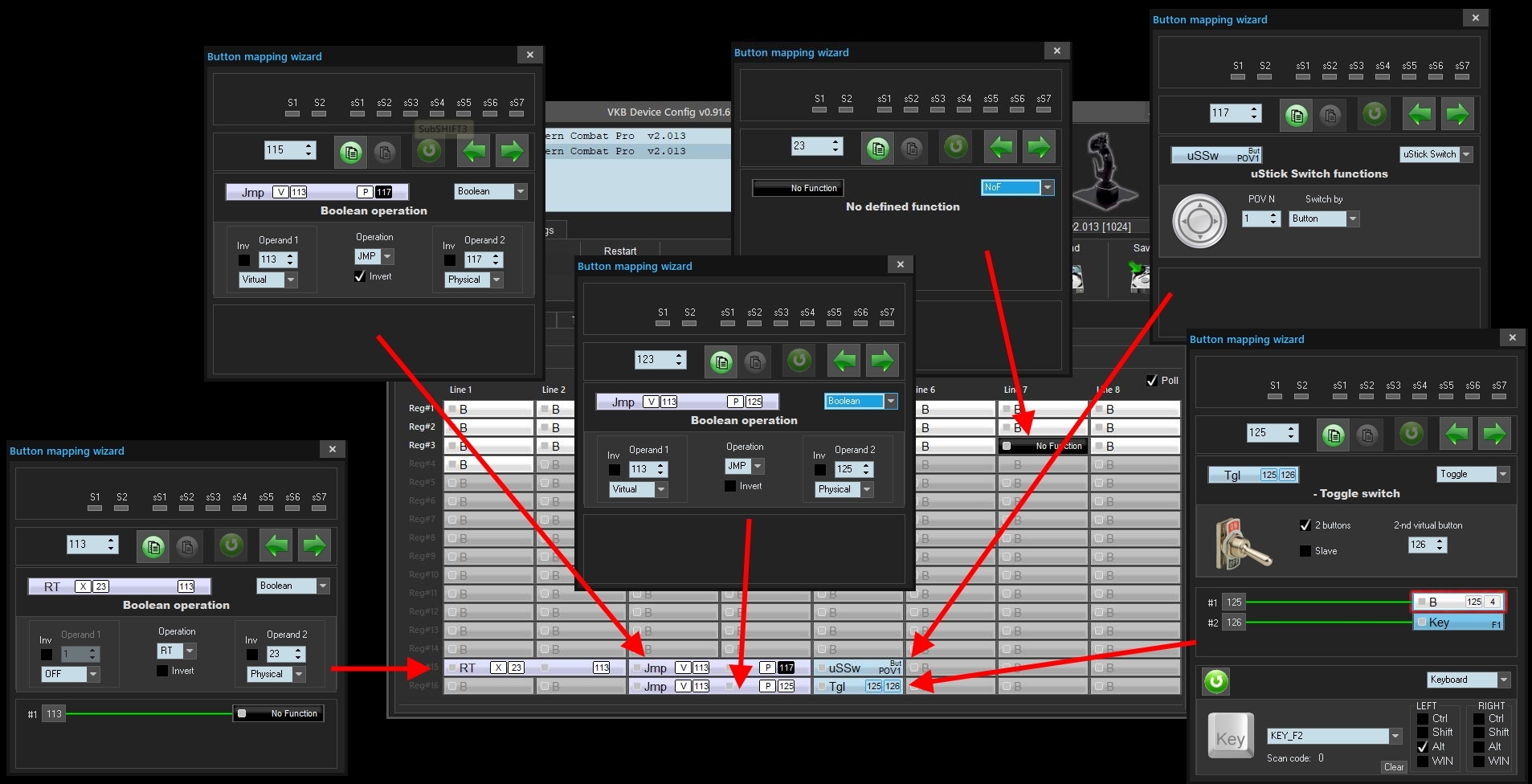

2 profile - uses only one element RT to memorize the state:​

GF MCG uSwitch F1F2 (2).zip

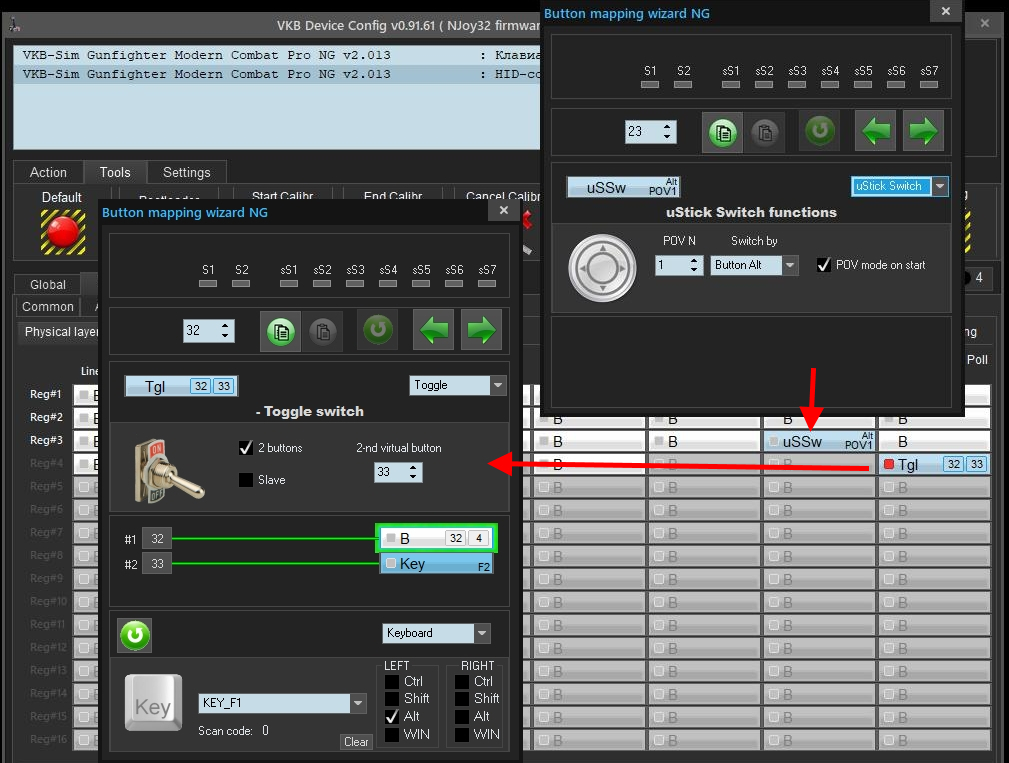

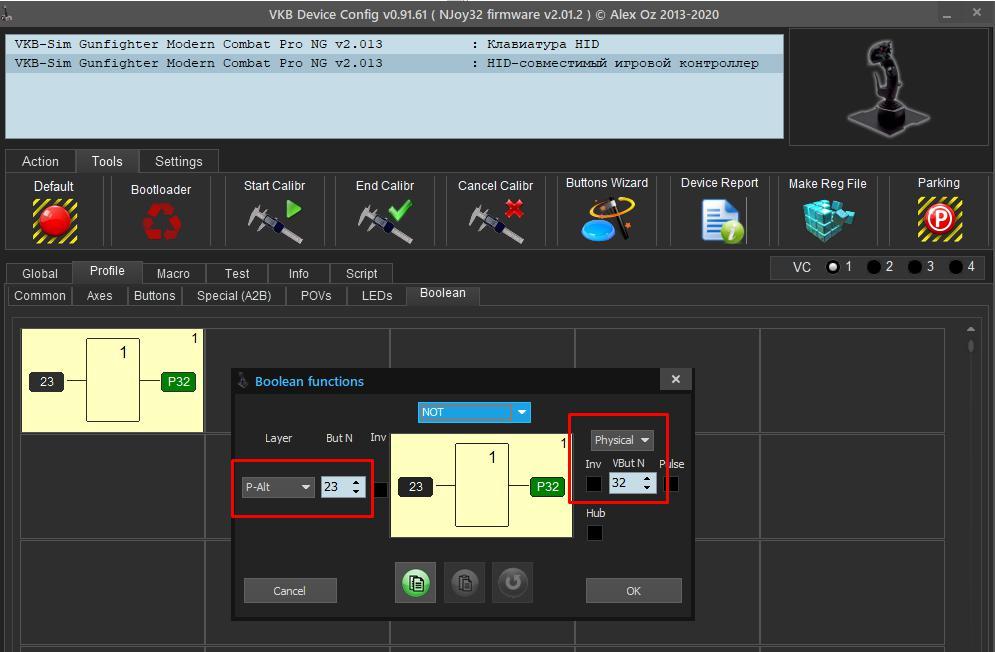

The easiest and most elegant way is to use NG version

GF MCG uSwitch F1F2 NG.zip



GF MCG uSwitch F1F2 (2).zip

GF MCG uSwitch F1F2 NG.zip

GF MCG uSwitch F1F2 (1).zip

[pabletesoy]

are those methods compatible whit Gunfighter Mk.III.?

I,m trying the third (NG) and I can,t find the boolean window in the VKB shofware?

[pabletesoy]

By the way, what a job! very friendly

[Alex Oz]

Use firmware NG - configurator will change( Note: NG differs in many respects from the usual version )



PS: profiles was created for GF with MCG PRO

[pabletesoy]

Alex, I have to look at this slowly because it is complicated!
