Multi-Monitor Lua file

[Liam Perry]

Dear All,

I have an unusual 3 screen set up which I use for another sim.



                       Upper screen 3840 x 1600

Lower left 1920 X 1080  and Lower Right 1920 X 1080



This makes a rectangular block of 3 screens 3840 X 2680



I want the main view out of the cockpit as normal via the upper large screen.  But, I want the lower 2 screens to simply continue the view below into the cockpit.  This should give me the left console on the lower left screen and the right console on the lower right screen.



Unfortunately, my power of Lua file editing has only got me this far!

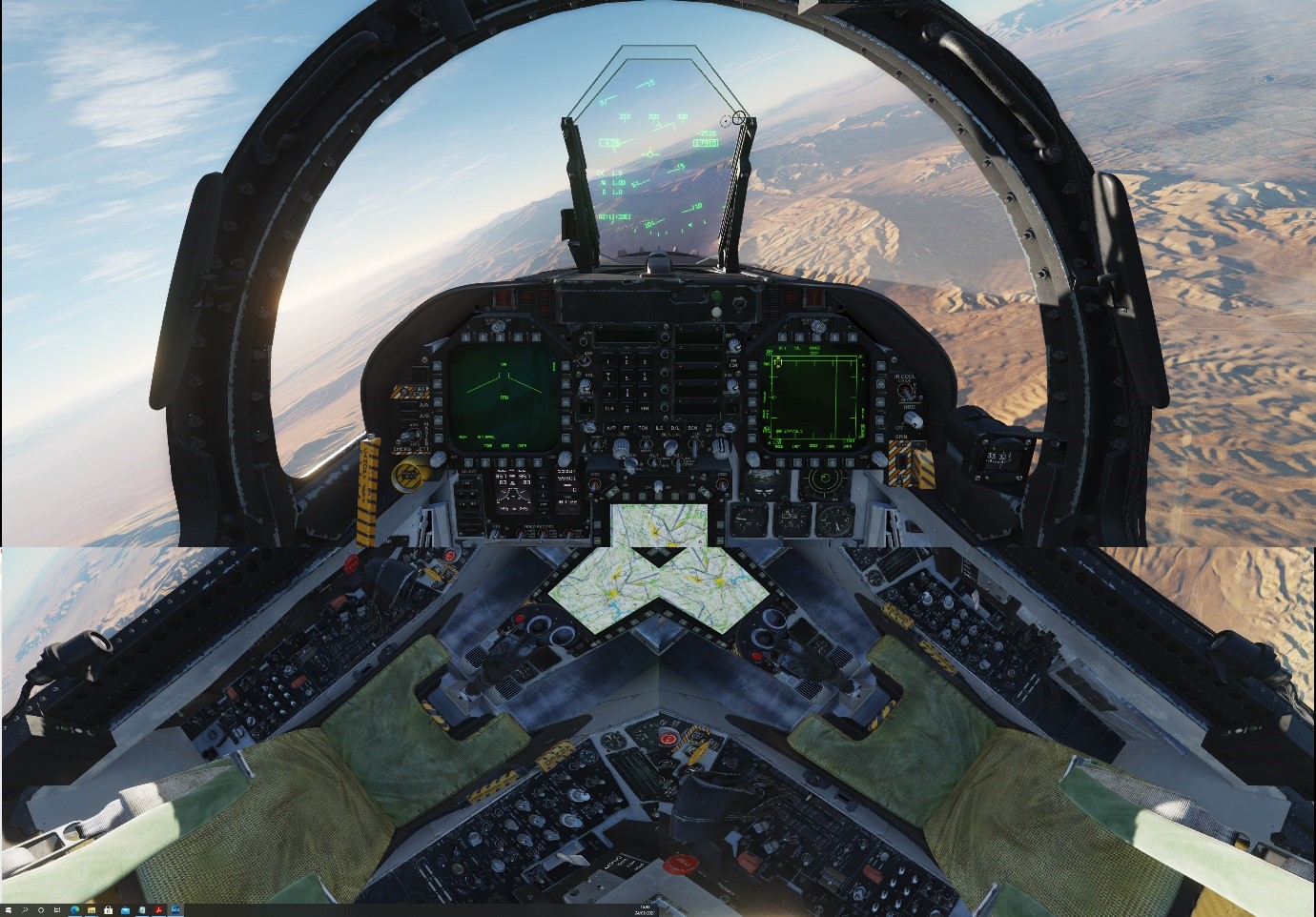

As I move the view back via the / key the 2lower images rotate rather than remain in sync with the upper part of the image.  I want the view to look a bit like this as I move the view back:



Can anyone help please?

My Lua file is below:

_  = function(p) return p; end;
name = _('3 Screen 1 Main 2 Lower');
Description = 'Configuration with 3 monitors, 1 main, 2 lower'
Viewports =
{
     Top =
     {
          x = 0;
          y = 0;
          width = screen.width ;
          height = 1600;
          viewDx = 0;
          viewDy = 0;
          aspect = 3840/1600;
     },

    LowerLeft =
     {
          x = 0;
          y = 1600;
          width = screen.width /2 ;
          height = 1080;
          viewDx = -0.5;
          viewDy = -1;
          aspect = 1920/1080;
     },


     LowerRight =
     {
          x = screen.width / 2;
          y = 1600;
          width = screen.width /2 ;
          height = 1080;
          viewDx = 0.5;
          viewDy = -1;
          aspect = 1920/1080;
     }
}

UIMainView = Viewports.Top



Many thanks and regards,

Liam
