I thought there was an error because the inside and outside of the side were swapped,

so I did 'recalculate outside'.

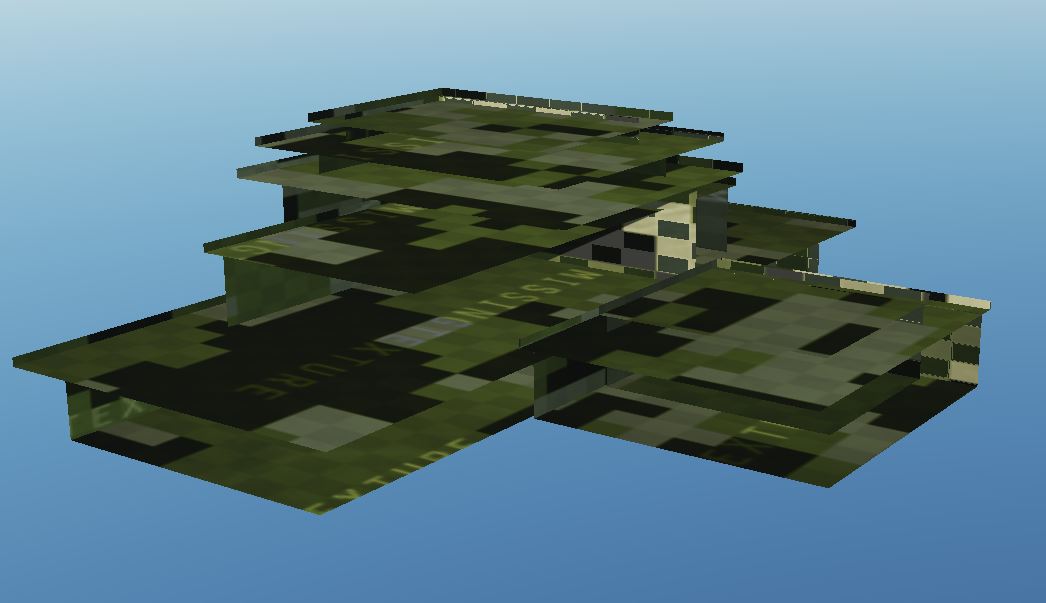

but the side is turned upside down like the second picture.

How can I solve this?

Digital Combat Simulator  Black Shark Screenshot 2022.08.01 - 22.58.15.37.png


  • 1 month later...
Posted (edited)

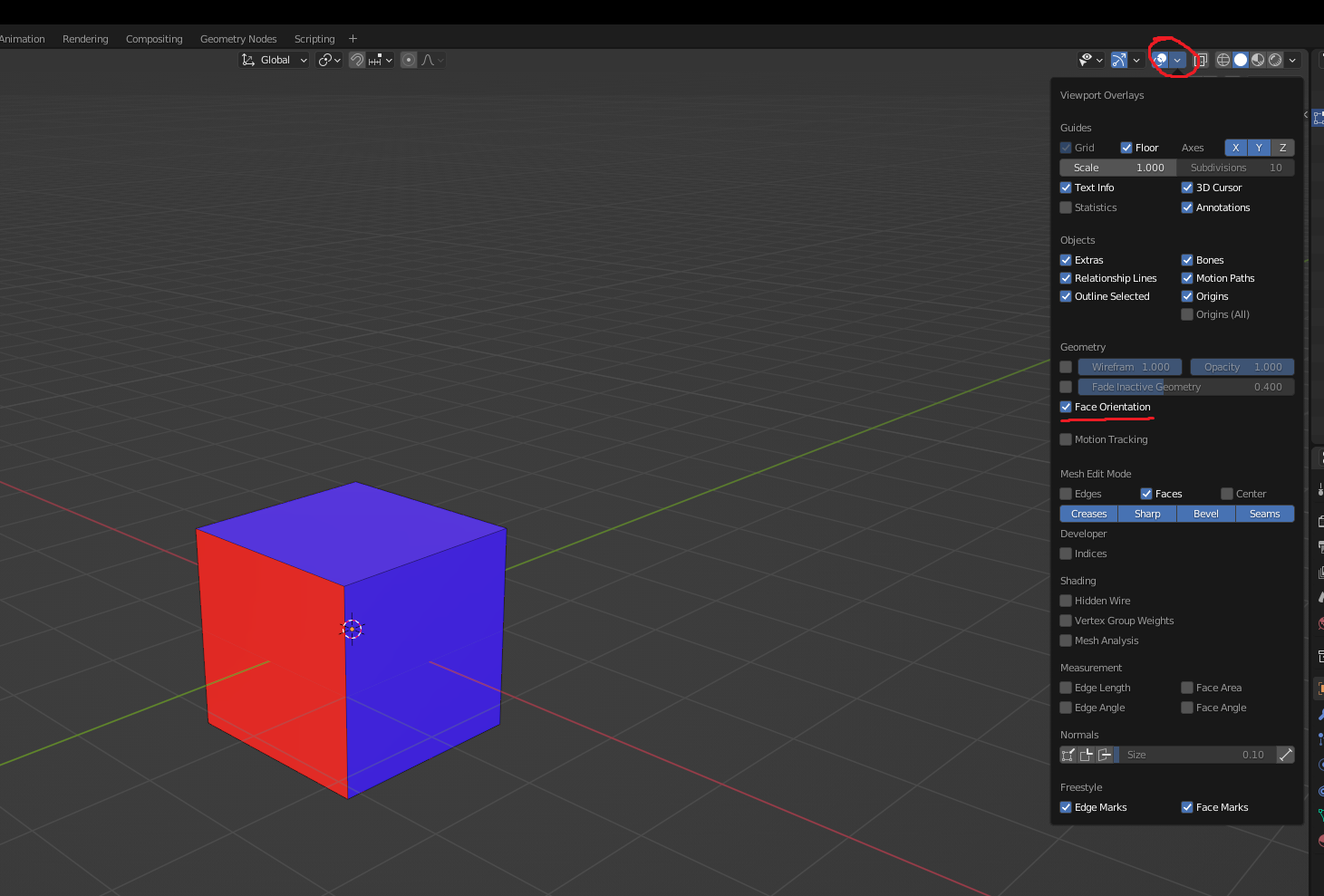

In blender, click the down arrow circled in the picture and check face orientation. If you're looking at the back of a face, it will show red, you need to make it blue. In edit mode hit 3 to swap into face select, select a single face or all red faces, then press Alt+N, select Flip. It will then be blue meaning correct orientation.



This may not help OP given it has been over a month, but may be helpful for others.


Edited by jamie_c
