Hi all, just working the multiplexer sketch for the five OLED's I am using for the VHF radio panels, and I am a bit confused as to the way that Freq 2 and 3 are output. Freq 1 and 4, plus preset have integer strings as outputs, yet 2 and 3 has 'gauge position' shifting by 3 up to 255 as the outputs, yet the OLED should be displaying a number

Sounds like I should be mapping the output to an integer, but somehow that doesn't feel right. It also has the frequency select encoder input, which reinforces that for me

Can anyone explain what this should be doing?



Les

Posted

I actually helped someone with the KA50 radio display the other day.

In that case, freq 1 and 4 are strings, 2 and 3 are integers.

Maybe this will help (it's for the KA50):

char* WHF2freq1 = "00";      //  Display digits are mixed string and integer so separate variables are easier
int WHF2freq2 = 0;
int WHF2freq3 = 0;
char* WHF2freq4 = "00";

void WHFR2DisplayPrint(){

 tcaselect(0);
  display.clearDisplay();
  display.setCursor(10,10);
  display.print (*WHF2freq1);
  display.print (WHF2freq2);
  display.print (".");
  display.print (WHF2freq3);
  display.print (*WHF2freq4);
  display.display();

}

void onR800Freq1Change(char* newValue) {                                           // Freq1 change - "10" "11" "12" "13" "14" "22" "23" "24" "25" "26" "27" "28" "29" "30" "31" "32" "33" "34" "35" "36" "37" "38" "39"
  *WHF2freq1= (newValue);
  WHFR2DisplayPrint();
}
DcsBios::StringBuffer<2> r800Freq1StrBuffer(0x190e, onR800Freq1Change);

void onR800Freq2Change(unsigned int newValue) {                                    // Freq2 change
  WHF2freq2=(newValue);
  WHFR2DisplayPrint();
}
DcsBios::IntegerBuffer r800Freq2Buffer(0x190c, 0x3c00, 10, onR800Freq2Change);

void onR800Freq3Change(unsigned int newValue) {                                    // Freq3 change
  WHF2freq3=(newValue);
  WHFR2DisplayPrint();
}
DcsBios::IntegerBuffer r800Freq3Buffer(0x1910, 0x000f, 0, onR800Freq3Change);

void onR800Freq4Change(char* newValue) {                                           // Freq4 change - possible values: "00" "25" "50" "75"
  *WHF2freq4=(newValue);
  WHFR2DisplayPrint();
}
DcsBios::StringBuffer<2> r800Freq4StrBuffer(0x1912, onR800Freq4Change);

I assume yours is for the A-10?

If that KA50 code doesn't help, I'll have a look at the A-10 code when I get home from work.

Posted (edited)

Thanks, the sketch below worked for Freq2 although the result was unexpected - it displayed the letters IS



#define DCSBIOS_DEFAULT_SERIAL

#include <DcsBios.h>

#include <Arduino.h>
#include <U8g2lib.h>
#include <Wire.h>

U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R3, /* clock=*/SCL, /* data=*/SDA, /* reset=*/U8X8_PIN_NONE);  // All Boards without Reset of the Display R3 refers to 270 deg text rotation

void setup(void) {
  u8g2.begin();
  DcsBios::setup();
}
int WHF2freq2 = 0;





void onVhfamFreq2Change(unsigned int newValue) {
  WHF2freq2 = (newValue);
  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_logisoso38_tr);
  u8g2.drawStr(0, 80, WHF2freq2);  // 0 left, 0 top bottom appx 100

  u8g2.sendBuffer();
  delay(1000);
}
DcsBios::IntegerBuffer vhfamFreq2Buffer(0x118e, 0x00f0, 4, onVhfamFreq2Change);



void loop() {
  DcsBios::loop();
}

However the same would not work for Freq3 bizarrely, couldn't get anything to display

Les

Edited by lesthegrngo
Posted

I kept on with this, but it seems the u8g2 library is a bit fussy. Not sure why that should be, but it will do four of the five strings

Probably some minor detail, but got me scratching my head

Les

Posted

If this is for the A-10, why aren't you using the whole frequency string? 🤔
I use this for my LCD radio display:

void onVhfAmFrequencySChange(char* newValue) {
  lcd.setCursor(0,0);
  lcd.print("VHF AM:        "); // Clear the line
  lcd.setCursor(8,0);
  lcd.print(newValue);
}
DcsBios::StringBuffer<7> vhfAmFrequencySBuffer(0x12de, onVhfAmFrequencySChange);

That gives the whole frequency in one string, including the decimal point.
It's available for all 3 radios, the ILS and the TACAN.

Posted (edited)

On an LCD screen via a PCF8754 board it does display, but not on these 0.66" u8G2 OLEDs - which is what I have chosen unfortunately. There are some that use the Adafruit SSD1306 library instead of u8g2, I suspect they would be easier to work with

Trouble is no-one ships them to Qatar

u8g2 also needs 328 Nanos due to the library size, so not a wonderful choice

Tomorrow I'll show pictures so you can see why I'm looking at individual digits, there are five oleds per panel

Les

Edited by lesthegrngo
Posted

OK...
lcd.print(newValue[0]);
Will send just character 0.  Note the addition of "[0]" to the variable name.  Change it to 1,2,3, etc. for the other characters.

Posted

Thanks

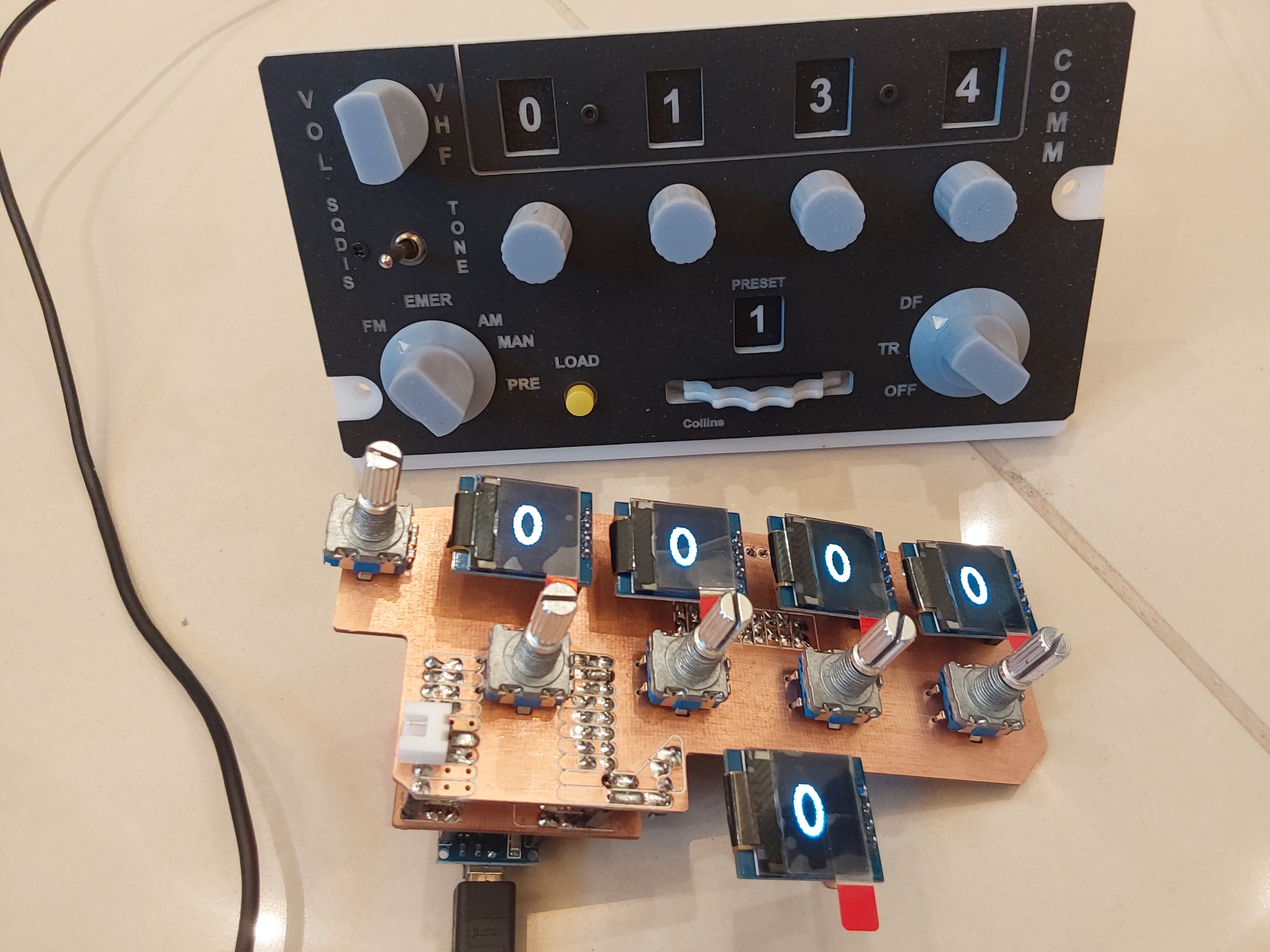

Here's a pic of the vhf panel with the multiplexed OLED array on its PCB below, with a test sketch (in this case the TISL sketc) to test the hardware. Each OLED will display the particular frequency,  or at least that's the intention!




Posted

I have a suspicion that the reason Freq3 doesn't display is that the output would be " .0 " or " 0. " and that is playing hob with the u8G2 displayString command. Maybe I need to be able to convert it to text



Les

Posted

All, I have the panel 90% working now, but (for the VHF AM panel at least) are Freq 2 and Freq 3 ever anything other than "4" and ".0"? I have the encoders wired for Freq 2 and 3, and no matter what preset you put in and what frequency knobs you twiddle, that's all they ever display, in which case reading the in game data is pointless - I may as well just print 4 and .0

Am I reading that right?



Les

Posted (edited)

Yeah,  dry joint on Freq2 Encoder, so that now shows changes on the LCD display. However the OLED display stubbornly refuses to reflect the LCD numeral, it just gives out letters and also as you rotate the freq2 encoder it messes with the Freq1 OLED

I'll try and get a vid up

here you go



Les

Edited by lesthegrngo
Posted

it's the same, looks like the way the OLED is interpreting the output data

I'm puzzled as to why the Freq2 is dealt with differently to the other two Frequency values that change

Les



Posted (edited)

Ok, with the help of VincVega and No1sonuk, who as ever were untiring in their inputs, I finally have it working. It's a bit late to do detail today, but will happily share anything with you all, but just to show here is a video of the (loosely assembled) VHF AM panel. I still have to finish some details on it but 95% of the work has been done

Thanks once more to all that helped!

Les





Edited by lesthegrngo
  • Like 1
  • Thanks 1
