A-10 UHF Values to 3.5in Arduino Diplay

[Rapti]

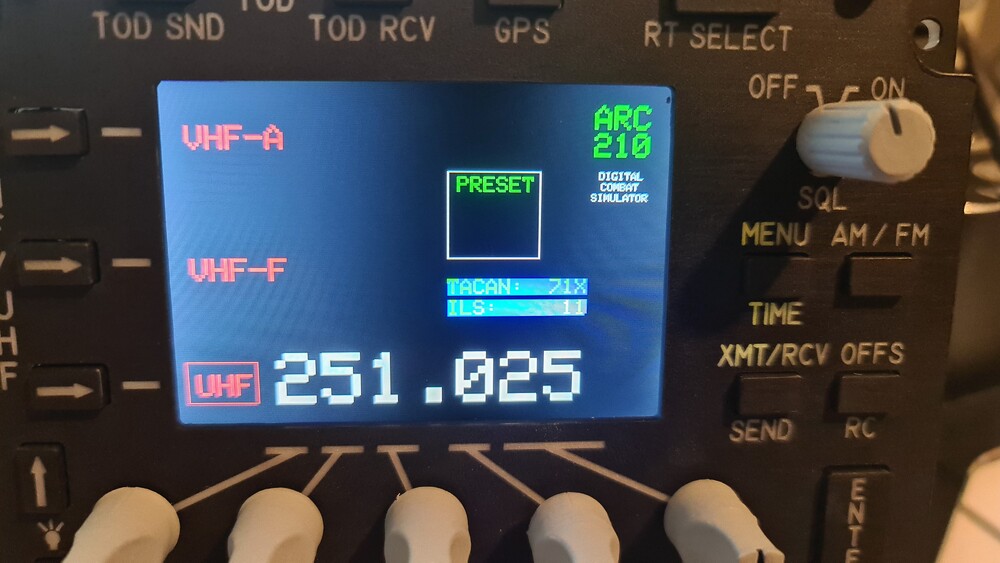

Hello friends, maybe someone can help me here. I want to show certain values of the UHF on a display in my A-10 cockpit (for example the preset). The display is a 3.5in Arduino display.

I must confess that I have little idea of DCS programming and do everything by Try&Error. I wrote the following program which writes the static text and graphics to the display. For the output of the preset channel I have the following code in DCS BIOS:



void onUhfPresetChange(char* newValue) {

/* your code here */

}

DcsBios::StringBuffer<2> uhfPresetBuffer(0x1188, onUhfPresetChange);



If I include this in my code then nothing happens in the display.

The code compiles without any problems

Could someone go over the code for a moment and tell me if I have a general problem in the code?



https://pastebin.com/KbpkEs0S



#define DCSBIOS_DEFAULT_SERIAL

#include "DcsBios.h"

#include <LCDWIKI_GUI.h> //Core graphics library

#include <LCDWIKI_KBV.h> //Hardware-specific library

LCDWIKI_KBV mylcd(ILI9481,A3,A2,A1,A0,A4);

#define BLACK 0x0000

#define BLUE 0x001F

#define RED 0xF800

#define GREEN 0x07E0

#define CYAN 0x07FF

#define MAGENTA 0xF81F

#define YELLOW 0xFFE0

#define WHITE 0xFFFF



void onUhfPresetChange(char* newValue) {

mylcd.Set_Text_colour(RED);

mylcd.Set_Text_Back_colour(BLACK);

mylcd.Set_Text_Size(6);

mylcd.Print_String(newValue, 294, 110);

}

DcsBios::StringBuffer<2> uhfPresetBuffer(0x1188, onUhfPresetChange);



void setup()

{

DcsBios::setup();

Serial.begin(9600);

mylcd.Init_LCD();

Serial.println(mylcd.Read_ID(), HEX);

mylcd.Fill_Screen(BLACK);

mylcd.Set_Text_Mode(0);

mylcd.Set_Text_colour(GREEN);

mylcd.Set_Text_Back_colour(BLACK);

mylcd.Set_Text_Size(3);

mylcd.Set_Rotation(1);

mylcd.Print_String("ARC", 400, 20);

mylcd.Print_String("210", 400, 45);

mylcd.Set_Text_colour(WHITE);

mylcd.Set_Text_Back_colour(BLACK);

mylcd.Set_Text_Size(1);

mylcd.Set_Rotation(3);

mylcd.Print_String("DIGITAL", 405, 80);

mylcd.Print_String("COMBAT", 407, 90);

mylcd.Print_String("SIMULATOR", 398, 100);

mylcd.Set_Text_Size(7.5);

mylcd.Set_Text_Back_colour(WHITE);

mylcd.Print_String("251.025", 105, 250);

mylcd.Set_Text_Size(3);

mylcd.Set_Text_colour(RED);

mylcd.Set_Text_Back_colour(BLACK);

mylcd.Print_String("VHF-A", 30, 40);

mylcd.Print_String("VHF-F", 30, 160);

mylcd.Print_String("UHF", 30, 270);

mylcd.Set_Draw_color(RED);

mylcd.Draw_Rectangle(20, 258, 86, 298);

//mylcd.Draw_Rectangle(20, 115, 460, 155);

//mylcd.Draw_Rectangle(20, 165, 460, 205);

//mylcd.Set_Draw_color(RED);

//mylcd.Fill_Rectangle(435, 70, 455, 100);

//mylcd.Draw_Rectangle(435, 120, 455, 150);

//mylcd.Draw_Rectangle(437, 122, 453, 148);

//mylcd.Draw_Rectangle(435, 170, 455, 200);

// mylcd.Draw_Rectangle(437, 172, 453, 198);

mylcd.Set_Draw_color(WHITE);

mylcd.Draw_Rectangle(265, 80, 350, 160);

mylcd.Set_Text_colour(GREEN);

mylcd.Set_Text_Back_colour(BLACK);

mylcd.Set_Text_Size(2);

mylcd.Print_String("PRESET", 274, 85);

//mylcd.Set_Text_colour(RED);

//mylcd.Set_Text_Back_colour(BLACK);

//mylcd.Set_Text_Size(6);

//mylcd.Print_String("3", 294, 110);

mylcd.Set_Text_colour(GREEN);

mylcd.Set_Text_Back_colour(BLUE);

mylcd.Set_Text_Size(2);

mylcd.Print_String("TACAN: 71X", 265, 180);

mylcd.Print_String("ILS: 11", 265, 200);

}

void loop()

{

DcsBios::loop();

}

Edited January 30, 2023 by Rapti

[No1sonuk]

I can't get it to work either, and my character LCD display is showing the values changing, so it's not DCS.
Your code is too complex for me to fault-find this evening.
Maybe you should start over and make it modular to begin with.
Get it displaying a simple value changing first, then go into the fancy formatting.


[Vinc_Vega]

Try to remove or comment the "Serial" statements within the Setup loop.

Regards, Vinc

[Rapti]

14 minutes ago, Vinc_Vega said:

Try to remove or comment the "Serial" statements within the Setup loop.

Regards, Vinc

both of them?



Edited January 31, 2023 by Rapti

[Vinc_Vega]

Yes, both "Serial" statements as they may disturb the communication managed by DCS-Bios.

Regards, Vinc

Edited January 31, 2023 by Vinc_Vega

[No1sonuk]

I just tried the OP sketch without those two lines and it now displays the changing number. Good call, Vinc.

I would still suggest a rewrite in modular form, though.

[Vinc_Vega]

Thanks for the reply

The Serial protocol seems to conflict the DcsBios communication. For debugging I mostly put Bios commands within compiler switches to separate them from Serial commands.

See below for your imagination.



Regards, Vinc



// #define TEST  // uncomment for testmode

#ifndef TEST
  #define DCSBIOS_IRQ_SERIAL
  #include "DcsBios.h"
#endif

...


void setup() {

#ifdef TEST
  Serial.begin(115200);
  Serial.println("Booting...");
#endif

#ifndef TEST
  DcsBios::setup();
#endif

...

void loop() {

#ifdef TEST
run_display_test();
#endif

#ifndef TEST
  DcsBios::loop();
#endif

...



Edited January 31, 2023 by Vinc_Vega

[No1sonuk]

I usually send to an I2C character LCD for debugging.

[Rapti]

Hi Vinc, thanks for your help. Works great!

thats the new code:

https://pastebin.com/hGaPPxqM

regards

Ivor

Edited February 1, 2023 by Rapti

[Metallkasten]

This was great. I tweaked it a little since it didn't seem to fit correctly on the elegoo tft display I have, I switched to all green/black as a matter of personal preference, and did some slight rearranging. https://pastebin.com/cS9vv56W
