Kneeboards for Mirage F1 for air-to-air missile, unguided bombs and rockets, and cannon employment


Recommended Posts

Posted (edited)

I put together some simple procedural kneeboards for the Mirage F1, placed in the User Files section:

https://www.digitalcombatsimulator.com/en/files/3329090/

As stated these are not official procedures, just what I've put together as a quick reminder on how to employ air-to-air weapons, unguided bombs and rockets, and cannon on the Mirage F1 (after not flying it for a while).  Kneeboards included:

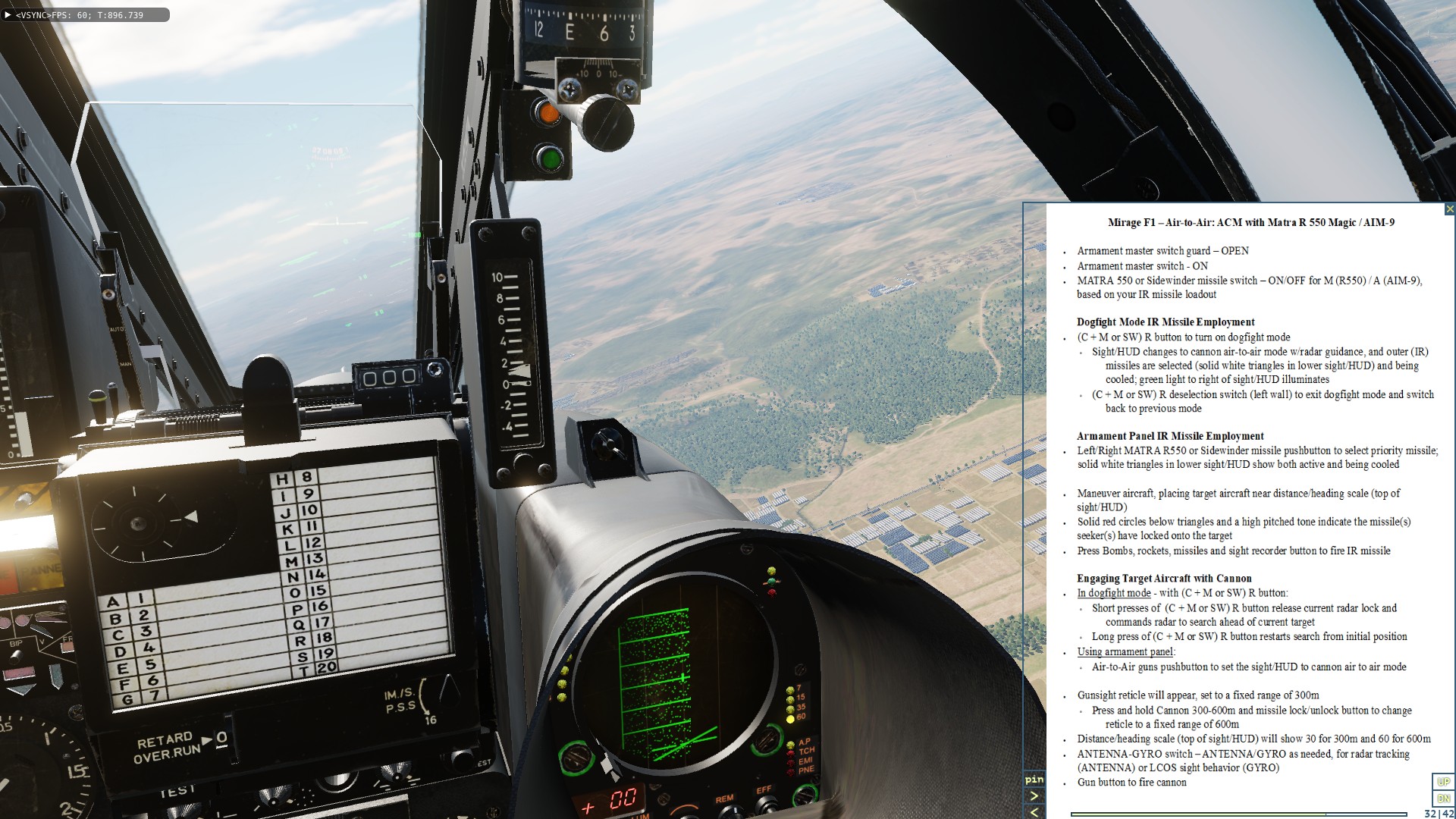

MIRAGE F1 - AIR-TO-AIR ACM MATRA R550 MAGIC AIM9.png
MIRAGE F1 - AIR-TO-AIR BVR ACM MATRA R530EM S530F.png
MIRAGE F1 - AIR-TO-GROUND UNGUIDED BOMBS AND ROCKETS.png
MIRAGE F1 - DEPRESSION ANGLE TABLE - MATRA F4 - 1.png
MIRAGE F1 - DEPRESSION ANGLE TABLE - MATRA F4 - 2.png
MIRAGE F1 - DEPRESSION ANGLE TABLE - SAMP 250 LD.png

The Mirage F1 kneeboards need to be placed in separate Kneeboard folders for each of the Mirage F1 variants, for example:

C:\Users\<your name>\Saved Games\DCS.openbeta\Kneeboard\Mirage-F1CE

C:\Users\<your name>\Saved Games\DCS.openbeta\Kneeboard\Mirage-F1EE

Note that while the Mirage F1 comes with kneeboards for weapons use, and the depression angle tables, I wanted some additional details (and larger fonts for the tables), so I went ahead with creating these.

Enjoy!
AKA_Relent
(ED forums: 609_Relentov)


Edited by 609_Relentov
correct fonts
  • Like 5
  • Thanks 2
  • 3 weeks later...
Posted

Corrected kneeboard: MIRAGE F1 - AIR-TO-AIR ACM MATRA R550 MAGIC AIM9.png, regarding use of the MATRA 550 or Sidewinder missile switch, based on clarification from ED Beta Testers (thanks IvanK!).
