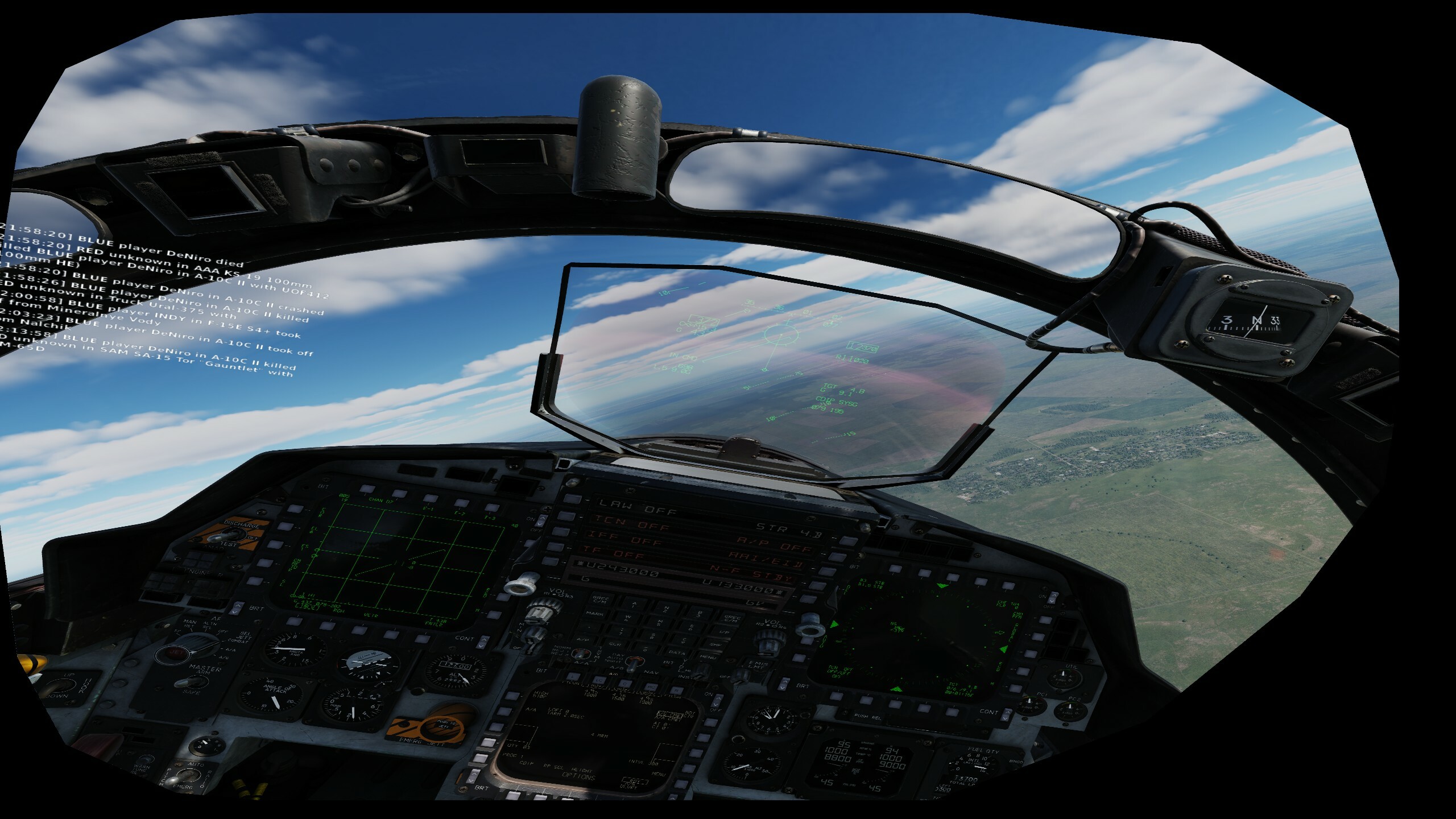

INDY69 Posted August 20, 2023 Posted August 20, 2023 0kts wind. Nav Designation. ASL incorrectly outside HUD while pointed at target. ASL broken and still could not get CBU-97 low alt and medium alt release. With ASL pegged to the side jet will only give TTGT vice TREL thus inhibiting release. Decided to switch to CDIP delivery and the pipper was incorrectly placed. The CDIP pipper went up from velocity vector and was fixed in HUD directly below gun cross. It looked like the CDIP bombing symbology was mixed with CDIP Gun symbology. Look at screenshot. I'm 1.5Gs not negative Gs. I had a couple of releases during this sortie that the ASL was correct, but it eventually failed and was hard to one side. After ASL symbology failure is when I got the CDIP symbology failure.
Ramses823 Posted August 27, 2023 Posted August 27, 2023 I have had this happen with the CDIP Pipper as well it will be fine for a few releases, then that upside down pipper thing will appear. For some reason putting my target point back in the system fixes it, for example even if my target point is currently 8. I will put in 8. and for whatever reason it will correct the issue for a few more runs but the piper will bug out again after a bomb run or two and i will repeat the process.
INDY69 Posted September 1, 2023 Author Posted September 1, 2023 Yes I've seen that too. Putting in 8. again while in A/G master mode is a Nav redesignation. There seems to be a problem with the way the module is creating and maintaining designations as well as target release symbology. I have to redesignate with the targeting pod, radar, and Nav several times during some missions to get the azimuth steering to work. And sometimes it is just RTFO like in this pic.
