Dimensions of Orion 2 F-15EX throttle

[xoxen]

Hi,

I´m searching for the dimensions of the Orion 2 throttle with F-15EX grips as I have this on pre-order and would like to do some dust covers. The main dimensions are mentioned in the downloadable manuals of the base as well as the grips. To be on the save side it would be good to have the overall height and position when pushed to the front. If anybody could support me on this I would be very happy.

Thanks,

Xoxen

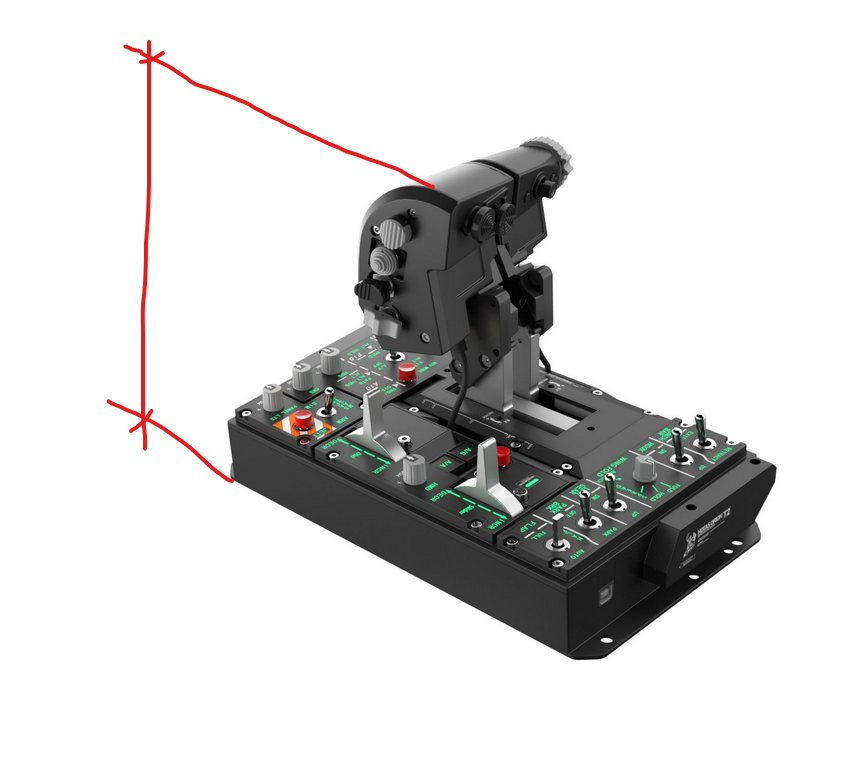

Edit: This height is what I need most, best if the grips are pushed to max power.

Edited September 29, 2023 by xoxen
Picture added

[chuchango]

205mm on middle position, like in your image,   and 155mm in max power position.

[xoxen]

Great, thanks for your help.

Edit: Finally my Orion 2 with F-15EX grips arrived an I need to make a small correction to the previous post, when at max position (afterburner) the heigth is 130mm and in middle 170mm. I have the fingerlifts installed.

Edited October 29, 2023 by xoxen
