Chinese Type 054B frigates

[meimingzi123456]

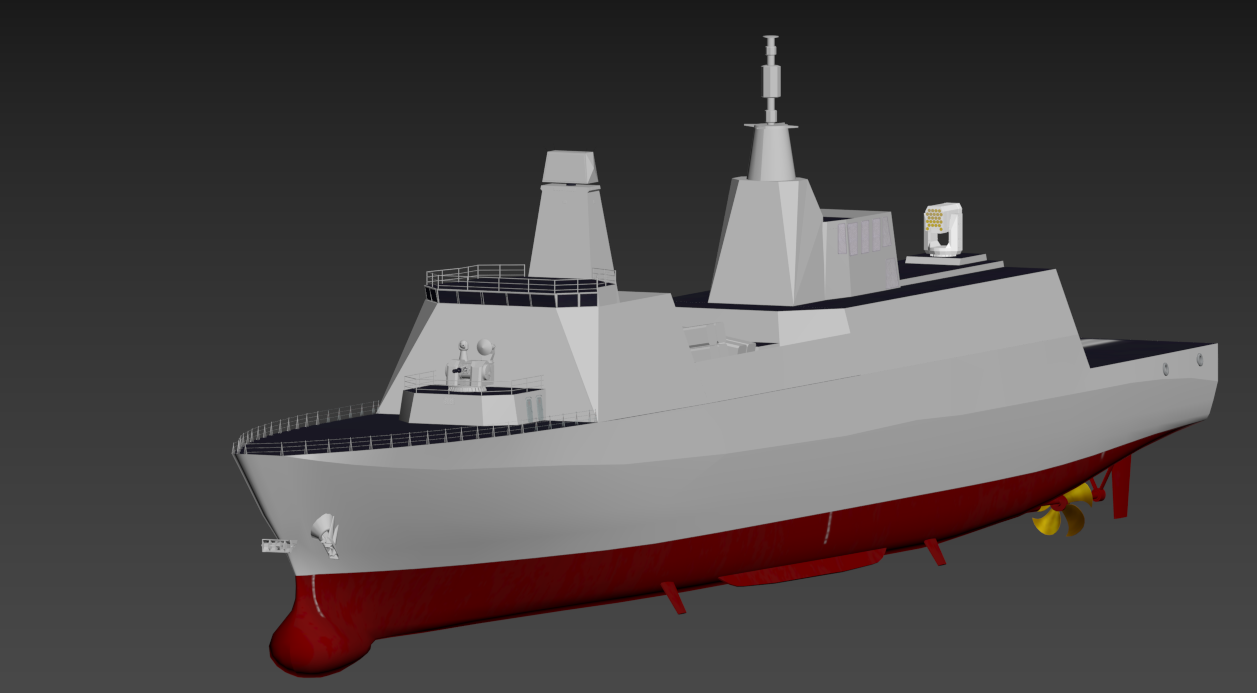

Hello, this post shows the 054B frigate from China, compared to his predecessor 054A, the hull has been lengthened, widened to 18 meters, the tonnage is about 6000 tons, and the weapon is expected to be equipped with an H/PJ-87A 100mm main gun Compared to the 052C, there is no chamfer, which is more beautiful. There is an H/AJK16 vertical launch system behind the main gun, which can launch HHQ-16F with a range of up to 180km, and the back uses the same 1130 anti-aircraft gun as 055 and 052D/L, and the turret uses the same oblique turret as 003, and then the center of the ship is equipped with 8 combined YJ-12 supersonic anti-ship missile launchers, and 8/16/32 general vertical launchers may be installed in the future to launch YJ-18 (extremely unlikely), There are two stealthy 726-4A jamming missile launchers behind the boat, and above the hangar there is a 24-pack HQ-10 short-range missile, but I only built part of it!
