Triple Monitors - adjustment of angle at the bezel?

[GPatricks]

Thanks @LG_Barons , I was trying to get my triples set up (3x32" Samsung curved) with two 8" Lilliput 600x800 USB monitors (portrait mode) with TM MFD bezels and all worked well except the cockpit was stretched out\flattened horizontally as was everything else. It was a matter of over-riding the stock "Aspect =" with my monitor size for each camera. I had already changed the "screen.height" parameters to 1440 as left alone the main screen displayed into my MFDs as it was using the main DCS Screen settings..

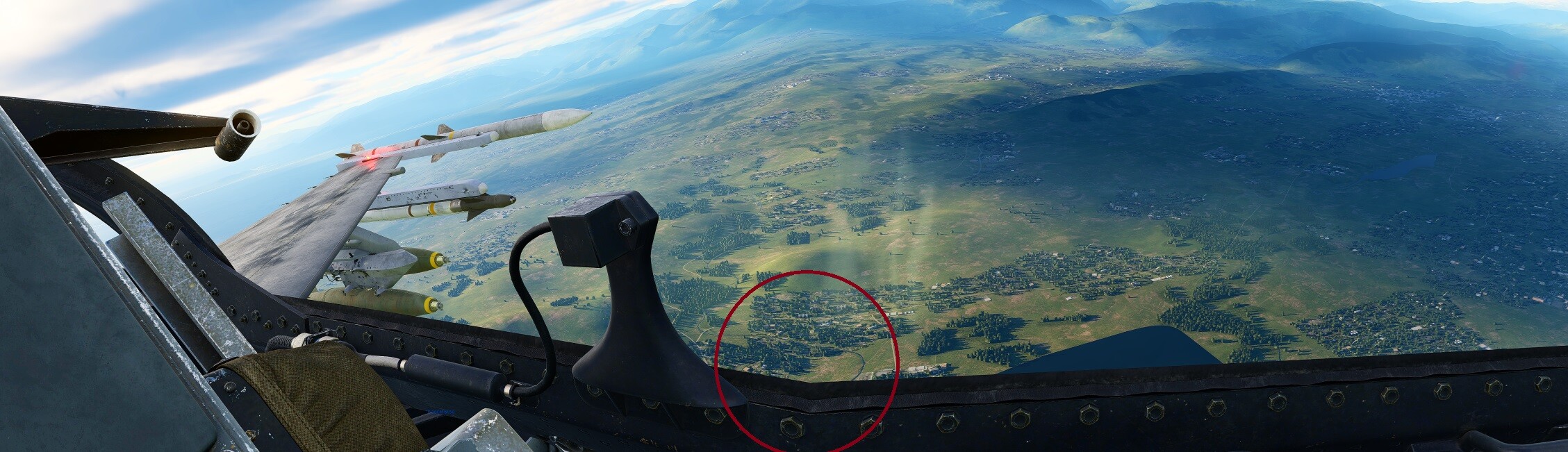

The one issue I see now (in the F-16 in this case) Is when I turn my head (TIR5) left\right the canopy base line is skewed off-angle at the bezel of the side monitors. My monitors are curved and form a continuous arc following the curvature of the center outwards. Is there an adjustment for this? Is it the "CameraViewAngleLimits  =" setting in the views.lua for each aircraft or something else?



Here is my final .lua, maybe it will help someone going forward, works great other than the bezel angle thing! I'll add a pic in a bit..

_  = function(p) return p; end;
name = _('3 Screen 2 MFDs');
Description = 'Configuration with 3 monitors with 2 MFDs'
description = 'MFDs_Export'
LEFT_MFCD = { x = 2580, y = 1442, width = 520, height = 520 }
RIGHT_MFCD = { x = 4540, y = 1442, width = 520, height = 520 }
Viewports =
{
     Left =
     {
          x = 0;
          y = 0;
          width = screen.width / 3;
          height = 1440;
          viewDx = -1;
          viewDy = 0;
          aspect = 2560/1440;
     },

     Center =
     {
          x = screen.width / 3;
          y = 0;
          width = screen.width / 3;
          height = 1440;
          viewDx = 0;
          viewDy = 0;
          aspect = 2560/1440;
     },

     Right =
     {
          x = screen.width * 2 / 3;
          y = 0;
          width = screen.width / 3;
          height = 1440;
          viewDx = 1;
          viewDy = 0;
          aspect = 2560/1440;
     }
}

UIMainView = Viewports.Center
GU_MAIN_VIEWPORT = Viewports.Center



Edited February 14, 2024 by GPatricks
