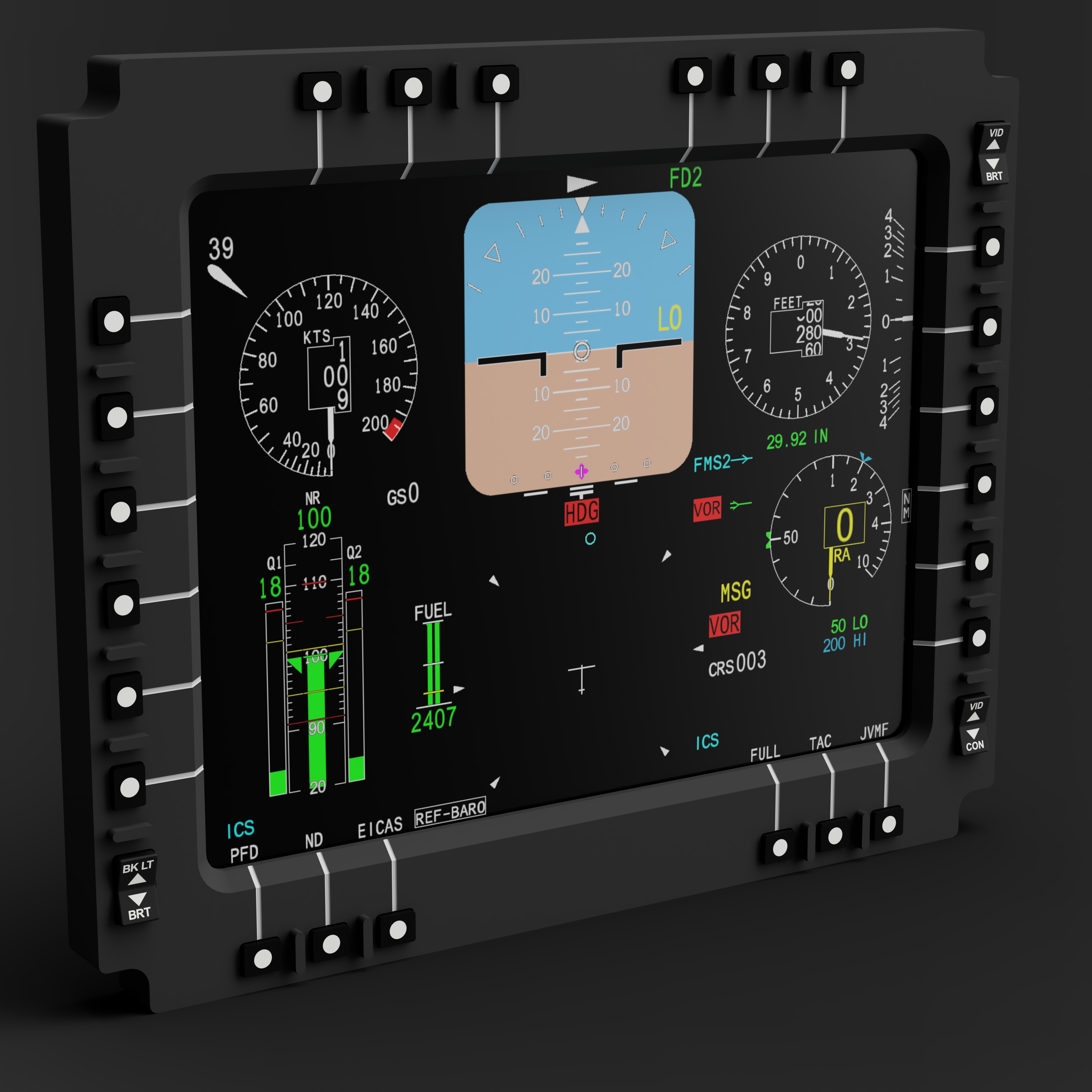

TrevorMcNeill Posted April 5, 2024 Posted April 5, 2024 (edited) As my journey continues to build a 60M simpit(please ED I need it in my life) Last night I started work on the MPDs(same same as MFDs). Im about 5hrs of design in, in the last two days. As it stands the faceplate is nearly complete still need the screen so I can properly model a spot for it and I need to figure out which rocker switch im using in the top left for on/off Single and dual buttons have been fully modeled to be backlit via 6x6 led tac keys. Have the resin I need coming today so hopefully I can get a working demo of them backlit by tonight. Intent is that the frame will be FDM printed and the button caps are resin printed black and backfilled by hand with white resin. Goal is for it to be a near one to one with the one in the actual aircraft, though, as the real ones have some buttons not quite "mirrored/centered" for whatever reason mine will be different because OCD haha. Hope you all like it! Edited April 5, 2024 by TrevorMcNeill 1
