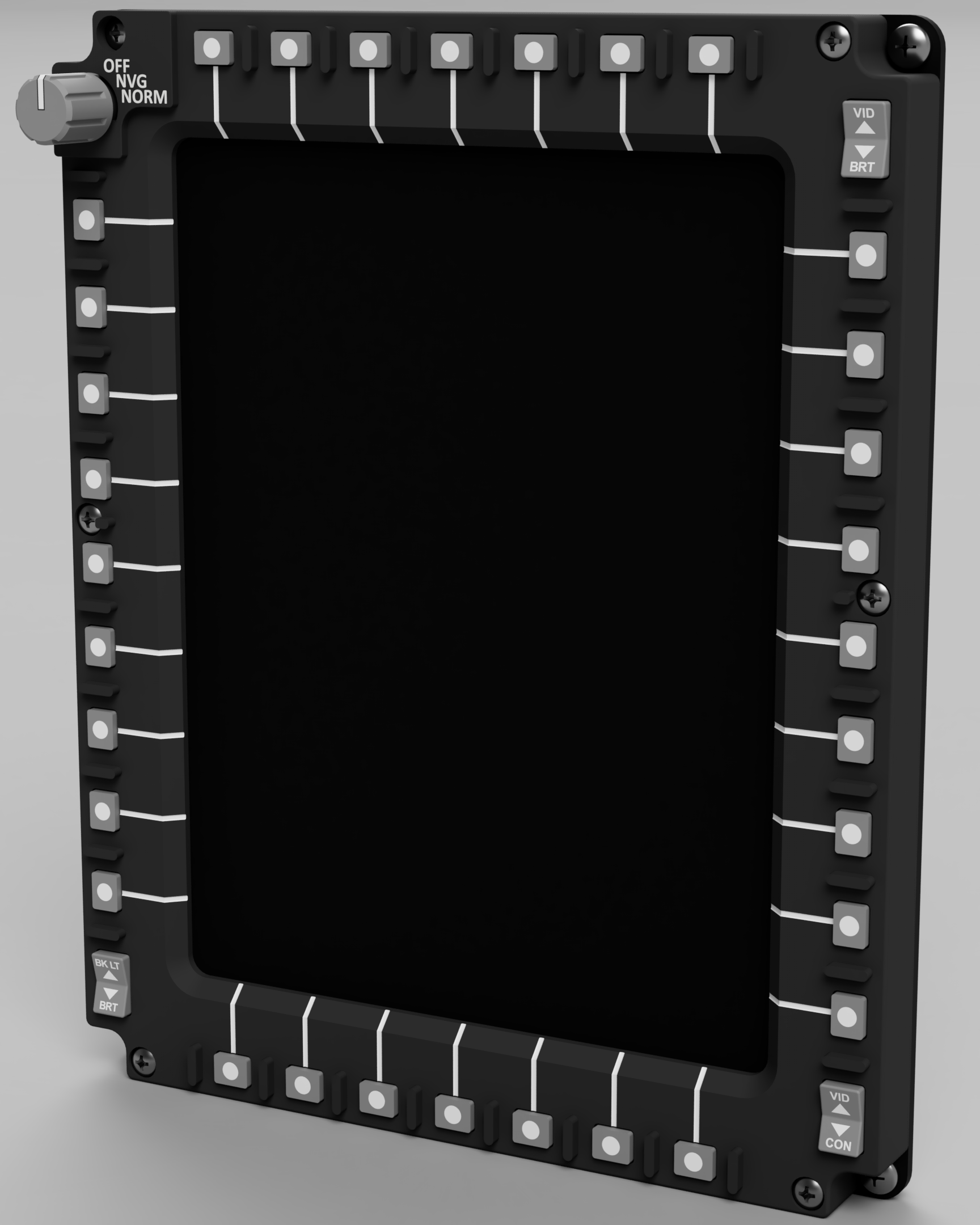

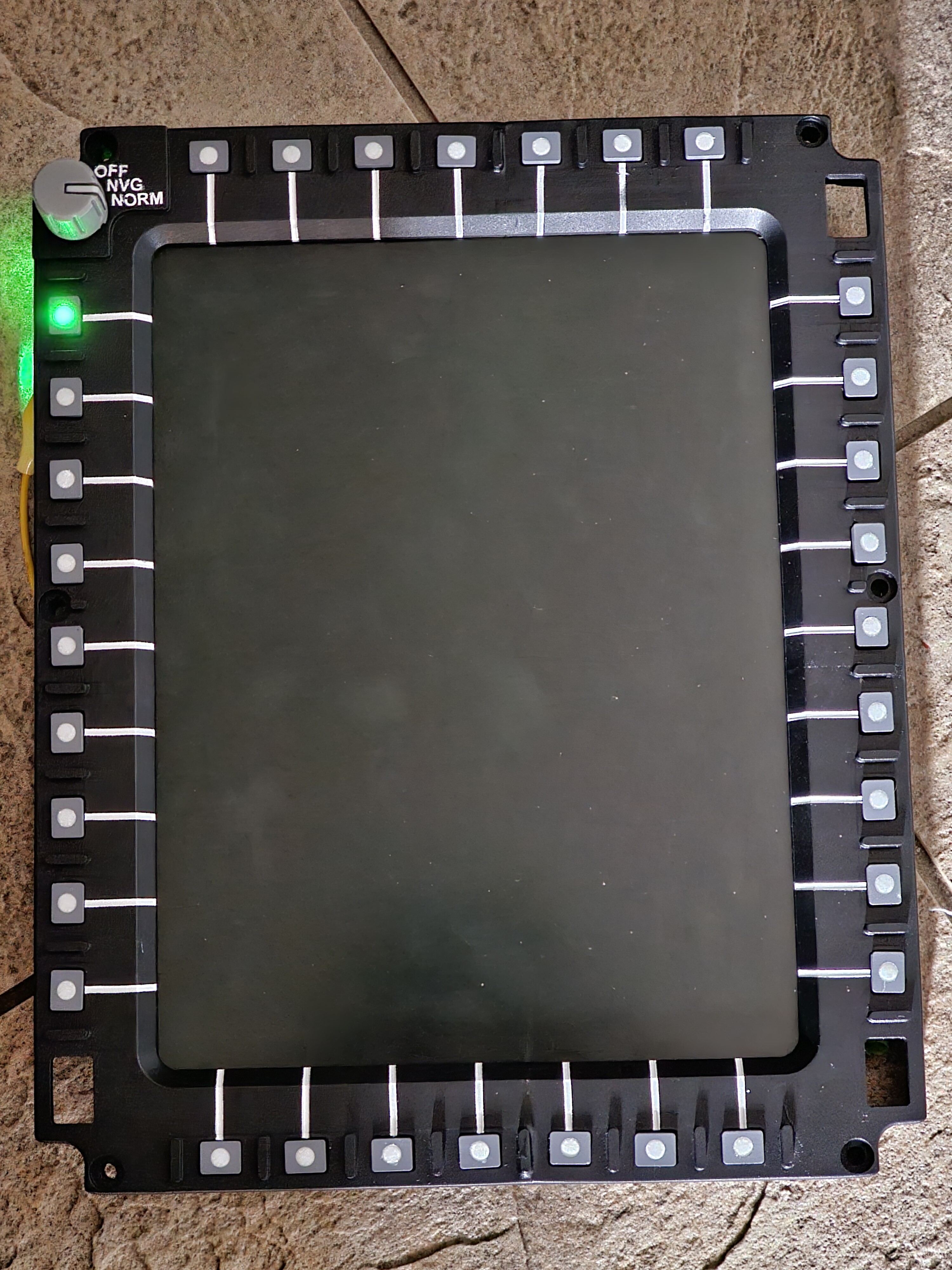

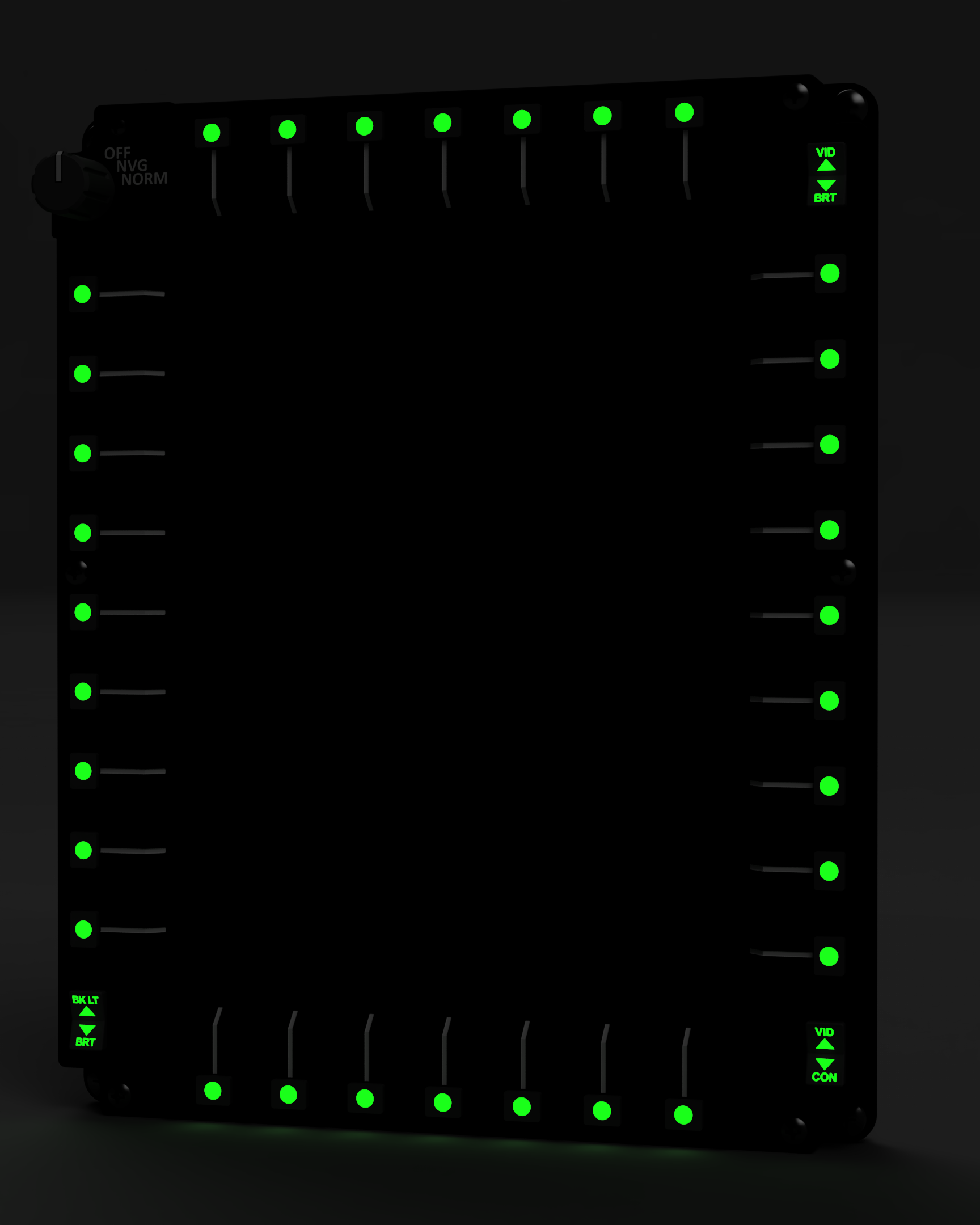

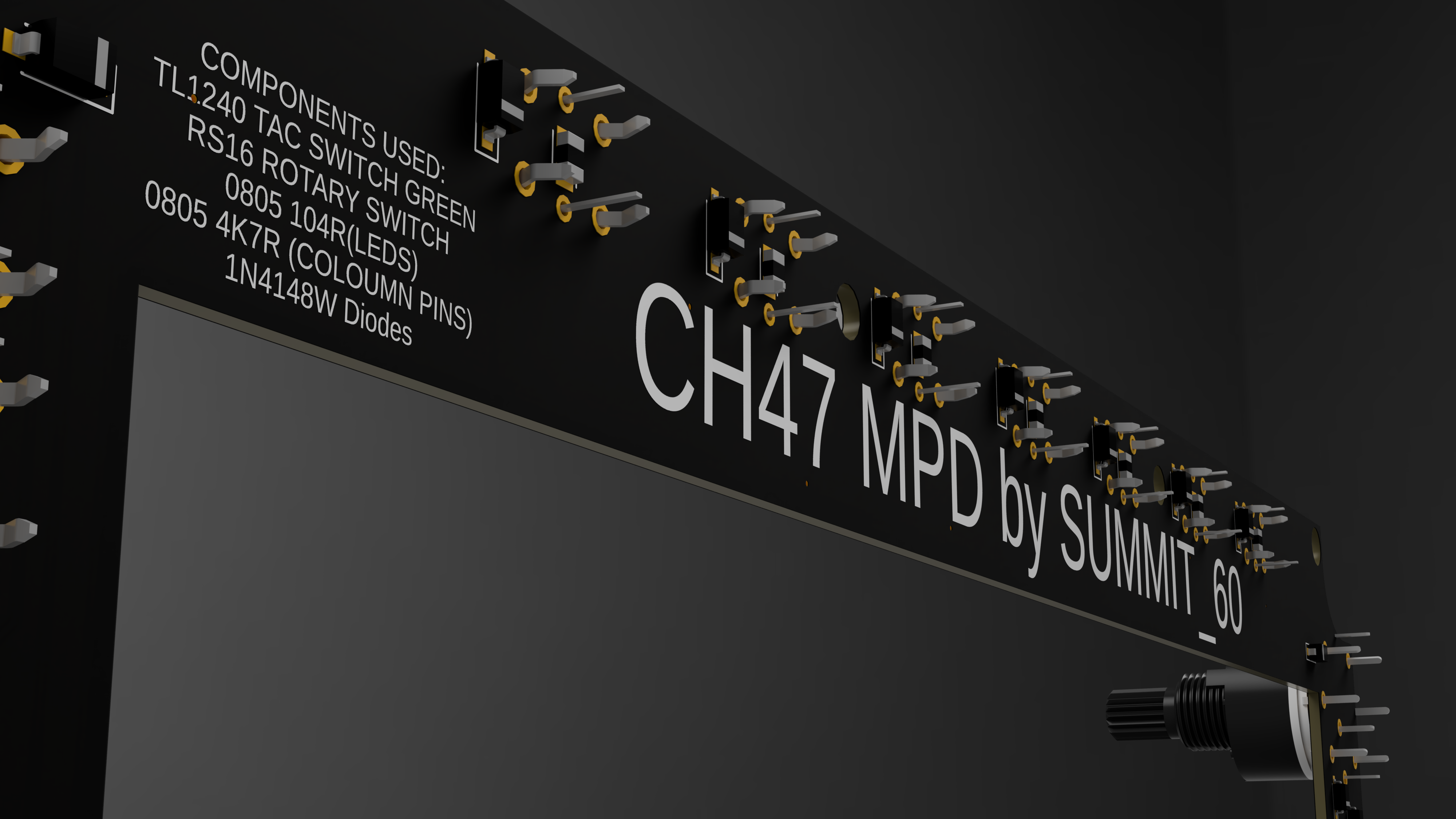

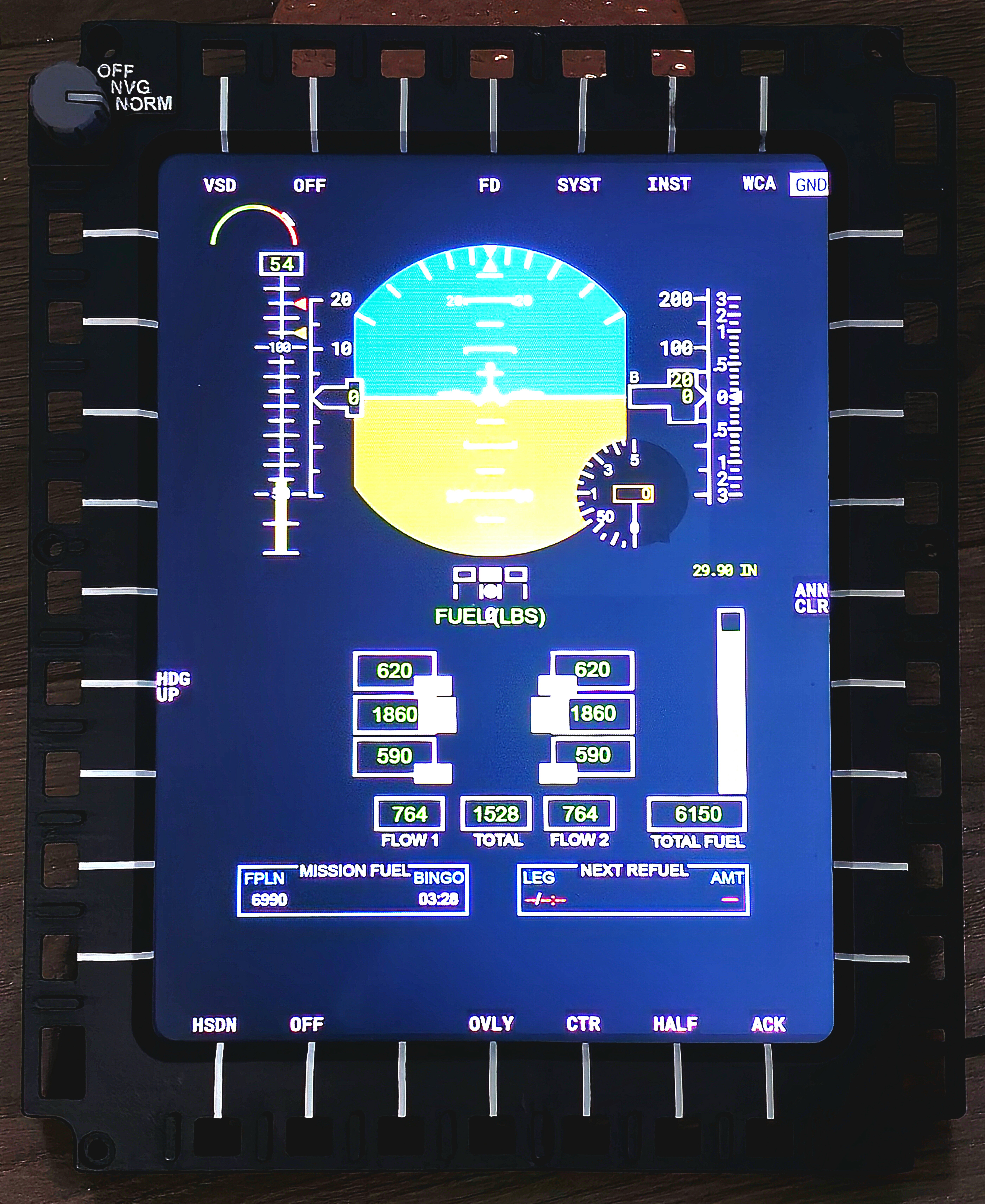

TrevorMcNeill Posted June 29, 2024 Posted June 29, 2024 Hey all! With the 47 release around the corner, I figured I'd post my progress on my near 1:1 47 MPD/MFDs. Most progress in on pause til I'm able to get a large enough resin printer to print whole that way I can dial in fitment as currently I'd have to print in 5 parts which can be less precise. Also need a laser engraver as while the main buttons can be painted easily I cannot get good results for the rocker switch lettering. Hopefully once I'm back next year I can get this complete and up to my standards. My prototype PCB and print worked for the most part(found out none of my ground pads were actually connected to ground....) Anyways, hope you all like it! Can't wait to get this out there! 4
Nikolas_A Posted July 2, 2024 Posted July 2, 2024 Looking nice! Two suggestions: Dome switches are better than tactile, more realistic activation forces, cheaper, longer lifer The knob is an overkill, print in clear, mask and paint. That's how the real ones are made 1

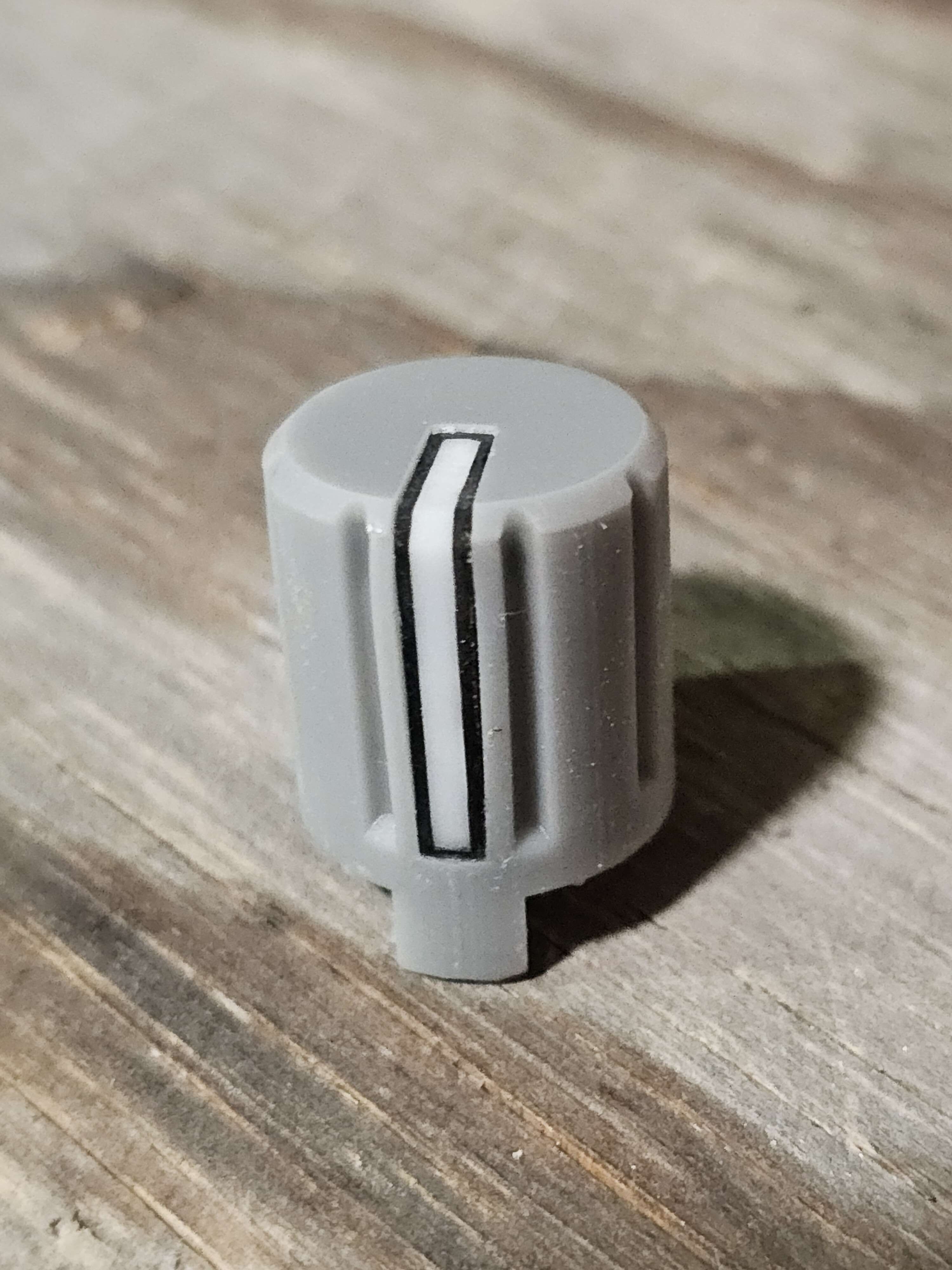

TrevorMcNeill Posted July 13, 2024 Author Posted July 13, 2024 (edited) On 7/2/2024 at 12:06 PM, Nikolas_A said: Are all 5 MFDs the same size on the Chinook? Yes, they are all the same.(to my knowledge, though to me, it would be logistically odd to not use the same screen on all 5) As for the rotary, I did try to get the results I wanted with painting, however, I couldn't get a result I was happy with. It's also not hard to print or assemble so now that it's done it takes 5 seconds to assemble and it's as close to perfect as you can get. Also, since it's all printed, there's no risk of wear from use so that's kinda nice. As far as the switches go, I'm un familiar with the dome switches you mentioned, I'd have to look into them, however, they don't feel much different than those used in the actual MFDs(I fly 60s that use the same model MFD just a different faceplate). Sorry it took so long to respond, I rarely get on the forums and forgot to check. Edited July 13, 2024 by TrevorMcNeill 4
corbu1 Posted July 27, 2024 Posted July 27, 2024 Wow! That is looking great! Keep us updated please! 2 DCS Version: 2.9.15.9408 Modules: UH-1H - SA342 - KA-50 BS3 - MI-24P - MI-8MTV2 - AH-64D - CH-47F - OH-58D - UH-60L(Mod, n.i.) - OH-6A(Mod, n.i.) - A-10CII - F-16C - F/A-18C - AJS37 - F-14 - MiG-21bis - JF-17 - Mirage F1 - FC2024 -Combined Arms - Supercarrier - NTTR - Normandy2.0 - Channel - Persian Gulf - Syria - SA - Sinai - Afghanistan - Kola - Iraq - Cold War Germany — Waiting for: BO-105 - AH-1G/F(Mod) DCS-Client: 9800X3D, 64GB 6200, RTX3090, 1TB M2 NVMe(win10), 4TB M2 NVMe(DCS), VR VivePro2, PointCTRL, VaicomPro, Wacom Intuos S with VRK v2Beta DCS-DServer: 11600KF, 64GB 3600, GTX1080, 1TB M2 NVMe(win10), 2TB M2 NVMe(DCSDServer), DCS Olympus Simpit: NLR Flightsim Pro Cyclic: TM Warthog Grip with 30cm Extension + VPforce Rhino FFB FW Stick: TM Warthog Grip and Base, Throttle: TM Warthog Pedals: Komodo Sim. with Dampers Collective: VPC Rotorplus+AH-64D Grip Other: NLR HF8, Buttkicker (3*MiniConcert), TotalControls AH64D MPD‘s and EUFD, Alain Dufour’s AH-64 TEDAC, TM MFD, Streamdecks (1*32,3*15,1*6), VPC CP#1
sahararover Posted April 11 Posted April 11 Hi Trevor, hope you're back and safe! Any progress on these? Would love to support this project.
