Help needed caution panel a10c

[ninja1]

im wondering if there is  anybody  who can help me im  trying too build the caution panel  for the  a10c  from scratch   ive  got  the board  and the resisters  and leds   also the  max 7219   just needing a  diagram   to assist me   for  where i place the wires   ive  looked on here  but  all the images  come out  but dont open right   so im needing  some help  as ive  too  the  full cockpit  of panels   too do   and needing a little help   please

[sharkfin61]

Hi Ninja1,

first of all, it is great to see another one, still building the A-10C's pit in 2024, despite of all the new and shiny aircraft that came out over the past years,  so I don't feel that lonesome anymore.

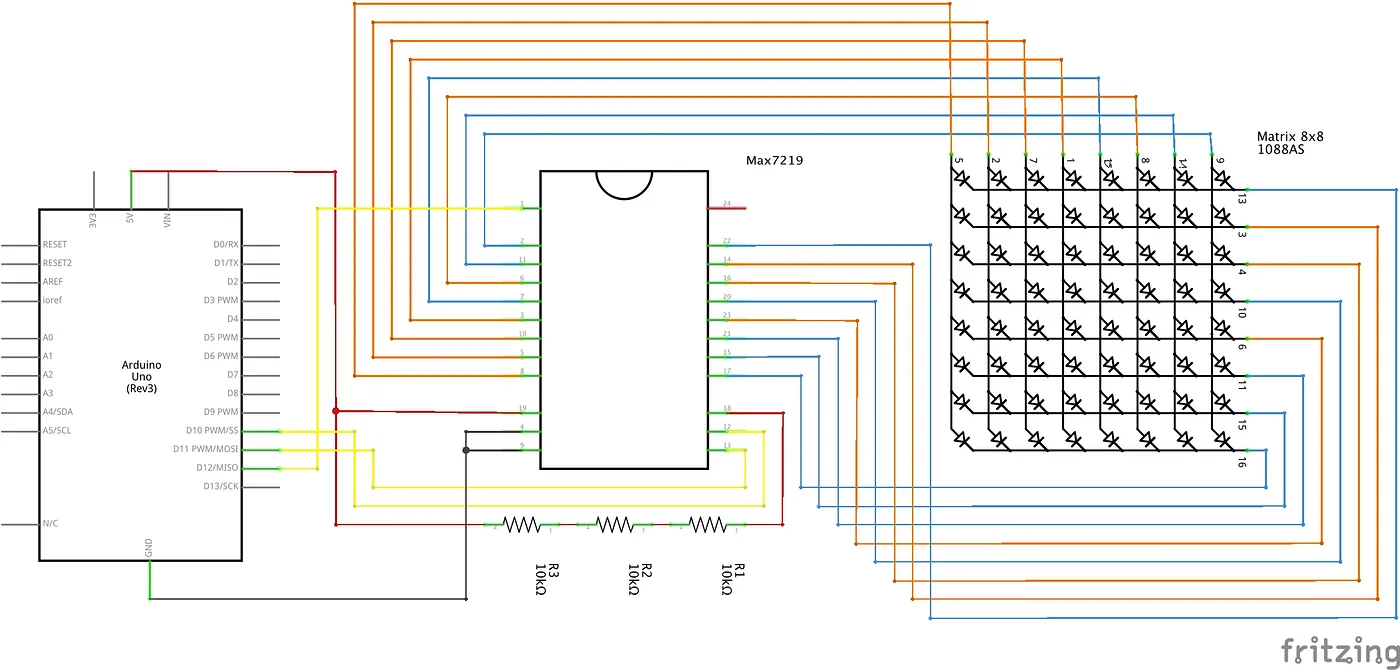

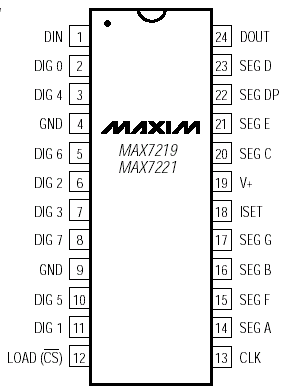

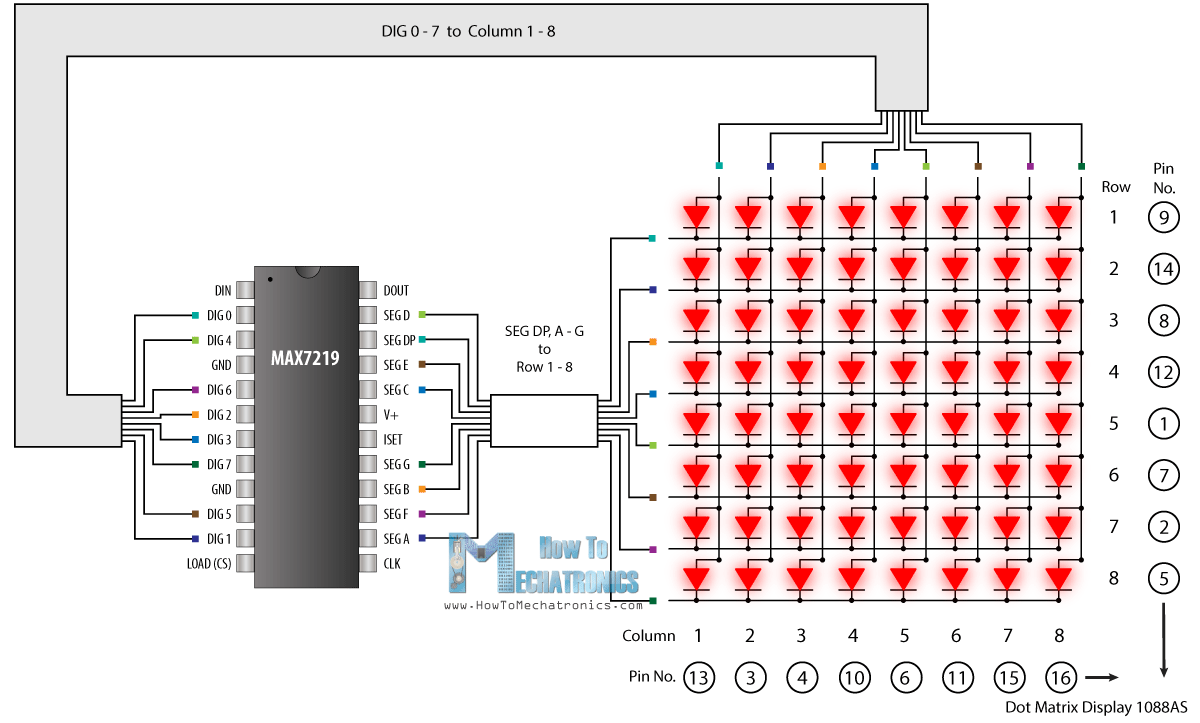

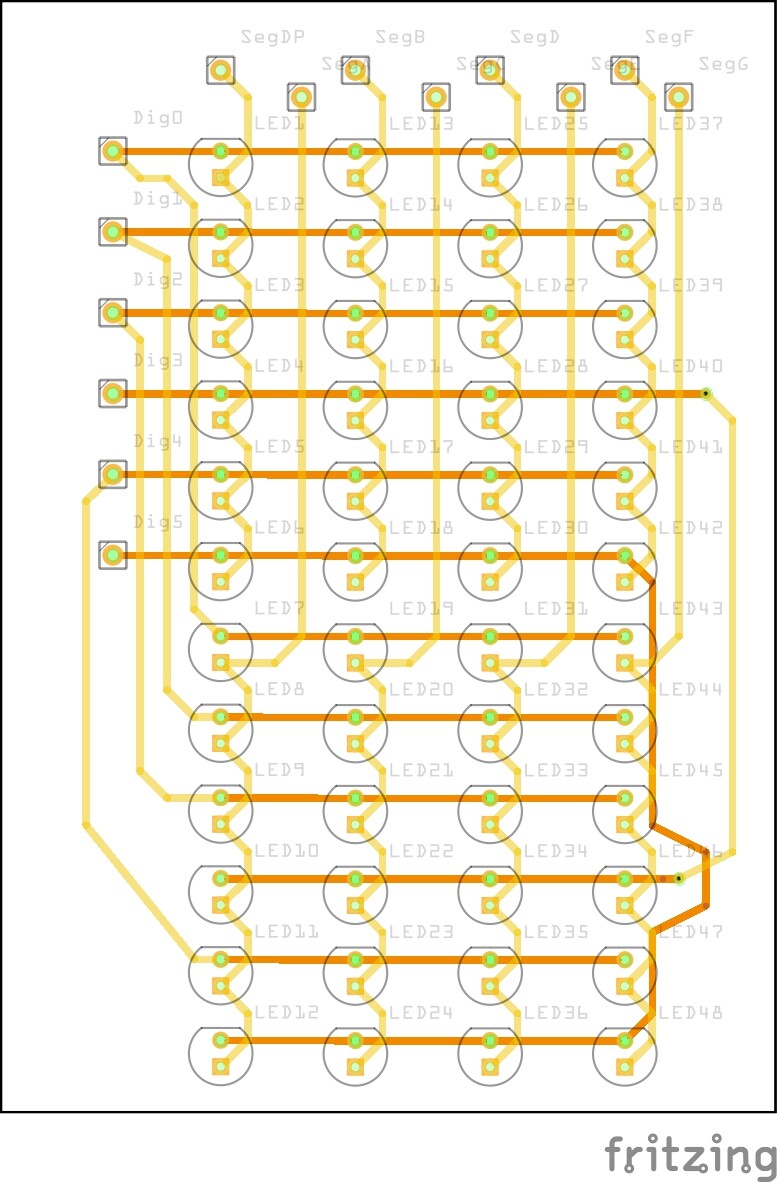

Maybe the attached scematics helps a bit.

I would also recommend to thoroughly study Craig S.'s (www.youtube.com/@CraigSmysimpit ) video on YT:

Finally there  are scematics from the Arduino Forum


It also took me days  to find out the right wiring (I neglected f. e. the mirroring of scematics a.s.o.) ), so just don't give up.





Edited August 18, 2024 by sharkfin61
