sure i have - then you just place your monitor behind and you are flying

me to ;) The only parts i need to finish is: CMSC - waiting for the PCB Parts needed to finish is: Refuel indexer AOA indexer Then into shell building ;) parts to develop on a later time is : G-meter Wet Compass

Still working on the Front...

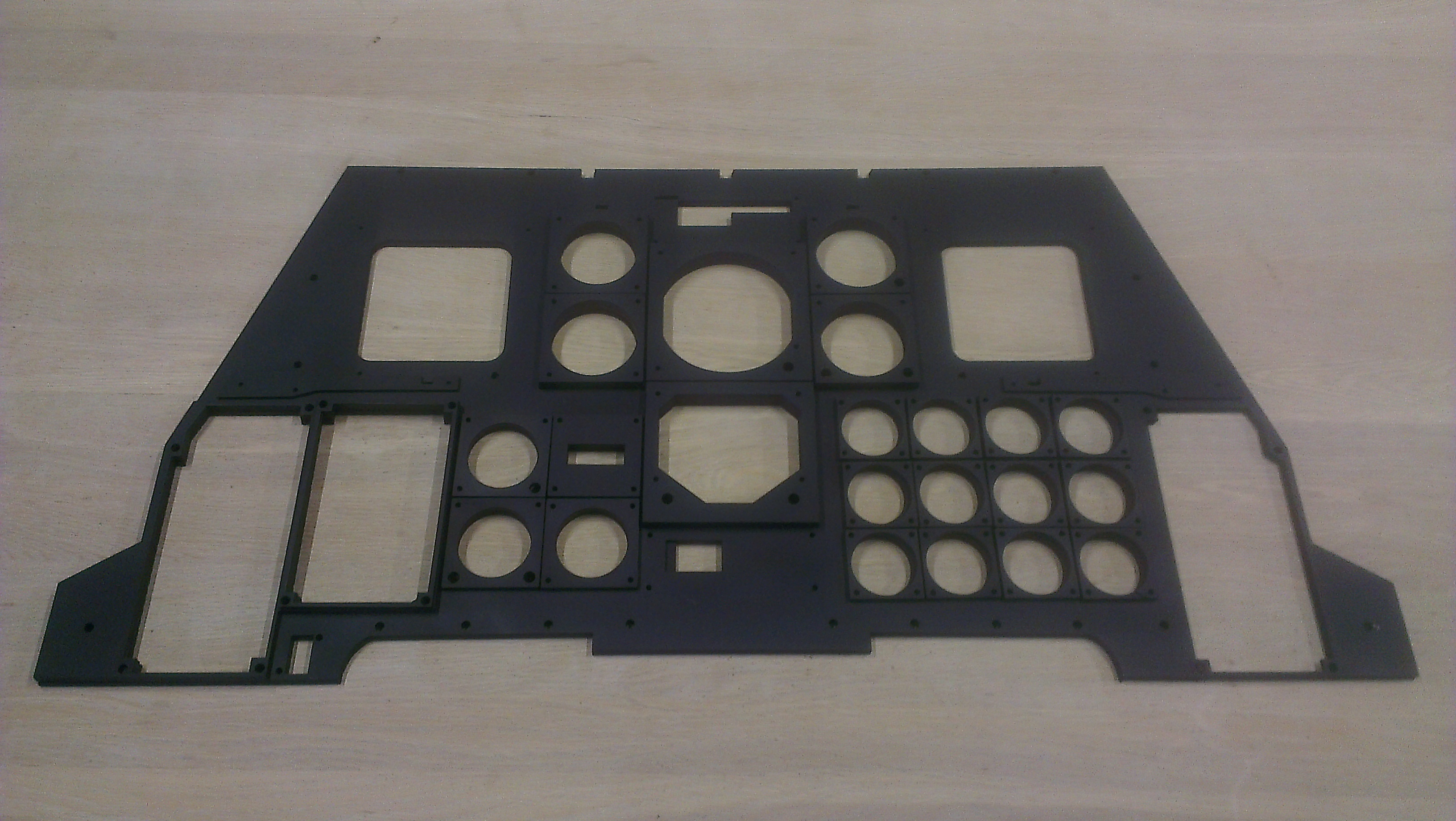

Front Dash Panel - the wires are hidden in layer and your choice of monitor behind Optimized for Gadroc's HELIOS and my Panels I will ofcourse show the final resultat with all panels :music_whistling:

Thanks for binging the threat back on track - now keep the formation ;) /Frank

You are so wellcome - thanks - :pilotfly: back to works

And there is more than doubble on 737 and A320 - I personaly talk to the people behind CockpitSonic - and they send 4-5 full cockpit on the market every month...... When you do that with A10 the price will go down

Thanks Gadroc for a deeper explanation - i did not find the time for that - but just my words - Frank

If you do a caltulation: CDU components VGAscreen 120 USD PCB 120 USD SW 50 USD LEDs 6 USD CONN 2 USD WIRE 1 USD STICKER 15 USD ACRYLIC 10 USD PAINT 15 USD ABS 25 USD BOLT 5 USD SPACER 5 USD JOY.CTRL 100 USD MASHINERI 100 USD TOTAL 574 USD Yes i think 690 USD is a good guess for the price on the CDU right now - don't you guys know what things coast out there ??

Smooth and nice

I redone the TISL panel

this is knob quality for the final product :thumbup:

UHF - DONE

JULY 2013 - my best guess You can use - and my advice - GADROC EOS interface togther with he's HELIOS or - Phidgets also with HELIOS - but with Phidgets version we need a "little" update from Gadroc for full function - or just use any joystick for BTN and AXIS price - the CDU right now i think it ends up around 690 USD - plug'n'play The pic is CDU BACK

....as one of the first ;)

Big Thanks to you GADROC - your HELIOS is makeing these panels come to live... Your work inspirred me to go into this project - All the best from me to you Frank

ENVIRONMENT and OXYGEN - DONE :music_whistling:

AM / FM - DONE - the orange tumb wheel is just for fun - will be gray, ofcourse :) Sorry for the bad cam and light quality.... will make better pic's when finished the project

Your right - a switch is easy 8 GBP - a Dual Encoder is 15 GBP - the mashine are running alot of hours to build....

IFF and EFC - DONE :)

The mission is stated in the beginning of the thread - panels build for simmers Im happy to produce this setup for all of you who want a pit fast - not for those of you who build for life - i have build for life to and use all my time doeing it - it has become my everyday life and i love it, and i hope it will become well to all of you who want to fly with buttons and rotarys - google the internet for hardware for civilian aircraft, there is a bounch - then google it for Fighters - how much is found - a software like DCS must be meet up with hardware for all.... i do not need to do these panels to make my life - i have done that many years ago this project is because of my love to the combatsimulators and flying them in a setup that I share with all you guys - "our home build cockpit" Fly well and stay tight in the formation Frank

SURE ;) - 640x480

No options they are assambled complete - ready to :pilotfly:

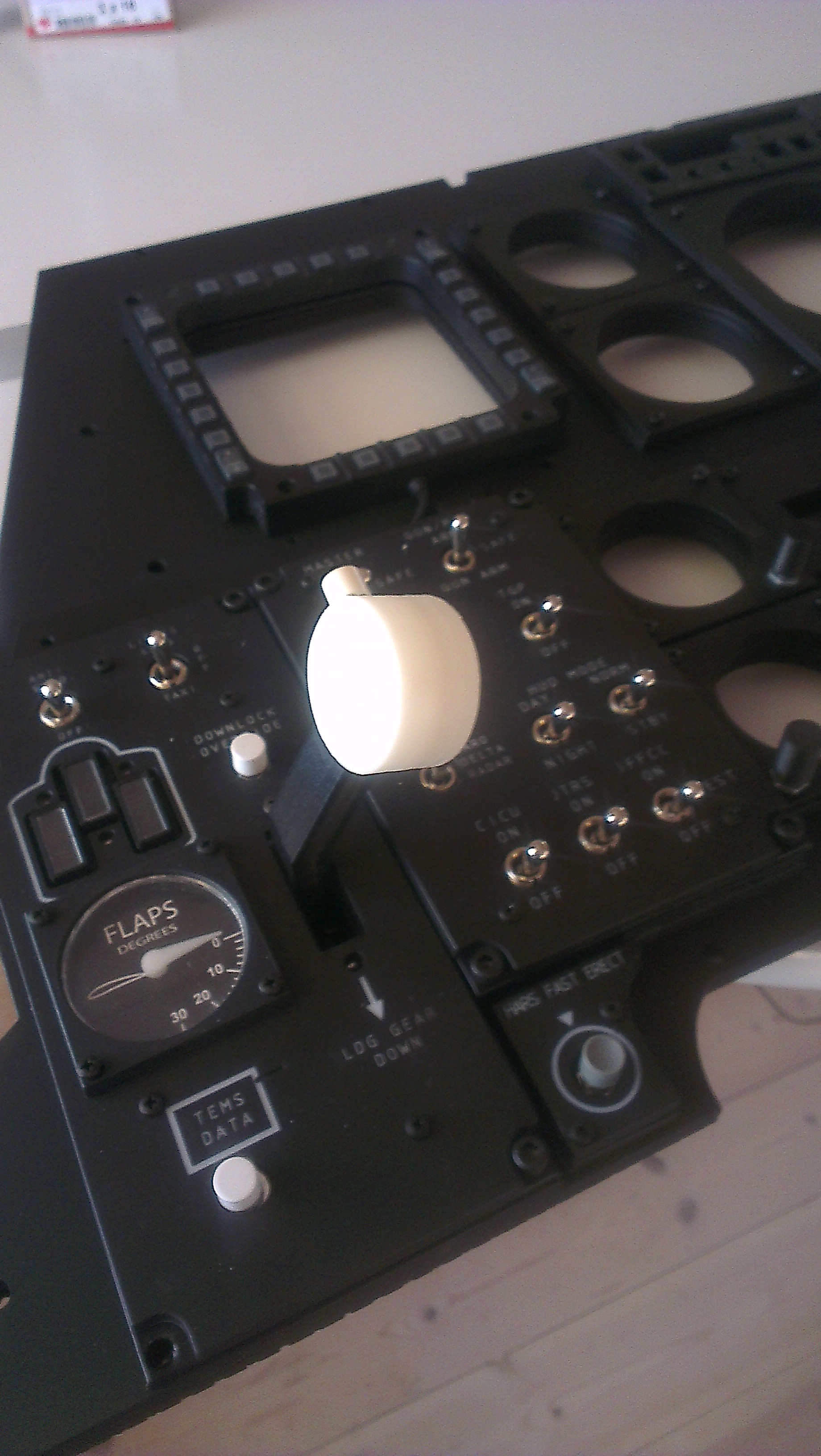

The button vil be made in Black plastic instead of white.... but it will be after all is done

BACKLIT OFCOURCE ;) Same technic used on MasterCaution as on the Caution Panel Indicator (Black when off) BTW - I'll make a Black Button Version Later !!!
