Hi Peter. - And thanks for info. OK, so that was not good news to me. :cry: The panel below is not enough space for easy installation, so then they have to do the hard way. I'm not going to invest $ 6000 on those switches. HarSu.

Hi there. Question about SAS panel, and the more thoroughly the magnetic switches operating principles. Are these switches acting individually or whether they are working so that if a problem occurs with hydraulic or electrical side, all the switches are switched off? Are they individually? Or will they work in pairs? Or is it so that all the switches are switched off at the same time? I hope you understand what I mean ... My intention is to make my own version of the "magnetic switch" with small solenoids, but if each of those switches work individually, I am running out of space. HarSu.

Hi. :thumbup: Thanks cefs, you are my HERO!! :clap_2: Now everything works as it should, and the Helios Also still runs like it should, and everything works in sync. So I'm really happy with your advice cefs. Reputation may send to you, I just do not know how to, yet.. Boltz There is no problem at all, but maybe at some point I have to ask for advice with Arduino Boards from you. And you're right, For the battery switch command should be started by C1 NOT C0. I know that, but I seem to have accidentally entered (in the middle of the night, no actually in the morning) command C0. Sorry about that. So here is Export.lua file. Which is able to receive and send data to the DCS even if you are also using Helios. Only one line must be changed (line 52) and the 1 line to add (line 183). gHost = "127.0.0.1" gPort = 9089 gExportInterval = 0.067 gExportLowTickInterval = 1 gEveryFrameArguments = {[540]="%0.1f", [541]="%0.1f", [542]="%0.1f", [730]="%0.1f", [731]="%0.1f", [732]="%0.1f", [76]="%.4f", [77]="%.4f", [78]="%.4f", [80]="%.4f", [84]="%.4f", [85]="%.4f", [70]="%.4f", [73]="%.4f", [82]="%.4f", [83]="%.4f", [13]="%.4f", [14]="%.4f", [48]="%.4f", [12]="%.4f", [4]="%.4f", [55]="%0.1f", [17]="%.4f", [18]="%.4f", [24]="%.4f", [23]="%.4f", [25]="%0.1f", [19]="%0.1f", [26]="%0.1f", [20]="%.4f", [21]="%.4f", [27]="%.4f", [63]="%.4f", [64]="%.4f", [65]="%0.1f", [715]="%.4f", [40]="%0.1f", [32]="%0.1f", [46]="%0.1f", [34]="%.4f", [36]="%.4f", [47]="%.4f", [41]="%.4f", [33]="%.4f", [35]="%.4f", [662]="%0.1f", [663]="%0.1f", [665]="%0.1f", [664]="%0.1f", [215]="%0.1f", [216]="%0.1f", [217]="%0.1f", [404]="%0.1f", [372]="%0.1f", [373]="%0.1f", [374]="%0.1f", [654]="%1d", [659]="%0.1f", [660]="%0.1f", [661]="%0.1f", [737]="%0.1f", [653]="%.4f", [88]="%.4f", [89]="%.4f", [647]="%.4f", [648]="%.4f", [606]="%0.1f", [608]="%0.1f", [610]="%0.1f", [612]="%0.1f", [614]="%0.1f", [616]="%0.1f", [618]="%0.1f", [619]="%0.1f", [620]="%0.1f", [274]="%.4f", [604]="%.4f", [600]="%0.1f", [281]="%.4f", [289]="%1d", [480]="%0.1f", [481]="%0.1f", [482]="%0.1f", [483]="%0.1f", [484]="%0.1f", [485]="%0.1f", [486]="%0.1f", [487]="%0.1f", [488]="%0.1f", [489]="%0.1f", [490]="%0.1f", [491]="%0.1f", [492]="%0.1f", [493]="%0.1f", [494]="%0.1f", [495]="%0.1f", [496]="%0.1f", [497]="%0.1f", [498]="%0.1f", [499]="%0.1f", [500]="%0.1f", [501]="%0.1f", [502]="%0.1f", [503]="%0.1f", [504]="%0.1f", [505]="%0.1f", [506]="%0.1f", [507]="%0.1f", [508]="%0.1f", [509]="%0.1f", [510]="%0.1f", [511]="%0.1f", [512]="%0.1f", [513]="%0.1f", [514]="%0.1f", [515]="%0.1f", [516]="%0.1f", [517]="%0.1f", [518]="%0.1f", [519]="%0.1f", [520]="%0.1f", [521]="%0.1f", [522]="%0.1f", [523]="%0.1f", [524]="%0.1f", [525]="%0.1f", [526]="%0.1f", [527]="%0.1f", [260]="%0.1f", [269]="%.4f", [129]="%1d", [185]="%1d", [186]="%1d", [187]="%1d", [188]="%1d", [191]="%0.1f", [798]="%0.1f", [799]="%0.1f", [178]="%0.1f", [179]="%0.1f", [181]="%0.1f", [182]="%0.1f"} gArguments = {[22]="%.3f", [101]="%.1f", [102]="%1d", [103]="%1d", [104]="%1d", [105]="%1d", [300]="%.1f", [301]="%.1f", [302]="%.1f", [303]="%.1f", [304]="%.1f", [305]="%.1f", [306]="%.1f", [307]="%.1f", [308]="%.1f", [309]="%.1f", [310]="%.1f", [311]="%.1f", [312]="%.1f", [313]="%.1f", [314]="%.1f", [315]="%.1f", [316]="%.1f", [317]="%.1f", [318]="%.1f", [319]="%.1f", [320]="%1d", [321]="%1d", [322]="%1d", [323]="%1d", [324]="%1d", [325]="%0.1f", [326]="%.1f", [327]="%.1f", [328]="%.1f", [329]="%.1f", [330]="%.1f", [331]="%.1f", [332]="%.1f", [333]="%.1f", [334]="%.1f", [335]="%.1f", [336]="%.1f", [337]="%.1f", [338]="%.1f", [339]="%.1f", [340]="%.1f", [341]="%.1f", [342]="%.1f", [343]="%.1f", [344]="%.1f", [345]="%.1f", [346]="%1d", [347]="%1d", [348]="%1d", [349]="%1d", [350]="%1d", [351]="%0.1f", [385]="%.1f", [386]="%.1f", [387]="%.1f", [388]="%.1f", [389]="%.1f", [390]="%.1f", [391]="%.1f", [392]="%.1f", [393]="%.1f", [395]="%.1f", [396]="%.1f", [394]="%.1f", [397]="%.1f", [398]="%.1f", [399]="%.1f", [400]="%.1f", [401]="%.1f", [402]="%.1f", [405]="%1d", [406]="%1d", [407]="%1d", [408]="%1d", [409]="%1d", [531]="%.1f", [532]="%.1f", [533]="%.1f", [403]="%.1f", [365]="%.1f", [366]="%.1f", [369]="%.1f", [370]="%.1f", [371]="%.1f", [367]="%.3f", [368]="%.3f", [716]="%1d", [655]="%0.1f", [651]="%.1f", [375]="%0.1f", [376]="%0.1f", [377]="%0.1f", [378]="%1d", [379]="%0.1f", [380]="%1d", [381]="%1d", [382]="%1d", [383]="%1d", [384]="%0.1f", [645]="%0.1f", [646]="%.1f", [605]="%.1f", [607]="%.1f", [609]="%.1f", [611]="%.1f", [613]="%.1f", [615]="%.1f", [617]="%.1f", [621]="%1d", [711]="%.1f", [622]="%0.1f", [623]="%1d", [624]="%.3f", [626]="%.3f", [636]="%0.2f", [638]="%0.2f", [640]="%0.2f", [642]="%0.2f", [644]="%1d", [628]="%.1f", [630]="%.1f", [632]="%.1f", [634]="%.1f", [410]="%.1f", [411]="%.1f", [412]="%.1f", [413]="%.1f", [414]="%.1f", [415]="%.1f", [416]="%.1f", [417]="%.1f", [418]="%.1f", [419]="%.1f", [420]="%.1f", [421]="%.1f", [422]="%.1f", [423]="%.1f", [425]="%.1f", [426]="%.1f", [427]="%.1f", [428]="%.1f", [429]="%.1f", [430]="%.1f", [431]="%.1f", [432]="%.1f", [433]="%.1f", [434]="%.1f", [435]="%.1f", [436]="%.1f", [437]="%.1f", [438]="%.1f", [439]="%.1f", [440]="%.1f", [441]="%.1f", [442]="%.1f", [443]="%.1f", [444]="%.1f", [445]="%.1f", [446]="%.1f", [447]="%.1f", [448]="%.1f", [449]="%.1f", [450]="%.1f", [451]="%.1f", [452]="%.1f", [453]="%.1f", [454]="%.1f", [455]="%.1f", [456]="%.1f", [457]="%.1f", [458]="%.1f", [459]="%.1f", [460]="%.1f", [461]="%.1f", [462]="%.1f", [466]="%.1f", [467]="%.1f", [468]="%.1f", [470]="%.1f", [471]="%.1f", [424]="%1d", [463]="%1d", [469]="%1d", [472]="%1d", [241]="%1d", [242]="%1d", [243]="%1d", [244]="%1d", [245]="%1d", [246]="%1d", [601]="%1d", [602]="%1d", [603]="%1d", [712]="%0.2f", [352]="%.1f", [353]="%.1f", [354]="%.1f", [355]="%.1f", [356]="%1d", [357]="%.1f", [358]="%1d", [359]="%.3f", [360]="%0.1f", [361]="%0.1f", [362]="%0.1f", [363]="%0.1f", [364]="%0.1f", [275]="%.1f", [276]="%1d", [277]="%.3f", [278]="%1d", [279]="%1d", [280]="%1d", [282]="%1d", [283]="%1d", [284]="%.3f", [287]="%1d", [288]="%.3f", [290]="%.3f", [291]="%1d", [292]="%.3f", [293]="%.3f", [294]="%1d", [295]="%1d", [296]="%.3f", [297]="%.3f", [258]="%0.2f", [259]="%.1f", [261]="%.3f", [262]="%0.1f", [266]="%1d", [247]="%1d", [248]="%0.1f", [250]="%0.1f", [249]="%.3f", [251]="%0.1f", [252]="%0.1f", [270]="%1d", [273]="%1d", [272]="%1d", [271]="%.3f", [267]="%.1f", [268]="%.3f", [473]="%0.1f", [474]="%1d", [475]="%0.1f", [476]="%1d", [477]="%1d", [106]="%1d", [107]="%1d", [108]="%1d", [109]="%1d", [110]="%1d", [111]="%1d", [112]="%1d", [113]="%1d", [114]="%1d", [115]="%.1f", [117]="%1d", [118]="%1d", [119]="%1d", [120]="%1d", [121]="%1d", [116]="%.3f", [122]="%1d", [123]="%1d", [124]="%1d", [125]="%1d", [126]="%1d", [127]="%.1f", [132]="%1d", [131]="%.1f", [130]="%1d", [137]="%0.3f", [138]="%0.1f", [135]="%0.1f", [133]="%.3f", [136]="%.1f", [134]="%1d", [139]="%0.2f", [140]="%0.2f", [141]="%0.2f", [142]="%0.2f", [151]="%0.3f", [153]="%0.2f", [154]="%0.2f", [155]="%0.2f", [156]="%0.2f", [152]="%0.1f", [149]="%0.1f", [147]="%.3f", [150]="%.1f", [148]="%1d", [189]="%1d", [190]="%.1f", [192]="%.3f", [197]="%.1f", [196]="%1d", [193]="%.3f", [195]="%.3f", [194]="%0.1f", [198]="%.1f", [161]="%0.2f", [162]="%0.1f", [163]="%0.2f", [164]="%0.2f", [165]="%0.2f", [166]="%0.2f", [167]="%0.1f", [168]="%0.1f", [169]="%1d", [170]="%1d", [171]="%.3f", [172]="%.1f", [173]="%.1f", [735]="%.1f", [734]="%1d", [779]="%1d", [778]="%1d", [780]="%1d", [781]="%0.1f", [782]="%0.1f", [783]="%0.1f", [784]="%1d", [772]="%1d", [199]="%0.1f", [200]="%0.1f", [201]="%1d", [202]="%1d", [203]="%1d", [204]="%1d", [205]="%1d", [206]="%1d", [207]="%1d", [208]="%1d", [209]="%0.2f", [210]="%0.2f", [211]="%0.2f", [212]="%0.2f", [213]="%0.2f", [214]="%0.2f", [174]="%1d", [175]="%1d", [176]="%0.1f", [177]="%1d", [180]="%1d", [183]="%1d", [184]="%1d", [221]="%.3f", [222]="%1d", [223]="%.3f", [224]="%1d", [225]="%.3f", [226]="%1d", [227]="%.3f", [228]="%1d", [229]="%.3f", [230]="%1d", [231]="%.3f", [232]="%1d", [233]="%.3f", [234]="%1d", [235]="%.3f", [236]="%1d", [237]="%1d", [238]="%.3f", [239]="%0.1f", [240]="%.1f", [704]="%.3f", [705]="%.3f", [718]="%1d", [722]="%.1f", [733]="%1d"} function ProcessHighImportance(mainPanelDevice) -- Send Altimeter Values SendData(2051, string.format("%0.4f;%0.4f;%0.5f", mainPanelDevice:get_argument_value(52), mainPanelDevice:get_argument_value(53), mainPanelDevice:get_argument_value(51))) SendData(2059, string.format("%0.2f;%0.2f;%0.2f;%0.3f", mainPanelDevice:get_argument_value(56), mainPanelDevice:get_argument_value(57), mainPanelDevice:get_argument_value(58), mainPanelDevice:get_argument_value(59))) -- Calcuate HSI Value SendData(2029, string.format("%0.2f;%0.2f;%0.4f", mainPanelDevice:get_argument_value(29), mainPanelDevice:get_argument_value(30), mainPanelDevice:get_argument_value(31))) -- Calculate Total Fuel SendData(2090, string.format("%0.2f;%0.2f;%0.5f", mainPanelDevice:get_argument_value(90), mainPanelDevice:get_argument_value(91), mainPanelDevice:get_argument_value(92))) end function ProcessLowImportance(mainPanelDevice) -- Get Radio Frequencies local lUHFRadio = GetDevice(54) SendData(2000, string.format("%7.3f", lUHFRadio:get_frequency()/1000000)) -- ILS Frequency --SendData(2251, string.format("%0.1f;%0.1f", mainPanelDevice:get_argument_value(251), mainPanelDevice:get_argument_value(252))) -- TACAN Channel SendData(2263, string.format("%0.2f;%0.2f;%0.2f", mainPanelDevice:get_argument_value(263), mainPanelDevice:get_argument_value(264), mainPanelDevice:get_argument_value(265))) end os.setlocale("ISO-8559-1", "numeric") -- Simulation id gSimID = string.format("%08x*",os.time()) -- State data for export gPacketSize = 0 gSendStrings = {} gLastData = {} -- Frame counter for non important data gTickCount = 0 -- DCS Export Functions function LuaExportStart() -- Works once just before mission start. -- 2) Setup udp sockets to talk to helios package.path = package.path..";.\\LuaSocket\\?.lua" package.cpath = package.cpath..";.\\LuaSocket\\?.dll" socket = require("socket") c = socket.udp() c:setsockname("*", 9801) -- CHANGE THIS .........enter the UDP port forsending from your server .. the original was "c: setsockname ("*", 0)" c:setoption('broadcast', true) c:settimeout(.001) -- set the timeout for reading the socket end function LuaExportBeforeNextFrame() ProcessInput() end function LuaExportAfterNextFrame() end function LuaExportStop() -- Works once just after mission stop. c:close() b:close() end function ProcessInput() local lInput = c:receive() --local lInput = b:receive() local lCommand, lCommandArgs, lDevice, lArgument, lLastValue if lInput then lCommand = string.sub(lInput,1,1) if lCommand == "R" then ResetChangeValues() end if (lCommand == "C") then lCommandArgs = StrSplit(string.sub(lInput,2),",") lDevice = GetDevice(lCommandArgs[1]) if type(lDevice) == "table" then lDevice:performClickableAction(lCommandArgs[2],lCommandArgs[3]) end end end end function LuaExportActivityNextEvent(t) t = t + gExportInterval gTickCount = gTickCount + 1 local lDevice = GetDevice(0) if type(lDevice) == "table" then lDevice:update_arguments() ProcessArguments(lDevice, gEveryFrameArguments) ProcessHighImportance(lDevice) if gTickCount >= gExportLowTickInterval then ProcessArguments(lDevice, gArguments) ProcessLowImportance(lDevice) gTickCount = 0 end FlushData() end return t end -- Helper Functions function StrSplit(str, delim, maxNb) -- Eliminate bad cases... if string.find(str, delim) == nil then return { str } end if maxNb == nil or maxNb < 1 then maxNb = 0 -- No limit end local result = {} local pat = "(.-)" .. delim .. "()" local nb = 0 local lastPos for part, pos in string.gfind(str, pat) do nb = nb + 1 result[nb] = part lastPos = pos if nb == maxNb then break end end -- Handle the last field if nb ~= maxNb then result[nb + 1] = string.sub(str, lastPos) end return result end function round(num, idp) local mult = 10^(idp or 0) return math.floor(num * mult + 0.5) / mult end -- Status Gathering Functions function ProcessArguments(device, arguments) local lArgument , lFormat , lArgumentValue for lArgument, lFormat in pairs(arguments) do lArgumentValue = string.format(lFormat,device:get_argument_value(lArgument)) SendData(lArgument, lArgumentValue) end end -- Network Functions function SendData(id, value) if string.len(value) > 3 and value == string.sub("-0.00000000",1, string.len(value)) then value = value:sub(2) end if gLastData[id] == nil or gLastData[id] ~= value then local data = id .. "=" .. value local dataLen = string.len(data) if dataLen + gPacketSize > 576 then FlushData() end table.insert(gSendStrings, data) gLastData[id] = value gPacketSize = gPacketSize + dataLen + 1 end end function FlushData() if #gSendStrings > 0 then local packet = gSimID .. table.concat(gSendStrings, ":") .. "\n" socket.try(c:sendto(packet, gHost, gPort)) socket.try(c:sendto(packet, gHost, 9800)) -- ADD THIS LINE TO RECEIVE DATA TO YOUR UDP SERVER - Port number is your UDP Server Port. gSendStrings = {} gPacketSize = 0 end end function ResetChangeValues() gLastData = {} gTickCount = 10 end HarSu.

Hey all. I would first like to apologize for my stupidity regarding the previous messages ... (Ian, thank you for understanding me) But, however ... I have now managed to get "all" the data that I need out from sim to "my" UDP Server. I use Gadroc's Export.lua file (Helios generated file) ... gHost = "127.0.0.1" gPort = 9089 gExportInterval = 0.067 gExportLowTickInterval = 1 gEveryFrameArguments = {[540]="%0.1f", [541]="%0.1f", [542]="%0.1f", [730]="%0.1f", [731]="%0.1f", [732]="%0.1f", [76]="%.4f", [77]="%.4f", [78]="%.4f", [80]="%.4f", [84]="%.4f", [85]="%.4f", [70]="%.4f", [73]="%.4f", [82]="%.4f", [83]="%.4f", [13]="%.4f", [14]="%.4f", [48]="%.4f", [12]="%.4f", [4]="%.4f", [55]="%0.1f", [17]="%.4f", [18]="%.4f", [24]="%.4f", [23]="%.4f", [25]="%0.1f", [19]="%0.1f", [26]="%0.1f", [20]="%.4f", [21]="%.4f", [27]="%.4f", [63]="%.4f", [64]="%.4f", [65]="%0.1f", [715]="%.4f", [40]="%0.1f", [32]="%0.1f", [46]="%0.1f", [34]="%.4f", [36]="%.4f", [47]="%.4f", [41]="%.4f", [33]="%.4f", [35]="%.4f", [662]="%0.1f", [663]="%0.1f", [665]="%0.1f", [664]="%0.1f", [215]="%0.1f", [216]="%0.1f", [217]="%0.1f", [404]="%0.1f", [372]="%0.1f", [373]="%0.1f", [374]="%0.1f", [654]="%1d", [659]="%0.1f", [660]="%0.1f", [661]="%0.1f", [737]="%0.1f", [653]="%.4f", [88]="%.4f", [89]="%.4f", [647]="%.4f", [648]="%.4f", [606]="%0.1f", [608]="%0.1f", [610]="%0.1f", [612]="%0.1f", [614]="%0.1f", [616]="%0.1f", [618]="%0.1f", [619]="%0.1f", [620]="%0.1f", [274]="%.4f", [604]="%.4f", [600]="%0.1f", [281]="%.4f", [289]="%1d", [480]="%0.1f", [481]="%0.1f", [482]="%0.1f", [483]="%0.1f", [484]="%0.1f", [485]="%0.1f", [486]="%0.1f", [487]="%0.1f", [488]="%0.1f", [489]="%0.1f", [490]="%0.1f", [491]="%0.1f", [492]="%0.1f", [493]="%0.1f", [494]="%0.1f", [495]="%0.1f", [496]="%0.1f", [497]="%0.1f", [498]="%0.1f", [499]="%0.1f", [500]="%0.1f", [501]="%0.1f", [502]="%0.1f", [503]="%0.1f", [504]="%0.1f", [505]="%0.1f", [506]="%0.1f", [507]="%0.1f", [508]="%0.1f", [509]="%0.1f", [510]="%0.1f", [511]="%0.1f", [512]="%0.1f", [513]="%0.1f", [514]="%0.1f", [515]="%0.1f", [516]="%0.1f", [517]="%0.1f", [518]="%0.1f", [519]="%0.1f", [520]="%0.1f", [521]="%0.1f", [522]="%0.1f", [523]="%0.1f", [524]="%0.1f", [525]="%0.1f", [526]="%0.1f", [527]="%0.1f", [260]="%0.1f", [269]="%.4f", [129]="%1d", [185]="%1d", [186]="%1d", [187]="%1d", [188]="%1d", [191]="%0.1f", [798]="%0.1f", [799]="%0.1f", [178]="%0.1f", [179]="%0.1f", [181]="%0.1f", [182]="%0.1f"} gArguments = {[22]="%.3f", [101]="%.1f", [102]="%1d", [103]="%1d", [104]="%1d", [105]="%1d", [300]="%.1f", [301]="%.1f", [302]="%.1f", [303]="%.1f", [304]="%.1f", [305]="%.1f", [306]="%.1f", [307]="%.1f", [308]="%.1f", [309]="%.1f", [310]="%.1f", [311]="%.1f", [312]="%.1f", [313]="%.1f", [314]="%.1f", [315]="%.1f", [316]="%.1f", [317]="%.1f", [318]="%.1f", [319]="%.1f", [320]="%1d", [321]="%1d", [322]="%1d", [323]="%1d", [324]="%1d", [325]="%0.1f", [326]="%.1f", [327]="%.1f", [328]="%.1f", [329]="%.1f", [330]="%.1f", [331]="%.1f", [332]="%.1f", [333]="%.1f", [334]="%.1f", [335]="%.1f", [336]="%.1f", [337]="%.1f", [338]="%.1f", [339]="%.1f", [340]="%.1f", [341]="%.1f", [342]="%.1f", [343]="%.1f", [344]="%.1f", [345]="%.1f", [346]="%1d", [347]="%1d", [348]="%1d", [349]="%1d", [350]="%1d", [351]="%0.1f", [385]="%.1f", [386]="%.1f", [387]="%.1f", [388]="%.1f", [389]="%.1f", [390]="%.1f", [391]="%.1f", [392]="%.1f", [393]="%.1f", [395]="%.1f", [396]="%.1f", [394]="%.1f", [397]="%.1f", [398]="%.1f", [399]="%.1f", [400]="%.1f", [401]="%.1f", [402]="%.1f", [405]="%1d", [406]="%1d", [407]="%1d", [408]="%1d", [409]="%1d", [531]="%.1f", [532]="%.1f", [533]="%.1f", [403]="%.1f", [365]="%.1f", [366]="%.1f", [369]="%.1f", [370]="%.1f", [371]="%.1f", [367]="%.3f", [368]="%.3f", [716]="%1d", [655]="%0.1f", [651]="%.1f", [375]="%0.1f", [376]="%0.1f", [377]="%0.1f", [378]="%1d", [379]="%0.1f", [380]="%1d", [381]="%1d", [382]="%1d", [383]="%1d", [384]="%0.1f", [645]="%0.1f", [646]="%.1f", [605]="%.1f", [607]="%.1f", [609]="%.1f", [611]="%.1f", [613]="%.1f", [615]="%.1f", [617]="%.1f", [621]="%1d", [711]="%.1f", [622]="%0.1f", [623]="%1d", [624]="%.3f", [626]="%.3f", [636]="%0.2f", [638]="%0.2f", [640]="%0.2f", [642]="%0.2f", [644]="%1d", [628]="%.1f", [630]="%.1f", [632]="%.1f", [634]="%.1f", [410]="%.1f", [411]="%.1f", [412]="%.1f", [413]="%.1f", [414]="%.1f", [415]="%.1f", [416]="%.1f", [417]="%.1f", [418]="%.1f", [419]="%.1f", [420]="%.1f", [421]="%.1f", [422]="%.1f", [423]="%.1f", [425]="%.1f", [426]="%.1f", [427]="%.1f", [428]="%.1f", [429]="%.1f", [430]="%.1f", [431]="%.1f", [432]="%.1f", [433]="%.1f", [434]="%.1f", [435]="%.1f", [436]="%.1f", [437]="%.1f", [438]="%.1f", [439]="%.1f", [440]="%.1f", [441]="%.1f", [442]="%.1f", [443]="%.1f", [444]="%.1f", [445]="%.1f", [446]="%.1f", [447]="%.1f", [448]="%.1f", [449]="%.1f", [450]="%.1f", [451]="%.1f", [452]="%.1f", [453]="%.1f", [454]="%.1f", [455]="%.1f", [456]="%.1f", [457]="%.1f", [458]="%.1f", [459]="%.1f", [460]="%.1f", [461]="%.1f", [462]="%.1f", [466]="%.1f", [467]="%.1f", [468]="%.1f", [470]="%.1f", [471]="%.1f", [424]="%1d", [463]="%1d", [469]="%1d", [472]="%1d", [241]="%1d", [242]="%1d", [243]="%1d", [244]="%1d", [245]="%1d", [246]="%1d", [601]="%1d", [602]="%1d", [603]="%1d", [712]="%0.2f", [352]="%.1f", [353]="%.1f", [354]="%.1f", [355]="%.1f", [356]="%1d", [357]="%.1f", [358]="%1d", [359]="%.3f", [360]="%0.1f", [361]="%0.1f", [362]="%0.1f", [363]="%0.1f", [364]="%0.1f", [275]="%.1f", [276]="%1d", [277]="%.3f", [278]="%1d", [279]="%1d", [280]="%1d", [282]="%1d", [283]="%1d", [284]="%.3f", [287]="%1d", [288]="%.3f", [290]="%.3f", [291]="%1d", [292]="%.3f", [293]="%.3f", [294]="%1d", [295]="%1d", [296]="%.3f", [297]="%.3f", [258]="%0.2f", [259]="%.1f", [261]="%.3f", [262]="%0.1f", [266]="%1d", [247]="%1d", [248]="%0.1f", [250]="%0.1f", [249]="%.3f", [251]="%0.1f", [252]="%0.1f", [270]="%1d", [273]="%1d", [272]="%1d", [271]="%.3f", [267]="%.1f", [268]="%.3f", [473]="%0.1f", [474]="%1d", [475]="%0.1f", [476]="%1d", [477]="%1d", [106]="%1d", [107]="%1d", [108]="%1d", [109]="%1d", [110]="%1d", [111]="%1d", [112]="%1d", [113]="%1d", [114]="%1d", [115]="%.1f", [117]="%1d", [118]="%1d", [119]="%1d", [120]="%1d", [121]="%1d", [116]="%.3f", [122]="%1d", [123]="%1d", [124]="%1d", [125]="%1d", [126]="%1d", [127]="%.1f", [132]="%1d", [131]="%.1f", [130]="%1d", [137]="%0.3f", [138]="%0.1f", [135]="%0.1f", [133]="%.3f", [136]="%.1f", [134]="%1d", [139]="%0.2f", [140]="%0.2f", [141]="%0.2f", [142]="%0.2f", [151]="%0.3f", [153]="%0.2f", [154]="%0.2f", [155]="%0.2f", [156]="%0.2f", [152]="%0.1f", [149]="%0.1f", [147]="%.3f", [150]="%.1f", [148]="%1d", [189]="%1d", [190]="%.1f", [192]="%.3f", [197]="%.1f", [196]="%1d", [193]="%.3f", [195]="%.3f", [194]="%0.1f", [198]="%.1f", [161]="%0.2f", [162]="%0.1f", [163]="%0.2f", [164]="%0.2f", [165]="%0.2f", [166]="%0.2f", [167]="%0.1f", [168]="%0.1f", [169]="%1d", [170]="%1d", [171]="%.3f", [172]="%.1f", [173]="%.1f", [735]="%.1f", [734]="%1d", [779]="%1d", [778]="%1d", [780]="%1d", [781]="%0.1f", [782]="%0.1f", [783]="%0.1f", [784]="%1d", [772]="%1d", [199]="%0.1f", [200]="%0.1f", [201]="%1d", [202]="%1d", [203]="%1d", [204]="%1d", [205]="%1d", [206]="%1d", [207]="%1d", [208]="%1d", [209]="%0.2f", [210]="%0.2f", [211]="%0.2f", [212]="%0.2f", [213]="%0.2f", [214]="%0.2f", [174]="%1d", [175]="%1d", [176]="%0.1f", [177]="%1d", [180]="%1d", [183]="%1d", [184]="%1d", [221]="%.3f", [222]="%1d", [223]="%.3f", [224]="%1d", [225]="%.3f", [226]="%1d", [227]="%.3f", [228]="%1d", [229]="%.3f", [230]="%1d", [231]="%.3f", [232]="%1d", [233]="%.3f", [234]="%1d", [235]="%.3f", [236]="%1d", [237]="%1d", [238]="%.3f", [239]="%0.1f", [240]="%.1f", [704]="%.3f", [705]="%.3f", [718]="%1d", [722]="%.1f", [733]="%1d"} function ProcessHighImportance(mainPanelDevice) -- Send Altimeter Values SendData(2051, string.format("%0.4f;%0.4f;%0.5f", mainPanelDevice:get_argument_value(52), mainPanelDevice:get_argument_value(53), mainPanelDevice:get_argument_value(51))) SendData(2059, string.format("%0.2f;%0.2f;%0.2f;%0.3f", mainPanelDevice:get_argument_value(56), mainPanelDevice:get_argument_value(57), mainPanelDevice:get_argument_value(58), mainPanelDevice:get_argument_value(59))) -- Calcuate HSI Value SendData(2029, string.format("%0.2f;%0.2f;%0.4f", mainPanelDevice:get_argument_value(29), mainPanelDevice:get_argument_value(30), mainPanelDevice:get_argument_value(31))) -- Calculate Total Fuel SendData(2090, string.format("%0.2f;%0.2f;%0.5f", mainPanelDevice:get_argument_value(90), mainPanelDevice:get_argument_value(91), mainPanelDevice:get_argument_value(92))) end function ProcessLowImportance(mainPanelDevice) -- Get Radio Frequencies local lUHFRadio = GetDevice(54) SendData(2000, string.format("%7.3f", lUHFRadio:get_frequency()/1000000)) -- ILS Frequency --SendData(2251, string.format("%0.1f;%0.1f", mainPanelDevice:get_argument_value(251), mainPanelDevice:get_argument_value(252))) -- TACAN Channel SendData(2263, string.format("%0.2f;%0.2f;%0.2f", mainPanelDevice:get_argument_value(263), mainPanelDevice:get_argument_value(264), mainPanelDevice:get_argument_value(265))) end os.setlocale("ISO-8559-1", "numeric") -- Simulation id gSimID = string.format("%08x*",os.time()) -- State data for export gPacketSize = 0 gSendStrings = {} gLastData = {} -- Frame counter for non important data gTickCount = 0 -- DCS Export Functions function LuaExportStart() -- Works once just before mission start. -- 2) Setup udp sockets to talk to helios package.path = package.path..";.\\LuaSocket\\?.lua" package.cpath = package.cpath..";.\\LuaSocket\\?.dll" socket = require("socket") c = socket.udp() c:setsockname("*", 0) c:setoption('broadcast', true) c:settimeout(.001) -- set the timeout for reading the socket end function LuaExportBeforeNextFrame() ProcessInput() end function LuaExportAfterNextFrame() end function LuaExportStop() -- Works once just after mission stop. c:close() end function ProcessInput() local lInput = c:receive() local lCommand, lCommandArgs, lDevice, lArgument, lLastValue if lInput then lCommand = string.sub(lInput,1,1) if lCommand == "R" then ResetChangeValues() end if (lCommand == "C") then lCommandArgs = StrSplit(string.sub(lInput,2),",") lDevice = GetDevice(lCommandArgs[1]) if type(lDevice) == "table" then lDevice:performClickableAction(lCommandArgs[2],lCommandArgs[3]) end end end end function LuaExportActivityNextEvent(t) t = t + gExportInterval gTickCount = gTickCount + 1 local lDevice = GetDevice(0) if type(lDevice) == "table" then lDevice:update_arguments() ProcessArguments(lDevice, gEveryFrameArguments) ProcessHighImportance(lDevice) if gTickCount >= gExportLowTickInterval then ProcessArguments(lDevice, gArguments) ProcessLowImportance(lDevice) gTickCount = 0 end FlushData() end return t end -- Helper Functions function StrSplit(str, delim, maxNb) -- Eliminate bad cases... if string.find(str, delim) == nil then return { str } end if maxNb == nil or maxNb < 1 then maxNb = 0 -- No limit end local result = {} local pat = "(.-)" .. delim .. "()" local nb = 0 local lastPos for part, pos in string.gfind(str, pat) do nb = nb + 1 result[nb] = part lastPos = pos if nb == maxNb then break end end -- Handle the last field if nb ~= maxNb then result[nb + 1] = string.sub(str, lastPos) end return result end function round(num, idp) local mult = 10^(idp or 0) return math.floor(num * mult + 0.5) / mult end -- Status Gathering Functions function ProcessArguments(device, arguments) local lArgument , lFormat , lArgumentValue for lArgument, lFormat in pairs(arguments) do lArgumentValue = string.format(lFormat,device:get_argument_value(lArgument)) SendData(lArgument, lArgumentValue) end end -- Network Functions function SendData(id, value) if string.len(value) > 3 and value == string.sub("-0.00000000",1, string.len(value)) then value = value:sub(2) end if gLastData[id] == nil or gLastData[id] ~= value then local data = id .. "=" .. value local dataLen = string.len(data) if dataLen + gPacketSize > 576 then FlushData() end table.insert(gSendStrings, data) gLastData[id] = value gPacketSize = gPacketSize + dataLen + 1 end end function FlushData() if #gSendStrings > 0 then local packet = gSimID .. table.concat(gSendStrings, ":") .. "\n" socket.try(c:sendto(packet, gHost, gPort)) gSendStrings = {} gPacketSize = 0 end end function ResetChangeValues() gLastData = {} gTickCount = 10 end I understand that I have a "connection" to the DCS because I get data out fom the sim, but I am unable to send anything back to the sim. if I understand correctly... I should send a command from the UDP Server "C0,3006,1" to the DCS. and it should change the Battery Power button to ON .... "C0,3006, -1" to OFF. but nothing happens ... function ProcessInput() local lInput = c:receive() local lCommand, lCommandArgs, lDevice, lArgument, lLastValue if lInput then lCommand = string.sub(lInput,1,1) if lCommand == "R" then ResetChangeValues() end if (lCommand == "C") then lCommandArgs = StrSplit(string.sub(lInput,2),",") lDevice = GetDevice(lCommandArgs[1]) if type(lDevice) == "table" then lDevice:performClickableAction(lCommandArgs[2],lCommandArgs[3]) end end end end If I use a program called "Echotool" I get ALL the data from the DCS and UDP Server (sent and received data) but DCS does not accept the data transmitted for processing. So do I have to change something in Export.lua. Or is the problem in "my" UDP server. OK, once again, the shit translation by GOOGLE TRANSLATOR (just tried to fix it ...somehow) HarSu.

OK, reformulate the question again, because it was apparently unclear to you. But let's go back in time a little bit at first 1. Did you remember that I said that I am a noob with Lua programming? 2. Then you (Ian) wanted to provide a DCS BIOS (yours) program to me ... And you were curious about what I do with my VB.Net application. 3. And my answer to that was that ... 4. Then, let's get to the DCS BIOS. I told you that my intention is to use it, so WHY should I have to be Effective programmer ??? I'll just try this lua thing for fun. Borrowed from a website page of the DCS-BIOS: Is your attitude (Ian) similar with DCS-BIOS program? If someone jerk like I will ask something similar? After all, it is of course easy to criticize other people's stupid questions (if you actually know everything about everything), but in my opinion there is no stupid questions, only stupid answers. Especially when the Honourable Member has really limited information or no information at all of Lua programming or from something which there is no practical experience. 5. Let's go to the question ... Why are you even bothering to answer my stupid questions?

I think it is very much DCS related question. What do you think if I ask help from stackoverflow.com guys that "How can I send switch state value from DCS to my TCP listener only if state is changed?" What is the answer??. Do they even know what DCS is. But maybe I should go to stackoverflow.com cause I might found the answer from there... From here apparently I don´t get it.. But Thanks Any Way.!

Hi. Ok, the code works... But the issue with the "LuaExportActivityNextEvent" function is that it keeps sending me that data all the time. How can I make this work the way It sends data to listener ONLY if the switch state is changed. Thanks. By the way, I did not fix the code on post#3. Instead I added the code how it should be. If somebody like me is learning these things. :smilewink: HarSu.

Hi Ian. I also noticed those errors in that code , but only after I had already posted it here. I just do not bother to edit it , because the writing and viewing this small phone screen is quite difficult. I intend to try DCS-BIOS but I have not received my Arduino boards yet... So for the moment I'll just play for fun and to learn to do something with lua files. HarSu.

Ok, thanks Ian. So is this the code for sending that switch state to my listener? function LuaExportActivityNextEvent(t) local tNext = t local batSwitchState = GetDevice(0):get_argument_value(246) Socket.try(connection:send(string.format( "batSwitchState = %.1f"\n ,batSwitchState))) end tNext = tNext + 1 return tNext end I can not get to try this because I'm at work the moment.. Edit: This is the code, how it should to be... function LuaExportActivityNextEvent(t) local tNext = t local batSwitchState = GetDevice(0):get_argument_value(246) socket.try(connection:send(string.format("batSwitchState = %.1f\n" ,batSwitchState))) tNext = tNext + 1 return tNext end

Hello to everyone. I'm trying to solve how can I receive SWITCH STATE (If it is ON or OFF state) data through the Export.lua to my VB.Net Listener program. I have read many (I think everything, depending of this Switch State stuff with .Lua) post on ED Forums, but not managed any of those codes to work with DCS 1.2.7.23803. ((Too many information , and some out of date, and I´m noob with lua)) So here is my code to from Export.lua to TCP/UDP listener. For connection, disconnection and some radar altitude, pitch and bank info. And everything works as it should. :thumbup: function LuaExportStart() package.path = package.path .. ";.\\LuaSocket\\?.lua" package.cpath = package.cpath .. ";.\\LuaSocket\\?.dll" socket = require("socket") host = "127.0.0.1" port = 9800 connection = socket.try(socket.connect(host, port)) connection:setoption("tcp-nodelay", true) socket.try(connection:send("Yhteys löydetty... DCS A-10C.")) end function LuaExportAfterNextFrame() local tNext = t local o = LoGetWorldObjects() for k,v in pairs(o) do local Aika = LoGetModelTime() local Nimi = LoGetPilotName() local altBar = LoGetAltitudeAboveSeaLevel() local altRad = LoGetAltitudeAboveGroundLevel() local pitch, bank, yaw = LoGetADIPitchBankYaw() socket.try(connection:send(string.format("Aika = %.2f, Nimi = %s, KorkeusBaro = %.2f, TutkaKorkeus = %.2f, pitch = %.2f, bank = %.2f, yaw = %.2f\n", Aika, Nimi, altRad, altBar, pitch, bank, yaw))) end tNext = tNext + 1.0 return tNext end function LuaExportActivityNextEvent(t) end function LuaExportStop() if connection then socket.try(connection:send("Yhteys Katkaistu...")) connection:close() end end But.. How to recognise one little switch move from OFF to ON? So if here is anyone who can tell me how I can RECEIVE information... For example. Battery Power Switch State... ON to send my listener "1" and if it is OFF then send "0" to my listener program.? If somebody can direct me from right track with some code example I would be grateful... Sorry for my English, and some Finnish words on the code... :cry: Thanks... HarSu.

Holy shit... One of my kids did play the game, and she "accidentally" updated it. :cry: So all my viewports have gone... SIOC is gone.... Damn Damn Damn.:pain: Any ideas of how to get viewports back, because those are most important thing at the moment. :helpsmilie: HarSu. I solved this by about half year old backup file... Hell yeah, everything works again.

Actually the "Long" stick is very accurate with banking left and right, but in pitching down I can´t take it so much forward as I want cause the stick hits on my monitor, but that is temporary issue... And you can always fly upside down....:pilotfly:

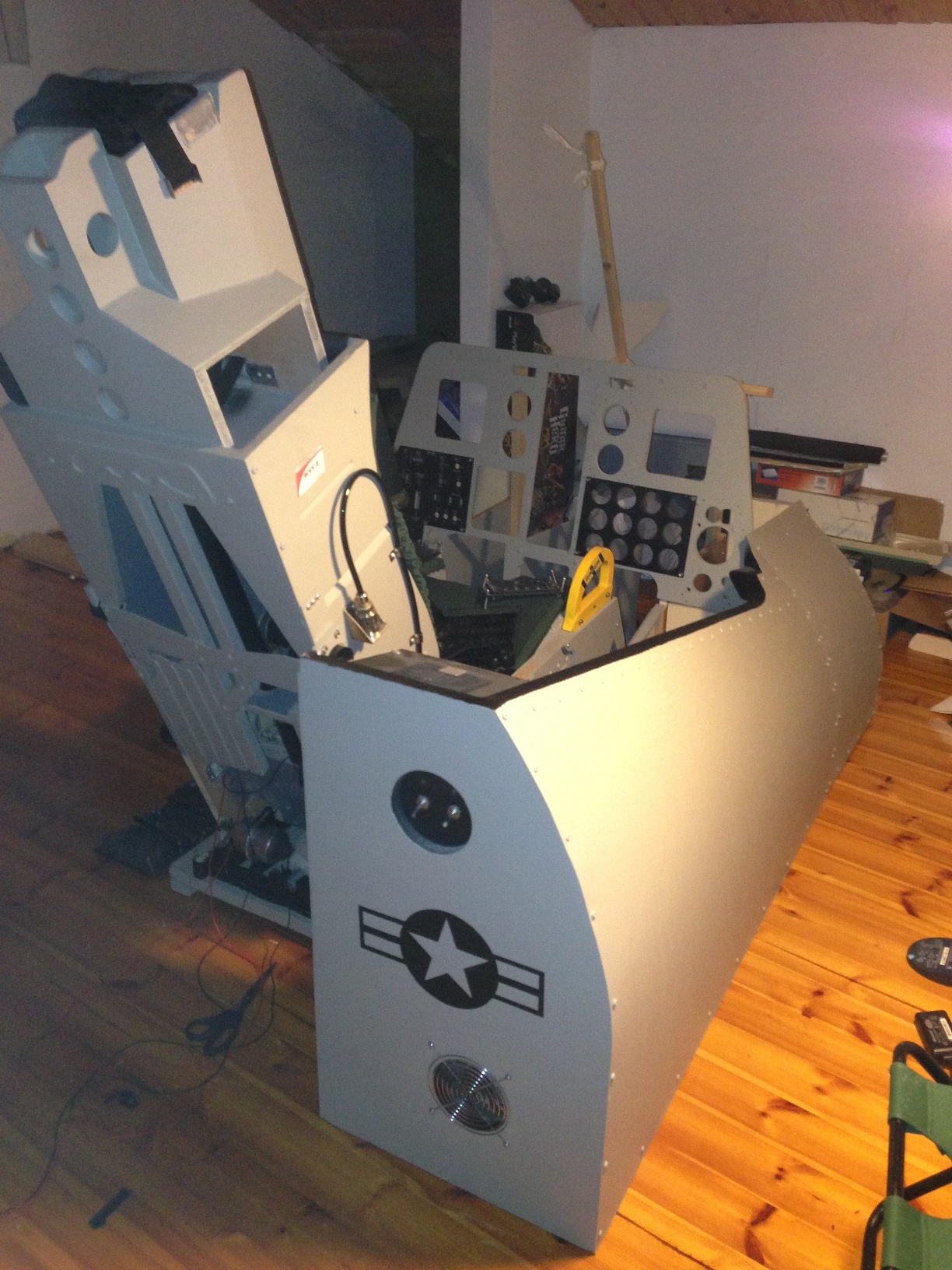

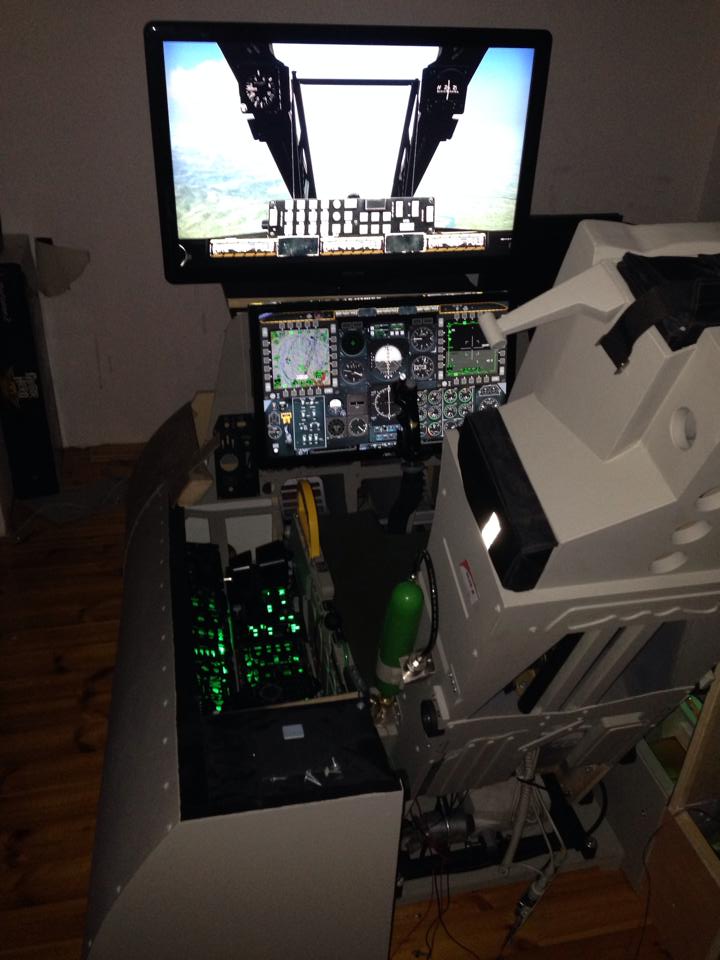

Hello everybody... :bye_2: Back again... :thumbup: It´s almost winter here in Finland, so It´s good time to get back into the cockpit building. So, for the last update that I made, nothing has really not happened, just that I put those stickers from "Deadman" in my pit´s hull... (nice looking stuff) I tried to fit the canopy frame to my Pit, but that does not seems to fit configuration with 42" TV....So I throw it away. For now. And also I spend a few hours of flying with HOG.. about 600 hours....:book: So, here the building starts again.....:joystick: HarSu.

Hi. I know this is wrong thread for my issue but, I'm gonna ask still...:poster_offtopic: I have fresh install of DCSW 1.2.7 + DCS A10C and HELIOS ver.1.3.190.448 also I use Windows 8.1 64bit. Anyways... If I use HELIOS during my flight, and try to view my "track" after that. My plane does not flight anything like it should... :( Like,if I shot missile in "real flight", it shows that I never shot anything in "track view".:cry: Without HELIOS track view works OK. Does anybody have same issue???:helpsmilie: And a another issue with the "Frame rate counter" The default buttons for Frame rate counter is (RCtrl + Pause), but nothing happens those. I can't see frame rate counter "window". Actually only working buttons under "controls / A-10C Sim / General" are Pause = Pause Esc = End Mission LCtrl + Z = Time Accelerate LAlt + Z = Time Decelerate LShift + Z = Time Normal Is there some setting somewhere where I can set "ON" the other functions.:helpsmilie:

Thanks John, I would like to see your facetrack settings.

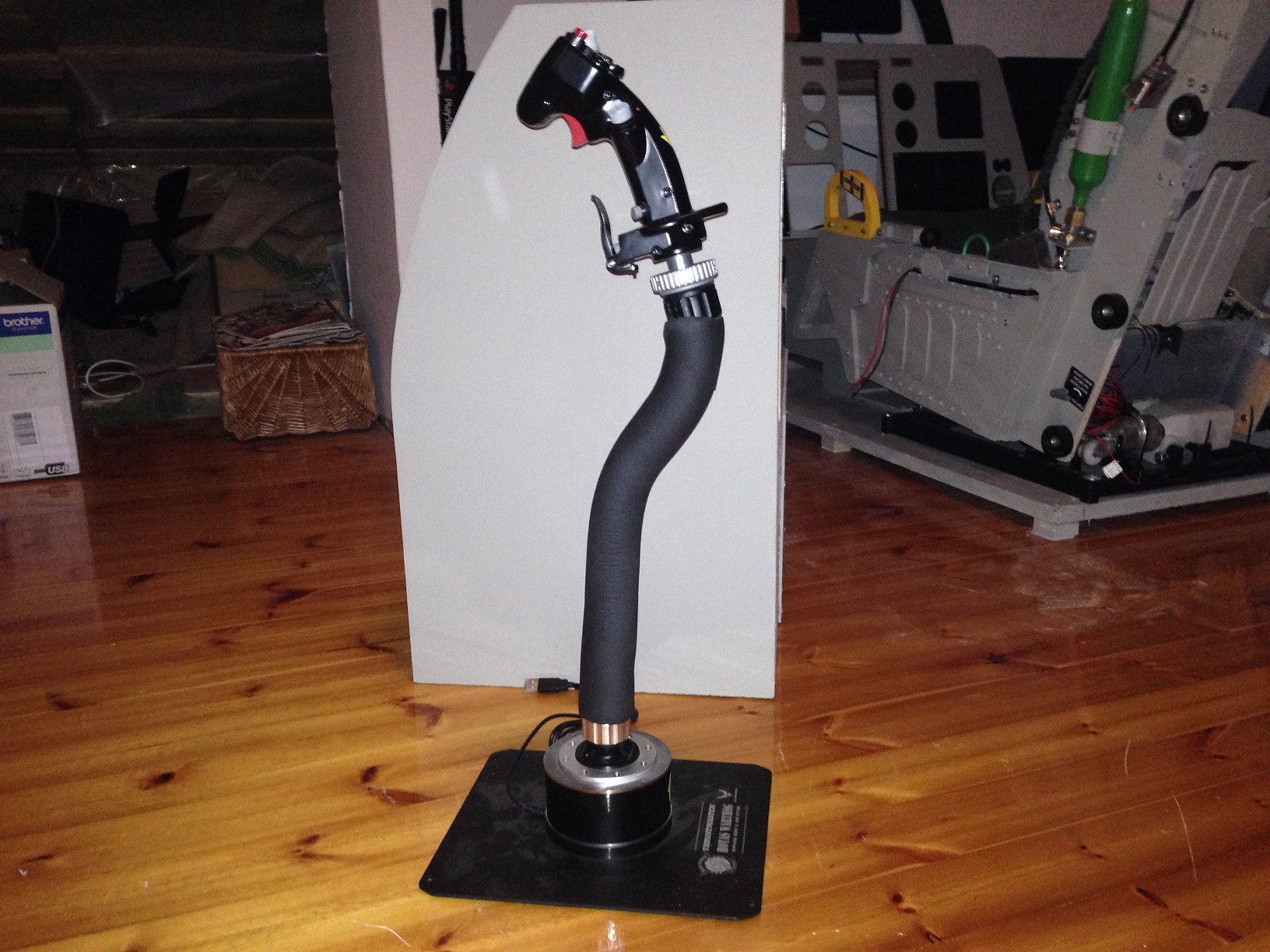

Hi to all. Nothing big have not happened in my pit... I just put all my stuff (Throttle, Rudders and Control stick) on their places and check that everything works. Well, everything seems to work how they should, but the control stick is "bit" of flabby. That is self-evident, cause of the extension height. (35cm) After all its very accurate, but I can´t push it full forward, cause it hits in my HELIOS monitor screen. I'm gonna buy the laser engraver next week, and I was thinking something like that: http://www.ebay.co.uk/itm/HIGH-SPEED-USB-CO2-LASER-ENGRAVING-CUTTING-MACHINE-ENGRAVER-ENGRAVING-m8/200690351192?_trksid=p2047675.c100011.m1850&_trkparms=aid%3D222006%26algo%3DSIC.FITP%26ao%3D1%26asc%3D22047%26meid%3D6155243166452935504%26pid%3D100011%26prg%3D9537%26rk%3D3%26rkt%3D10%26sd%3D400424417884 Is it worth of money???? And the another thing.... Is there somebody who uses freetrack and homemade "clip", and get it ACTUALLY to work? Mine freetrack is very tedious, I never get if focus it in my left or right it just gad´s for front or back. Never stay focused where I watch.:mad: So I think I may need TrackIR also. If it´s any better?:huh: One little picture::joystick: And @Deadman: Thanks for stickers, they are awesome!:thumbup:

Hi. Thanks for the kind words. Gus and MacFevre. I think you are right about of the "sub-lettering" backlit thing. But if you bend the Leds on my PCB down, (instead up) it should backlit the "sub-letters"??? :detective_2:??? MacFevre, here is Eagle drawings to YOU, and all of you who thinks that they need for it. :thumbup: UFC.rar Hope it works! If not, let me know. Some Info about the PCB... - It uses 6*6 matrix for the buttons and it is designed to use for Leo Bodnar BU0836. - For the Green LEDs, there is 12V. input. - The "Master Caution" button Leds are to connected to Open Cockpits mastercard (SIOC). Well, REV A is A REV A. :cry: I´ll do better one.:P Cheers. HarSu.

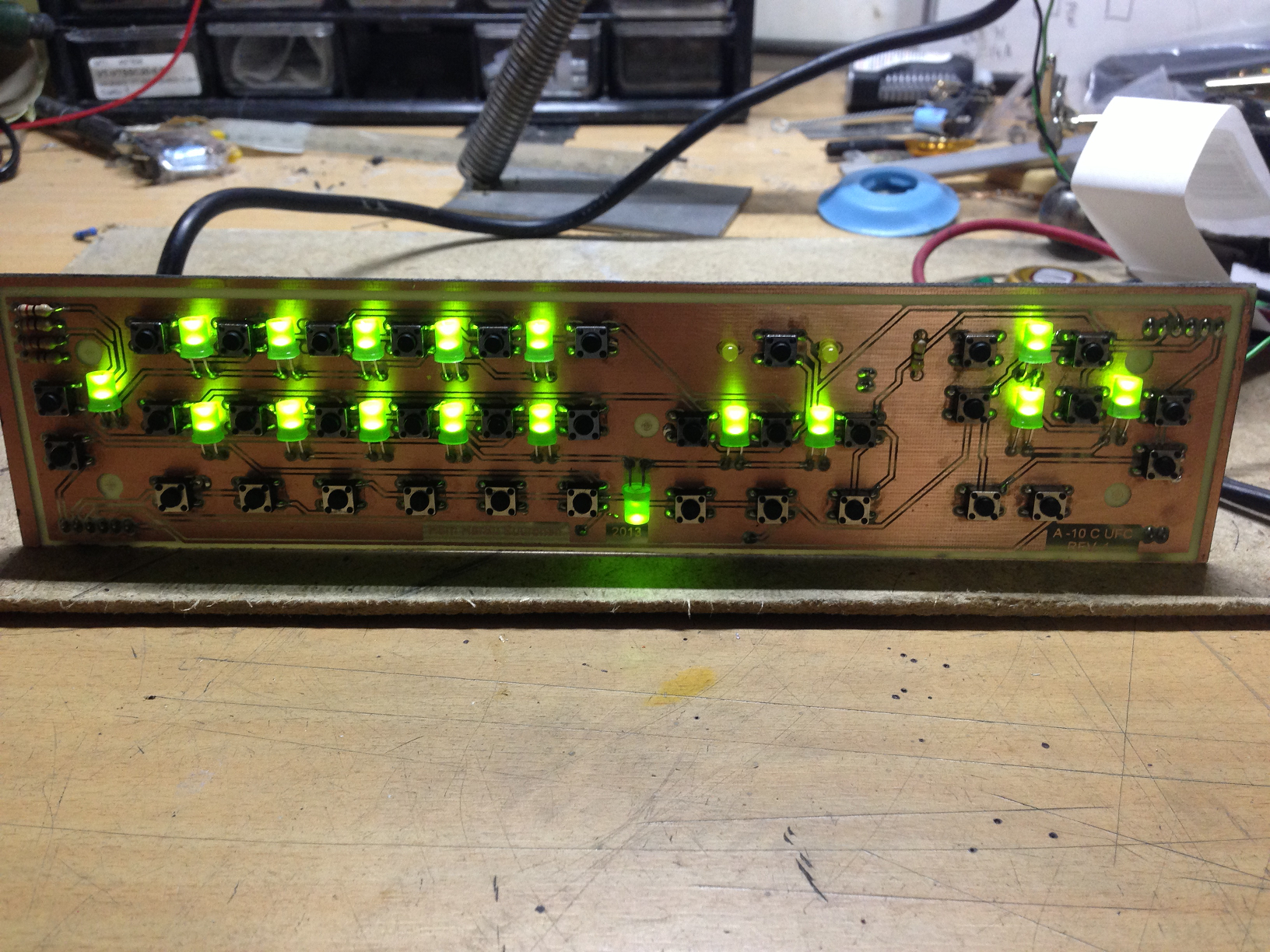

Hi to all! It has been a while for at last update, but I have been busy to learn how to make double sided PCB´s. Here is my first attempt of UFC, but I think that there is not enough LED´s for a good backlight. (At least the bottom row need some more LEDs. I think) And here is TM extension, I have not tested it yet, but It should work. At first I tryed to take an PS/2 cable from old keyboard, but the pins didn´t match for the TM pins, so I did build my own cable. :joystick: And here is my biggest problem. This picture is from my left side console at fully backlit. There are no switches yet, but as you can see, light comes through the center of the panels, there is not enough paint. So everything is going to be done again, or I have to figure out the better way to backlight my panels. :cry: All advice are wellcome. HarSu.

WoW! Looking good! What kind of switch did you use in Master Caution switch? Is it just a normal tactile micro switch with illumination? HarSu!

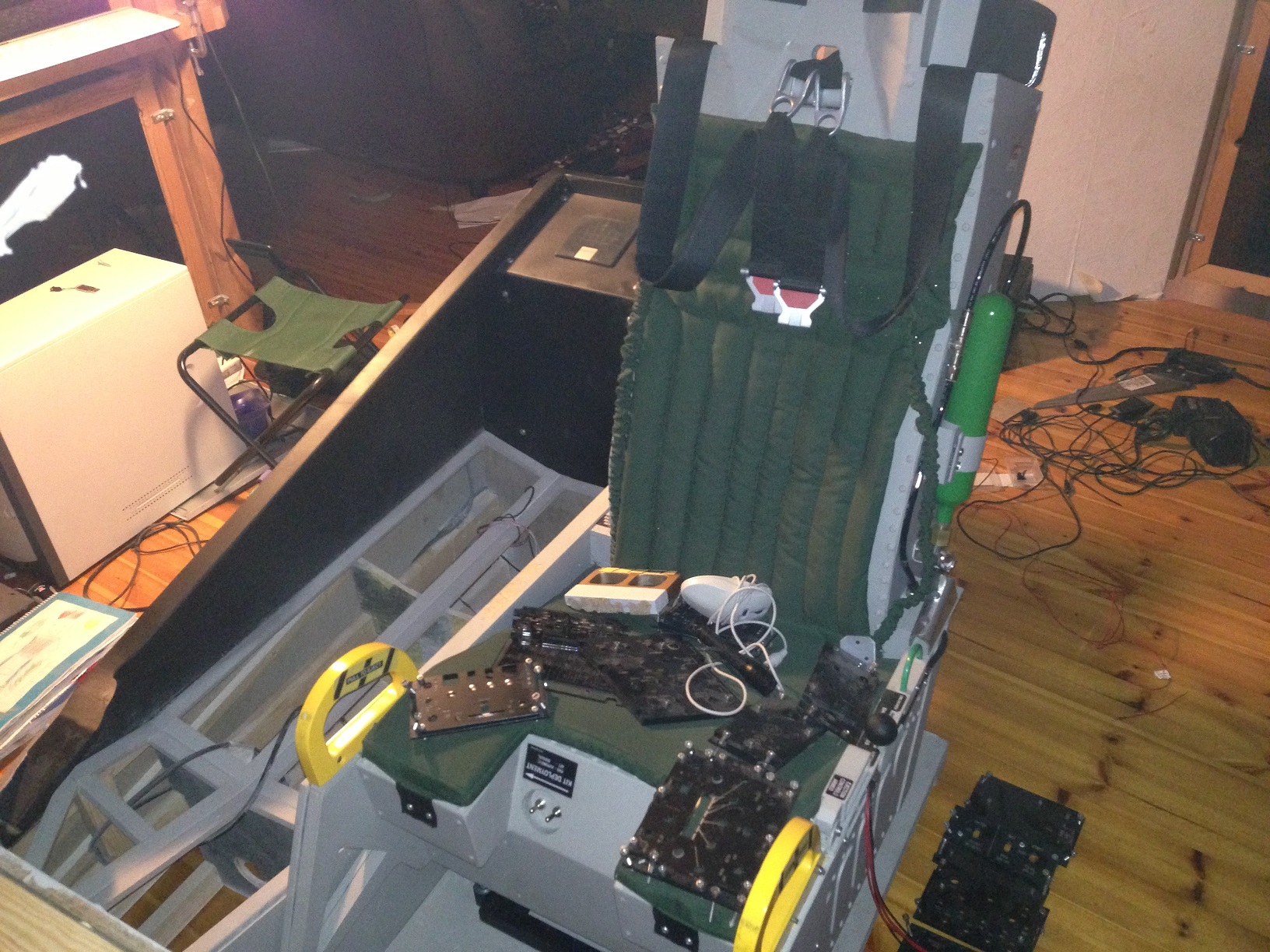

Hi! Little update of my cockpit.... I put two power sources in to my cockpit right side. The other one is normal ATX power source and the other one is 24V. Ring transformer that supplies power to my "aces II" motors. Here is some pictures how it looks like, it´s pretty dusty right now but I think it´s gonna look pretty good after I clean it up.... HarSu.

Hi. Thanks for advice :thumbup:, but it's nearly impossible to modify the gear system of the motor unless you build whole new casing to it.... Anyway, I managed to get my electronics to work so that the motor stops right when I release the switch, so there is no more "idle". Also I put one quite heavy spring in the mechanism that should help the motor to raise the seat. So far so good.:music_whistling: NOW, my next concern is The height of the control stick?:helpsmilie: I´m pretty sure that I saw those dimensions in Deadmans thread http://forums.eagle.ru/showthread.php?t=57846 or somewhere else like week or less ago, but now I can´t find them anywhere. It could be also possible that I have seen dreams.:P Cheers. HarSu.

Hi! I know this might be wrong forum to ask this kind of question, but ... anyways.:music_whistling: My problem is that, when I push my seat controller button to go down and release the button, my motors won´t stop running right away, but they keep rolling on "idle". So it is pretty impossible to get the point where you want your seat to be. So, I have 24V DC power source, and I´m going to use 1 DPDT On-Off-On switch to change polarity (UP and DOWN), and of course there is 2 limit switches. Can any one tell me how to CUT motor overrun (Idle)?:helpsmilie: I have read some Google stuff, that component called MOSFET can brake DC motor, but I didn´t find anything useful for my 24V. motors. If someone knows anything things like 24V. Dc motor braking, let me know. And YES, I know there is Arduino, But NOT yet, I have to learn something...:P HarSu.

Well, my second try was something like that , but there wasn't enough torque to lift up whole packet (Me and the seat) IF THE JACK was in lowest position. But if the jack was about 10 cm above of it´s lowest position, then it will lift up. But I do not have that much extra space to rise up my seat. Though I´m using the hospital bed motors, than real electric jack. HarSu.

Thanks Daedman.:thumbup: Yes, I noticed those measurements. I'm so jealous of your A-10a cockpit, wish I could have some opportunity to buy something like that here in Finland. HarSu.

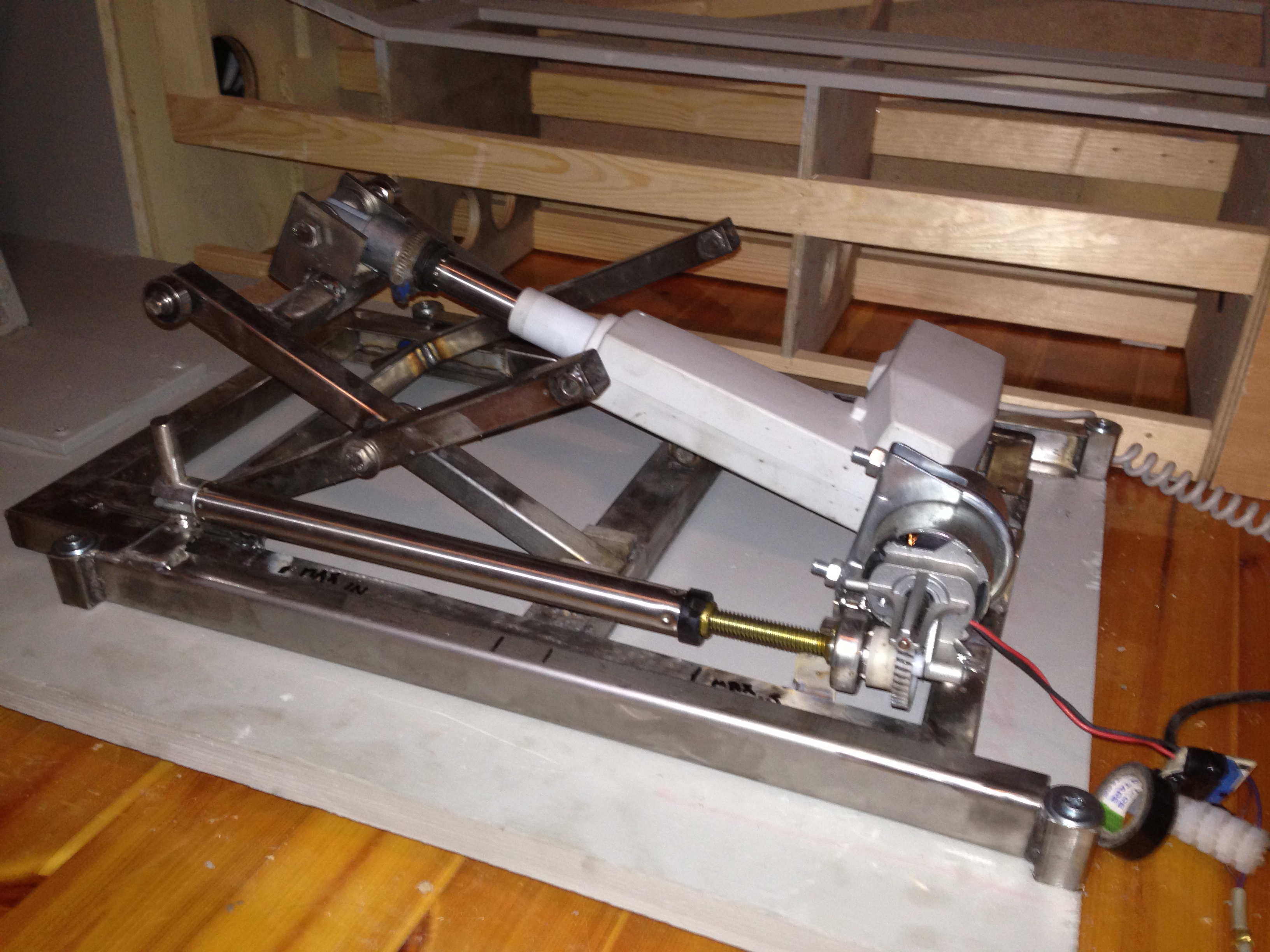

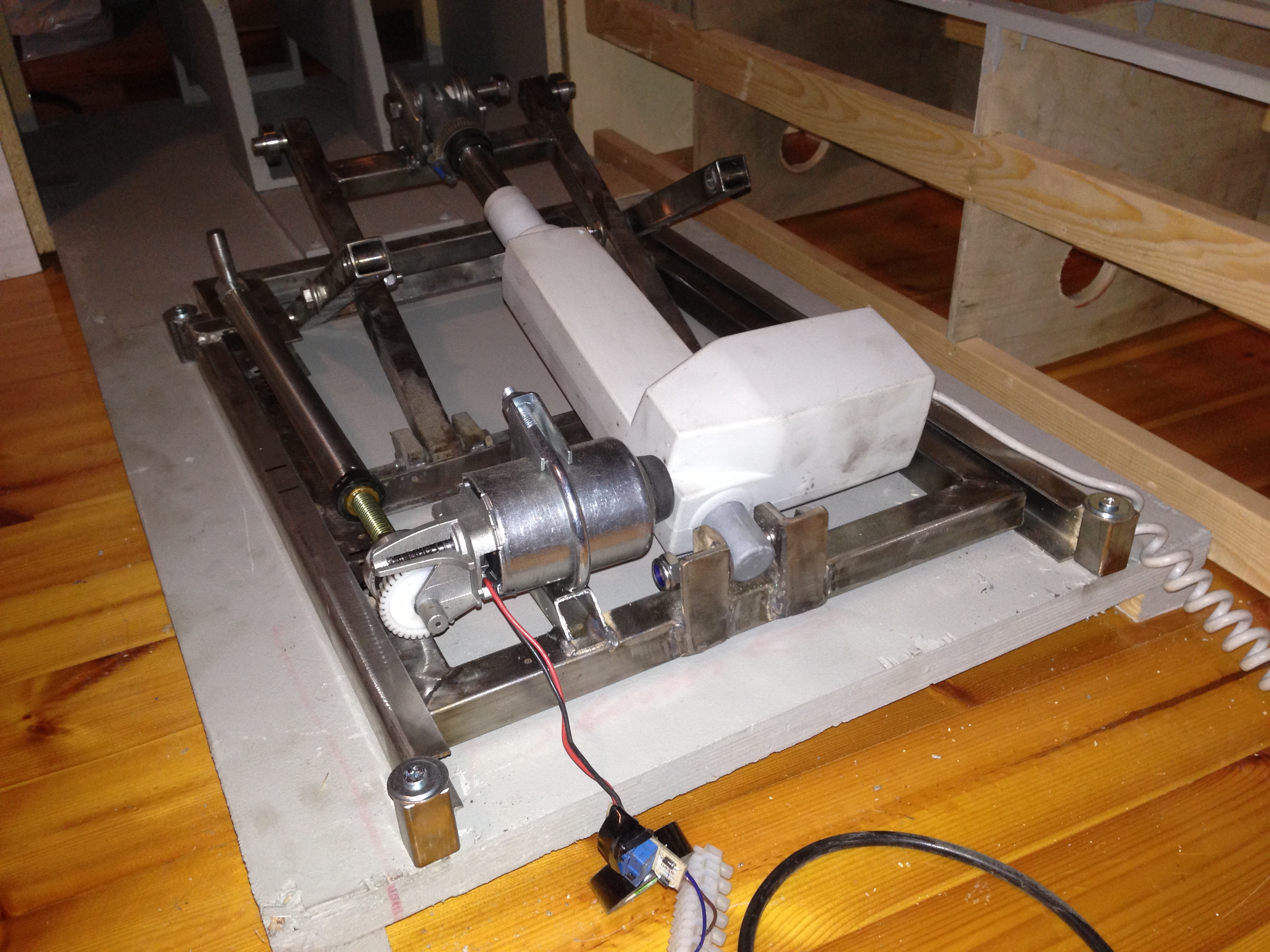

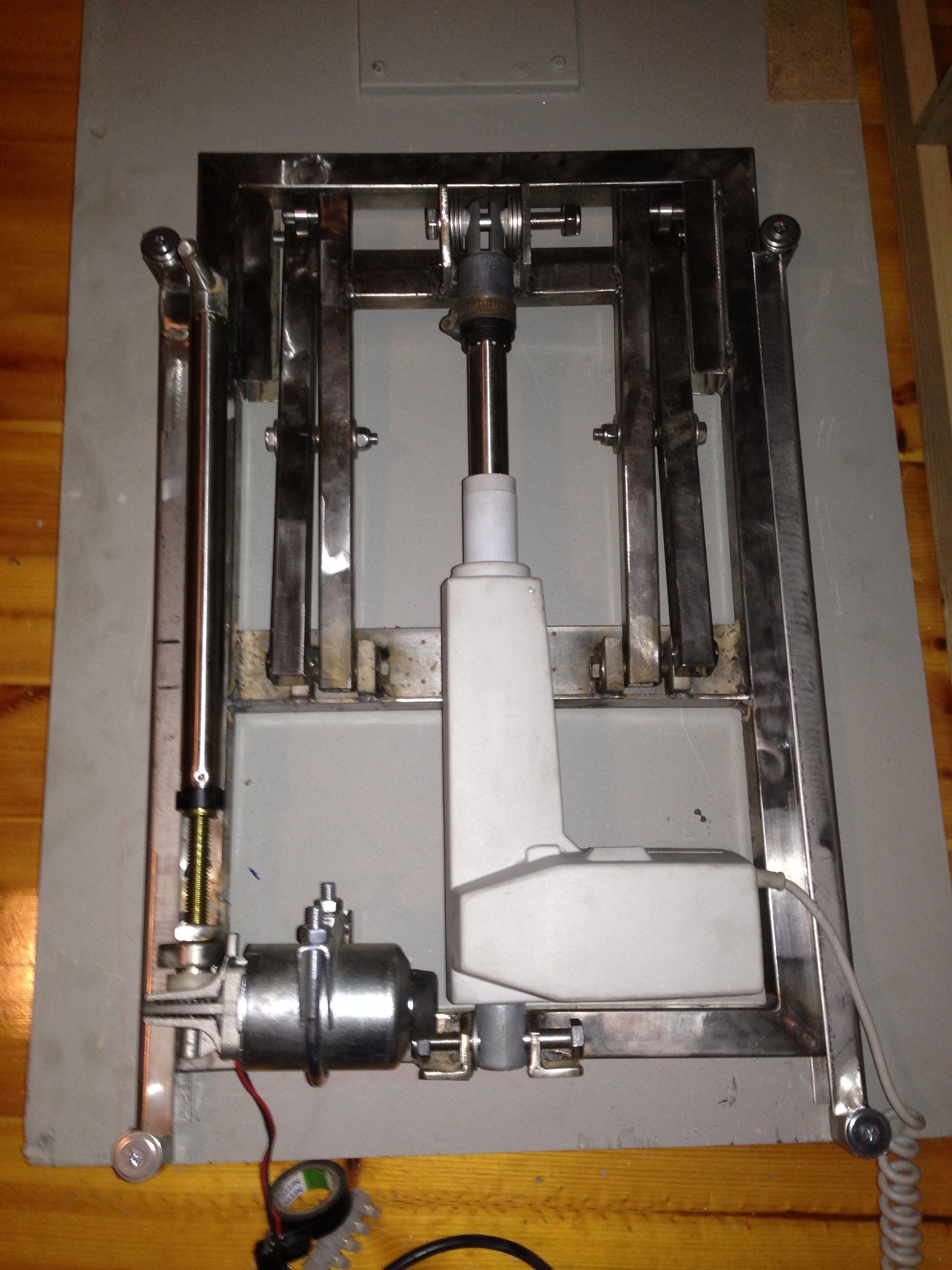

Hi! Little update for my "Aces II" movement mechanism. Actually this is version 3.:music_whistling: I have build 3 different types of lifting mechanism past week, and this one turned out to be most powerful and reliable.:thumbup: It needs some more electronics, but those arrive tomorrow. HarSu.
