Hi. Nice desing. Can you share information and files about the magnetic toggle system? Can it be made in 3 positions? how can I build like that one. thanks.

Is there a modified version of this MFD models for the F-16

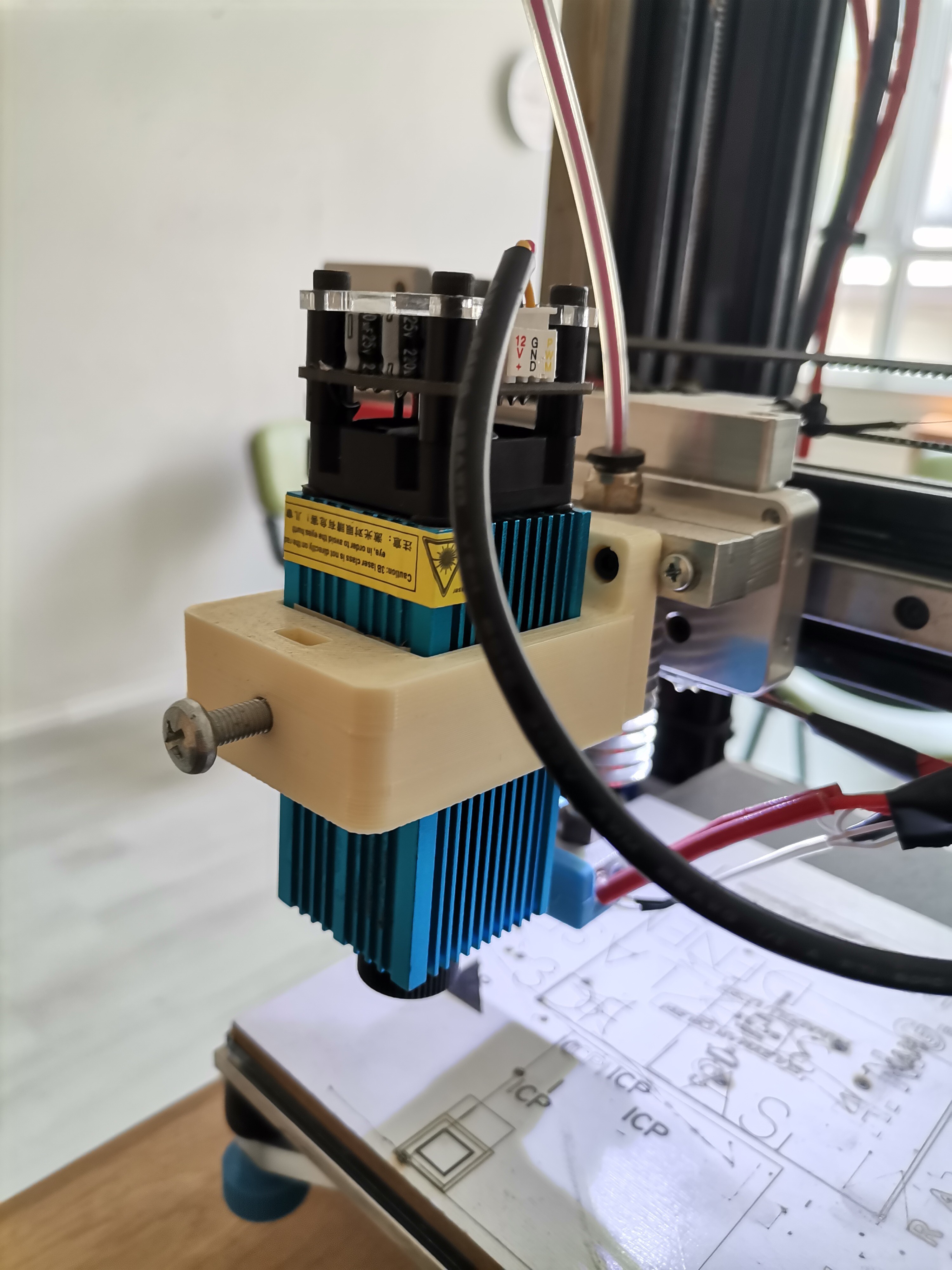

Thank you for sharing the settings. I tried to install Lightburn and experiment with similar settings, but I couldn't process because lightburn could not communicate with the 3d printer. We have a laser mounted on the 3d printer, so lightburn cannot communicate with the 3d printer's board. I think The quality of the laser is very important here. If the focus feeding is not done correctly and the laser quality is bad, the results are bad. I used an acrylic based spray paint. Also paint quality is another important thing. Maybe these parts can be scraped a little more difficult because they are glued too much.

Hello Dear Friend, there is a low watt diode laser at my workplace. I tried to get results, and I realized that the plan had melted away. What settings did you achieve this beautiful result and how many watts is the laser you are using? Is it possible to share your laser engraving software name and settings/profile? After engraving off the paint, I applied corrections using a hobby knife. My Aspire Settings: Tool ->Endmill diameter : 0.1 pass depth: 0.2 stepover: 0.1 spindle speed: 200 rpm (lazer power) feed rate : 6 Plunge rate : 3 Thanks.

Hi ivan, thank you for sharing your sample work. I also ordered a 3d printer for try to someting like your work. I don't know what kind of filament type and 3d printing settings I should use for the main body and light-permeable/translucend parts (black, white, main Body) of the Mfd buttons also military Panel knobs and what color I should paint them. Can you help with these issues? They are really beautiful, you did a good job.
