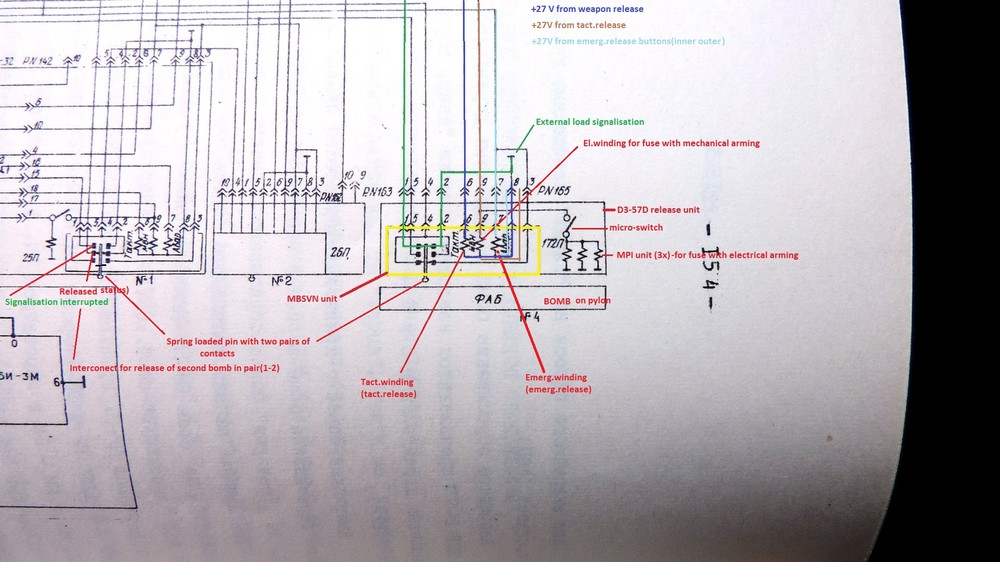

finger Posted April 16, 2015 Share Posted April 16, 2015 Hi all, A few words about bomb release modes. MAIN -TACTICAL RELEASE- by button WEAPON RELEASE,all bombs are dropped in ARMED status.(always) EMERGENCY-by two buttons EMERGENCY RELEASE INNER and OUTER. There is a choice between ARMED or UNARMED by switch TACTICAL RELEASE.Red light is ON or OFF. EMERGENCY with no pilot input(no release button).This is fully auto-release . In case that load is dropped(electrical or mechanical failure),automaticaly is released load from second pylon in pair(1-2 or 3-4). This el. circuit is powered stright from EMER.RELEASE in breakers section. Very quickly for start,I will by proceed tomorow. [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Eagle0110 Posted April 16, 2015 Share Posted April 16, 2015 Wow! Thank you for such amazing information!!! [sIGPIC][/sIGPIC] ---------------------------------------------------------------------------- Aircraft I have thoroughly studied: A-10C, Ka-50, Mig-21bis, UH-1H, Boeing 737-800/900, Dash-8Q400, Bell-407 ---------------------------------------------------------------------------- i7-8750H@2.2GHz 6 Cores turbo up to 4.1GHz, GTX1070 Max-Q@8GB GRAM, 16G RAM, 512G SSD, 500G SSD, CH Product Fighter Stick, TM Warthog Throttle, MFG Crosswind, TrackIR 5. Link to comment Share on other sites More sharing options...
Harle Posted April 16, 2015 Share Posted April 16, 2015 You sure have a nice stockpile of info on that plane. Link to comment Share on other sites More sharing options...
finger Posted April 16, 2015 Author Share Posted April 16, 2015 You sure have a nice stockpile of info on that plane. Yes a little bit + 10 yars of maintenance on 21MF. [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Flagrum Posted April 16, 2015 Share Posted April 16, 2015 ... EMERGENCY with no pilot input(no release button).This is fully auto-release . In case that load is dropped(electrical or mechanical failure),automaticaly is released load from second pylon in pair(1-2 or 3-4). This el. circuit is powered stright from EMER.RELEASE in breakers section. When pulling too much G, the stores separate from the aircraft. I always wondered, if this is just by overstressing the material or if there is some sort of failsafe mechanism at work. I can imagine that too much G can damage the weapons, the suspension, the pylons - there are immense forces at work on very small mechanical parts. But in DCS, we hear just the same *clunk* noise as if the stores were releases intentionally. Also there is no visible damage on the pylons. So my question is, is there a special mechanism that separates the stores in this case? Is the text I quoted perhaps describing exact that very mechanism? Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 When pulling too much G, the stores separate from the aircraft. I always wondered, if this is just by overstressing the material or if there is some sort of failsafe mechanism at work. I can imagine that too much G can damage the weapons, the suspension, the pylons - there are immense forces at work on very small mechanical parts. But in DCS, we hear just the same *clunk* noise as if the stores were releases intentionally. Also there is no visible damage on the pylons. So my question is, is there a special mechanism that separates the stores in this case? Is the text I quoted perhaps describing exact that very mechanism? This system (circuit)is primary designate for preserving transverse (yaw) stability of A/C. [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 D3-57D release unit. Before loading an external stores,must be this device mechanicaly locked-up by special key. [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 17, 2015 Author Share Posted April 17, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
finger Posted April 19, 2015 Author Share Posted April 19, 2015 [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
