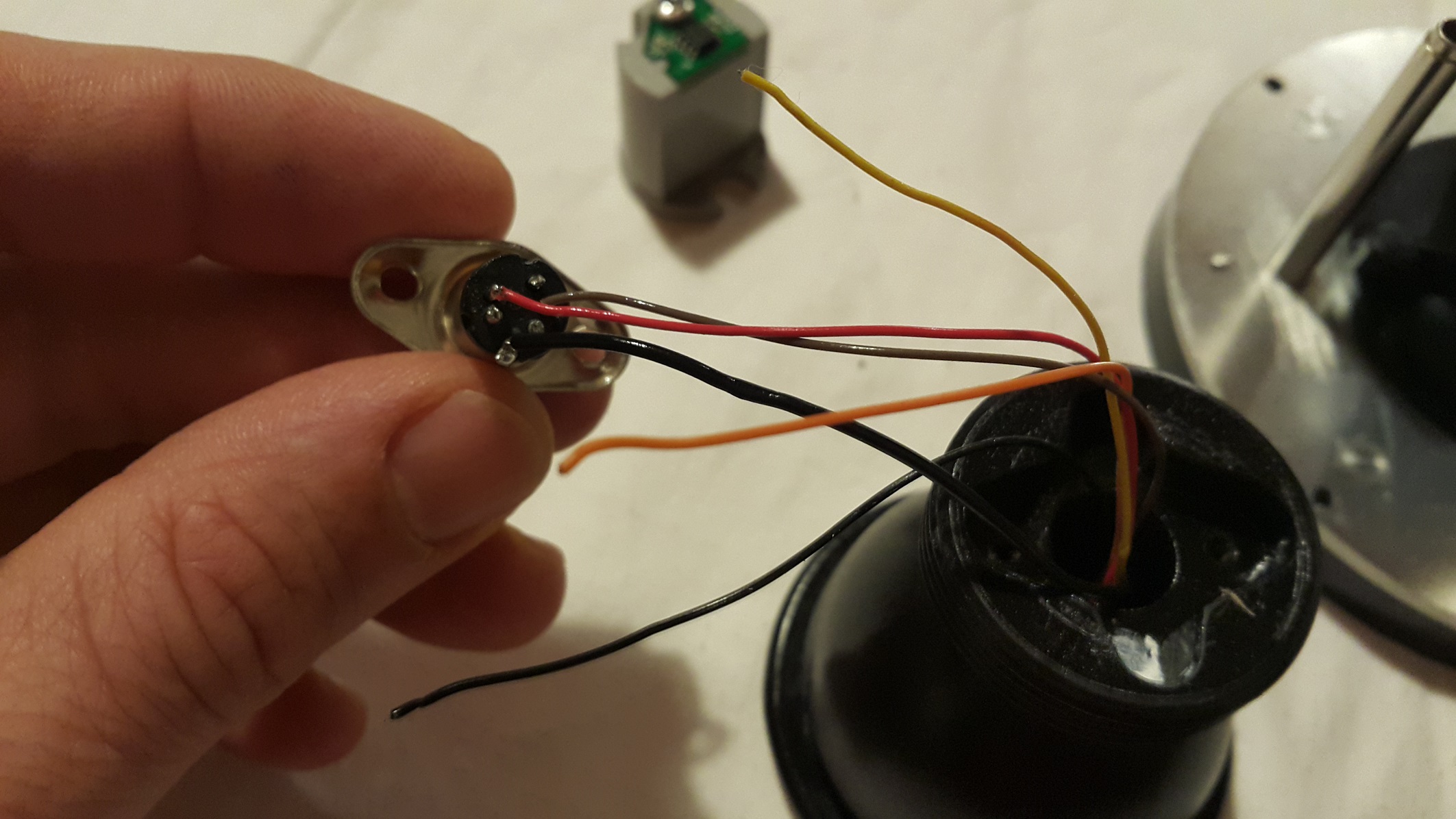

Ganesh Posted February 26, 2018 Posted February 26, 2018 Does anybody knows the Pin-assignment of the WH Stick? Need to solder the wires properly again ;) Thanks in advance regards Ganesh She: "Your orders from ED have reached a total amount of $ 1.168,94 and your hardware expenses are countless..." Me: "I can´t invest my money much better until i wait for Germanys Next Top Model": The Bo-105 PAH1A1 + Vulkan & continuous work on multithread & VR optimization! Asus Z490E - 10900k@5,3GHz - 64GB 3600 DDR4 - 4090FE - Reverb G2 - MFG Crosswinds +DamperMod - Selfmade TableMounts - Centered VirPil T-50 Base with 20cm Extension - TM Warthog & Hornet Grip - TM Throttle +SlewMod - Pimped MSFFB2 for Huey - JetSeat SE on a sawn out office Chair - PointCTRL
Нупь Posted February 26, 2018 Posted February 26, 2018 Ok google Asus Rampage V Extreme X99, i7-5930K, DDR4 16GB Crucial 2133MHz, WD SATA6 1000GB, GeForce Titan Black 6Гб, 23" 1920x1080, CM 1.2кВт, СМ Nepton 280L, TM Warthog Моя карта ТВД Кавказ, Невада https://www.digitalcombatsimulator.com/ru/files/3053906/
Ganesh Posted February 26, 2018 Author Posted February 26, 2018 Perfect! Thank you :thumbup: regards Ganesh She: "Your orders from ED have reached a total amount of $ 1.168,94 and your hardware expenses are countless..." Me: "I can´t invest my money much better until i wait for Germanys Next Top Model": The Bo-105 PAH1A1 + Vulkan & continuous work on multithread & VR optimization! Asus Z490E - 10900k@5,3GHz - 64GB 3600 DDR4 - 4090FE - Reverb G2 - MFG Crosswinds +DamperMod - Selfmade TableMounts - Centered VirPil T-50 Base with 20cm Extension - TM Warthog & Hornet Grip - TM Throttle +SlewMod - Pimped MSFFB2 for Huey - JetSeat SE on a sawn out office Chair - PointCTRL
Ganesh Posted February 26, 2018 Author Posted February 26, 2018 (edited) Ok google Ok, but not as good as first thought because i have a different wireing. e.g. i have no green and brown wire. So i searched google for myself an found a description that works for my "older one" serial Nr.234 back from 2010. I suppose, they've changed something over the years. If someone have the same model, here is a description from SimHQ that works great for me: http://simhq.com/forum/ubbthreads.php/topics/3707241/wiring-diagrams-for-tm-warthog ...if I hold the connector up so that I'm looking at the solder side of the part, and put the thicker black wire that connects to the metal case up top at 12:00, then going around clockwise I see thick black (12:00) grounding wire yellow red (3:00) thin black (6:00) gray orange (10:00) Edited February 27, 2018 by Ganesh english is not my native language;) regards Ganesh She: "Your orders from ED have reached a total amount of $ 1.168,94 and your hardware expenses are countless..." Me: "I can´t invest my money much better until i wait for Germanys Next Top Model": The Bo-105 PAH1A1 + Vulkan & continuous work on multithread & VR optimization! Asus Z490E - 10900k@5,3GHz - 64GB 3600 DDR4 - 4090FE - Reverb G2 - MFG Crosswinds +DamperMod - Selfmade TableMounts - Centered VirPil T-50 Base with 20cm Extension - TM Warthog & Hornet Grip - TM Throttle +SlewMod - Pimped MSFFB2 for Huey - JetSeat SE on a sawn out office Chair - PointCTRL
