Rotary Switch

[5ARTIST5]

Which rotary switches have you guys had good luck with? I'm planning to do my radio controls and I want to plan the rotary selection switches. What do you do when there are situations where there are 3 or 4 selection choices?

[BlacleyCole]

Do you want rotary encoders potentiometers or rotary switches? I use rotary encoders from either leobodnar.com or all electronics.com

[Hansolo]

Depends what you want to really but an option is to go for something like this; https://www.ebay.com/itm/1pcs-AC-125V-RS26-1-Pole-Position-12-Switch-Band-Rotary-Channel-Thread-Plastic-M/152357374281?epid=508922262&hash=item2379350949:g:KPkAAOSwJ7RYUm1g

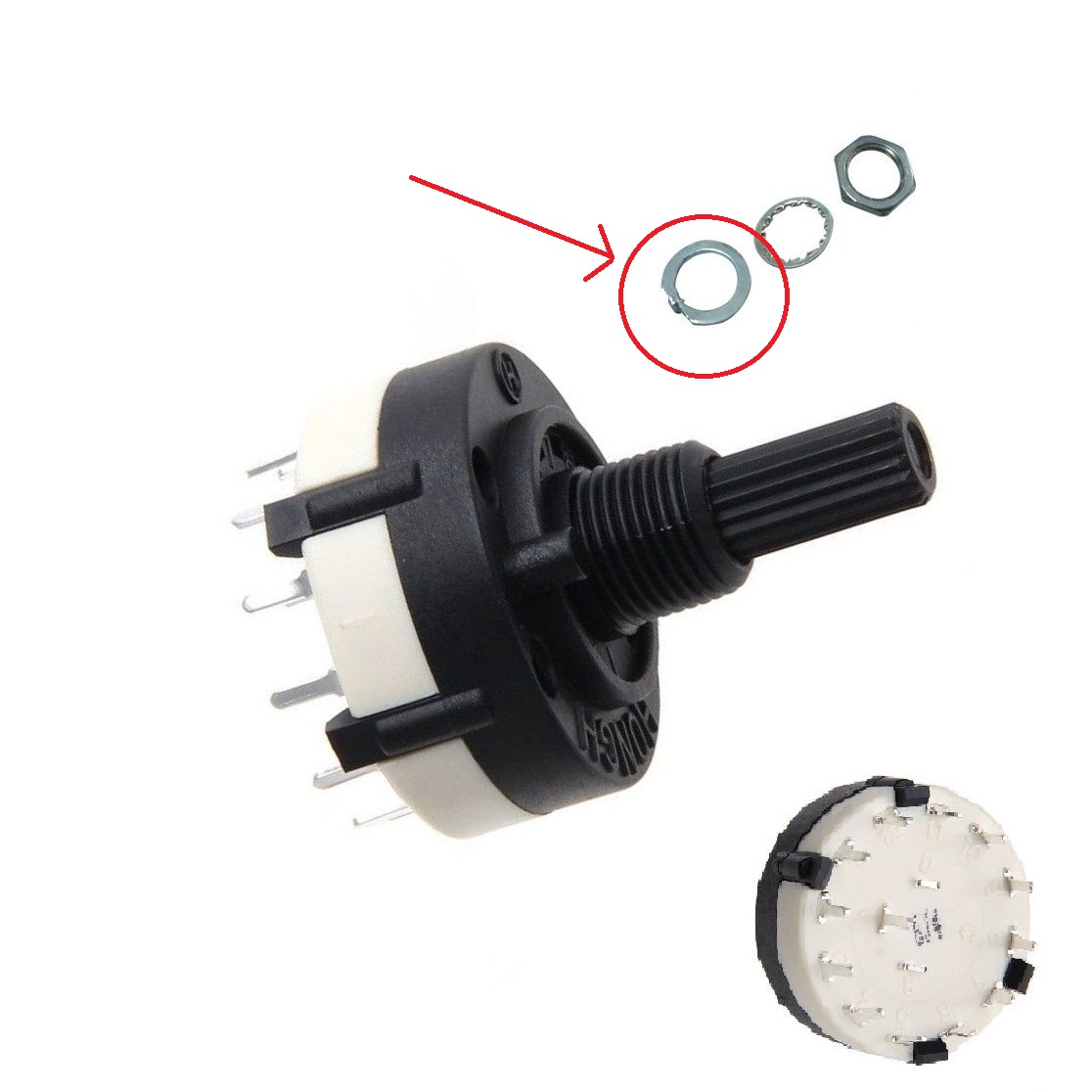

These ones are 12 position but there is a washer with a tap so that you can lock how many positions you want. I have marked the washer in the attached photo.



Cheers

Solo

[5ARTIST5]

Depends what you want to really but an option is to go for something like this; https://www.ebay.com/itm/1pcs-AC-125V-RS26-1-Pole-Position-12-Switch-Band-Rotary-Channel-Thread-Plastic-M/152357374281?epid=508922262&hash=item2379350949:g:KPkAAOSwJ7RYUm1g



These ones are 12 position but there is a washer with a tap so that you can lock how many positions you want. I have marked the washer in the attached photo.



Cheers

Solo



Cool, that looks like a cool way to go.



I would like to check out rotary encoders for spots that would otherwise be potentiometers.

From what I have read on here there are some problems with potentiometersbeing too noisy?

[BlacleyCole]

True check out Leo Edgar.com they have both for sale. I use there encoders when I can’t get the shaft mount elsewhere
